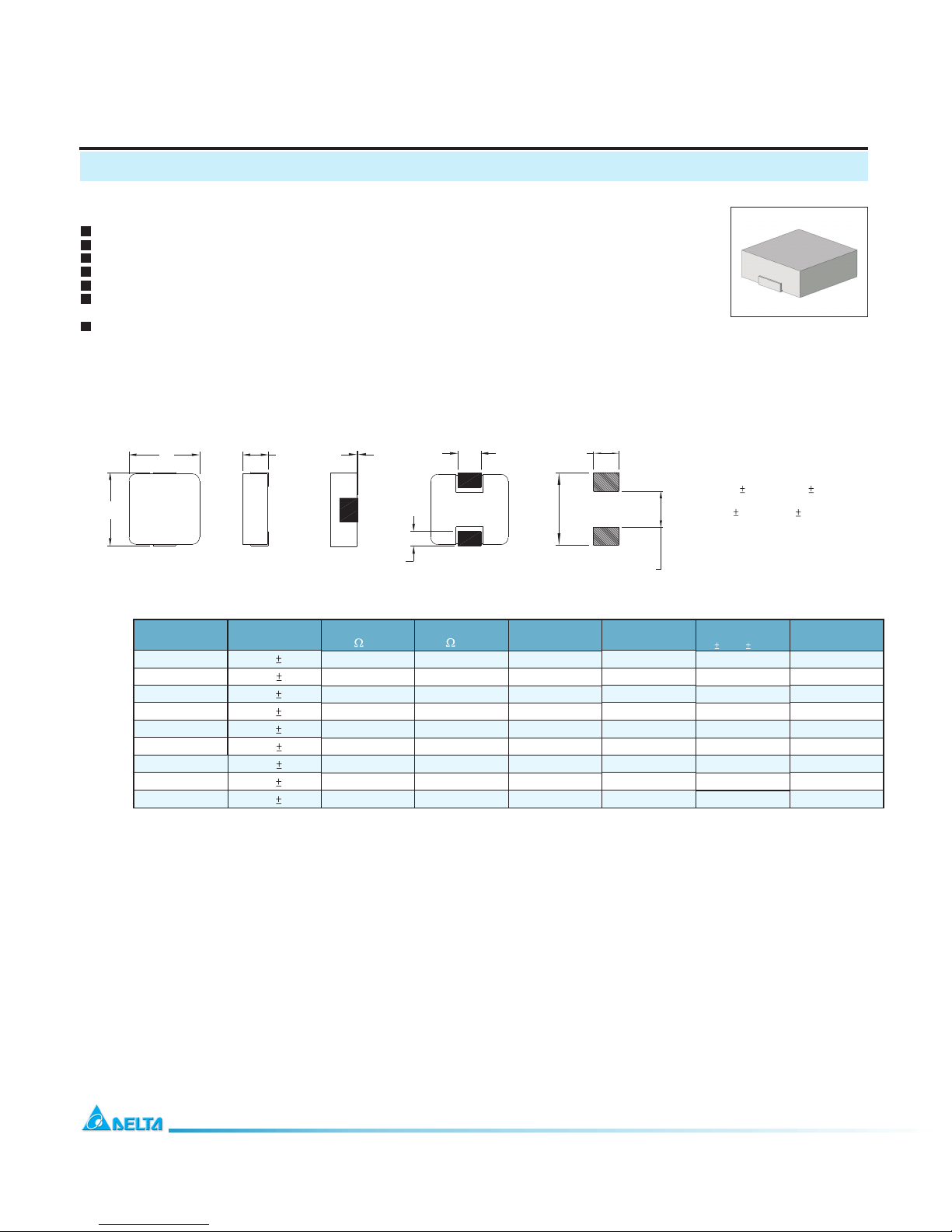

Delta Electronics MPO10X User manual

SMT Power Inductor (MOLDING TYPE)

MPO10X Type

Mechanical Dimension:

RoHS compliant.

available to meet your exact requirements.

Low profile, high current(lsat up to 54A) SMD type.

Magnetically shielded, suitable for hight density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here, custom inductors are

Features

Electrical Characteristics:

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

At 25 : 100KHz, 0.25V

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

146

MPO1035-R68 0.68 20% 2.40 2.80 38 25 2.3 / 0.091 3.5 / 0.138

MPO1035-1R0 1.00 20% 3.35 3.80 26 21 2.0 / 0.081 3.5 / 0.138

MPO104-R36 0.36 20% 1.10 1.20 45 30 3.5 / 0.138 4.0 / 0.157

MPO104-R45 0.45 20% 1.10 1.20 35 28 3.5 / 0.138 4.0 / 0.157

MPO104-R56 0.56 20% 1.60 1.80 36 25 3.0 / 0.118 4.0 / 0.157

MPO104-1R0 1.00 20% 2.80 3.00 30 21 2.3 / 0.091 4.0 / 0.157

MPO104-1R5 1.50 20% 3.80 4.20 33 20 2.3 / 0.091 4.0 / 0.157

MPO105-R36 0.36 20% 0.82 0.90 54 40 3.5 / 0.138 5.0 / 0.197

MPO1065-R36 0.36 20% 0.72 0.80 50 41 3.5 / 0.138 6.5 / 0.256

Isat

(Adc)

Irms

(Adc)

Dimension "D"

mm / inch

MAX

Dimension "C"

mm / inch

0.5 / 0.02

PART NO.

(uH)

DCR

(m ) TYP.

DCR

(m ) MAX.

UNIT : mm/inch

A =11.50 /0.452 Max.

B = 10.00 0.254 / 0.394 0.010

E = 0.01/ 0.0004 Min.

F = 2.30 0.30 / 0.091 0.012

6.4/0.252

12.0/0.472

4.2/0.165

1. Lo is the initial inductance.

2. Isat is the DC current which cause the inductance drop approximately 20% of its nominal inductance without current.

3. Irms is the DC current which cause the surface temperature of the part increase approximately than 40 C.

4. Operating temperature : -55 C to 125 C ( including self-temperature rise ). Circuit design, component placement,

PWS trace size and thickness, airflow and other cooling component can affect the surface temperature of the part.

Please verify the temperature of the part in the end application.

RECOMMENDED PAD PATTERNS
