RECOMMENDED PAD PATTERNS

D1.6 / 0.063

2.34 / 0.092

3.32 / 0.131

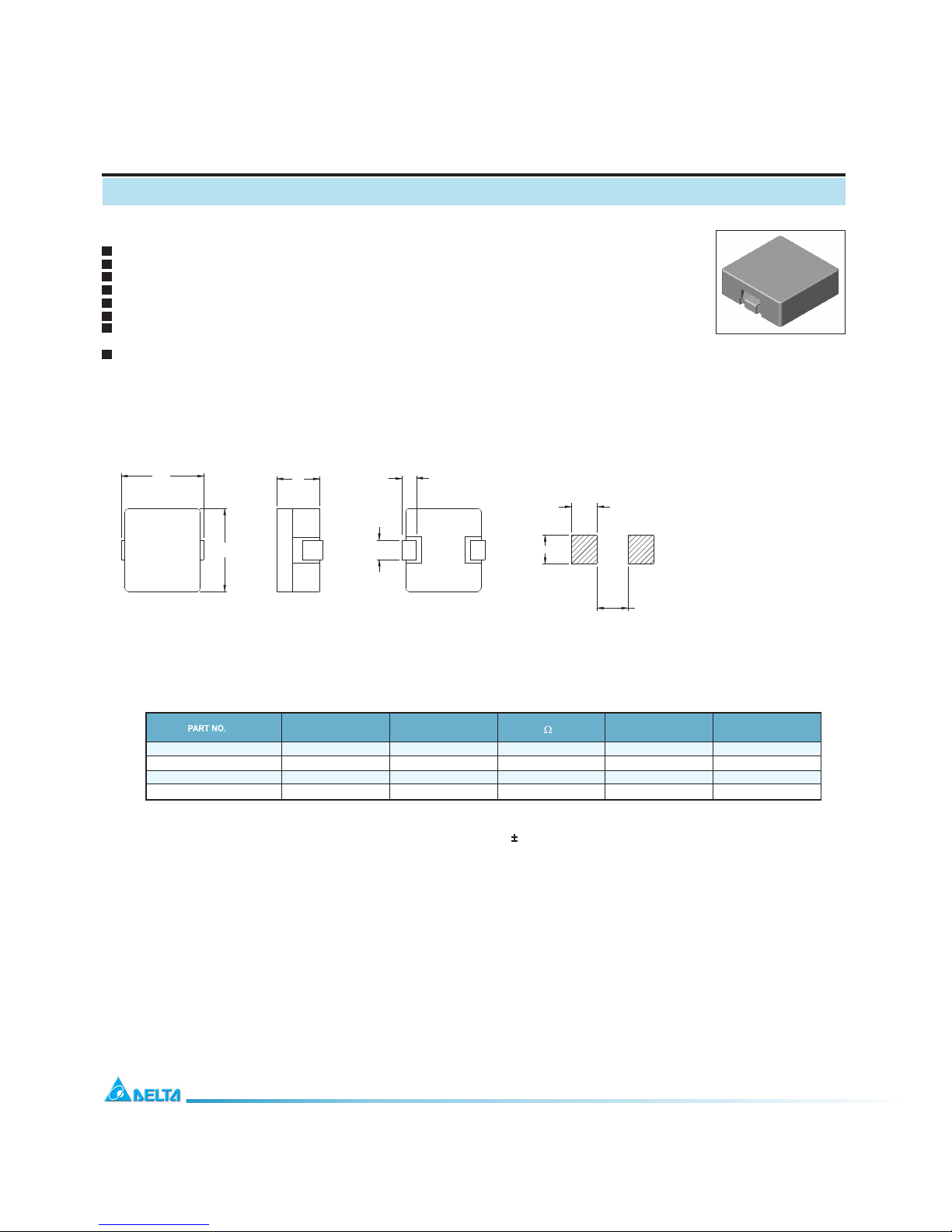

Mechanical Dimension :

Features

At 25 C, 100KHz, 1V

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

SMT Power Inductor

HAH65 Type

Electrical Characteristics :

UNIT : mm/inch

A = 7.90/ 0.311 Max.

B = 7.00 /0.276 Max.

C = 5.00 /0.196 Max.

D = 1.40/ 0.055

E = 1.90/ 0.075

rms

(uH)

(Adc)

(m ) MAX

DCR

sat

(Adc)

1. Lo is the initial inductance and the tolerance of inductance is 20%.

2. Isat is the DC current which cause the inductance drop to Li.

3. Irms is the DC current which cause the surface temperature of the part increase less than 45 C.

4. Operating temperature : -40 C to 125 C ( including self-temperature rise ).

RoHS compliant.

Low profile, SMD type.

High current.

Magnetic shielded.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter, DC-AC inverters

inductor applications.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

HAH65-R68 0.68 0.60 3.2 22.0 17.0

HAH65-1R0 1.00 0.80 4.7 15.0 16.0

HAH65-1R5 1.50 1.20 5.5 16.0 15.0

HAH65-6R0 6.00 6.00 18.0 3.0 5.5
