IMPORTANT

The wires in the mains lead are coloured in accor-

dance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this

appliance may not correspond with the coloured

markings identifying the terminals in your plug, pro-

ceed as follows:

The wire which is coloured blue must be connected to

the terminal which is marked with the letter N or colou-

red black.

The wire which is coloured brown must be connected

to the terminal which is marked with the letter L or

coloured red.

A)If your appliance comes fitted with a plug, it will

incorporate a 13 Amp fuse. If it does not fit your

socket, the plug should be cut off from the mains

lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut off

plug after removing the fuse: do not insert in a 13

Amp socket elsewhere in the house as this could

cause a shock hazard.

With alternative plugs not incorporating a fuse, the

circuit must be re-fitted when changing the fuse

using a 13 Amp Asta approved fuse to BS 1362. In

the event of losing the fuse cover, the plug must

NOT be used until a replacement fuse cover can be

obtained from your nearest electrical dealer. The

colour of the correct replacement fuse cover is that

as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please fol-

low the instructions provided below:

ELECTRICAL CONNECTION (U.K. ONLY)

0.6m

Fig.2

ELECTRICAL CONNECTION

-Before plugging in the heater, check that the voltage of your domestic supply corresponds

to the voltage (V) indicated on the rating label of the heater and that the socket and power

line are appropriately dimensioned.

-THIS APPLIANCE COMPLIES WITH EEC DIRECTIVE 89/336, RELATING TO ELECTRO-

MAGNETIC COMPATIBILITY.

-When you plug in the appliance, the red pilot light will illuminate (Fig. 1).

INSTALLATION

The appliance requires no installation; it should be used solely as a portable appliance on

an horizontal surface.

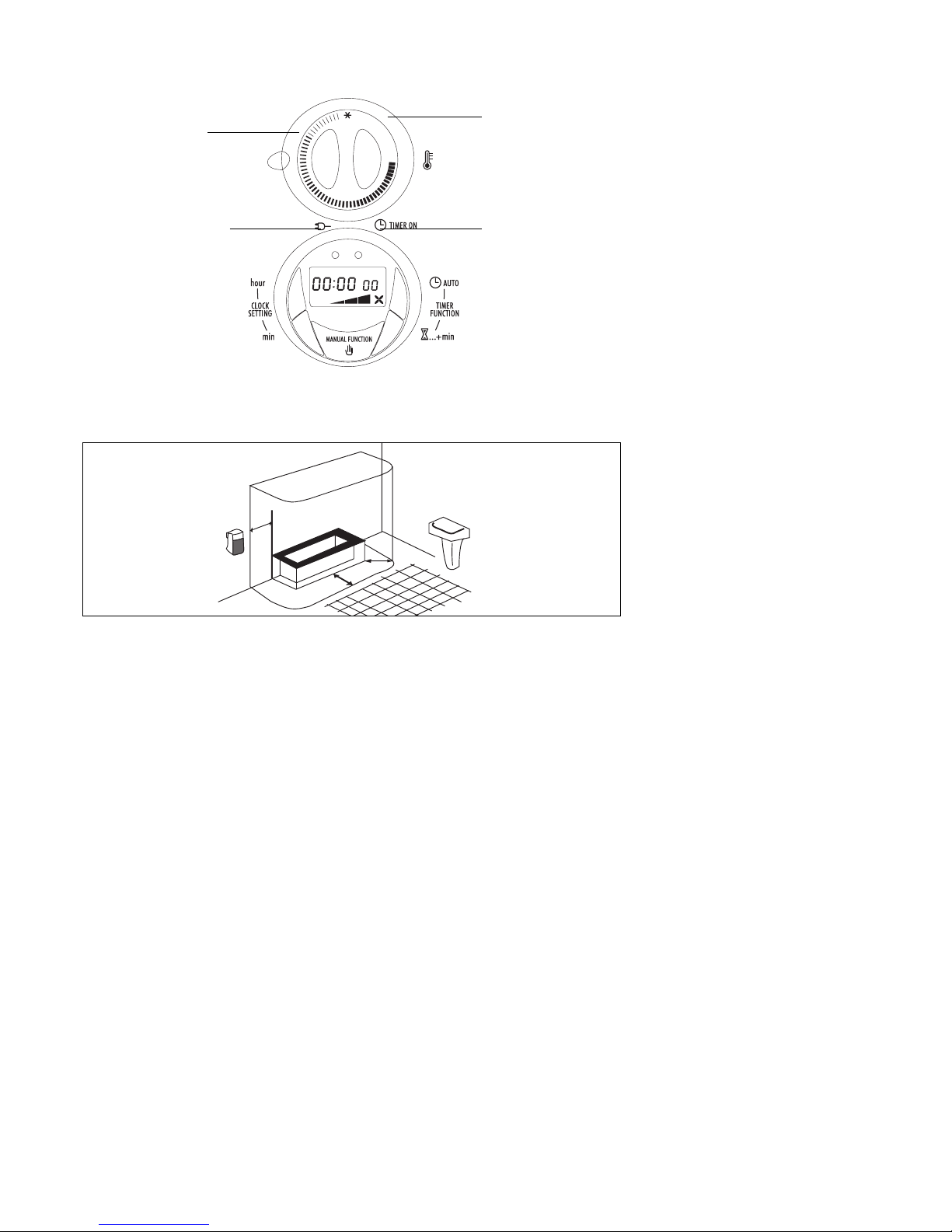

The appliance must be installed outside of the prescribed protective volume (Fig. 2) and in

any case away from bathtubs, showers, washbasins, taps, etc.

The appliance must not be positioned directly underneath a fixed power

point.

OPERATION AND USE

1) SETTING THE CLOCK

For the first time, set the clock to the correct time, proceeding as follows:

•Press the button “hour” until the display shows the hours for the correct time, then relea-

se the button (fig.1).

•Press the button “min” until the display shows the minutes for the correct time, then relea-

se the button (fig. 1).

When setting the correct time, the numbers will flash on the display.

The flashing of the numbers will continue for a few seconds after the adjustment has finished

then stop on the correct time and the clock start working.

(Keep both pushbuttons pressed for more than 3 seconds to move through the hours and minu-

tes in fast mode).

To change the time, press pushbuttons “hour” for at least 5 seconds, then proceed as above

to modify both hours and minutes.

2)ON/OFF FOOT SWITCH

This appliance is also fitted with a foot switch on the base. Press the foot switch (Fig.2) to start all

functions, including the timer function. When the foot switch is pressed, the pilot light on the

base will turn on. To switch it off, simply press the foot switch again (pilot light off ).

3)MANUAL FUNCTIONING

To operate the heater without timer press the “MANUAL FUNCTION” button. (Fig. 1). By

pressing the “MANUAL FUNCTION” button one or more times, the appliance will select the

operating heating power, as follows:

correct time

See rating label

Voltage Wattage

°C

AUTO

room temperature

Fig.3

foot switch pilot light

Maximum power

Medium power

Minimum power

Fan only

(summer opera-

tion)

Off

¡C

MAN

°C

AUTO

°C

MAN

¡C

MAN

If Maximum power has been selected, adjust the thermostat dial to the desired comfort tempe-

rature, from 5°C to 35°C. By turning the thermostat dial the display will show the selected

temperature. In addition, the smaller characters on the right-hand side of the display will indi-

cate the actualroom temperature (see figure)

This heater has Electronic Climate Control which automatically monitors and selects the ideal power

setting to maintain your chosen temperature.

If the selected temperature is higher than the actual room temperature, the appliance will start automa-

tically and rapidly heat the room until it reaches the selected temperature. The unit will automatically

maintain the temperature at a constant level, by switching between maximum, medium and minimum

power. If the room temperature exceeds the selected temperature level, the appliance will switch off.

The appliance will switch on automatically again when the room temperature falls below the selected

temperature level.

If medium power level has been selected using the “MANUAL FUNCTION” button, the appliance

will modulate between medium and minimum power to maintain a selected temperature.

FROST STAT FUNCTION

Press the “MANUAL FUNCTION” button and it is recommended to select the maximum power

level.Set the thermostat dial to the “ ” position (Fig. 1). The display will show 5°C (see figure

below).When set in this way, the appliance will switch on automatically only if the room temperature

falls below 5°C, to prevent freezing, at minimum energy consumption. If the temperature display will

show ”LO”.

N.B.This function is not guaranteed in the event of power failures, lasting more than 2 minutes.

°C

MAN

room temperature

set temperature

°C

MAN

°C

AUTO

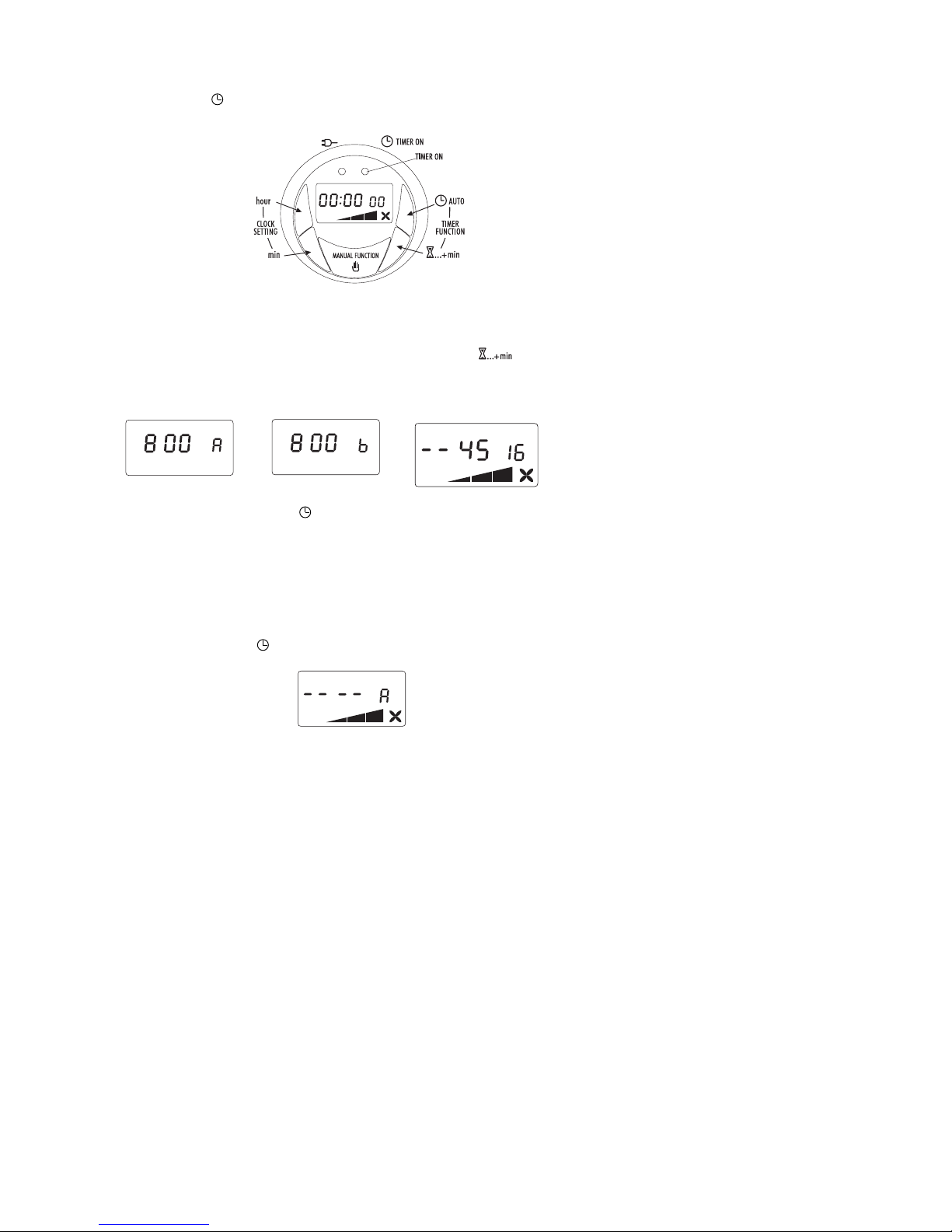

PROGRAMMING THE ELECTRONIC TIMER

The timer allows you to set 2 programmes in a 24 hour period to programme the timer.

1-Press the button “ AUTO” (fig. 4), this accesses the 1st programme (programme A).

The yellow timer ON lamp will light up.

2Set the start time for your programme by pressing the “hour button” to set the hour and the

“min” button to set the minutes.

3-To select how long you require the heater to be on, push button “ “ and push repea-

tedly until your chosen operating timespan appears. The time periods you are able to

choose from are (15’, 30’, 45’, 1hr, 2hr, 4hr (max).

4- To set programme B, press the ” AUTO” button again and then proceed as above to

select the start hours and minutes. The set time will be the same as for the first programme.

When the operating time is changed, the time of both programmes is updated

5-- Use the thermostat dial to set the desired comfort temperature, as described above.

6-When set in this way the appliance will automatically switch on at the set time and automa-

tically maintain the preset comfort temperature. Check that the foot switch is on. To cancel

a programme, press the “ AUTO” button and then the ”hour ” and “min” buttons until

the display shows (see Fig.)

TIMER OVERRIDE

To operate the appliance without using the programmes (timer), press the “MANUAL FUNC-

TION” button (Fig.1). The yellow lamp will go off.

IMPORTANT:

If the heater looses its electricity supply for more than 2 minutes the appliance does not switch

on. The display shows the blinking numbers.

°C

AUTO

MANAUTO

°C

spia accesa

Fig.4

MAINTENANCE

-Always unplug the appliance from the electrical outlet before beginning any cleaning ope-

rations.

-Regularly clean the air intake and outlet grilles during the appliance’s operating season.

-Never use abrasive powders or solvents.

WARNINGS

You must leave the heater plugged in and switched on at the mains socket to keep the heaters

memory programmed.

If you do not require the heater to operate in accordance with the timed programmes simply

switch the foot switch off, or operate via the “MANUAL FUNCTION” button.

If the heater looses its electricity supply for more than 2 minutes, e.g. switched off at the

mains socket or in the event of a power failure, the heater’s programmes will be lost, and the

heater will not work until reset.

WARNINGS

As with any electrical apppliance, whilst the instructions aim to cover as many eventualities as pos-

sible, caution and common sense should be applied when operating your heater, particularly in the

vicinity of young children.

-Do not install the appliance in humid environments or near showers, bathtubs, washba-

sins, pools, etc.

-Always use the appliance in the upright position only.

-Do not use the appliance to dry washing, do not block the air intake and outlet grilles

(danger of overheating).

-No furniture or other objects must be placed within a space of 50cm in front of the

appliance.

-When the appliance is used in the portable version, do not operate it next to walls, furni-

ture, curtains, etc.

-The appliance must be installed so as the switches and other controls are out of the reach

of persons in the bathtub or shower.

This appliance comes with a Y-type connection. If the power cable is damaged, it must be replaced

by the manufacturer, an authorised service centre or a qualified electrician in order to eliminate all

risk.

-Do not cover the appliance during operation, to prevent the risk of fire.

-Do not use this appliance in a room whose floor area is less than 4 m2.

-The use of an extension lead is not reccommended, as overheating of the extension lead

may occur during the operation of the heater.

A safety device switches the heater off in the event of accidental overheating, and an audible

alarm signals the fault (e.g. blocked air intake and outlet grilles, motor that does not rotate or

rotates too slowly). To restart the heater, unplug it for a few minutes, remove the cause of the

overheating, and then plug it back in.

Other manuals for FAN HEATER

This manual suits for next models

Table of contents

Other DeLonghi Heater manuals

DeLonghi

DeLonghi TRRS0715E User manual

DeLonghi

DeLonghi TRRS Series User manual

DeLonghi

DeLonghi TRDX40820E User manual

DeLonghi

DeLonghi TRD40615EBKCA User manual

DeLonghi

DeLonghi Heater User manual

DeLonghi

DeLonghi HCM2030 User manual

DeLonghi

DeLonghi DRAGON 4 User manual

DeLonghi

DeLonghi TCH8093ER User manual

DeLonghi

DeLonghi HTF3033 User manual

DeLonghi

DeLonghi TRRS0715ECA User manual

DeLonghi

DeLonghi HFX65 Series User manual

DeLonghi

DeLonghi HFX60 Series User manual

DeLonghi

DeLonghi TCH8093ER User manual

DeLonghi

DeLonghi HTF 3031 Troubleshooting guide

DeLonghi

DeLonghi Electric oil Filled Radiator User manual

DeLonghi

DeLonghi HFS50D15 User manual

DeLonghi

DeLonghi V550715 User manual

DeLonghi

DeLonghi HTX0607P User manual

DeLonghi

DeLonghi HFX25S20 User manual

DeLonghi

DeLonghi TRD4 0615E User manual

DeLonghi

DeLonghi DFH2550TB User manual

DeLonghi

DeLonghi BBH200 User manual

DeLonghi

DeLonghi HOR KH770715CB User manual

DeLonghi

DeLonghi Vento V550715.BG User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
