DeLonghi Dragon HM3 User manual

instructions

Please retain these instructions for future reference

Dragon HM3

Oil Filled Radiator

with electronic climate control

Description of Appliance

The following terms are used throughout the instruction manual

Fig.1

Thank you for choosing this De’Longhi radiator. To get

the very best out of your new radiator it is advisable to

read these instructions before using it.This will ensure

that you gain optimum results and use the appliance

safely.

General instructions

Take the radiator out of its packing box and remove any

polstyrene pieces or any other packaging material that might

be lodged inside it. Make sure that the radiator has not been

damaged during transit and that the mains cable is in working

order. Do not operate the radiator if damaged.

“Easy wheel”system

Turn the radiator upside-down on a rug or a soft surface in

order to prevent damaging the paint finish. Fully unfold the

castors by turning them outwards (Fig. 1). Turn the radiator

back to its upright position.

Using for the first time

On using the radiator for the first time we advise that you turn

it on to the maximum power setting for at least 8 hours.

This is to eliminate the “new odour”, which is released by the

appliance. During this time ensure that the room is well

ventilated.

Electrical connection

- Before plugging the radiator into the mains, check that your

supply voltage is the same as that shown on the rating plate

of the appliance.

- If using more than one radiator at a time, it is important to

ensure that the ring main is adequate to cope with the

power requirements.

- It is important to ensure that the socket is adequately earthed.

- This radiator complies with EEC Directive 89/336 relating to

electromagnetic compatibility.

How to use your heater

Plug the radiator in and the power on light will come on.

Setting the clock (fig. 2)

Set the clock to the correct time, proceeding as follows:

• Press the“hour” button until the display shows the hours for

the correct time, then release the button.

• Press the “min” button until the display shows the minutes

for the correct time, then release the button.

When setting the correct time, the numbers will flash on the

display.The clock will continue to flash for a few seconds after the

adjustment has been made then stop on the correct time and start Fig.2

Fig.3

working. To change the time, press the “hour” or “min”

button for at least 5 seconds,then proceed as above to modify both

hours and minutes.To move through the hours or minutes quickly

keep the relevant button pressed for longer than 3 seconds.

Operation of radiator - without timer - (manual)

To operate the radiator without timer press the“ON MODE”

button. By pressing the “ON MODE” button one or more

times the appliance will select the operating heating power as

follows:

Setting the temperature (thermostat)

Once the power has been selected, press the “ +” or “ -”

button to select the desired comfort temperature from 5°C to

35°C (shown on the right side of the display, fig. 3). This will

increase or decrease the temperature by 1°C. Keep either button

pressed down to move through the temperature quickly.

Electronic Climate Control

This heater has Electronic Climate Control which automatically

monitors and selects the ideal power setting to maintain your

chosen temperature. If the selected temperature is higher than

the actual room temperature, the appliance will start

automatically and rapidly heat the room until it reaches the

selected temperature. If maximum power has been selected the

unit will automatically maintain the temperature at a constant

level, by switching between maximum, medium, minimum power

and stand-by position (If the room temperature exceeds the

selected temperature level the radiator will switch in stand-by).

If medium power level has been selected using the “ON

MODE” button, the appliance will modulate between medium,

minimum power and stand-by position to maintain a selected

temperature.

Note: the display will always show the power setting

you have chosen, not the one it is currently working at.

Frost Protection Function (fig. 4)

Press the “ON MODE” button (it is recommended to select

the maximum power level). Set the temperature to 5°C with

the “ ” button. “TIMER ON” yellow light starts to flash and

this situation will persist as long as 5°C is set.When set in this

way, the radiator will switch on automatically only if the room

Press once

for Maximum

power

Press twice

for Medium

power

Press three

times for

Minimum

power

Press four

times for

Stand-by

Fig.4

Fig.5

Fig.6

temperature falls below 5°C, thereby preventing freezing, at

minimum energy consumption.

Note: This function is not garanteed in the event of power

failures, lasting more than 2 minutes.

Programming the ElectronicTimer

The timer allows you to set two programs in a 24h period.

To program the timer:

Press the “Timer button A, this accesses the program, the

following is shown on the display:

- The flashing message “--:--“;

- The message “ON” at the bottom left (ON time setting);

- The symbol “A” at the right indicating that the first program

is being set;To setting the starting time press “hour button”

to set the hour and “min button” to set the minutes, then

confirm the ON time by pressing the “Timer button A”

again.The words “OFF” and “00:00” appear on the display.

- Set the time you want the appliance to go ON using the

“hour button” and “min button” as above, then confirm the

STAND-BY time by pressing the “Timer Function A”

button again.

- At this point, the word “AUTO” appears at the top of the

display and the “TIMER ON” indicator light comes on to

indicate that the radiator is ready to operate at the

programmed time maintaining the preset comfort

temperature (fig.5).

- To set the program Bpress “Timer button B” and follow

the same procedure as described for the program A.

- Use the “ +” or “ -” buttons to set the desired comfort

temperature, as described above.

- When set in this way the radiator will automatically switch

on at the set time for the designated time period and

automatically maintain the preset comfort temperature.

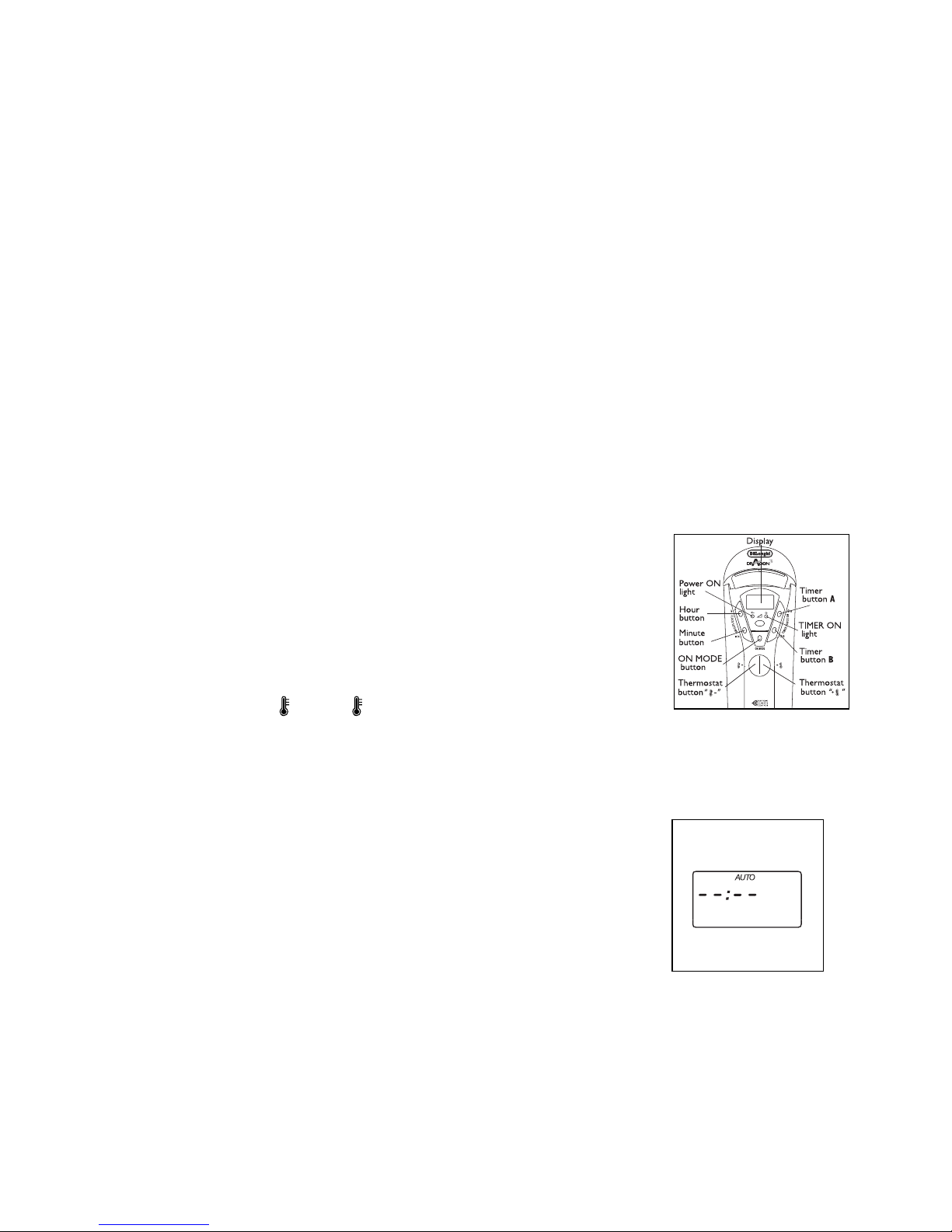

To cancel a preset programme, press the timer button Aor

Bonce and then press the hour button until the display

shows “--:--“ (fig.6).To operate the appliance without using

the timer press ON/MODE button. The yellow timer ON

light will go off.

To go back to timed operation press AUTO.

To turn off the appliance: set “0” position, using the “ON

MODE” button and disconnect the power cord.

Important

You must leave the radiator plugged in at the mains socket to

keep the radiator’s memory programmed. If the radiator loses

its electricity supply for more than 2 minutes, e.g. if unplugged

or in the event of a power failure, the radiator’s programmes

will be lost, and the timer will not work until reset. In such an

instance the display will show flashing numbers.

Fig.7

Remote Control

The appliance can be completely controlled with the remote

control.

Two AAA 1,5V batteries are required (not included):

• remove the cover located on the back side of the remote

control;

• insert the two AAA 1,5V batteries positioning them

correctly (see the instructions in the batteries compartment);

• replace the cover.

Remote Control Operation

- When you press the frost protection push button, the

radiator will set the temperature to 5°C and will switch on

automatically only if the room temperature falls below 5°C,

thereby preventing freezing, at minimum energy consumption.

The “Timer ON” light on the control panel will flash.

- Press the increase/decrease temperature button (+/-) to

adjust the temperature from 5°C to 35°C.

- The “On/stand-by” button switches off the appliance.

Every time you press a button, the appliance will confirm the

selection with a “beep” and the pilot light on the remote

control will illuminate.

Cleaning and Maintenance

Before carrying out any maintenance, unplug the radiator from

the mains and wait for it to cool. The oil-filled electric radiator

requires no particular maintenance.It is sufficient to remove the

dust with a soft, dry cloth. Never use abrasive powders or

solvents. If necessary remove concentrated areas of dirt with a

vacuum cleaner. (Fig. 7).

Warnings

- Do not use your radiator in the vicinity of showers,

bathtubs, sinks, swimming pools etc.

- Never use your radiator to dry laundry.

- Never place the power cable on top of the radiator while it

is hot.

- Only use the heater in an upright position.

- The heater must be positioned at least 50cm from furniture

or other objects.

- If the power cable is damaged, it must be replaced by the

manufacturer or an authorised technical service centre.

- It is normal for the heater to make 'crackling' noises during the

first time it is switched on (or in the case of infrequent use).

- The body of your radiator is filled with an exact quantity of

oil. If repairs are necessary which call for the opening of the

radiator, they must be done only by the manufacturer or an

authorised service centre.In the unlikely event of oil leakage,

contact the manufacturer or an authorised service centre.

- Do not use your radiator in rooms which have an area

smaller than 4m2as this may lead to overheating.

- The heater must never be placed immediately under a fixed

mains socket.

- When scrapping the appliance, respect legislation on the

disposal of oil.

- The use of an extension lead is not recommended, however

if it is neccessary then follow carefully the extension lead’s

instructions, and most importantly ensure that the extension

lead is correctly rated in accordance with the heater being

used and NEVER overloaded.

- The appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities,or lack of experience and knowledge,unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

- As with any electrical appliance, whilst the instructions aim

to cover as many eventualities as possible, caution and

common sense should be applied when operating your

appliance, particularly in the vicinity of young children.

A safety device will turn the radiator off. To reset,

contact the technical assistance service.

CAUTION: In order to avoid a hazard due to inadvertent

resetting of the thermal cutout, this appliance must not be

supplied through an external switching device, such as a timer,

or connected to a circuit that is regularly switched on and off

by the utility.

WARNING:In order to avoid overheating, never

under any circumstances cover the appliances during

operation.

Important information for correct disposal of the

product in accordance with EC Directive 2002/96/EC.

At the end of its working life, the product must not be

disposed of as urban waste. It must be taken to a special

local authority differentiated waste collection centre or to

5711010481/11.11_00

Electrical requirements

Before using this appliance ensure that the voltage indicated

on the product corresponds with the main voltage in your

home, if you are in any doubt about your supply contact your

local electricity company.

The flexible mains lead is supplied connected to a B.S. 1363 fused plug

having a fuse of 13 amp capacity. Should this plug not fit the socket

outlets in your home, it should be cut off and replaced with a suitable

plug, following the procedure outlined below. Note: Such a plug

cannot be used for any other appliance and should therefore be

properly disposed of and not left where children might find it and plug

it into a supply socket - with the obvious consequent danger. N.B. We

recommend the use of good quality plugs and wall sockets that can be

switched off when the machine is not in use. important: the wires in the

mains lead fitted to this appliance are coloured in accordance with the

following code:

As the colours of the wires in the mains lead of this appliance may not

correspond with the coloured markings identifying the terminals in

your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the

terminal in the plug which is marked with the letter E or by the earth

symbol or coloured green or green and yellow.The wire which is

coloured blue must be connected to the terminal which is marked with

the letter N or coloured black.The wire which is coloured brown must

be connected to the terminal which is marked with the letter L or

coloured red.When wiring the plug, ensure that all strands of wire are

securely retained in each terminal. Do not forget to tighten the mains

lead clamp on the plug. If your electricity supply point has only two pin

socket outlets, or if you are in doubt, consult a qualified electrician.

Should the mains lead ever require replacement, it is essential that this

operation be carried out by a qualified electrician and should only be

replaced with a flexible cord of the same size. After replacement of a

fuse in the plug, the fuse cover must be refitted. If the fuse cover is lost,

the plug must not be used until a replacement cover is obtained.The

colour of the correct replacement fuse cover is that of the coloured

insert in the base of the fuse recess or elsewhere on the plug.Always

state this colour when ordering a replacement fuse cover. Only 13amp

replacement fuses which are asta approved to B.S. 1362 should be

fitted.This appliance conforms to the Norms EN 55014 regarding the

suppression of radio interference.

GREENANDYELLOW

BLUE

BROWN

EARTH

NEUTRAL

LIVE

Green andYellow to Earth

Blue to

Neutral

13 amp

Fuse

Brown

to Live

Cord Clamp

Warning - this appliance

must be earthed

a dealer providing this service. Disposing of a household

appliance separately avoids possible negative consequences for

the environment and health deriving from inappropriate disposal

and enables the constituent materials to be ecovered to obtain

significant savings in energy and resources.As a reminder of the

need to dispose of household appliances separately, the product

is marked with a crossed-out wheeled dustbin

Table of contents

Other DeLonghi Heater manuals

DeLonghi

DeLonghi DRAGON 3 User manual

DeLonghi

DeLonghi CERAMIC FAN HEATER User manual

DeLonghi

DeLonghi ELECTRIC HEATING CONVECTOR User manual

DeLonghi

DeLonghi DR18TQP Installation instructions manual

DeLonghi

DeLonghi TRV Series User manual

DeLonghi

DeLonghi Dragon4 Pro Specification sheet

DeLonghi

DeLonghi HVF3031 Assembly instructions

DeLonghi

DeLonghi HFX60 Series User manual

DeLonghi

DeLonghi HFX30 Series User manual

DeLonghi

DeLonghi TRH0715 User manual

DeLonghi

DeLonghi HVY Series User manual

DeLonghi

DeLonghi V550715 User manual

DeLonghi

DeLonghi TCH 7590-8590 User manual

DeLonghi

DeLonghi DRAGON HM3 User manual

DeLonghi

DeLonghi DRAGON HM3 Manual

DeLonghi

DeLonghi HFS50 Series User manual

DeLonghi

DeLonghi HCM2030 User manual

DeLonghi

DeLonghi HOR KH770715CB User manual

DeLonghi

DeLonghi DCH4530 User manual

DeLonghi

DeLonghi MCH 710T User manual

DeLonghi

DeLonghi Dragon4 Pro User manual

DeLonghi

DeLonghi HEX60 Series User manual

DeLonghi

DeLonghi TRRS0715E User manual

DeLonghi

DeLonghi HMP1500 User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
