Dell PowerConnect 3548 User manual

www.dell.com | support.dell.com

Dell™ PowerConnect™ 35xx

Systems

Getting Started Guide

Փ⫼ܹ䮼ᣛ

Začínáme

Guide de mise en route

Handbuch zum Einstieg

Οδηγός για γρήγορο ξεκίνημα



시작 안내서

Instrukcja uruchomienia

Guía de introducción

Ba

www.dell.com | support.dell.com

Dell™ PowerConnect™ 35xx Systems

Getting Started Guide

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps to make better use of the device.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and gives information

how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

____________________

+PHQTOCVKQPKPVJKUFQEWOGPVKUUWDLGEVVQEJCPIGYKVJQWVPQVKEG

l &GNN+PE#NNTKIJVUTGUGTXGF

4GRTQFWEVKQPKPCP[OCPPGTYJCVUQGXGTYKVJQWVVJGYTKVVGPRGTOKUUKQPQH&GNN+PEKUUVTKEVN[HQTDKFFGP

6TCFGOCTMUWUGFKPVJKUVGZV&GNN&GNN1RGP/CPCIG2QYGT'FIGVJG&'..NQ Q+PURKTQP&GNN2TGEKUKQP&KOGPUKQP1RVK2NGZ

2QYGT%QPPGEV2QYGT#RR2QYGT8CWNV#ZKO&GNN0GVCPF.CVKVWFGCTGVTCFGOCTMUQH&GNN+PE/KETQUQ VCPF9KPFQYUCTGGKVJGTVTCFGOCTMU

QTTG KUVGTGFVTCFGOCTMUQH/KETQUQHV%QTRQTCVKQPKPVJG7PKVGF5VCVGUCPFQTQVJGTEQWPVTKGU

1VJGTVTCFGOCTMUCPFVTCFGPCOGUOC[DGWUGFKPVJKUFQEWOGPVVQTGHGTVQGKVJGTVJGGPVKVKGUENCKOKP VJGOCTMUCPFPCOGU

QTVJGKTRTQFWEVU&GNN+PEFKUENCKOUCP[RTQRTKGVCT[KPVGTGUVKPVTCFGOCTMUCPFVTCFGPCOGUQVJGTVJCPKVUQYP

Models 3524, 3524P, 3548, 3548P

September 2007 P/N FG745 Rev.

Contents 3

Contents

1 Installation

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Unpacking the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Mounting the Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing in a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing on a Flat Surface . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing on a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting to a Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2 Stacking

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Stacking PowerConnect 3500 Series Switches. . . . . . . . . . . . . . . . . 11

Unit ID Selection Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3 Starting and Configuring the Device

Connecting to the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Connecting the Terminal to the Device . . . . . . . . . . . . . . . . . . . . . 15

Booting the Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Initial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4Contents

Installation 5

Installation

Overview

This document provides basic information on installing and running the PowerConnect 3500

series switches. For more information, see the Dell™ PowerConnect™ 3500 Series User's Guide,

which is available on your Documentation CD, or check the Dell Support website at

support.dell.com for the latest updates on documentation and software.

Site Preparation

PowerConnect 3500 series devices can be mounted in a standard 48.26-cm (19-inch) equipment

rack, placed on a tabletop or mounted on a wall. Before installing the unit, verify that the chosen

location for installation meets the following site requirements:

•

Power

— The unit is installed near an easily accessible 100-240 VAC, 50-60 Hz outlet.

•

General

— The Redundant Power Supply (RPS) is correctly installed by checking that the

LEDs on the front panel are illuminated. Extended Power Supply (EPS) is correctly installed

by checking that the LEDs on the front panel ( For PoE models) are illuminated.

• LEDs on the front panel ( For PoE models) are illuminated.

•

Clearance

— There is adequate frontal clearance for operator access. Allow clearance

for cabling, power connections, and ventilation.

•

Cabling

— The cabling is routed to avoid sources of electrical noise such as radio

transmitters, broadcast amplifiers, power lines, and fluorescent lighting fixtures.

•

Ambient Requirements

— The ambient unit operating temperature range is 0 to 45ºC

(32 to 113ºF) at a relative humidity of 10% to to 90%, non-condensing.

6Installation

Unpacking

Package Contents

While unpacking the device, ensure that the following items are included:

• Device/Switch

• AC power cable

• RS-232 crossover cable

• Self-adhesive rubber pads

• Rack-mount kit for rack installation or wall mounting kit

• Documentation CD

• Product Information Guide

Unpacking the Device

NOTE: Before unpacking the device, inspect the package and immediately report any evidence of damage.

Place the box on a clean flat surface.

Open the box or remove the box top.

Carefully remove the device from the box and place it on a secure and clean surface.

Remove all packing material.

Inspect the device and accessories for damage. Report any damage immediately.

Mounting the Device

The following mounting instructions apply to the PowerConnect 3500 Series switches. The Console port

is on the back panel. The power connectors are positioned on the back panel. Connecting a Redundant

Power Supply (RPS) or Extended Power Supply (EPS) is optional, but recommended. The RPS or EPS

connector is on the back panel of the devices.

Installing in a Rack

CAUTION: Read the safety information in the Product information Guide as well as the safety information for

other devices that connect to or support the switch.

CAUTION: Disconnect all cables from the unit before mounting the device in a rack or cabinet.

CAUTION: When mounting multiple devices into a rack, mount the devices from the bottom up.

Place the supplied rack-mounting bracket on one side of the device, ensuring that the mounting holes

on the device line up to the mounting holes on the rack-mounting bracket.

The following figure illustrates where to mount the brackets.

Installation 7

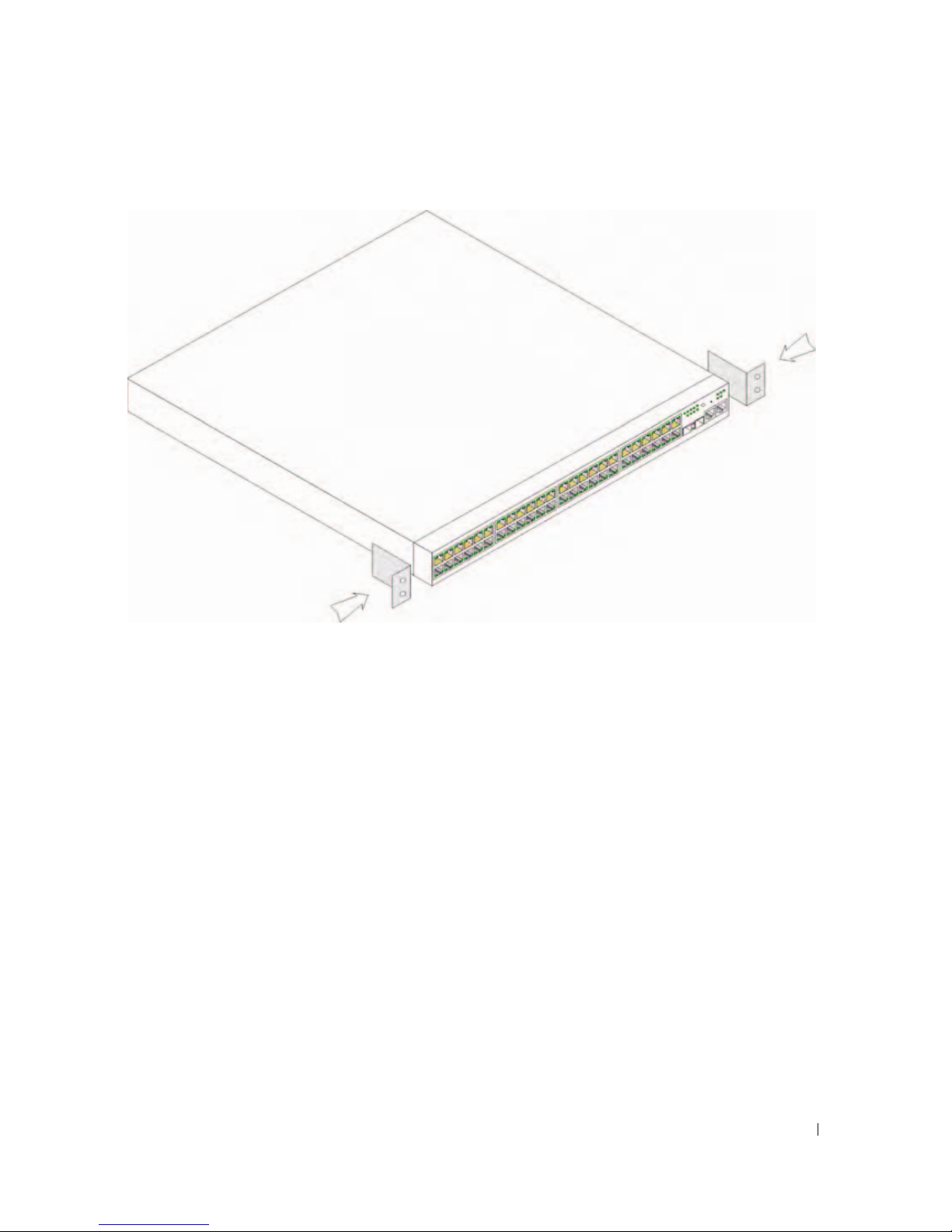

Figure 1-1. Bracket Installation for Rack Mounting

Insert the supplied screws into the rack-mounting holes and tighten with a screwdriver.

Repeat the process for the rack-mounting bracket on the other side of the device.

Insert the unit into the 48.26-cm (19-inch) rack, ensuring that the rack-mounting holes on the device

line up to the mounting holes on the rack.

Secure the unit to the rack with the rack screws (not provided). Fasten the lower pair of screws

before the upper pair of screws. Ensure that the ventilation holes are not obstructed.

Installing on a Flat Surface

Install the device on a flat surface if it is not installed on a rack. The surface must be able to support

the weight of the device and the device cables.

Attach the self-adhesive rubber pads on each marked location on the bottom of the chassis.

Set the device on a flat surface, leaving 5.08 cm (2 inches) on each side and 12.7 cm (5 inches)

at the back.

Ensure that the device has proper ventilation.

8Installation

Installing on a Wall

To mount the switch on a wall:

Ensure that the mounting location meets the following requirements:

• The surface of the wall must be capable of supporting the switch.

• Allow at least 5.1 cm (2 inches) space on the sides for proper ventilation and 12.7 cm (5 inches)

at the back for power cable clearance.

• The location must not be exposed to direct sunlight.

• The location must be at least 2 feet away from any heating vents, and no area-heating vent should

point towards the unit.

• The location must be ventilated to prevent heat buildup.

• Do not locate the switch near any data or electrical cabling.

• The power cable must be able to reach an outlet.

Use the supplied screws to attach a mounting bracket to each side of the switch

(see the following figure).

Figure 1-2. Bracket Installation for Wall Mounting
