Dell PowerConnect 7048 User manual

Dell PowerConnect

7000 Series Switch

Getting Started Guide

使用入门指南

入門指南

Guide de mise en route

Handbuch zum Einstieg

Panduan Pengaktifan

はじめに

시작 안내서

Guía de introducción

Başlangıç Kılavuzu

Guia de Primeiros Passos

Regulatory models: PC7024, PC7024P,

PC7024F, PC7048, PC7048P, and PC7048R

Dell PowerConnect

7000 Series Switch

Getting Started Guide

Regulatory Models: PC7024, PC7024P,

PC7024F, PC7048, PC7048P, PC7048R,

and PC7048R-RA

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data

if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the D LL logo, PowerConnect™, and OpenManage™ are

trademarks of Dell Inc. Microsoft®, Windows®, Windows Server®, MS-DOS® and Windows Vista®

are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Models: PC7024, PC7024P, PC7024F, PC7048, PC7048P, PC7048R, and PC7048R-RA

March 2011 P/N D3R71 Rev. A00

Contents 3

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . 5

PowerConnect 7000 Series Overview . . . . . . . . . . . 5

2 Hardware Overview. . . . . . . . . . . . . . . . . . 6

PowerConnect 7000 Series Front Panel . . . . . . . . . . 6

Switch Ports . . . . . . . . . . . . . . . . . . . . . 9

Console Port . . . . . . . . . . . . . . . . . . . . . 9

Out-of-Band Management Port . . . . . . . . . . 10

USB Port . . . . . . . . . . . . . . . . . . . . . . 10

Reset Button . . . . . . . . . . . . . . . . . . . . 10

Port and System LEDs . . . . . . . . . . . . . . . 10

Stack Master LED and Stack

Number Display. . . . . . . . . . . . . . . . . . . 11

PowerConnect 7000 Series Back Panel. . . . . . . . . 11

Expansion Slots for Plug-in Modules. . . . . . . . 12

Power Supplies . . . . . . . . . . . . . . . . . . . 12

Ventilation System . . . . . . . . . . . . . . . . . 13

Locator LED . . . . . . . . . . . . . . . . . . . . . 13

4Contents

3Installation. . . . . . . . . . . . . . . . . . . . . . . 14

Site Preparation . . . . . . . . . . . . . . . . . . . . . 14

Unpacking the Switch . . . . . . . . . . . . . . . . . . 14

Package Contents. . . . . . . . . . . . . . . . . . 14

Unpacking Steps . . . . . . . . . . . . . . . . . . 15

Mounting the Switch. . . . . . . . . . . . . . . . . . . 15

Installing in a Rack . . . . . . . . . . . . . . . . . 15

Installing as a Free-standing Switch . . . . . . . . 17

Stacking Multiple Switches . . . . . . . . . . . . . . . 17

Creating a Switch Stack . . . . . . . . . . . . . . 17

4 Starting and Configuring the Switch . . . 19

Connecting a Switch to a Terminal . . . . . . . . . . . 20

Connecting a Switch to a Power Supply . . . . . . . . 22

AC and DC Power Connection . . . . . . . . . . . 22

Booting the Switch. . . . . . . . . . . . . . . . . . . . 23

Performing the Initial Configuration. . . . . . . . . . . 23

Enabling Remote Management . . . . . . . . . . . 24

Initial Configuration Procedure . . . . . . . . . . . 24

Example Session . . . . . . . . . . . . . . . . . . 25

Next Steps . . . . . . . . . . . . . . . . . . . . . 29

5 PoE Power Budget . . . . . . . . . . . . . . . . . 30

Getting Started Guide 5

Introduction

This document provides basic information about the Dell PowerConnect

7000 Series switches, including how to install a switch and perform the initial

configuration. For information about how to configure and monitor switch

features, see the User’s Configuration Guide, which is available on your User

Documentation CD, or check the Dell Support website at support.dell.com

for the latest updates on documentation and firmware.

This document contains the following sections:

• Hardware Overview

• Installation

• Starting and Configuring the Switch

PowerConnect 7000 Series Overview

The PowerConnect 7000 Series switches are stackable Layer 3 Gigabit

Ethernet switches and include the following six models:

• PowerConnect 7024 (PC7024)

• PowerConnect 7024P (PC7024P)

• PowerConnect 7024F (PC7024F)

• PowerConnect 7048 (PC7048)

• PowerConnect 7048P (PC7048P)

• PowerConnect 7048R (PC7048R/PC7048R-RA)

NOTE: The PowerConnect 7048R (PC7048R/PC7048R-RA) is a top-of-rack switch.

The difference between the PC7048R and PC7048R-RA models is the air-flow

direction.

6Getting Started Guide

Hardware Overview

This section contains information about device characteristics and modular

hardware configurations for the PowerConnect 7000 Series switches.

All models are 1U, rack mountable switches with the following physical

dimensions:

• 440 x 460 x 44 mm (W x D x H).

• 17.3 x 18.1 x 1.7 inch (W x D x H).

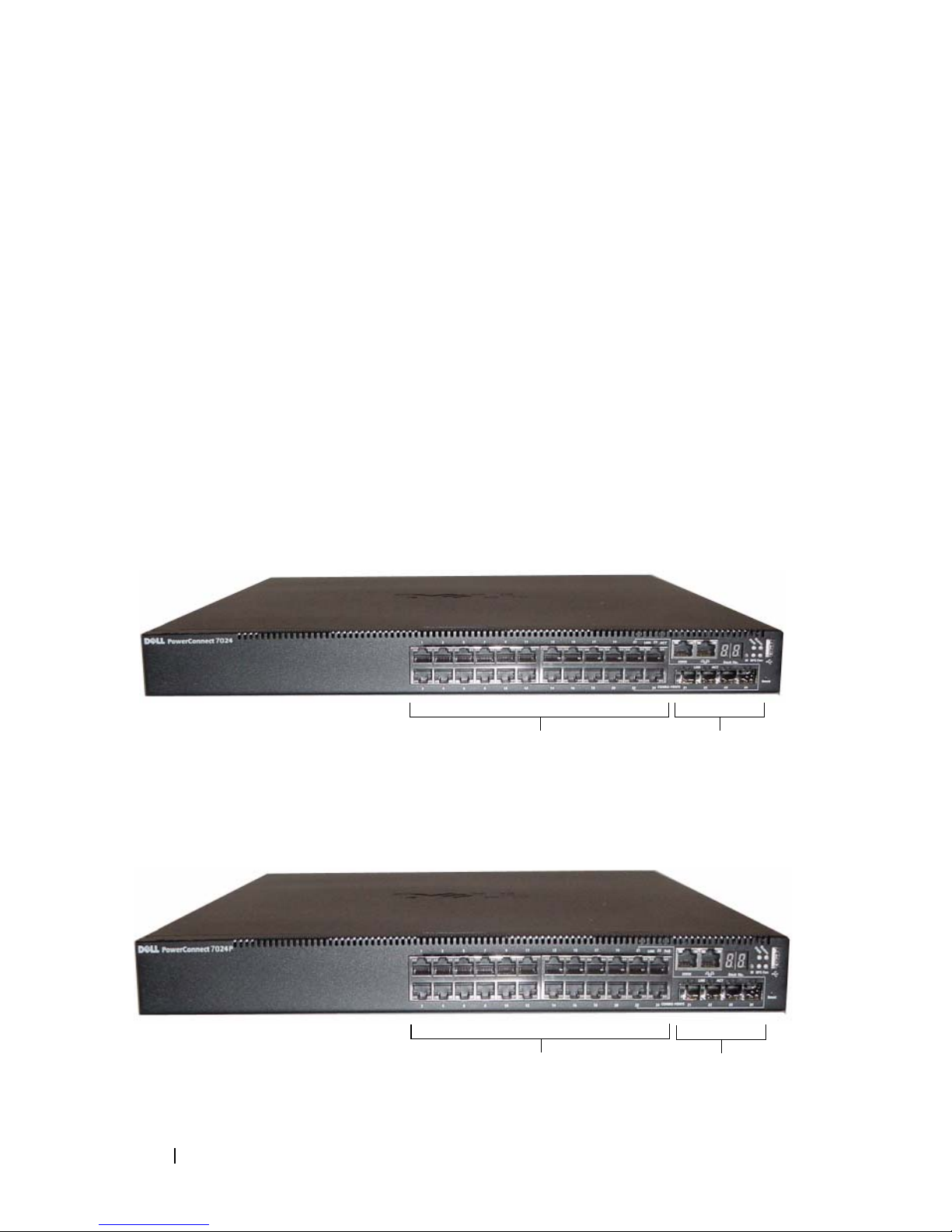

PowerConnect 7000 Series Front Panel

The following images show the front panels of the six switch models in the

PowerConnect 7000 Series.

Figure 1-1. PowerConnect 7024 with 24 10/100/1000BASE-T Ports

Figure 1-2. PowerConnect 7024P with 24 10/100/1000BASE-T PoE Plus Ports

Combo Ports10/100/1000BASE-T Auto-sensing

Full Duplex RJ-45 Ports

Combo Ports10/100/1000BASE-T RJ-45 PoE Plus Ports

Providing up to 30W per Port

Getting Started Guide 7

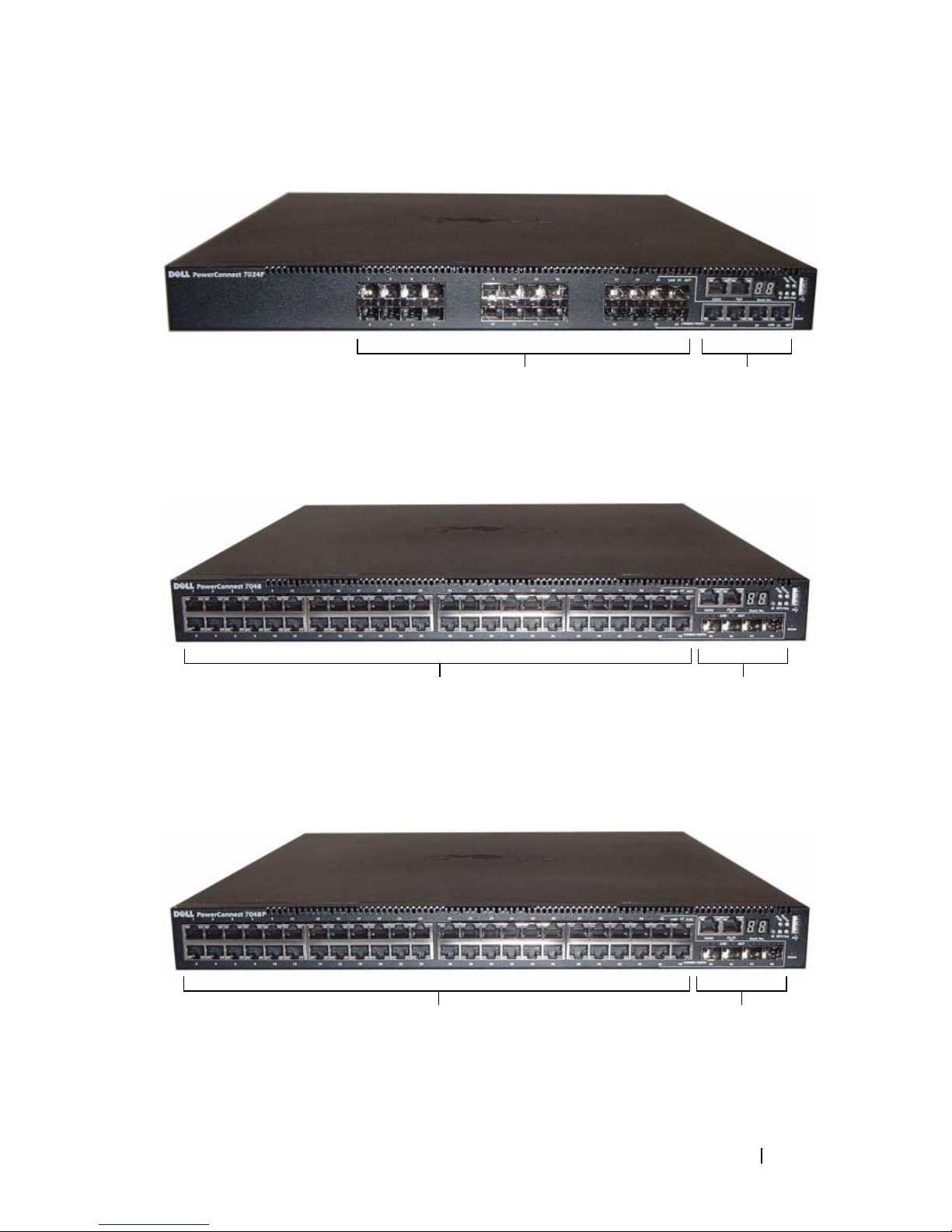

Figure 1-3. PowerConnect 7024F with 24 SFP Ports

Figure 1-4. PowerConnect 7048 with 48 10/100/1000BASE-T Ports

Figure 1-5. PowerConnect 7048P with 48 10/100/1000BASE-T PoE Plus Ports

SFP Ports Combo Ports

Combo Ports10/100/1000BASE-T Auto-sensing

Full Duplex RJ-45 Ports

Combo Ports10/100/1000BASE-T RJ-45 PoE Plus Ports

Providing up to 30W per Port

8Getting Started Guide

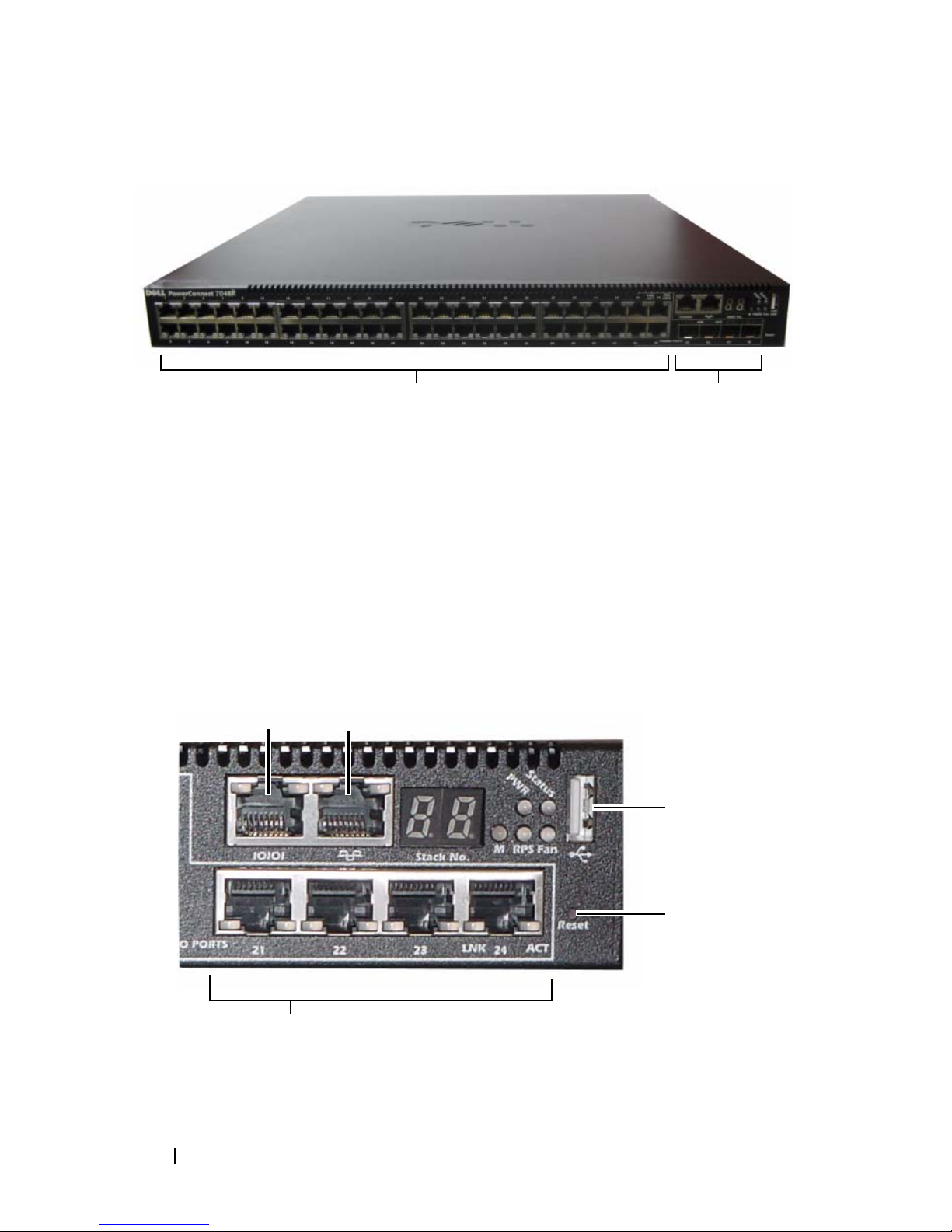

Figure 1-6. PowerConnect 7048R with 48 10/100/1000BASE-T Ports

In addition to the switch ports, the front panel of each model in the series

includes the following ports:

• Console port

• Out-of-band management port

• USB port

The additional ports are on the right side of the front panel.

Figure 1-7. Additional PowerConnect 7000 Series Ports

Combo Ports

10/100/1000BASE-T Auto-sensing

Full Duplex RJ-45 Ports

Combo Ports

Reset Button

USB Port

Console Port Out-of-Band Management Port
