Dell XPS L701X User manual

Dell™XPS™L701XServiceManual

Notes, Cautions, and Warnings

Information in this document is subject to change without notice.

©2010DellInc.Allrightsreserved.

Trademarks used in this text: Dell™,theDELL logo, and XPS™aretrademarksofDellInc.;Microsoft®, Windows®and the Windows start button logo are either trademarks or

registered trademarks of Microsoft corporation in the United States and/or other countries; Bluetooth®is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell

Inc. under license.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

October 2010 Rev. A00

Regulatorymodel:P09EseriesRegulatorytype:P09E001

Before You Begin

Battery

Module Cover

Memory Module(s)

Wireless Mini-Card(s)

Hard Drive(s)

Optical Drive

Palm-Rest Assembly

Keyboard

Power-Button Board

Coin-Cell Battery

Display

Internal Card With Bluetooth®Wireless Technology

Camera Module

Top Cover

Subwoofer

AC-Adapter Connector

Fan

Heat Sink

Processor Module

I/O Board

TV Antenna Connector

USB Board

System Board

Speakers

Flashing the BIOS

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

TV Antenna Connector

Dell™XPS™L701XServiceManual

Removing the TV Antenna Connector

Replacing the TV Antenna Connector



Removing the TV Antenna Connector



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the module cover (see Removing the Module Cover).



4. Remove the memory module(s) (see Removing the Memory Module(s)).



5. Follow the instructions in step 5 in Removing the Hard Drive(s).



6. Remove the optical drive (see Removing the Optical Drive).



7. Remove the palm-rest assembly (see Removing the Palm-Rest Assembly).



8. Remove the keyboard (see Removing the Keyboard).



9. Remove the display assembly (see Removing the Display Assembly).



10. Remove the Mini-Card(s) (see Removing the Mini-Card(s)).



11. Remove the bluetooth card (see Removing the Bluetooth Card).



12. Follow the instructions from step 13 to step 18 in Removing the Top Cover.



13. Disconnect the speaker cable from the connector on the I/O board.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.



14. Turn the top-cover assembly over.



15. Remove the I/O board (see Removing the I/O Board).



16. Make note of the TV antenna connector cable routing and remove the cable from the routing guides.



17. Remove the two screws that secure the TV antenna connector to the top cover.



18. Carefully ease the TV antenna connector off the slot in the top cover and lift it off the top cover.

Replacing the TV Antenna Connector



1. Follow the instructions in Before You Begin.



2. Align the TV antenna connector with the slot on the top cover and place the TV antenna connector on the top cover.



3. Replace the two screws that secure the TV antenna connector to the top cover.



4. Route the TV antenna connector cable through the routing guides.



5. Replace the I/O board (see Replacing the I/O Board).



6. Connect the speaker cable to the connector on the I/O board.



7. Follow the instructions from step 11 to step 15 in Replacing the Top Cover.



8. Replace the bluetooth card (see Replacing the Bluetooth Card).



9. Replace the Mini-Card(s) (see Replacing the Mini-Card(s)).



10. Replace the display assembly (see Replacing the Display Assembly).



11. Replace the keyboard (see Replacing the Keyboard).



12. Replace the palm-rest assembly (see Replacing the Palm-Rest Assembly).



13. Replace the optical drive (see Replacing the Optical Drive).



14. Follow the instructions in step 5 in Replacing the Hard Drive(s).



15. Replace the memory module(s) (see Replacing the Memory Module(s)).



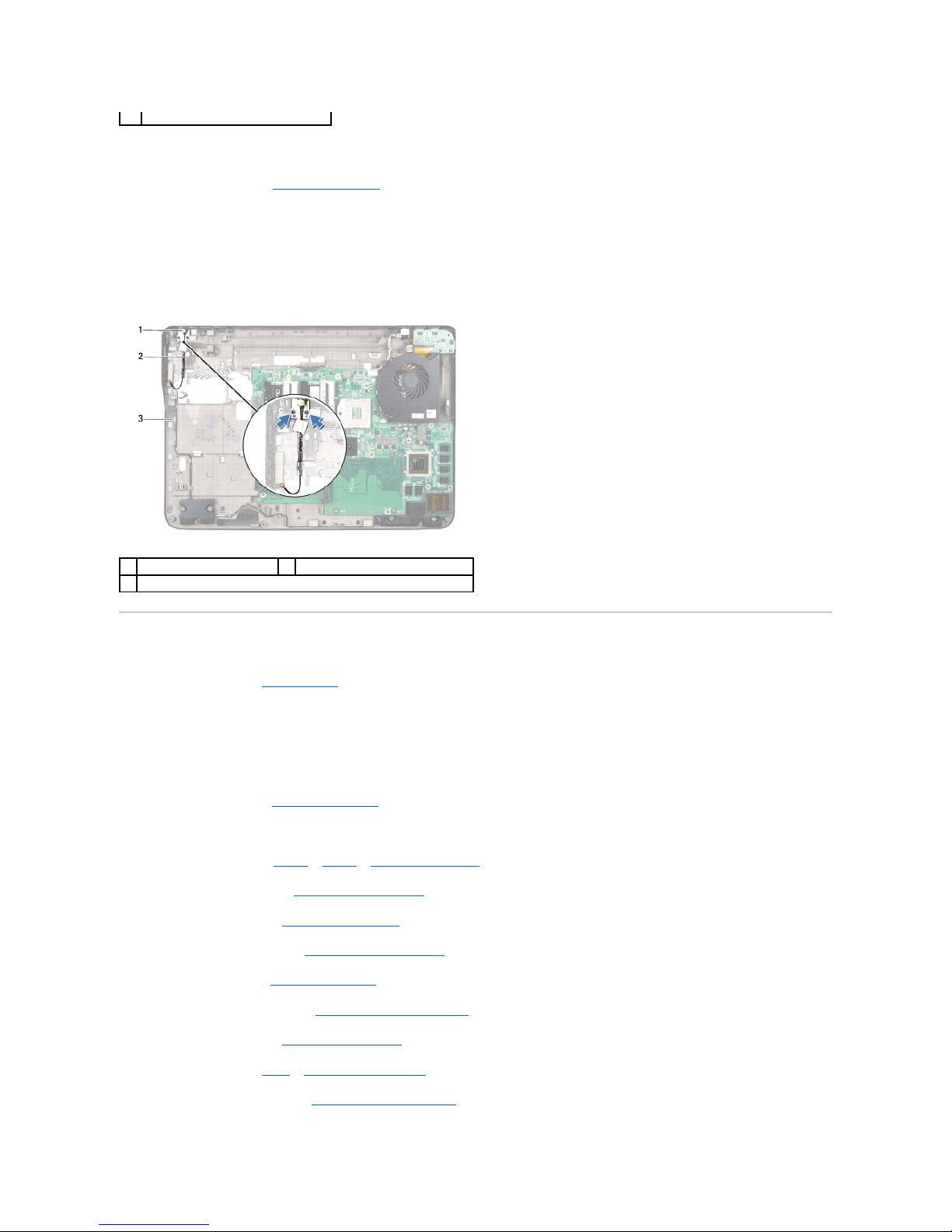

speaker cable

TV antenna connector

TV antenna connector cable

top cover



16. Replace the module cover (see Replacing the Module Cover).



17. Replace the battery (see Replacing the Battery).



Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Back to Contents Page

Audio Video Board

Dell™Inspiron™One2305/2310ServiceManual

Removing the Audio Video (AV) Board

Replacing the Audio Video (AV) Board



Removing the Audio Video (AV) Board



1. Follow the instructions in Before You Begin.



2. Remove the back cover (see Removing the Back Cover).



3. Follow the instructions from step 2 to step 5 in Removing the Front Stand.



4. Remove the AV board shield (see Removing the Audio Video (AV) Board Shield).



5. Disconnect the AV board cables from the connectors on the AV board.



6. Remove the five screws that secure the AV board to the chassis.



7. Lift the AV board away from the chassis.

Replacing the Audio Video (AV) Board



1. Follow the instructions in Before You Begin.



2. Align the screw holes on the AV board with the screw holes on the chassis.



3. Replace the five screws that secure the AV board to the chassis.



4. Connect the AV board cables to the connectors on the AV board.



5. Replace the AV board shield (see Replacing the Audio Video (AV) Board Shield).



6. Follow the instructions from step 4 to step 5 in Replacing the Front Stand.



7. Replace the back cover (see Replacing the Back Cover).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

AV board

screws (5)



8. Connect your computer and all attached devices to electrical outlets, and turn them on.

Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Back to Contents Page

Audio Video Board Shield

Dell™Inspiron™One2305/2310ServiceManual

Removing the Audio Video (AV) Board Shield

Replacing the Audio Video (AV) Board Shield



Removing the Audio Video (AV) Board Shield



1. Follow the instructions in Before You Begin.



2. Remove the back cover (see Removing the Back Cover).



3. Follow the instructions from step 2 to step 5 in Removing the Front Stand.



4. Remove the three screws that secure the AV board shield to the chassis.



5. Lift the AV board shield away from the chassis.

Replacing the Audio Video (AV) Board Shield



1. Follow the instructions in Before You Begin.



2. Align the screw holes on the AV board shield with the screw holes on the chassis.



3. Replace the three screws that secure the AV board shield to the chassis.



4. Follow the instructions from step 4 to step 5 in Replacing the Front Stand.



5. Replace the back cover (see Replacing the Back Cover).



6. Connect your computer and all attached devices to electrical outlets, and turn them on.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

AV-board shield

screws (3)

CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Back to Contents Page



Back to Contents Page

Audio Video Board Cable

Dell™Inspiron™One2305/2310ServiceManual

Removing the Audio Video (AV) Board Cable

Replacing the Audio Video (AV) Board Cable



Removing the Audio Video (AV) Board Cable



1. Follow the instructions in Before You Begin.



2. Remove the back cover (see Removing the Back Cover).



3. Follow the instructions from step 2 to step 5 in Removing the Front Stand.



4. Remove the AV board shield (see Removing the Audio Video (AV) Board Shield).



5. Disconnect the AV board cable from the connector on the AV Board.



6. Remove the AV board (see Removing the Audio Video (AV) Board).



7. Remove the system board (see Removing the System Board).



8. Remove the display panel (see Removing the Display Panel).



9. Make note of the AV board cable routing and release the cable from the securing tapes.



10. Remove the AV board cable from the routing guide.

Replacing the Audio Video (AV) Board Cable



1. Follow the instructions in Before You Begin.



2. Route the AV board cable through the routing guide and secure it with the tapes.



3. Replace the system board (see Replacing the System Board).



4. Replace the display panel (see Replacing the Display Panel).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

AV board cable



5. Replace the AV board (see Replacing the Audio Video (AV) Board).



6. Connect the AV board cable to the connector on the AV board.



7. Replace the AV board shield (see Replacing the Audio Video (AV) Board Shield).



8. Follow the instructions from step 4 to step 5 in Replacing the Front Stand.



9. Replace the back cover (see Replacing the Back Cover).



10. Connect your computer and all attached devices to electrical outlets, and turn them on.

Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.
