Dell™Vostro™1014/1015ServiceManual

Notes, Cautions, and Warnings

IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.

Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of this material in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Vostro, are trademarks of Dell Inc.; Intel, Celeron, and Core are either trademarks or registered trademarks of Intel

Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; Microsoft, Windows, Windows Vista,and the Windows Vista start

button are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries; Adobe, the Adobe logo, and Adobe Flash Player are

trademarks of Adobe Systems Incorporated.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

November2009Rev.A00

Working on Your Computer

Adding and Replacing Parts

Specifications

Diagnostics

System Setup





NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Access Panel

Dell™Vostro™1014/1015ServiceManual

Removing the Access Panel

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery from the computer.

3. Remove the six screws that secure the access panel to the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

4. Remove the access panel from the computer.

Replacing the Access Panel

Perform the above steps in the reverse order to replace the access panel.

Back to Contents Page

Battery

Dell™Vostro™1014/1015ServiceManual



Removing the Battery

1. Follow the procedures in Before Working Inside Your Computer.



2. Turn the computer upside-down with the back of the computer facing you.

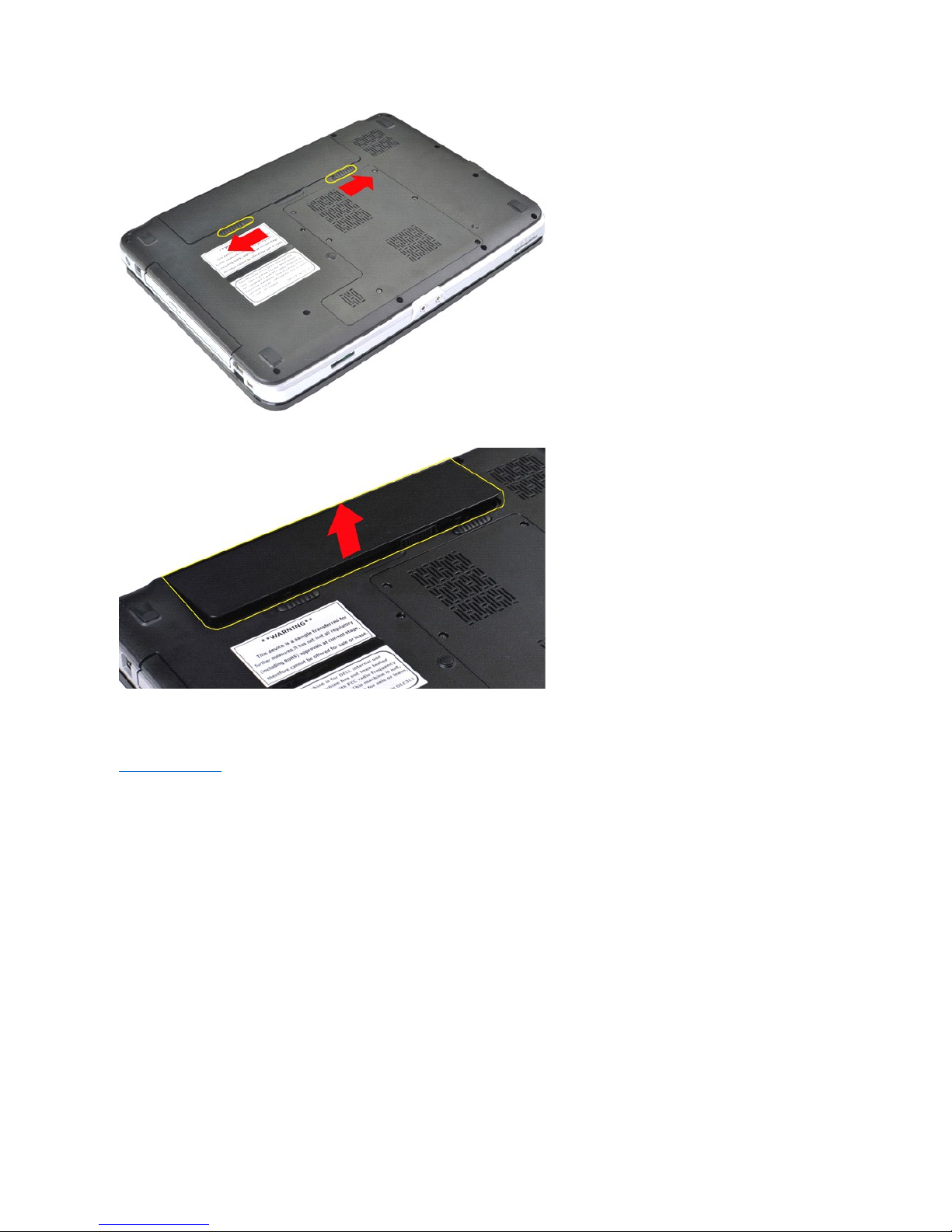

3. Slide the battery latches apart to the unlock position.



WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

3. Lift the battery from the computer.

Replacing the Battery

Perform the above steps in the reverse order to replace the battery.

Back to Contents Page

Internal Card With Bluetooth®Wireless Technology

Dell™Vostro™1014/1015ServiceManual

Removing the Bluetooth Wireless Card

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery.

3. Remove the access panel.

4. Remove the hard drive.

5. Remove the WLAN card.

6. Remove the control panel cover.

7. Remove the keyboard.

8. Remove the display assembly.

9. Remove the palm rest.

10. Remove the I/O board.

11. Disconnect the Bluetooth card cable from the connector on the system board.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

12. Release the Bluetooth card cable from its routing groove and lift the Bluetooth card to remove it from the computer.

Replacing the Bluetooth Card

Perform the above steps in the reverse order to replace the Bluetooth card.

Back to Contents Page

Coin-Cell Battery

Dell™Vostro™1014/1015ServiceManual

Removing the Coin-Cell Battery

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery.

3. Remove the access panel.

4. Remove the hard drive.

5. Remove the WLAN card.

6. Remove the control panel cover.

7. Remove the keyboard.

8. Remove the display assembly.

9. Remove the palm rest.

10. Pull the coin-cell battery from the plastic sleeve.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

11. Disconnect the coin-cell battery cable from the connector on the system board, then lift the coin-cell battery to remove it from the computer.



Replacing the Coin-Cell Battery

Perform the above steps in the reverse order to replace the coin-cell battery.

Back to Contents Page

Control Panel Cover

Dell™Vostro™1014/1015ServiceManual

Vostro 1014

Removing the Control Panel Cover

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery.

3. Remove the three control panel cover screws from the bottom of the computer.

4. Insert a plastic scribe to release the four control panel cover clips located inside the battery well.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Vostro 1014

Vostro 1015


