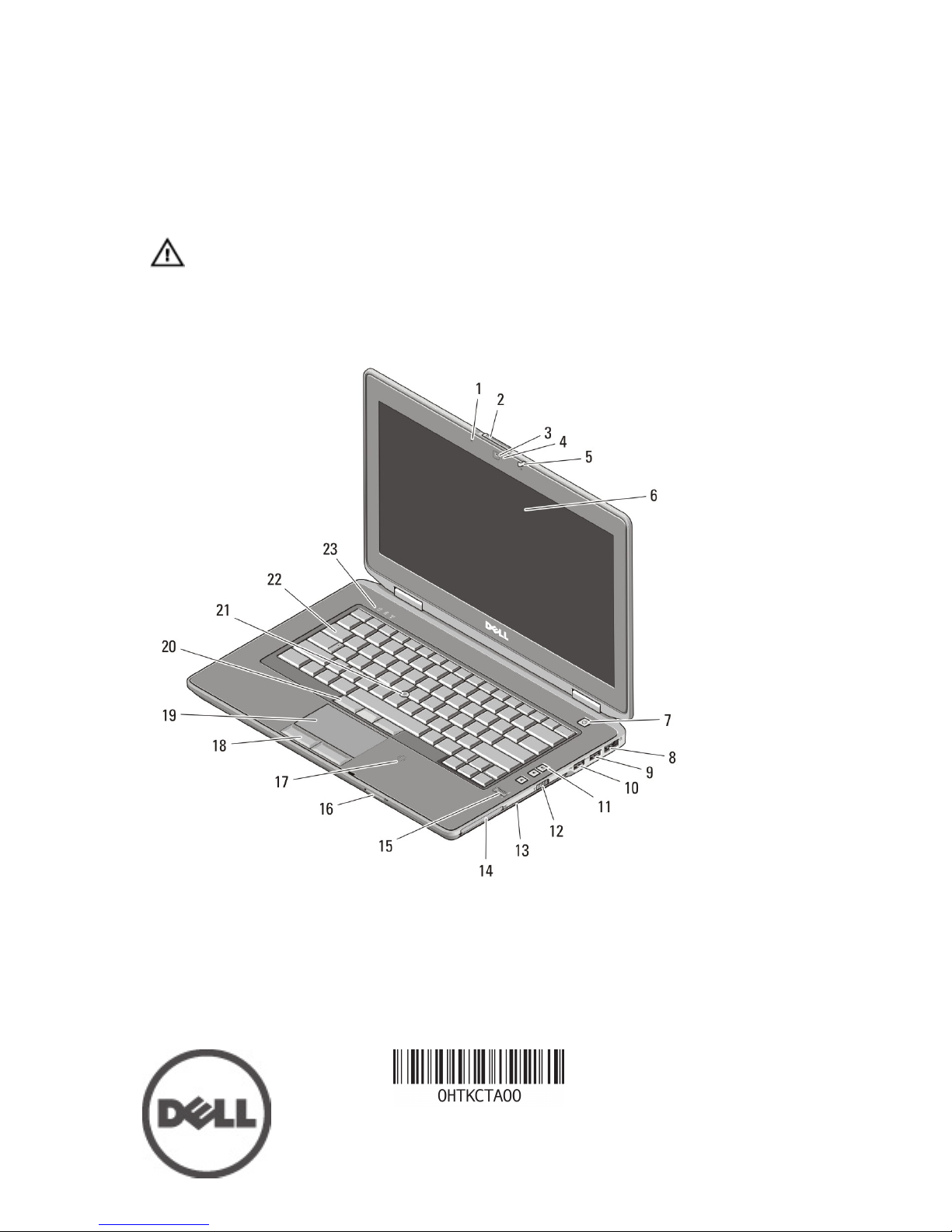

Dell Latitude E6430 Owner's manual

Dell Latitude E6430/E6530/E6430 ATG

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Latitude E6430 Front and Back View

Figure 1. Front View

1. microphone

2. display release latch

3. camera

4. camera status light

Regulatory Model: : P25G, P19F, P25G

Regulatory Type: : P25G001, P19F001,

P25G002

2011 - 9

5. display latch

6. display

7. power button

8. eSATA/USB 2.0 connector

9. USB 3.0 connector

10. powered USB 3.0 connector

11. volume control buttons

12. wireless switch

13. optical drive

14. ExpressCard slot

15. fingerprint reader

16. Secure Digital (SD) memory-card

reader

17. contactless smart card reader

18. touchpad buttons (2)

19. touchpad

20. trackstick buttons (3)

21. trackstick

22. keyboard

23. device status lights (hard disk,

battery, and wireless)

Figure 2. Back View

1. HDMI connector

2. security cable slot

3. modem connector

4. device status lights (power, hard

disk, and battery)

5. power connector

6. network connector

7. USB 2.0 connector

8. VGA connector

9. audio connector

10. cooling vents

11. smart card slot

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Latitude E6530 Front and Back View

Figure 3. Front View

1. display latch

2. microphone

3. display release latch

4. camera

5. camera status light

6. display

7. power button

8. HDMI connector

9. eSATA/USB 2.0 connector

10. powered USB 3.0 connector

11. optical drive

12. wireless switch

13. ExpressCard slot

14. fingerprint reader

15. Secure Digital (SD) memory-card

reader

16. contactless smart card reader

17. touchpad

18. touchpad buttons (2)

19. trackstick buttons (3)

20. trackstick

21. keyboard

22. volume control buttons

23. device status lights (hard disk,

battery, and wireless)

Figure 4. Back View

1. network connector

2. security cable slot

3. modem connector

4. device status lights (power, hard

disk, and battery)

5. power connector

6. USB 2.0 connector

7. VGA connector

8. USB 3.0 connector

9. audio connector

10. cooling vents

11. smart card slot

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Latitude E6430 ATG Front and Back View

Figure 5. Front view

1. microphone

2. display release latch

3. camera

4. camera status light

5. display latch

6. display

7. power button

8. eSATA/USB 2.0 connector

9. USB 3.0 connector

10. powered USB 3.0 connector

11. volume control buttons

12. wireless switch

13. optical drive

14. ExpressCard slot

15. fingerprint reader

16. Secure Digital (SD) memory-card

reader

17. contactless smart card reader

18. touchpad buttons (2)

19. touchpad

20. trackstick buttons (3)

21. trackstick

22. keyboard

23. device status lights (hard disk,

battery, and wireless)

Figure 6. Back view

1. HDMI connector

2. security cable slot

3. modem connector /WWAN pass-

through (optional)

4. device status lights (power, hard

disk, and battery)

5. power connector

6. network connector

7. USB 2.0 connector

8. VGA connector

9. audio connector

10. cooling vents

11. smart card slot

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Installing Handle Assembly (Latitude E6430 ATG)

1. Insert a paper clip into the release holes to unlock and remove the covering plugs

from their slots.

2. Place the handle assembly into the slots. Use the screws to tighten and secure the

handle assembly to the computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible

cable or improperly connecting the cable to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp

the connector, not the cable itself, and pull firmly but gently to avoid damaging the

cable. When you wrap the AC adapter cable, ensure that you follow the angle of the

connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

1. Connect the AC adapter to the AC adapter connector on the computer and to the

electrical outlet.

Figure 7. AC Adapter

2. Connect the network cable (optional).

Figure 8. Network Connector

3. Connect USB devices, such as a mouse or keyboard (optional).

Figure 9. USB Connector

4. Open the computer display and press the power button to turn on the computer.

Figure 10. Power Button

5. Connect the external antennae (purchased by customer) to the RF cable (provided

by Dell) present on the RF board. (Applicable only for E6430 ATG)

Figure 11. RF Pass Connector

NOTE: It is recommended that you turn on and shut down your computer at least

once before you install any cards or connect the computer to a docking device or

other external device, such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power

AC Adapter

Latitude E6430, Latitude E6530, and

Latitude E6430 ATG

65 W and 90 W

NOTE: 65 W AC adapter is available only

for computers with integrated video card.

Input voltage 100 VAC to 240 VAC

Coin-cell battery 3 V CR2032 lithium coin cell

Physical

Latitude E6430

Height 26.90 mm to 32.40 mm (1.06 inches to 1.27

inches)

Width 352.00 mm (13.86 inches)

Depth 241.00 mm (9.49 inches)

Weight (Discrete unit with 6 cell) 2.62 kg (5.78 lb)

Physical

Latitude E6530

Height 28.30 mm to 34.20 mm (1.11 inches to 1.35

inches)

Width 384.00 mm (15.12 inches)

Depth 258.00 mm (10.16 inches)

Weight (Discrete unit with 6 cell) 2.75 kg (6.06 lb)

Latitude E6430 ATG

Height 33.80 mm to 37.80 mm (1.33 inches to 1.49

inches)

Width 359.20 mm (14.14 inches) with port cover

Depth 247.40 mm (9.74 inches) with port cover

Weight (UMA unit with 6 cell) 2.88 kg (6.34 lb)

Environmental

Operating Temperature: 0 °C to 35 °C (32 °F to 95 °F)

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.
