Dell D6000S User manual

D6000

User Guide

DellTM Universal Dock

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

Information in this document is subject to change without notice. Reproduction of these

materials in any manner whatsoever without the written permission of Dell Inc. is strictly

forbidden.

Trademarks used in this text: Dell and the Dell logo are trademarks of Dell Inc., Intel®,

Centrino®, Core™, and Atom™are either trademarks or registered trademarks of Intel

Corporation in the U.S. and other countries; Microsoft®, Windows®, and Windows start button

logo are either trademarks or registered trademarks of Microsoft Corporation in the United

States and/or other countries; Bluetooth®is a registered trademark owned by Bluetooth SIG,

Inc. and is used by Dell under license; Blu-ray Disc™is a trademark owned by the Blu-ray Disc

Association(BDA) and licensed for use on discs and players; Other trademarks and trade names

may be used in this document to refer to either the entities claiming the marks and names or

their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other

than its own.

2017 – 03 Rev. A00

3

Package Contents

a. Dell Universal Dock (D6000)

b. Power adapter and power cord

a b

Speciﬁcations

Upstream

• USB 3.0 Type A (Via C-to-A converter)

• USB-C (Support power delivery up to 65W)

Downstream

• 3 x USB 3.0 Type A

• 1 x USB 3.0 Type A (front, PowerShare)

• 1 x USB-C (front, Data only, and PowerShare)

• 1 x HDMI

• 2 x DisplayPort

• Gigabit Ethernet

• Combo Audio (Headphone/Mic)

• Audio Line out

Supports USB 3.1 Gen1.

• Product capability : product signals at 5 Gbps

• Marketing name: SuperSpeed USB

• Note: USB 3.1 Gen1 and USB 3.0 terms are synonymous

Power LED Indication

Normal working mode: White light

Platform standby: Amber light

Power O: Light O

LAN port LED Indication

Connection: Green (Solid green)

Active Link: Amber (blinking)

4 

** : No Alt-mode support

DP-1 DP-2 HDMI DP-1 DP-2 HDMI

OutputInputs (plug in)

DP-1

DP-2

HDMI

4K@60Hz

N.A.**

4K@60Hz

USB-3.0 platform users with driver install

5K@60Hz

Maximum resolution and refresh rate supported for your display:

Note: Maximum Resolution/Refresh Rate will also depend on EDID table of monitors

* If without DisplayLink driver, HDMI out will be from Alt-mode and 4K@ 30Hz.

DP-1 DP-2 HDMI DP-1 DP-2 HDMI

OutputInputs (plug in)

DP-1

DP-2

HDMI

4K@60Hz

4K@30Hz

4K@60Hz

USB-C platform users with driver install

5K@60Hz

5

Product Overview

Front View

Audio Combo

USB 3.0

USB-C

HDMI

Ethernet

Power in

USB 3.0

Audio line out

USB 3.0

Back View

6 

Recommended System Requirements

Hardware

DL-6xxx devices (4K UHD resolutions)

Minimum Requirements for Oce, Productivity, Web

Processor: Intel Core i3 2+GHz / Intel Core M / AMD Trinity or better

Memory: 4GB

Video Card: Intel HD 4000, ATI Radeon HD7xxx, NVidia GeForce 5xxM or better, with

drivers released speciﬁcally for the Windows version.

USB: USB 2.0 but USB 3.0 recommended

Minimum Requirements for Full-Screen Video Playback

Processor: Intel SkyLake i3 or Intel Core i7 2+GHz / AMD Richland A10-575x / AMD

Kaveri A10-7400P or better

Memory: 8GB

Video Card: Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM or better, with

drivers released speciﬁcally for the Windows version.

USB: USB 3.0

Disk: 7200RPM or SSD

If playing UHD content (4K), the system must be capable of decoding the 4K video in

the GPU.

Operating System

Wins OS (Win 7, 8, 8.1, 10); 32/64 bits (with DisplayLink Driver version: 8.2 onwards).

Ubuntu OS 14.04.2 or greater.

Chrome OS Build 58 onwards.

1.Lite-On (DPN: VJCH5) adapter:

100 VAC to 240 VAC/50 Hz to 60 Hz.

2.Chicony (DPN: 6G99N) adapter:

100 VAC to 240 VAC/50 Hz to 60 Hz.

Recommended 130W Power adapter

AC/DC

Adapter

Output voltage/

current

Operating Temperature

Max. operating temperature is 40 oC

Input voltage/

frequency/

current

Output: 19.5VDC/6.7A

7

Note: Windows will start installing the DisplayLink driver automatically

if connected to Internet.

2. Follow the screen instructions until the installation is complete.

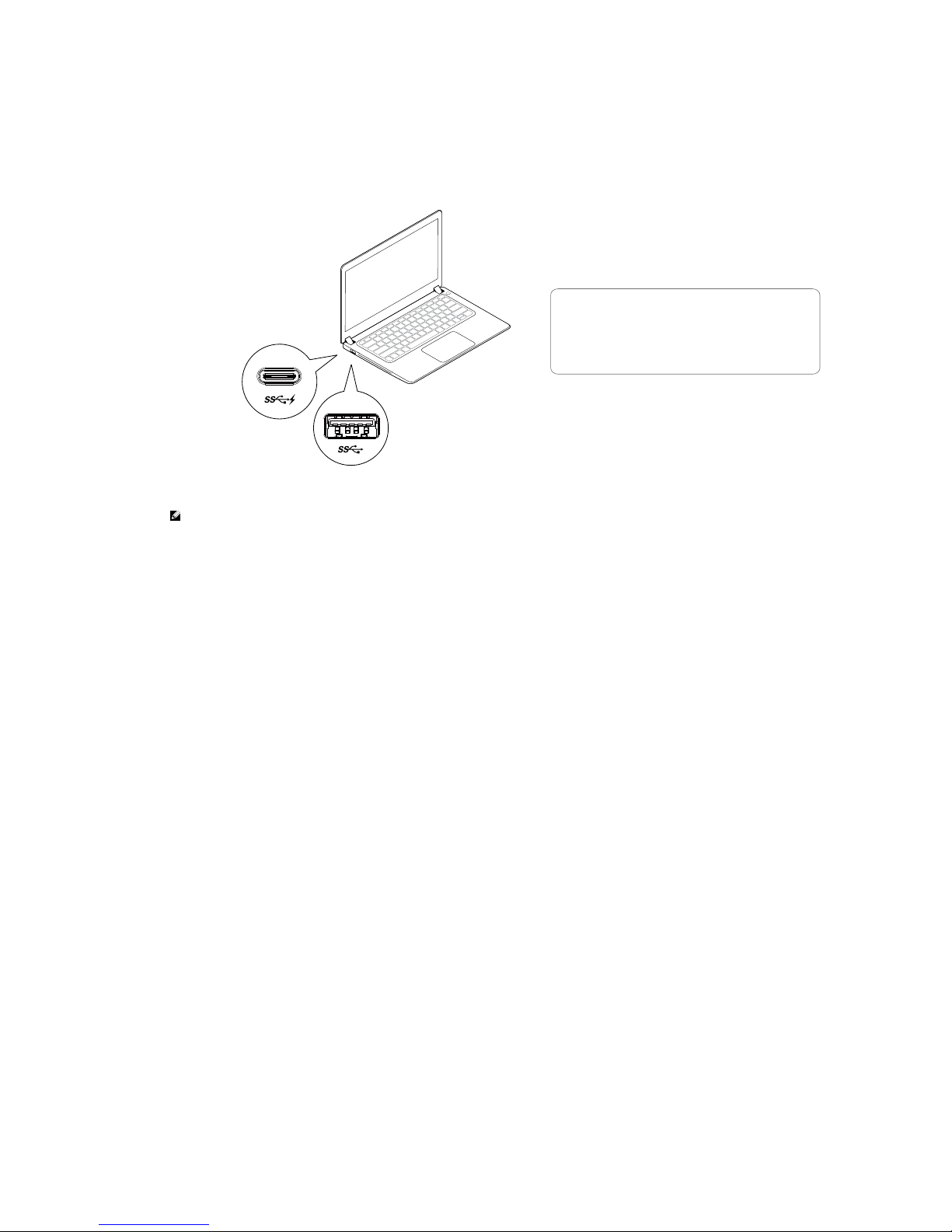

Windows 7/8/8.1/10 Setup

1. Start to install the drivers ﬁrst before connecting the Dock to your computer.

It is recommended to download the latest drivers from below support website:

For network/IT administrators, please visit

this link for a corporate installation software

package. (*User registration required)

http://www.displaylink.com/corporateinstall/

· dell.com/support

· displaylink.com/downloads

8 

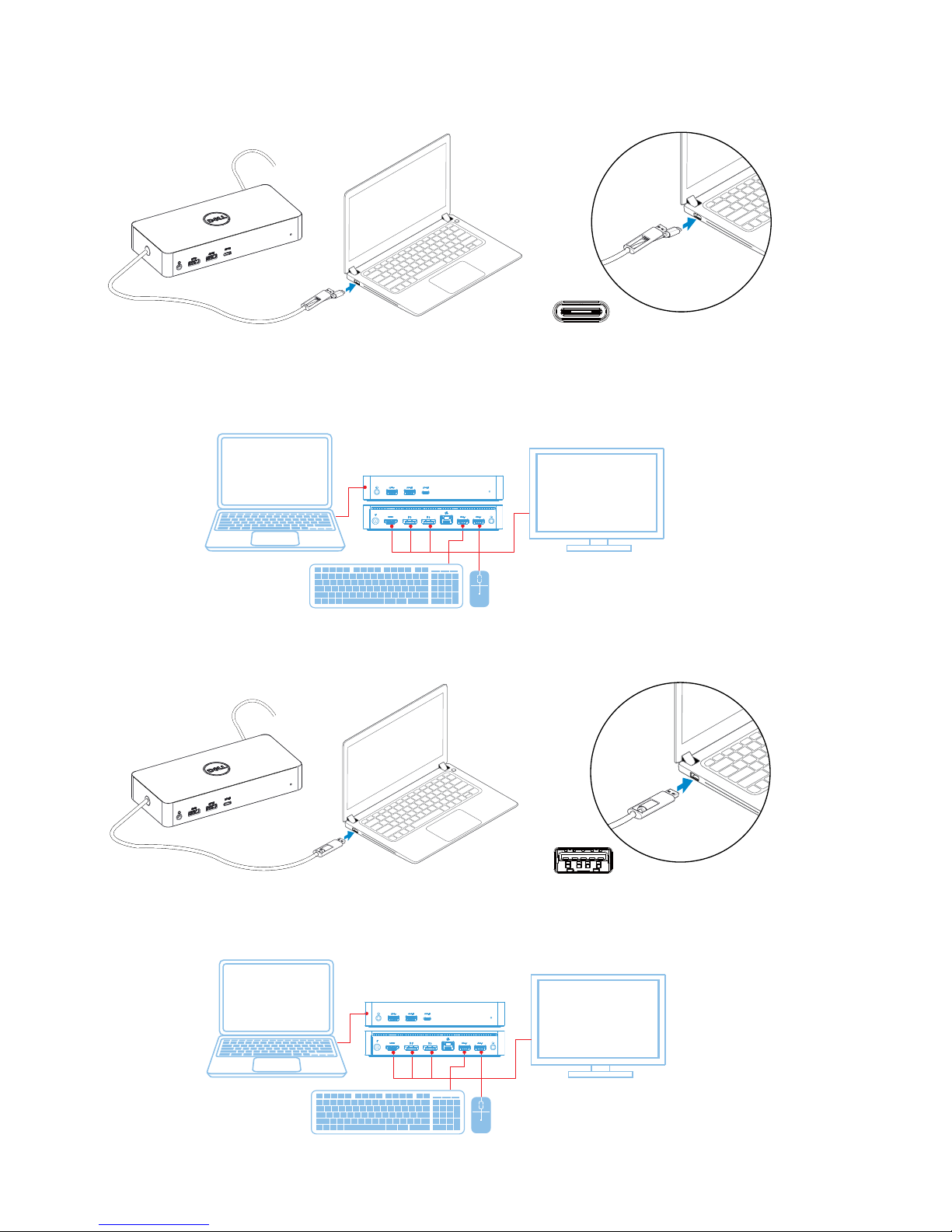

3-2-a. USB 3.0 Type A platform/connection

USB-A

3-1-b. Connect your dock and peripherals to your PC.

3-2-b. Connect your dock and peripherals to your PC.

(Only two video at one time)

3-1-a. USB-C platform/connection

USB-C

9

Features

10 

DisplayLink Manager Menu

Menu Option

DisplayLink Manager

Check for Updates

DisplayLink Devices

Audio Setup

Video Setup

Screen Resolution

Screen Rotation

Extend To

Extend

Set as Main Monitor

Notebook Monitor O

Mirror

O

Fit to TV

Description

Clicking on this item will show the version of DisplayLink

software installed.

Windows update checking.

Connected DisplayLink devices checking.

Opens the Windows Audio Conﬁguration window.

Opens the Windows Screen Resolution window.

Displays a list of available resolutions.

Rotates the screen in clockwise or counter-clockwise direction.

Extends the display to the right or left of the main display.

Extends the Windows desktop onto the display.

Sets this screen as the main display.

Switches o the display of the notebook and makes the

DisplayLink display the main display.

Copies what is on the main display and reproduces it on

this display.

Switches o the display.

Use this function to adjust the size of the windows to ﬁt the

TV screen.

To set the display into extended mode

1. Click on the DisplayLink icon.

2. Select Extend.

The device is now extended in the direction it was the last time the display was in this

mode. For more control, use the Extend To submenu and select one of the options. This

puts the device into extend mode, and places it to the Left/Right/Above/Below the main

(primary) monitor.

To set the display into mirror mode

1. Click on the DisplayLink icon.

2. Select Mirror.

The resolution, colour depth and refresh rate of the primary screen are replicated on

the monitor connected to the DisplayLink USB Graphics device.
