Dell™ External Media Bay
User’s Guide
FILE LOCATION: C:\Documents and Settings\julie_Woodson\My
DELL CONFIDENTIAL – PRELIMINARY 7/22/08 – FOR PROOF ONLY
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data
and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury,
or death.
____________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
June 2008 Rev. A00
FILE LOCATION: C:\Documents and Settings\julie_Woodson\My
Documents\eDocs\Edocks\emby\en\source\bookTOC.fm
Contents 3
Contents
1 About Your Dell™ External Media Bay . . . 5
2 Using the External Media Bay . . . . . . . . . . 7
Connecting the External Media Bay to the Computer. . . 7
Inserting a Media Bay Module Into the External Media Bay 8
Removing the Media Bay Module . . . . . . . . . . . . . 9
Securing the External Media Bay . . . . . . . . . . . . 10
3 Specifications . . . . . . . . . . . . . . . . . . . . . 11
4 Finding Information . . . . . . . . . . . . . . . . . 13
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
FILE LOCATION: C:\Documents and Settings\julie_Woodson\My
Documents\eDocs\Edocks\emby\en\source\bookTOC.fm
4Contents
Template Last Updated - 2/7/2007 About Your Dell™ External Media Bay 5
DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY
About Your Dell™ External Media
Bay
The external media bay supports the following devices for Dell E-Series
laptop computers:
• 9.5" eSATA optical drives
(DVD, Combo, DVR +/-RW)
• 1.8" SATA HDD or SSD

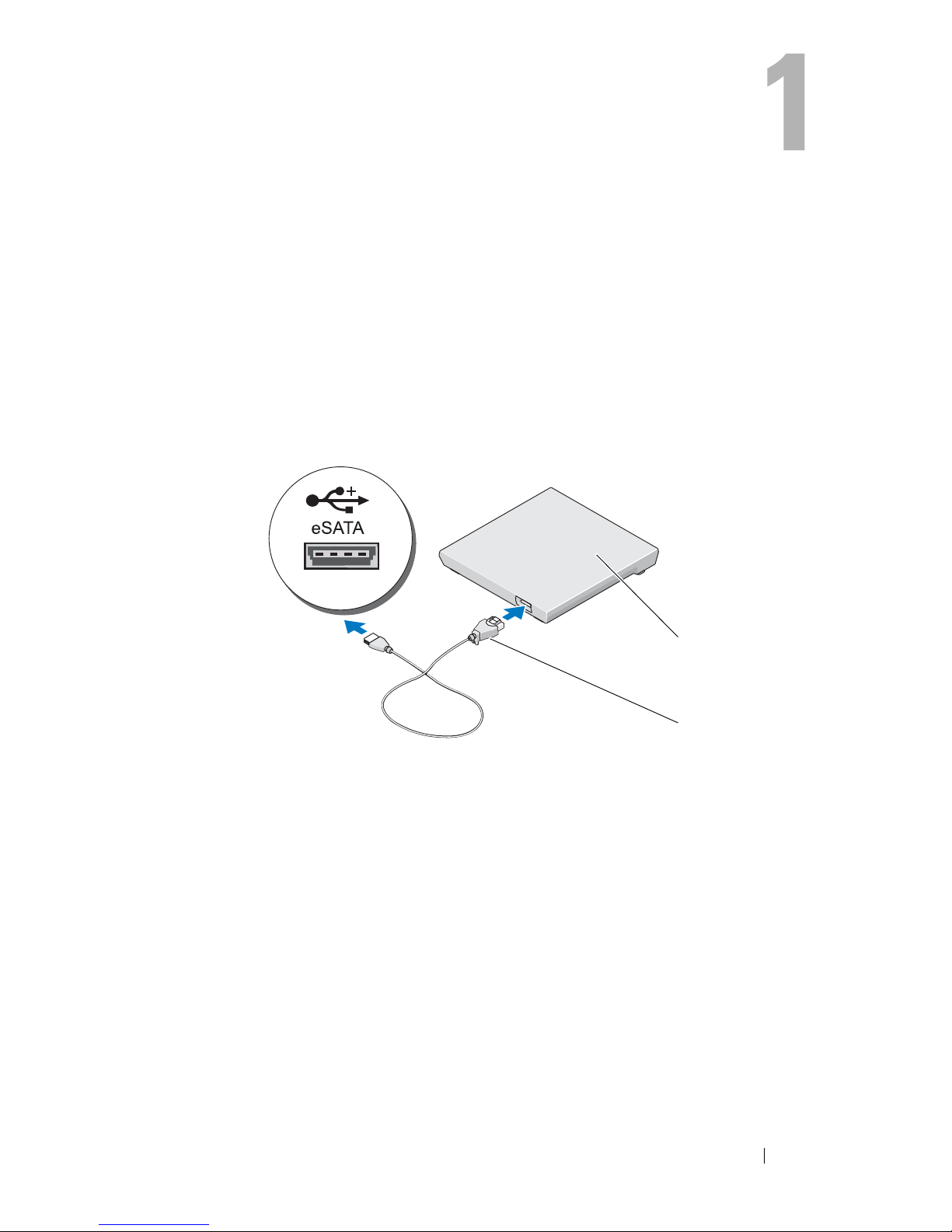

1 external media bay 2 eSATA cable
1
2
6About Your Dell™ External Media Bay
FILE LOCATION: C:\Documents and Settings\julie_Woodson\My
Documents\eDocs\Edocks\emby\en\source\about.fm
DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY
Template Last Updated - 2/7/2007 Using the External Media Bay 7
DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY
Using the External Media Bay
Connecting the External Media Bay to the
Computer
NOTICE: Only use the eSATA cable that shipped with your external media bay.
1
Connect the eSATA cable to the eSATA connector on your computer or
port replicator.
2
Connect the other end of your eSATA cable to the eSATA connector on
your external media bay.

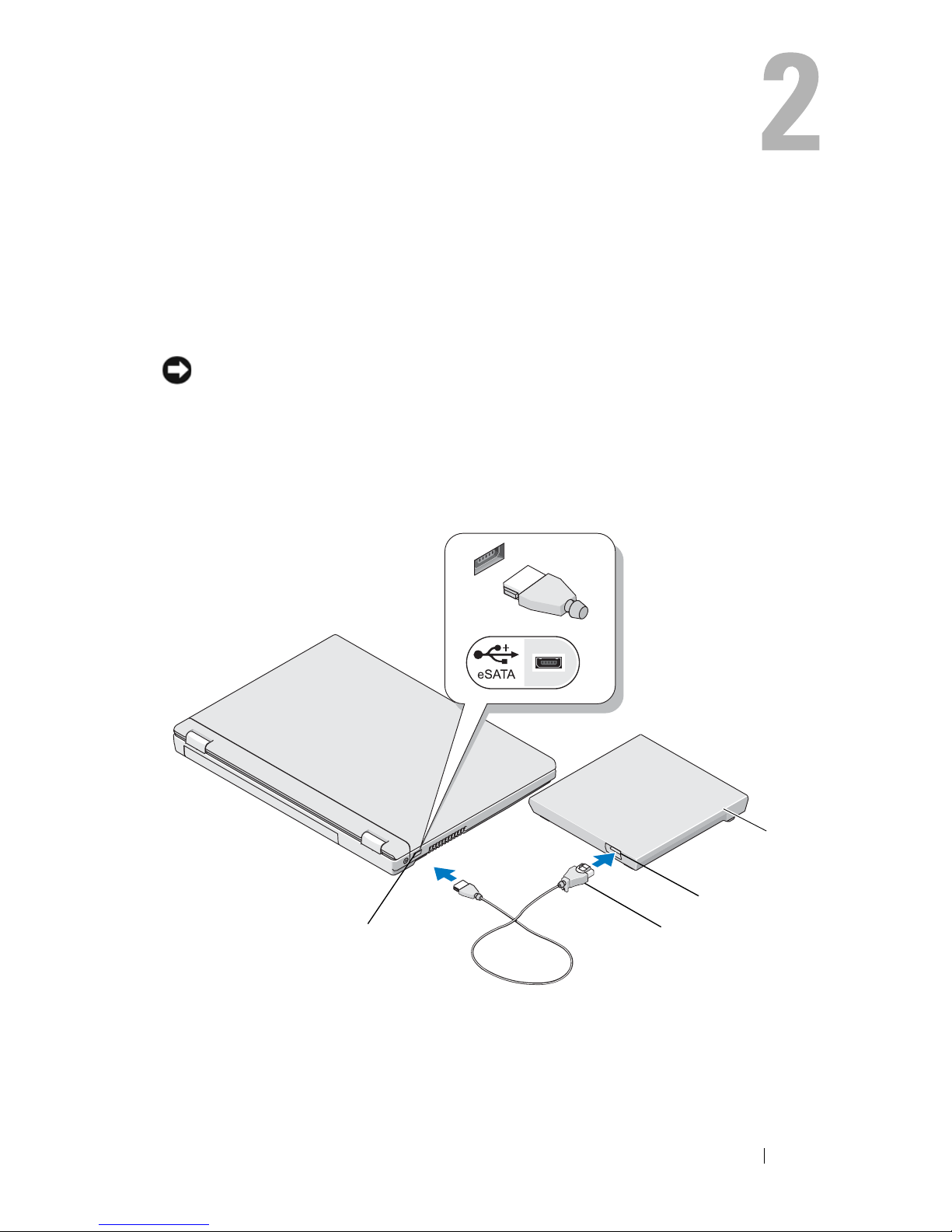

1 external media bay 2 eSATA connector on external media bay
3 eSATA cable 4 eSATA connector on laptop
1
2
3
4
8Using the External Media Bay
FILE LOCATION: C:\Documents and Settings\julie_Woodson\My
Documents\eDocs\Edocks\emby\en\source\using.fm
DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY
Inserting a Media Bay Module Into the External
Media Bay
To insert a module into the external media bay:
1
Place the module in the media bay.
2
Push the module until it clicks into place and the release latch secures the
module in the bay.

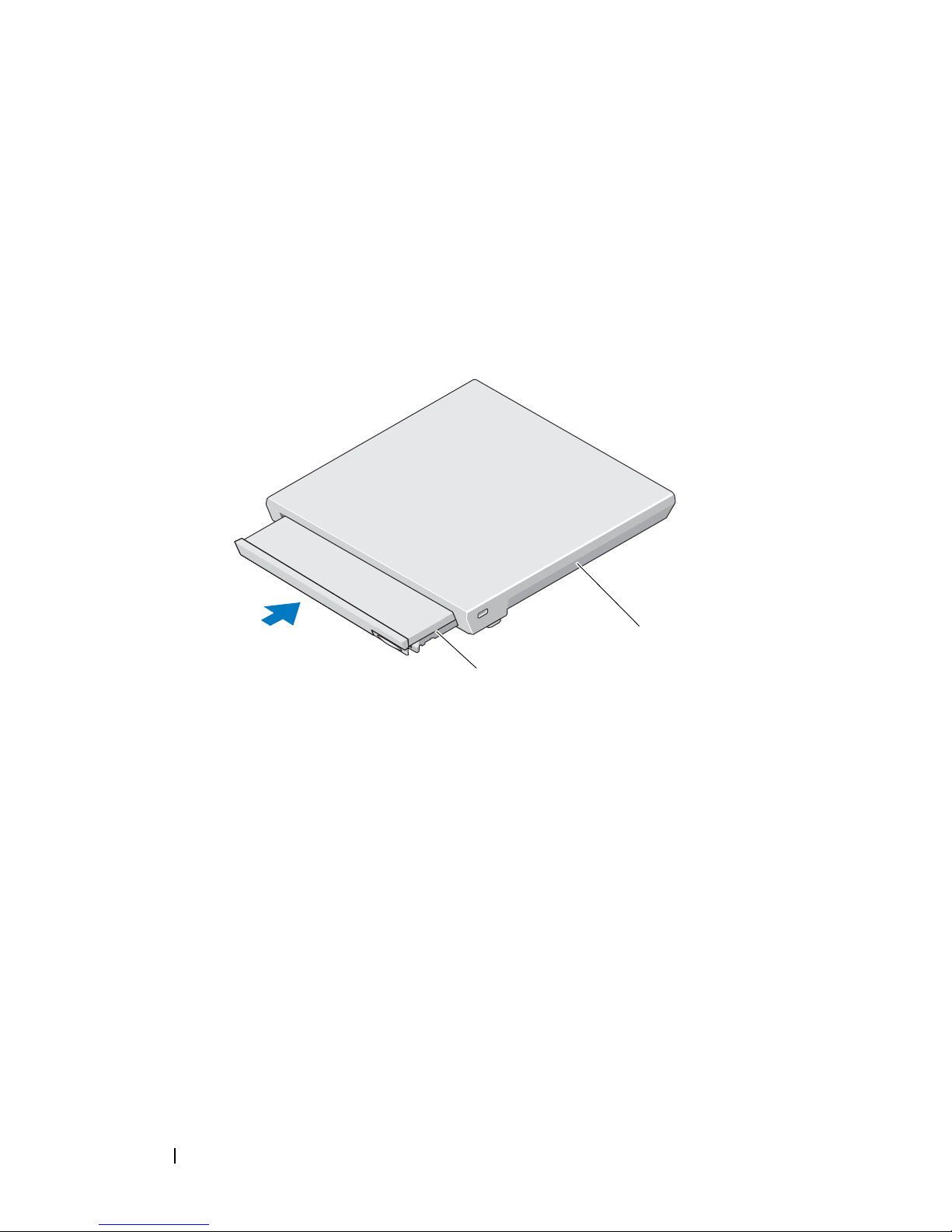

1 external media bay 2 media bay module
1
2
Using the External Media Bay 9
FILE LOCATION: C:\Documents and Settings\julie_Woodson\My
Documents\eDocs\Edocks\emby\en\source\using.fm
DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY
Removing the Media Bay Module
To remove a module from the media bay:
1
Push in on the release latch to eject it from the media bay.
2
Pull the release latch to remove the media bay module from the media bay.
1 external media bay 2 release latch
1 media bay module 2 release latch
1
2
1
2
10 Using the External Media Bay
FILE LOCATION: C:\Documents and Settings\julie_Woodson\My
Documents\eDocs\Edocks\emby\en\source\using.fm
DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY
Securing the External Media Bay
1
Install the security screw provided with the external media bay.
2
Insert the security cable into the security cable slot.
NOTE: Antitheft devices usually include a segment of metal-stranded cable with an
attached locking device and associated key (available at dell.com). For instructions
on how to install this kind of antitheft device, see the documentation that came with
the device.

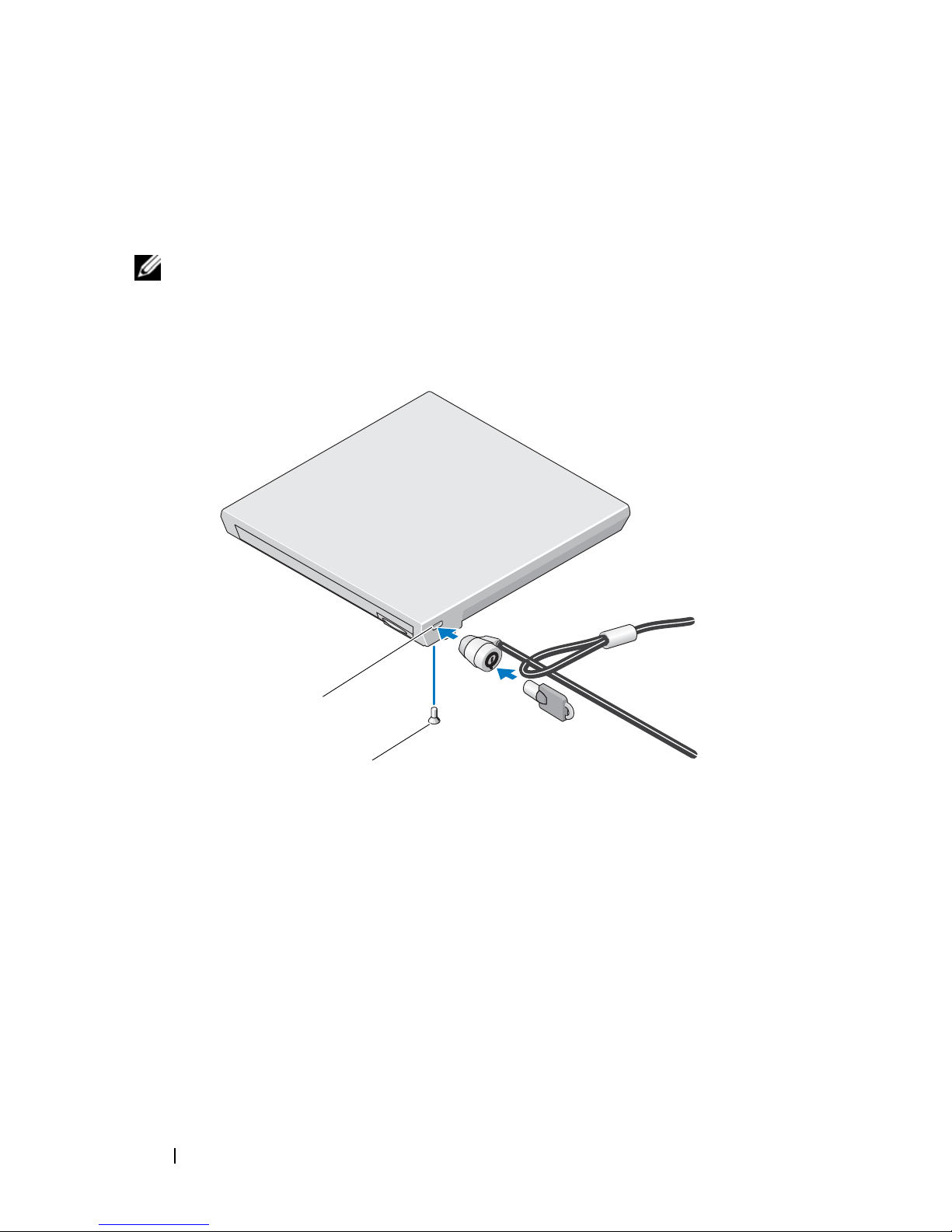

1 security screw 2 security cable slot
2
1
