Deliberant DLB27 Series User manual

DLB27XX

WLAN Indoor/Outdoor Radio

User Manual

Version 1.0.0 (12.14.2006)

Table of Contents

Preface................................................................................................................................................................................. 3

FCC Information................................................................................................................................................................ 3

Electronic Emission Notices....................................................................................................................................................................3

FCC Frequency Interference Statement.................................................................................................................................................3

FCC Radiation Exposure Statement.......................................................................................................................................................3

Antenna Installation ................................................................................................................................................................................3

Installation Requirements..................................................................................................................................................3

Packing List.......................................................................................................................................................................4

Quick Start Guides ............................................................................................................................................................. 5

Access Point (Bridged)......................................................................................................................................................5

Access Point (Router).......................................................................................................................................................6

Access Point Client Mode.................................................................................................................................................8

AP Client Router (WISP)..................................................................................................................................................11

WDS Point-to-Point Link .................................................................................................................................................14

Configuring Universal Repeater...................................................................................................................................... 17

Wireless Setup.................................................................................................................................................................. 19

Initial Configuration .........................................................................................................................................................19

Operation Mode ..............................................................................................................................................................19

Router ...................................................................................................................................................................................................20

Bridge....................................................................................................................................................................................................20

WISP (Wireless ISP).............................................................................................................................................................................20

Wireless Configuration..................................................................................................................................................... 22

Basic Settings .................................................................................................................................................................22

Disable Wireless LAN Interface ............................................................................................................................................................22

Band......................................................................................................................................................................................................22

Mode.....................................................................................................................................................................................................22

Network Type........................................................................................................................................................................................23

SSID......................................................................................................................................................................................................23

Channel Number...................................................................................................................................................................................23

Advanced Settings.......................................................................................................................................................... 25

Authentication Type...............................................................................................................................................................................25

Fragment Threshold..............................................................................................................................................................................25

RTS Threshold......................................................................................................................................................................................25

Beacon Interval.....................................................................................................................................................................................25

ACK Timing...........................................................................................................................................................................................26

Client Expired Time...............................................................................................................................................................................26

MTU Size ..............................................................................................................................................................................................26

Data Rate..............................................................................................................................................................................................26

Preamble Type......................................................................................................................................................................................26

Broadcast SSID ....................................................................................................................................................................................26

IAPP......................................................................................................................................................................................................26

802.11g Protection................................................................................................................................................................................26

Block WLAN Relay (Isolate Client) .......................................................................................................................................................26

Turbo Mode...........................................................................................................................................................................................26

Transmit Power.....................................................................................................................................................................................27

Security...........................................................................................................................................................................28

Encryption.............................................................................................................................................................................................28

WPA Authentication Mode.....................................................................................................................................................................30

Access Control................................................................................................................................................................30

WDS Settings..................................................................................................................................................................30

WDS Network Topology........................................................................................................................................................................31

Wireless Repeater.................................................................................................................................................................................33

Wireless Bridge.....................................................................................................................................................................................34

Site Survey...................................................................................................................................................................... 34

Connecting Profile........................................................................................................................................................... 34

TCP/IP Configuration........................................................................................................................................................ 36

Configuring LAN Interface...............................................................................................................................................36

Configuring DHCP Server.....................................................................................................................................................................36

Configuring WAN Interface..............................................................................................................................................36

Static IP.................................................................................................................................................................................................37

PPPoE...................................................................................................................................................................................................39

PPTP.....................................................................................................................................................................................................40

Configuring Clone MAC Address ..........................................................................................................................................................41

VPN Pass-through ................................................................................................................................................................................44

Static Route Setup.......................................................................................................................................................... 44

Dynamic Route Setup.....................................................................................................................................................45

Firewall Configuration...................................................................................................................................................... 47

Configuring LAN to WAN Firewall ...................................................................................................................................47

Port Filtering.................................................................................................................................................................... 47

IP Filtering.......................................................................................................................................................................47

MAC Filtering ..................................................................................................................................................................47

Configuring Port Forwarding (Virtual Server) ..................................................................................................................48

Multiple Servers behind NAT Example:........................................................................................................................... 48

Configuring DMZ............................................................................................................................................................. 49

Configuring VPN .............................................................................................................................................................50

Management Configuration ............................................................................................................................................. 51

Quality of Service (QoS) .................................................................................................................................................51

QoS Rule settings.................................................................................................................................................................................52

Current QoS setting table .....................................................................................................................................................................52

Bandwidth Control........................................................................................................................................................... 53

SNMPAgent.................................................................................................................................................................... 54

Upgrade Firmware .......................................................................................................................................................... 57

Firmware Types.....................................................................................................................................................................................57

Upgrading Firmware .............................................................................................................................................................................57

Save/Reload Settings......................................................................................................................................................57

Reset Setting to Factory Default Value.................................................................................................................................................57

Password ........................................................................................................................................................................58

Using CLI Menu................................................................................................................................................................. 59

Start a SSH(Secure Shell) client session to login to the device............................................................................................................59

Execute CLI program............................................................................................................................................................................59

Menu Tree List ......................................................................................................................................................................................60

Password ..............................................................................................................................................................................................60

Auto Discovery Tool......................................................................................................................................................... 62

Discover................................................................................................................................................................................................62

Setup IP ................................................................................................................................................................................................62

Detail.....................................................................................................................................................................................................63

WDS......................................................................................................................................................................................................64

Active Clients ........................................................................................................................................................................................64

Connect to Web Server.........................................................................................................................................................................64

Preface

FCC Information

Electronic Emission Notices

This device complies with CFR 47 Part 15 of the FCC rules.

Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired operation.

FCC Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to CFR47 Part 15.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

residential environment, not withstanding use in commercial, business and industrial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from where the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the

user‟s authority to operate the equipment.

FCC Radiation Exposure Statement

To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 0.4-meters (15.75-

inches) is required between the antenna and all persons.

Antenna Installation

WARNING: It is installer‟s responsibility to ensure that w hen using the outdoor antenna in the U nited S tates (or w here FC C

rules apply), only those antennas certified with the product are used. The use of any antenna other than those certified with

the product is expressly forbidden in accordance to FCC rules CFR47 part 15.204. The installer should configure the output

power level of antennas, according to country regulations and per antenna type. Professional installation is required of

equipment with connectors to ensure compliance with health and safety issues.

Installation Requirements

This guide is for the networking professional who installs and manages the Deliberant DLB70xx line of outdoor products

hereafter referred to as the “device”. To use this guide, you should have experience working with the TCP/IP configuration and

be familiar with the concepts and terminology of wireless local area networks.

NOTE: Only those antennas that are of the same type and with lesser gain than those that are certified with this device may

be used legally by the installer.

Packing List

Before you start to install the device, make sure the package contains the following items：

Wireless Outdoor Bridge unit * 1

Mounting Kit * 1

Power Over Ethernet Kit * 1

Quick Start Guides

The purpose of these guides is to provide sample configurations for some of the most common applications of the DLB23XX

units.

Access Point (Bridged)

This is how the radio is configured by default. This configuration bridges the ethernet and wireless interfaces and disables all

NAT/firewall functions.

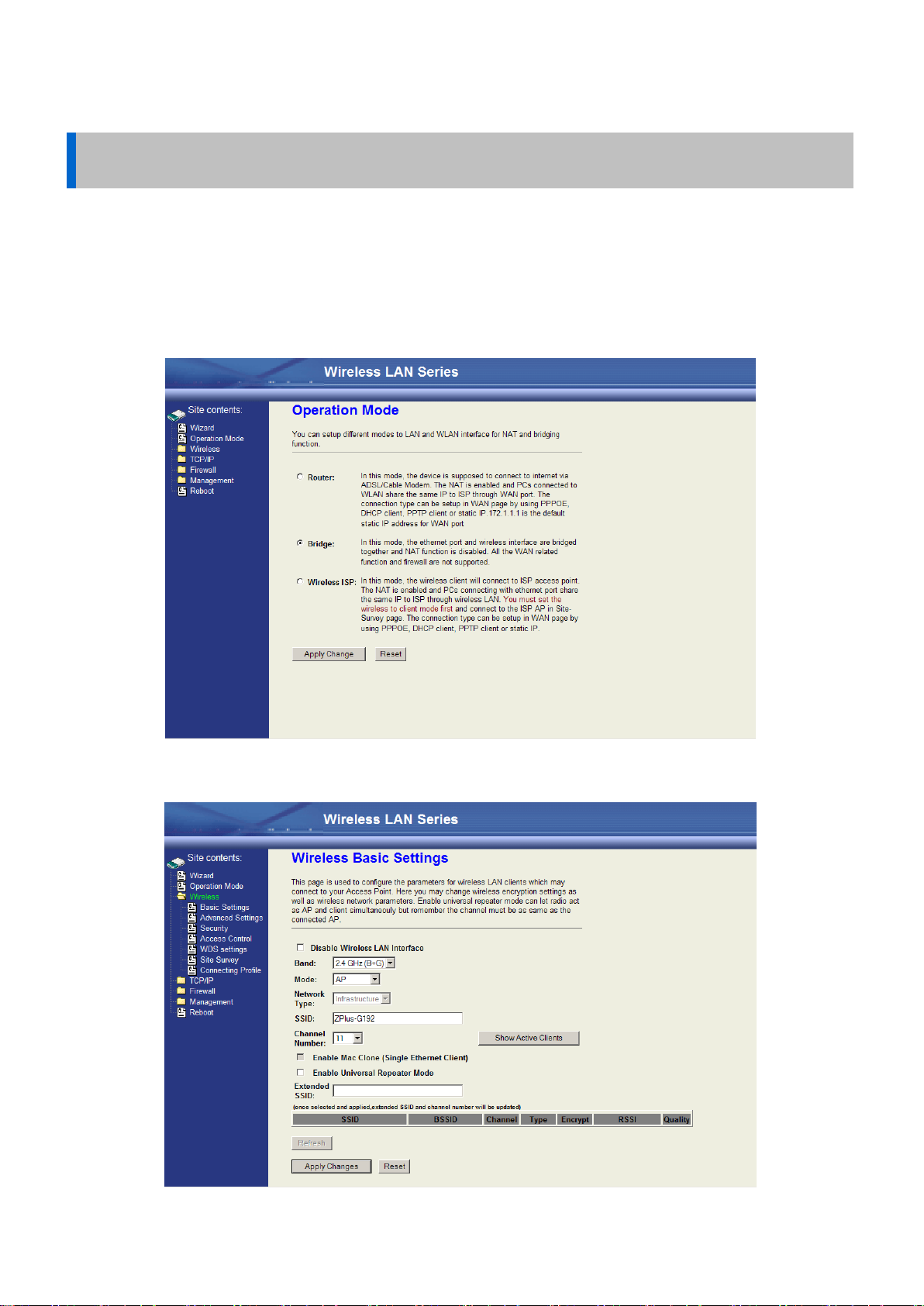

The first thing you will want to do is set the Operation Mode to Bridge mode. This configures the unit to bridge the interfaces

together.

The second thing you w ill do is configure the W ireless B asic S ettings. M ake sure the „D isable W ireless LA N Interface‟

checkbox is not checked. The M ode needs to be set to „A P ‟. The S S ID can also be changed at this point, if desired.

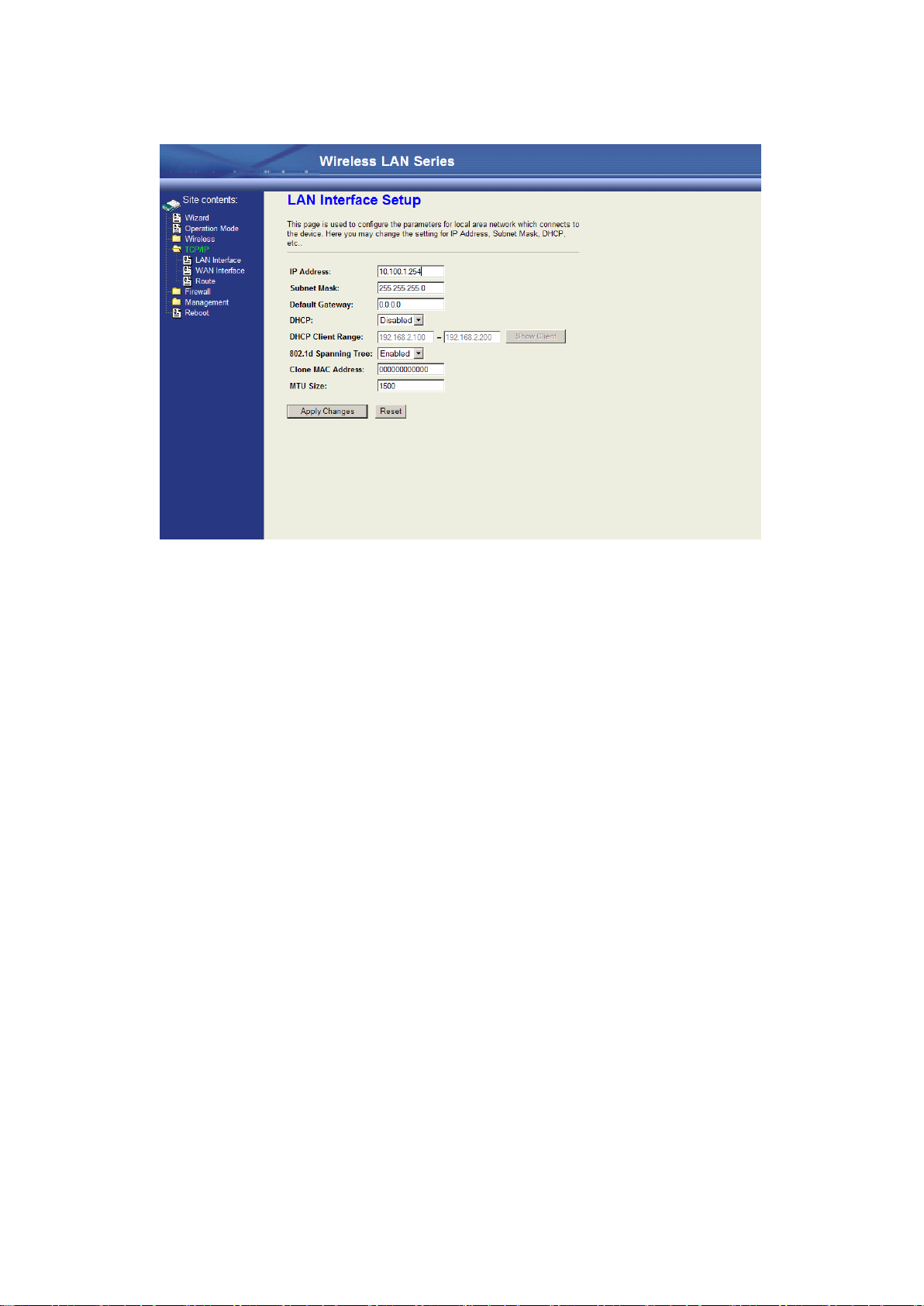

NOTE: For ease of management, you may also want to change the LAN IP address to reside on the subnet your other PCs

will be on.

This is all you have to do for a basic bridged access point. You will need to reboot the unit for the changes to take effect.

Access Point (Router)

This configuration is an access point with NAT enabled. The router is assigned a WAN address, and all connections on the

wireless LAN side are masqueraded behind the WAN address. In this setup, the wireless connection is the LAN interface and

the ethernet connection is the WAN interface. This setup is useful when multiple computers need network access, and there is

a shortage of available IP addresses.

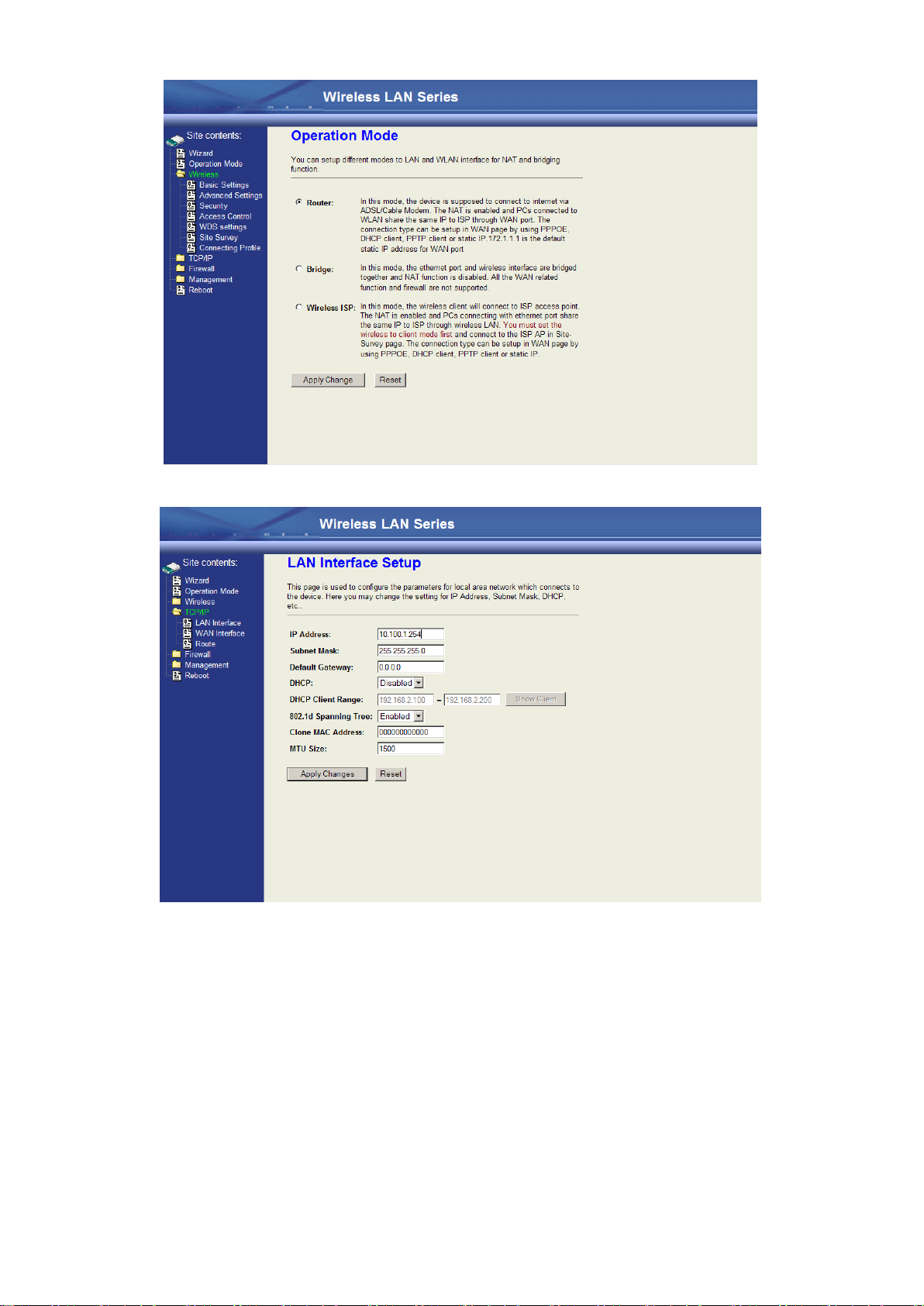

To enable the Access Point with routing, first change the Operation M ode to „R outer‟.

For ease of management, you may also want to change the LAN IP address to reside on the subnet your other PCs will be on

when connected to the WLAN.

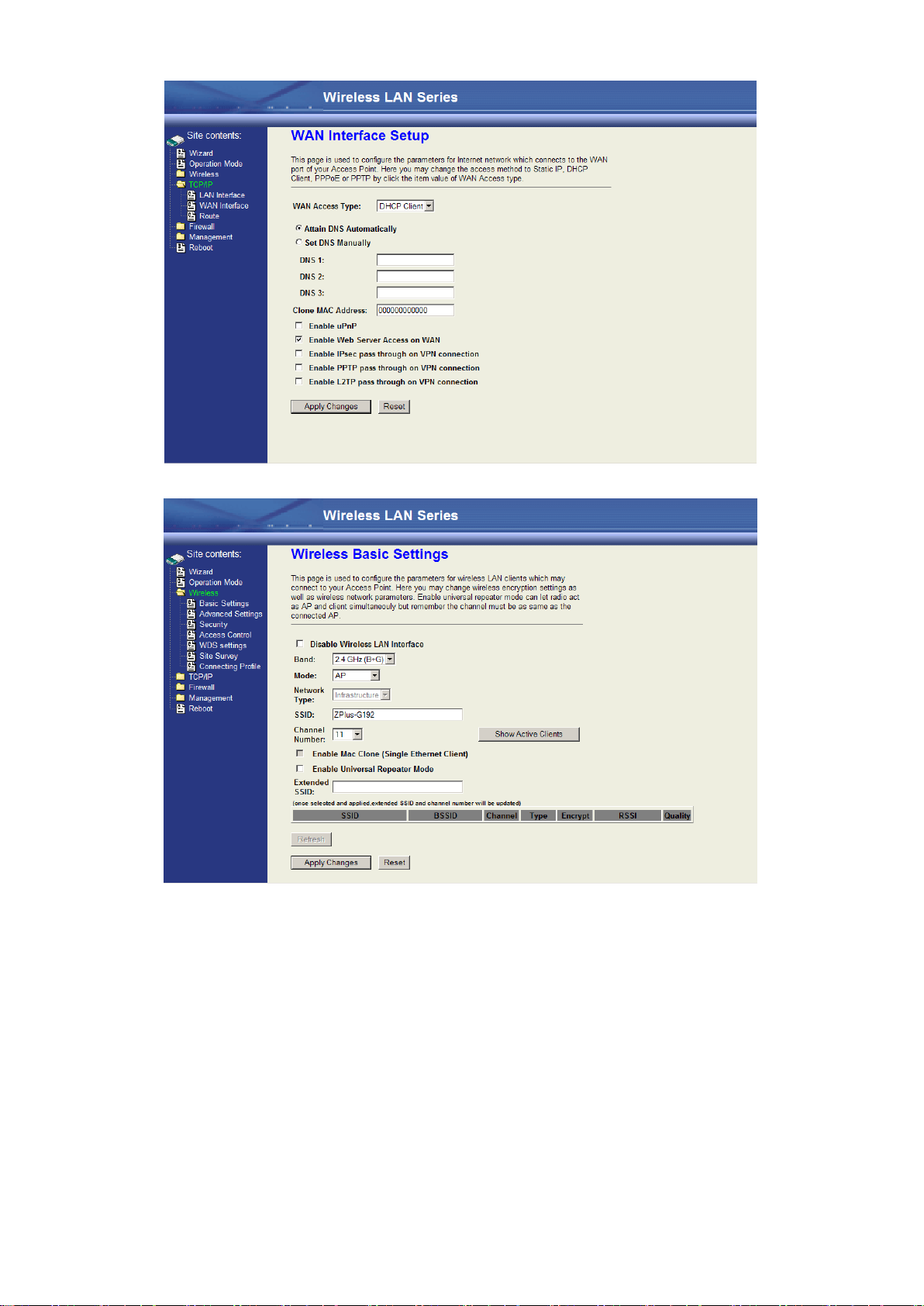

The WAN Interface will then need to be configured. In this example, the WAN interface will obtain its IP address by DHCP.

In the W ireless B asic S ettings the M ode needs to be set to „A P ‟, and the D isable Wireless LAN Interface checkbox needs to be

unchecked. The SSID can also be changed at this point, if desired.

These settings enable a basic routing access point.

Access Point Client Mode

This device can be configured as a wireless Ethernet adapter. In this mode, the device can connect to the other wireless

stations (Ad-Hoc network type) or Access Point (Infrastructure network type) and you don‟t need to install any driver.

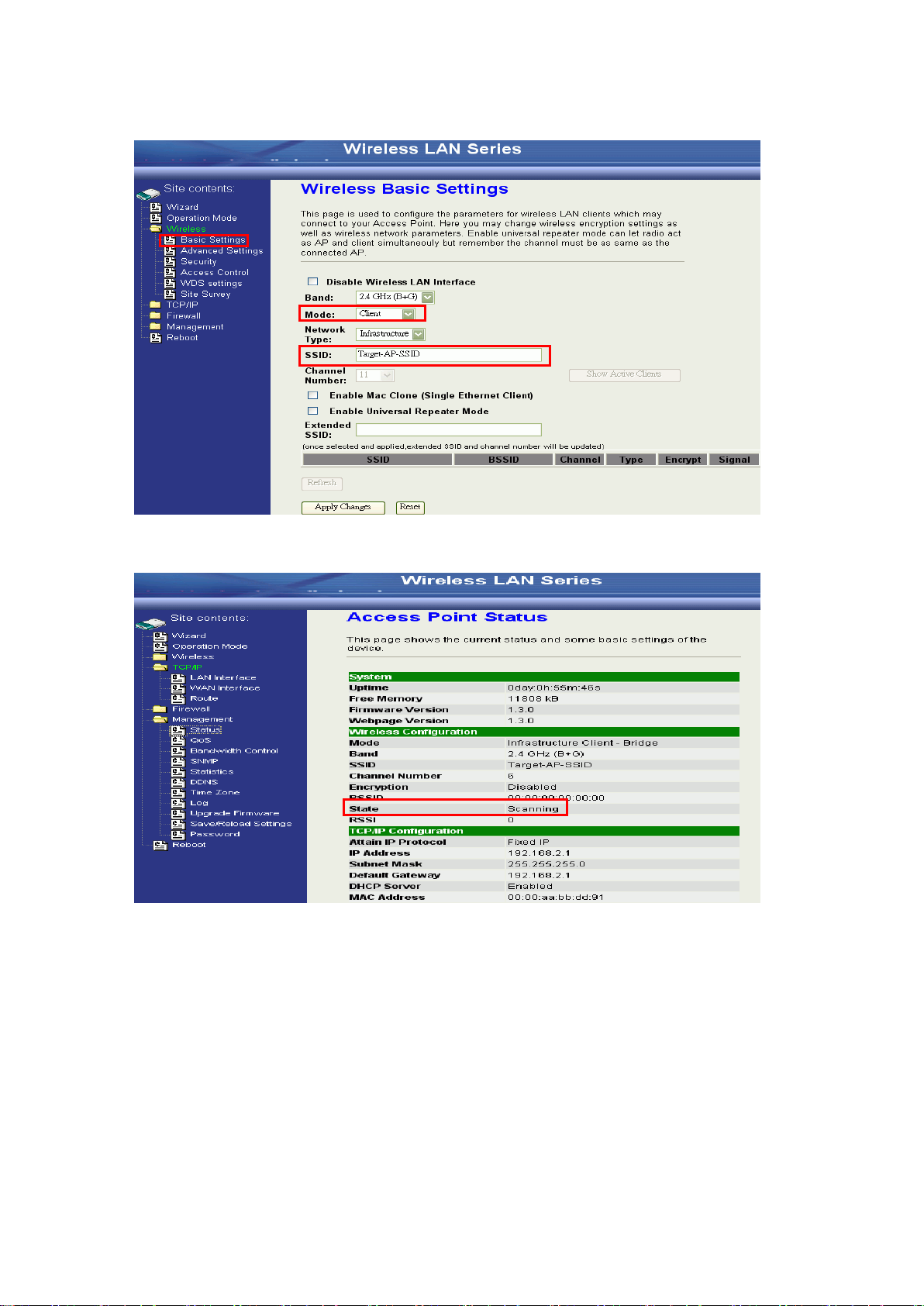

In “Basic Settings”page, change the Mode to “Client”mode. And key in the SSID of the AP you want to connect then press

“Apply Changes”button to apply the change.

Check the status of connection in the “Status”web page

The alternative way to configure is as follows:

In the “Wireless Site Survey”page, select one of the SSIDs you want to connect and then press “Connect”button to establish

the link.

Table of contents

Other Deliberant Radio manuals

Deliberant

Deliberant DLB2100 User manual

Deliberant

Deliberant DLB70 Series User manual

Deliberant

Deliberant DLB21 Series User manual

Popular Radio manuals by other brands

EisSound

EisSound KBSound iSelect user manual

Midland

Midland 1001LWX owner's manual

Konig

Konig HAV-SR41 manual

Roberts

Roberts exprssion manual

VDigi

VDigi DD3.0 Operation manual

Radio Shack

Radio Shack 21-1863 owner's manual

Roberts

Roberts Stream 207 instruction manual

Sony

Sony Walkman SRF-M97 Service manual

Stanley

Stanley FatMax FMC770 manual

auna

auna DAB-Radio 10026947 manual

SOUNDMASTER

SOUNDMASTER UR190 instruction manual

HYT

HYT TC-320 user manual

auna multimedia

auna multimedia Yellowstone 10026851 instructions

B-Tech

B-Tech GMRS-V2 manual

Weierwei

Weierwei VEV-V8 user manual

SOUNDMASTER

SOUNDMASTER DAB750 instruction manual

Telefunken

Telefunken TF-1505 instruction manual

Makita

Makita LXRM03 instruction manual
