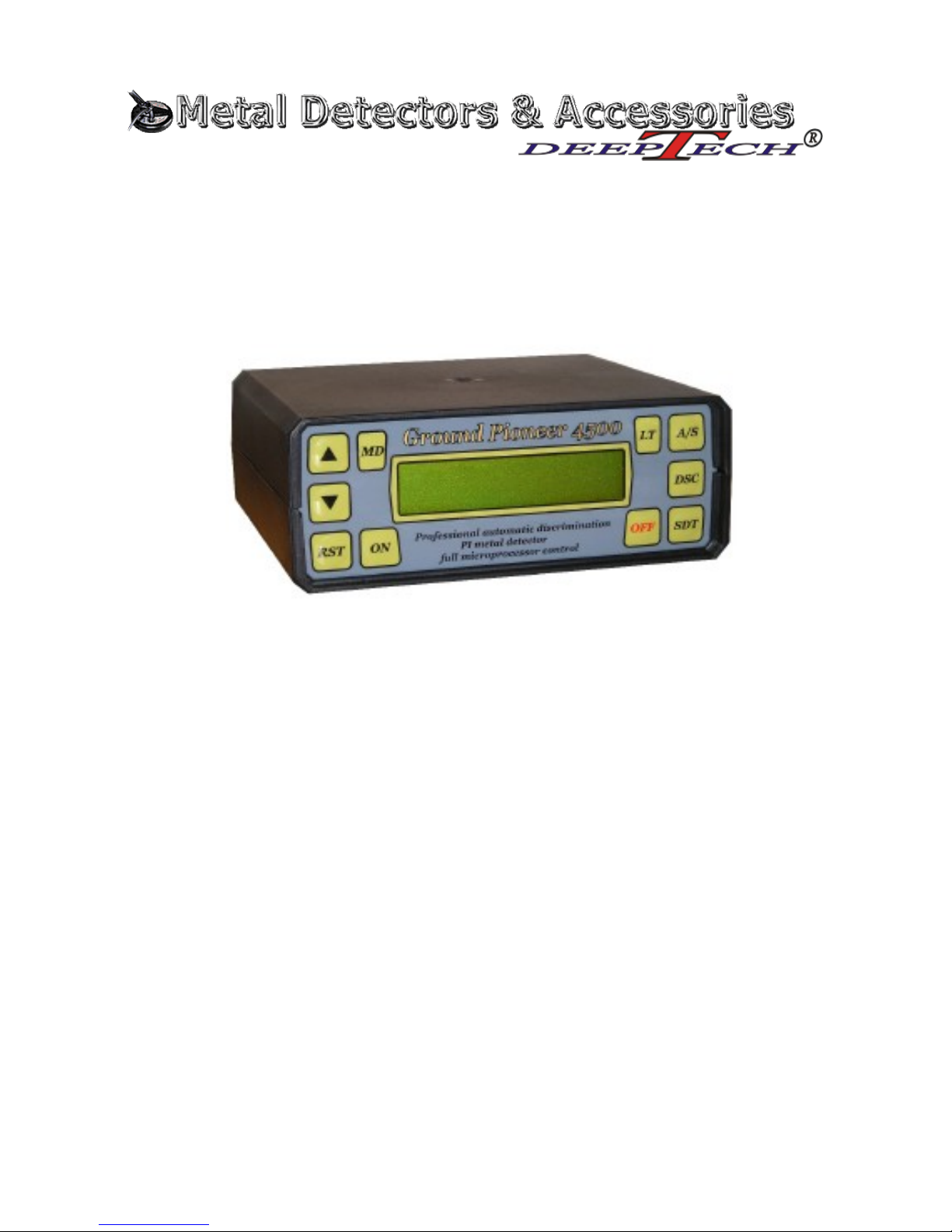

DeepTech Ground Pioneer 4500 User manual
Pulse Induction Metal Detector
Ground Pioneer
4500
help the users to find
deeper and easily
the location of the detected metal
The Ground Pioneer 4500 is the pulse metal detector with great power plus all the
major advancements of our previous discriminating pulse induction metal detectors.
The DIGITAL Ground Pioneer 4500 is a composite detector not only for the reason
that there is a build-in MAGNETOMETER SENSOR SYSTEM but also by reason
of that there is provided RS 232 PORT for connection to computer and GPS system
for localizing and visualization of the burried object.
The Digital Ground Pioneer 4500 is designed for detecting deeply buried or lost
metal objects metal pipes unterground communication equipment treasures and
similar objects and can easily detect larger objects buried up to 8 m deep because the
unit works by the principle of electromagnetic induction at a very low
frequency which allows penetration deeply in the ground.
So the Digital Ground Pioneer
4500 is good choice not only
for the treasure hunters but
also for archaeological
detection and geophysical
prospecting.
Target identification and
discrimination by Ground
Pioneer 4500 is possible with

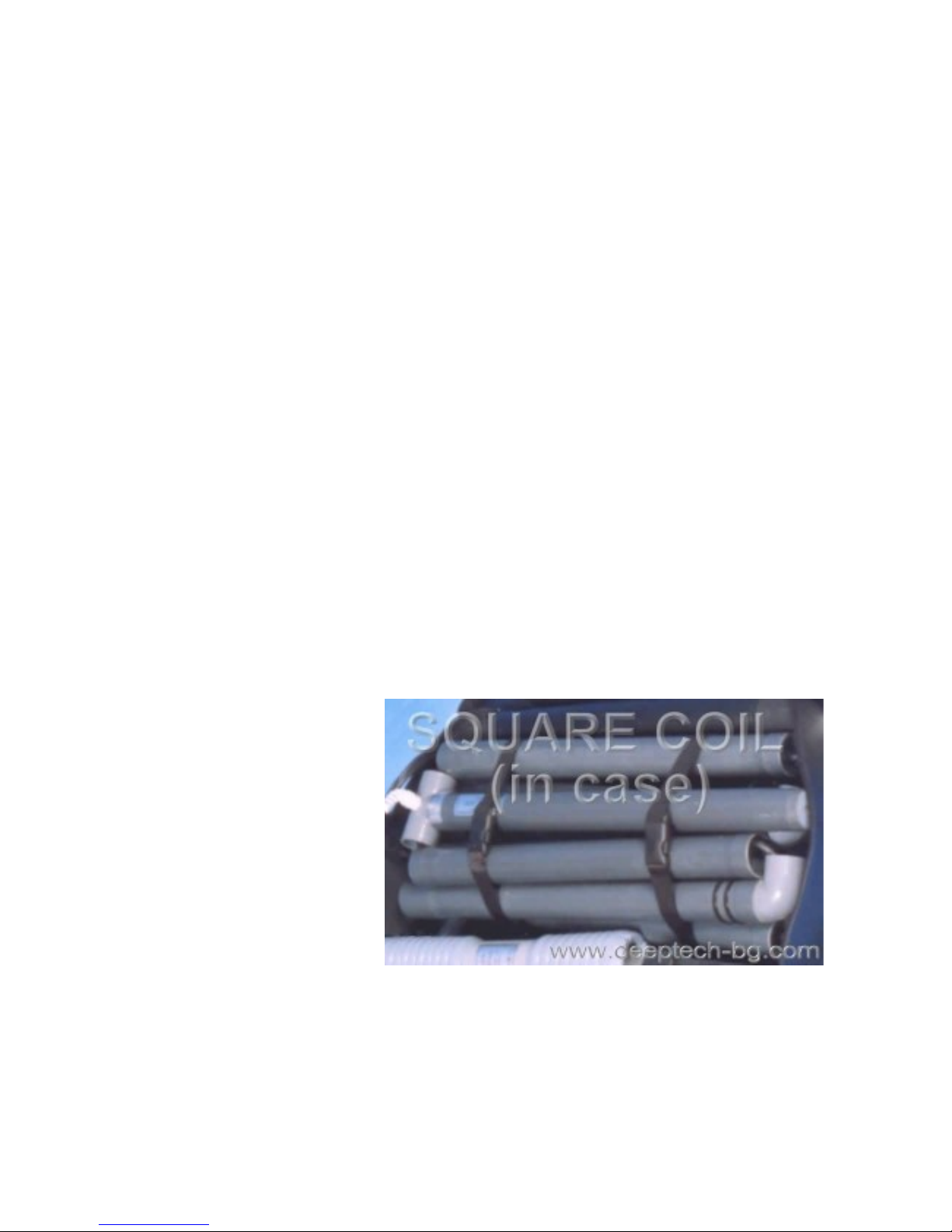

the 1/1 SQUARE SEARCH
COIL(BASIC) embedded in
PVC tubes:
–1 -

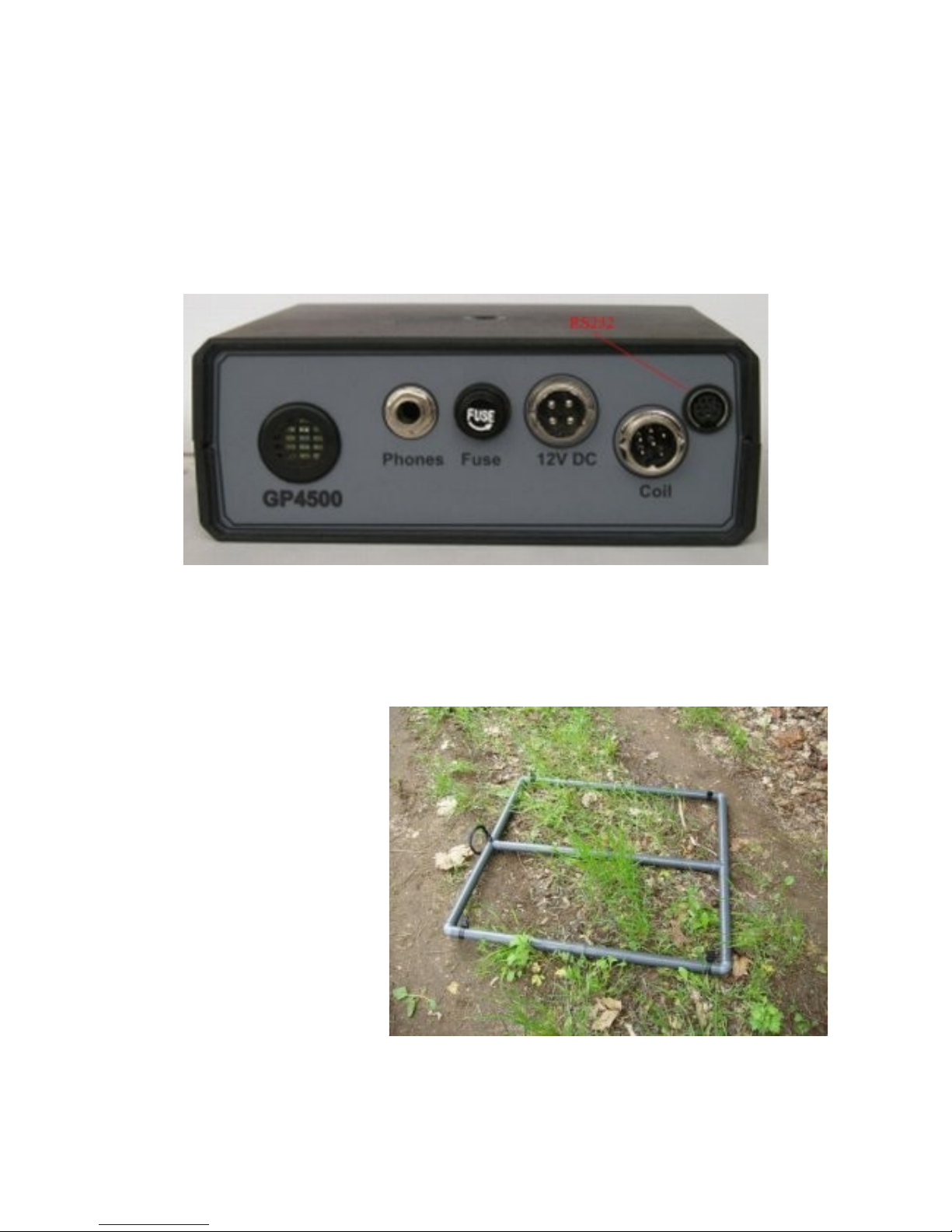

But search coils with sizes 0,5/0,5m; 1,5/1,5m and 2/2m also can be connected to the
unit.Please note – all these coils have build-in Magnetometer Sensor System.
This helps you to discriminate out
what targets are ferrous.
With larger diameter coil even big
areas can be searched quickly.
With very large search coils
Ground Pioneer 4500 penetrates
deeper than it is usually possible
with smaller coils.
With the large search coils the
very small metal pieces are
ignored automatically !!!
What was registered by our TEST with 11” round search coil and 1/1m square
search coil made by the following tuning:
SENS=0 DELAY=0 THRESHOLD=10
NB!!! MAXIMUM SENSITI ITY of Ground Pioneer4500 is when SENS=15

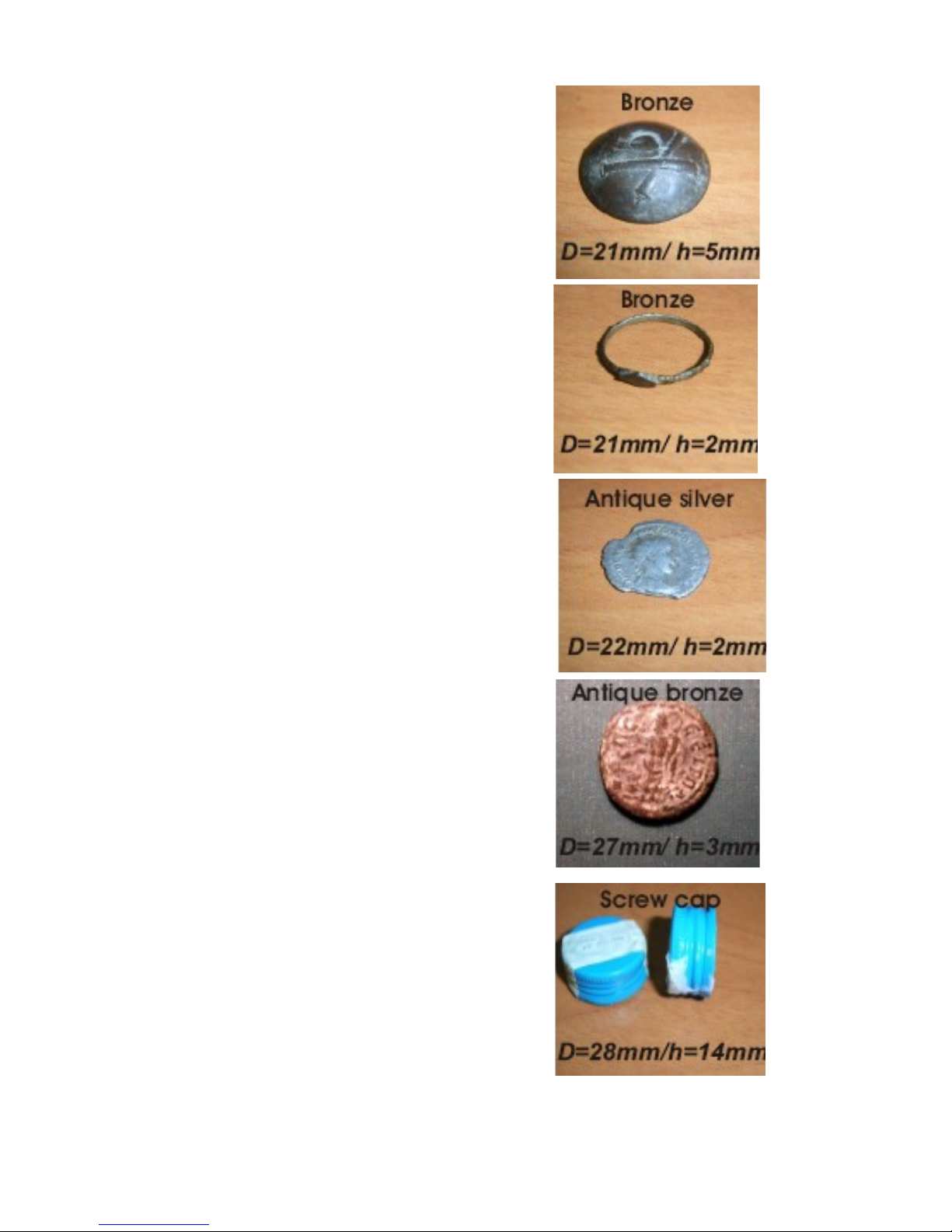

DEPTH:
11” search coil - 26 cm
1/1 m search coil -
11” search coil - 29 cm
1/1 m search coil -
- 2 -
11” search coil - 34 cm
1/1 m search coil -
11” search coil - 35 cm
1/1 m search coil -
11” search coil - 35 cm
1/1 m search coil -
11” search coil - 38 cm
1/1 m search coil -
11” search coil - 44 cm
1/1 m search coil -
- 3 -

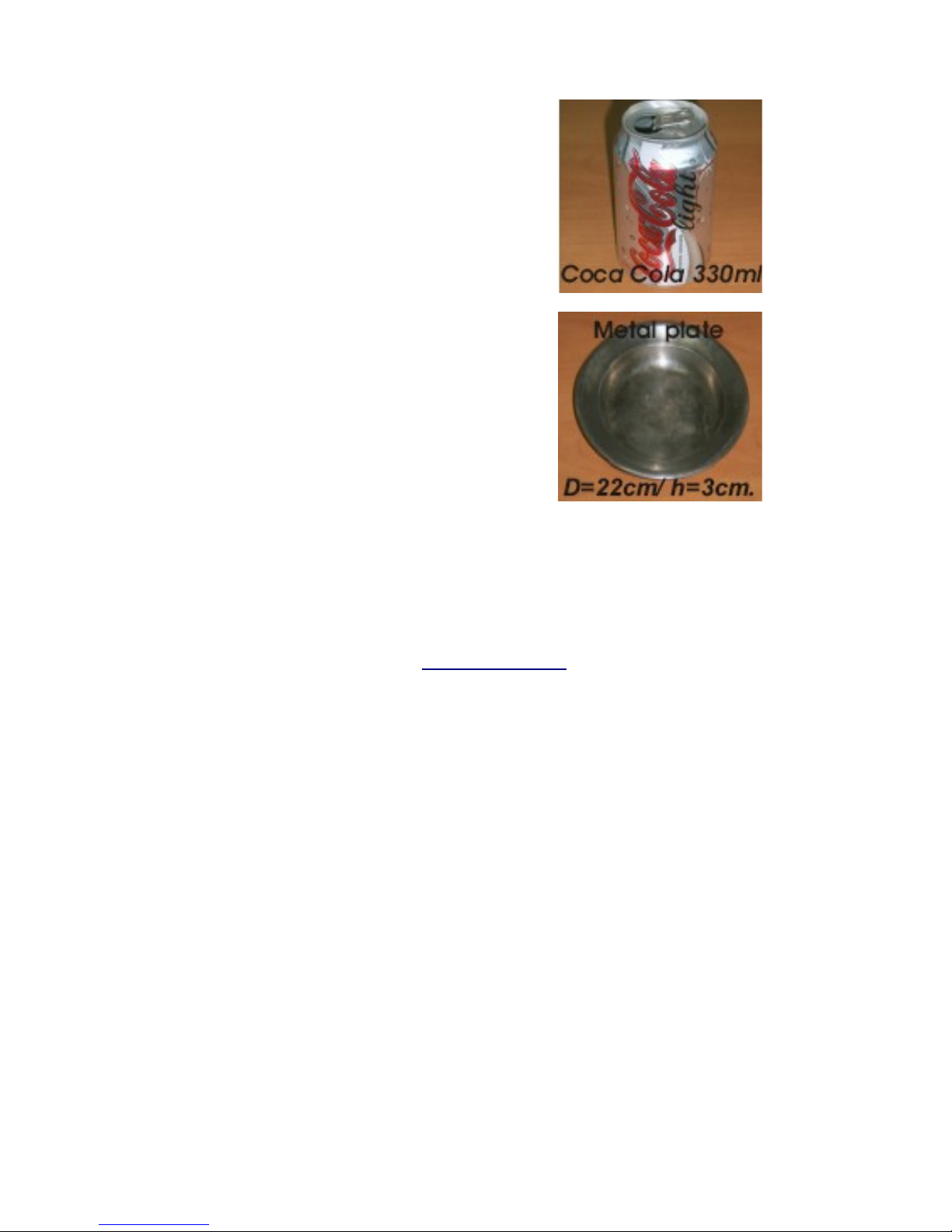

11” search coil - 78 cm
1/1 m search coil 145 cm
11” search coil - 110 cm
1/1 m search coil 205 cm
Why for this test we have used 1/1 m search coil? The concentrated magnetic field of
this coil allows an excellent detection range on relatively small metal objects.Targets
the size of a cash box are clearly detected from a distances of 7 feet.
NOTE!!!When you want to compare the field test results of Ground Pioneer 4500
pulse induction metal detector with other well-known pulse induction units you can
look at the following metal detector Comparision test:
COMPANY
TYPE
TYPE
HEAD
(searchcoil or
loop)
DEPTH AT
WHICH A CAN
OF SODA CAN
BE DETECTED
12 x 6,5 cm - 78 cm2
DEPTH AT
WHICH A
METAL
GALLON
JUG CAN BE
DETECTED
400 cm2
DEPTH AT
WHICH A
METAL 2 1/2
GALLON
JUG CAN BE
DETECTED
650 cm2
MAXIMUM
DISTANCE
ABO E
GROUND FOR
DETECTION
FOR A METAL
2 1/2 GALLON
JUG
Gemini III
Fisher
Two box
detector
45 cm 70cm 80 Little signal
strength more
than 80 cm
TM 800 White’s Two box
detector
40 cm 65 cm 70 Weak signals at
more than 75 cm
TF 900 Two box 45 cm 65 cm 75 maximum at 120
Discovery detector cm
Série CX
Garrett
Two heads
depth
multiplier
40 cm 55 cm 65 Little signal
strength at more
than 65 cm
Deepstar ** Round
Searchcoil
42 cm 60 cm No signals further
than 80 cm
Pulse Star II
***
Loop 1 m x 1
m
48 cm 85 cm 115 cm 160 cm
MD8 *** Elliptical
head
48 cm 85 cm 90 cm No signals further than
90 cm
Lorenz 5
****
Loop 1.25 m X
1.25 m
50 cm 95 cm 120 cm 140 cm
Deepers 10 DD
*****
Elliptical
searchcoil
of 20 x 40 cm
Super
Sensitive
65 cm 120 cm 140 cm 180 cm
(with loop)

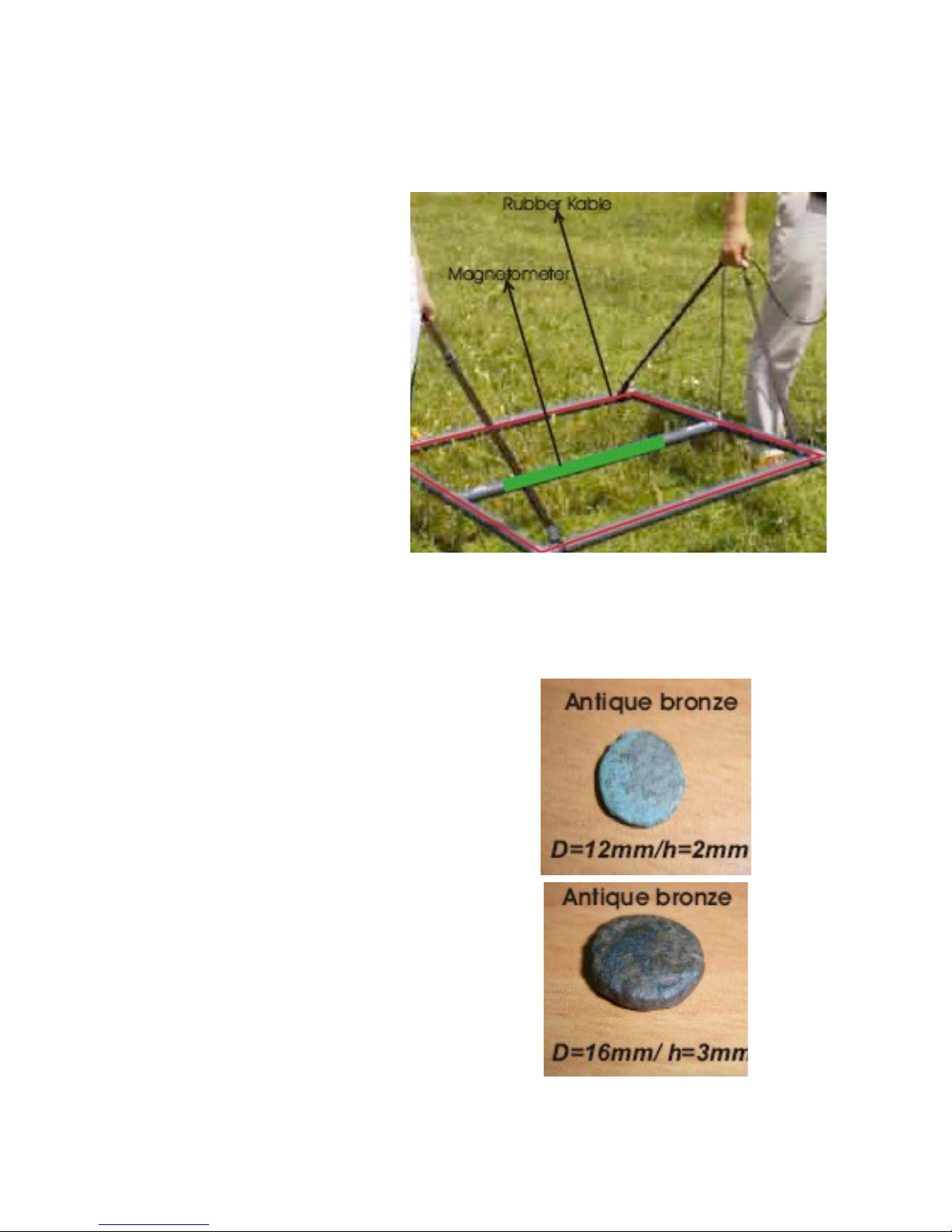

The square search coils with
size 1/1 m; 1 5/1 5 m; 2/2 m
can be assembled for use or
dismantled for transportation
easily and quickly.
Note! Only the 0 50/0 50 m
search coil in PVC tube can
not be dismantled.
Searching with large search
coils ( 1 m and large) is
easy when the coil is carried
by two people with the help of supplied straps.The search coil should be held
approximately 10 to 20 cm. from the ground while searching.

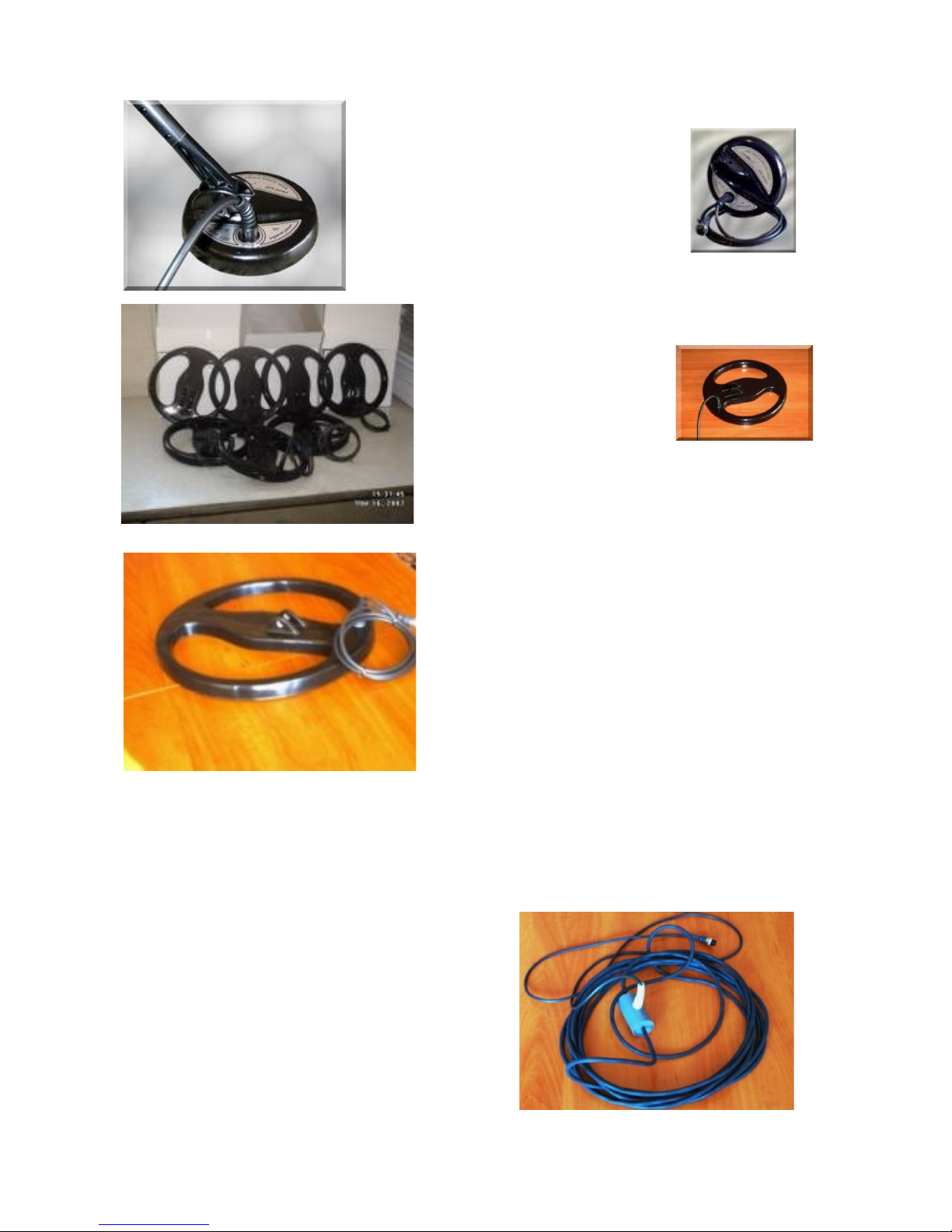

The pinpoiting of the burried object with Ground Pioneer 4500 can be achieved with
area of ROUND SEARCH COIL:
- 5 -
5” SEARCH COIL
11” SEARCH COIL
15” SEARCH COIL
What round search coil to choose when you purchase Ground Pioneer4500? This is
the most popular question.It is well known that the larger searchcoils give better
depth for larger targets and better ground coverage. But the sensitivity to smaller
objects may be sacrificed. The smaller search coils offer greater sensitivity to smaller
objects and improved target separation in trashy areas.
An alternative search coil for Ground
Pioneer4500 is the CABLE COIL with
size 2/2 m.We gave this search coil the
name “universal” because she can
work with all our pulse induction
- 6 -
detectors independently of this whether or not they are discriminating detectors. Also
this search coil offers FI E more ARRANGEMENTS to suit your search
needs.This search coil can be arranged as 0 50/0 50; 1/1 m; 1/3 m and 2/2m coils by
fastening the windings on free frame ( from PVC for example ) with tape. It can also
be arranged in form as ”eight”.Why we recommend this coil when you purchase
Ground Pioneer4500? With this coil we have registered 15% AND MORE
DEPTH for big objects by its test in comparision with the standart square search
coils. But Note!!! This coil is UNDISCRIMINATING.
GROUND PIONEER 4500 -CONTROLS:
FRONT PANEL
LCD DISPLAY:
- 7 -

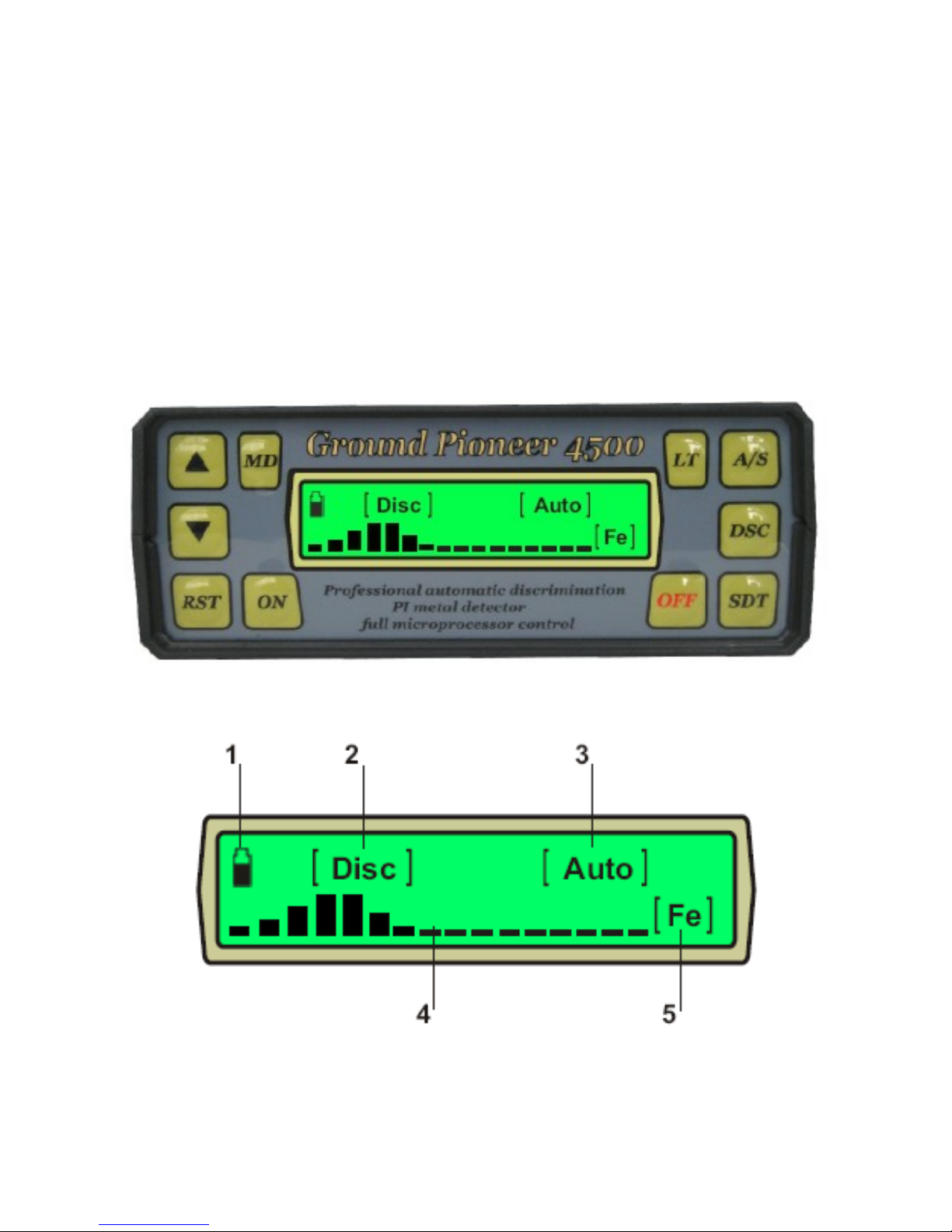

FUNCTIONAL FIELDS OF LCD DISPLAY:
1. INDICATOR FOR THE BATTERY CONDITION.
It is recommended that the supply of the storage battery to be done before the
indicator shows a completely dead battery.
Ground Pioneer 4500 comes to you in version with an external accumulator
system for its switching in the device.The supply system and the battery
are integrated in this system ( including the supply from an automobile
accumulator).
The battery of Ground Pioneer 4500 is rechargeable 1 3(2 3-optional)Ah
hermetic acid Battery and allows premature supply not affecting its work.
The battery charging time ( for empty battery ) is max.10 hours.
The battery supplied with your detector comes in charged condition.
It is not necessary to charge the system before the first time you start work
with Ground Pioneer 4500. But we recommend checking its
condition and when low battery condition is indicated you should immediately
recharge the battery.
Please Note: the external accumulator system could not be charged from the
unit.
2. INDICATION FOR THE DISCRIMINATION REGIME.
Ground Pioneer 4500 can work in two regimes of discrimination – with or
without sound discrimination.
In this field it is indicated which of these two regimes you may chooce for the
work.

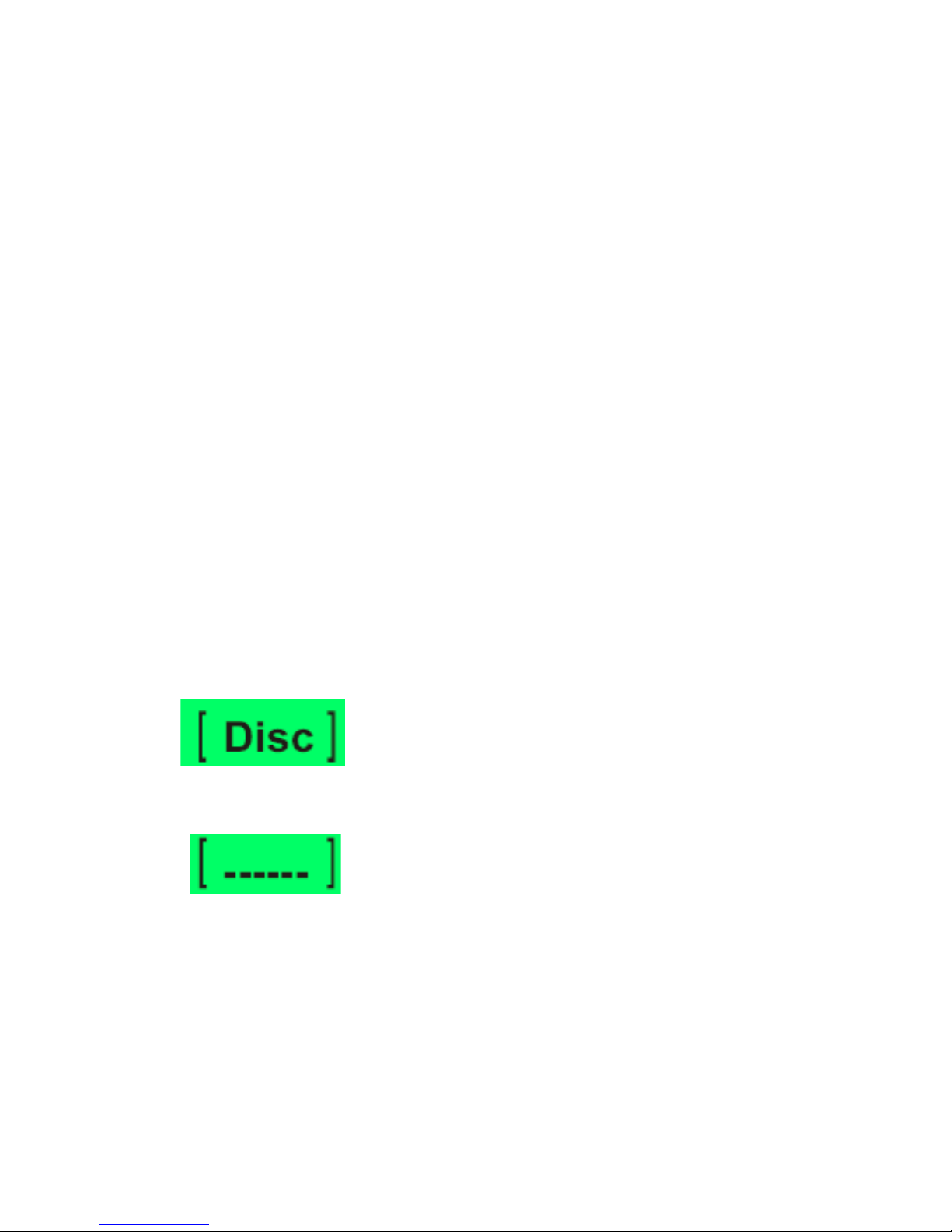

This symbor appears when you are in
regime with sound discrimination
And this - when you will work in regime
without sound discrimination
Note!!! The microprocessor “remembers” the condition of the device when it is
switching off.
- 8 -
3. INDICATOR OF THE REGIME OF AUTOTUNING TO THE SOIL
CONDITIONS:
When in field (3) appears symbol AUTO you are in regime for constant
setting up to the soil changes and autoreset after every registrated object by the
device .
When in field (3) appears symbol SEMI you are in semiautomatic
regime.Handset to the changes in the soil and autoreset after every registrared
object.
Note!!! The microprocessor “remembers” the condition of the device when it is
switching off
4. INDICATOR OF THE INTENSITY OF THE SIGNAL.
5. INDICATOR FOR THE KIND OF THE METAL.
When the unit indicate ferrous object appears the Symbol
in the field (5).
This indicator is undependent from the condition of filed (2) – that is to say-
undependent from this if you work in regime with or without sound
discrimination the symbol Fe appears when ferrous object is indicated.
FUNCTIONAL BUTTONS OF FRONT PANEL AND HOW TO WORK
WITH THEM
SWITCH ON BUTTON

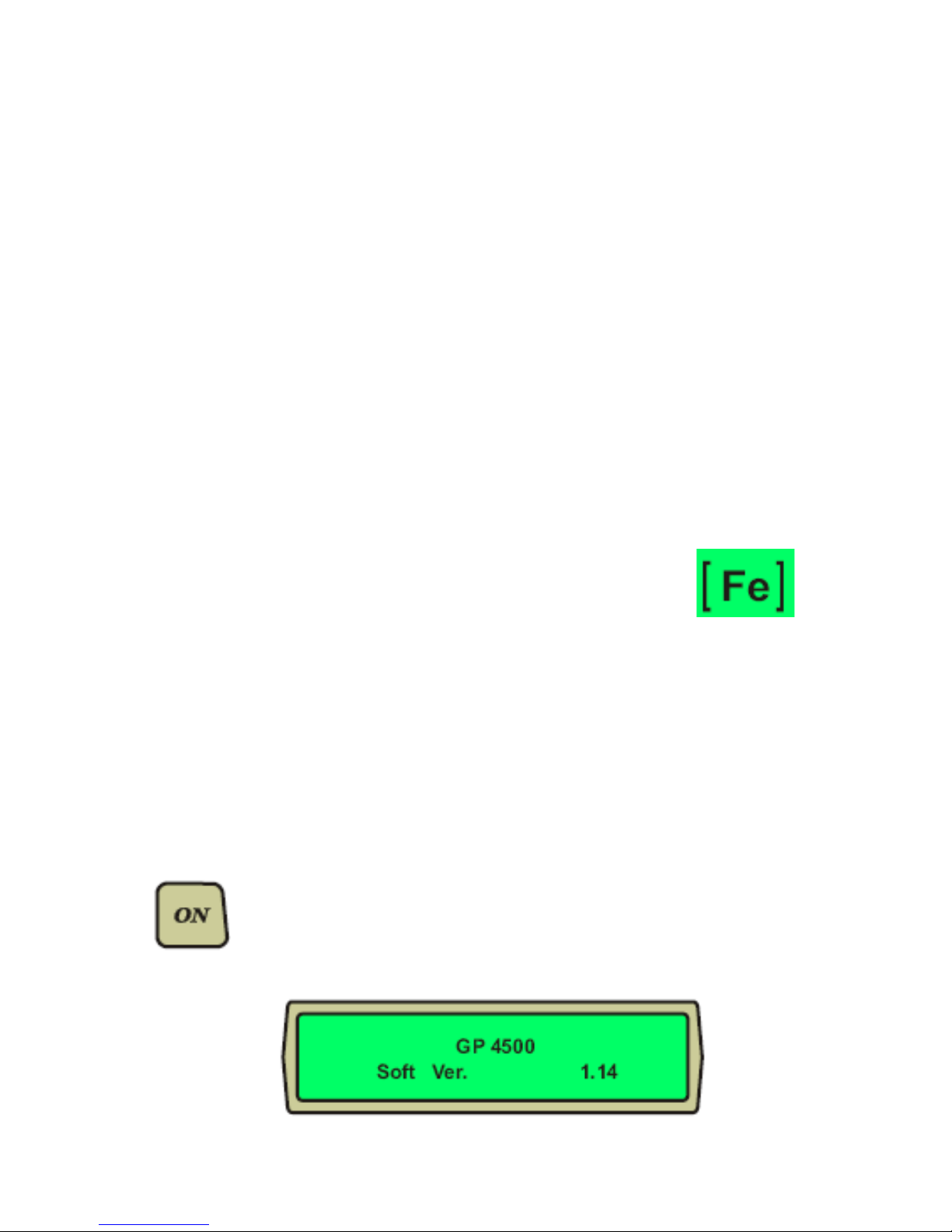

Five seconds after pressing this button on the display appears the
greeting logo and the device is ready for work:
- 9 -
