Datalogic Gryphon GD4130 User manual

Page 1 of 4

Gryphon™ I GD4130

General Purpose USB Corded Handheld - Linear Ima er 1D Barcode Reader

DECODING CAPABILITY

1D / LINEAR CODES - Auto discriminates all standard 1D codes including

GS1 Data ar™ linear codes

WARRANTY

5-Year Factory Warranty – www.scanning.datalogic.com

DATALOGIC WEBSITE SUPPORT

The Datalogic website is the complete source for technical support and

information for Datalogic products. The site offers product support,

registration, warranty information, product manuals, product tech notes,

software updates, demos and instructions for returning products for repair.

TELEPHONE & TECHNICAL SUPPORT

If you do not have internet or email access, you may contact Datalogic technical support at (541)349-8283 or check the back

cover of your manual for more contact information.

Datalo ic Scannin , Inc. - USA

959 Terry Street

Eugene, OR 97402

(541) 683-5700

UNPACKING

Check carefully to ensure the Reader and Cable are present and undamaged. If any damage has occurred in shipment or if

items appear to be missing, contact Technical Support immediately. This unit is powered through its US connection to

your computer.

KEEP THE PACKAGING

Should the unit require service, it must be returned in its original shipping container with all its original contents.

Resettin Standard Product Defaults

If you aren’t sure what programming options are in your Reader, or you’ve changed some options and want the factory

settings restored, the barcode below will restore the factory configuration for the currently active interface.

~ (tone pattern) # # > # # # # ~

DO OT scan the E TER/EXIT Programming Mode prior to scanning the Standard Product Default Settings.

PDS Tech Support 800.286.8929 option 2 Datalo ic Tech Support 541.349.8283

Page 2 of 4

This section provides programming barcodes to configure your Reader for use with the USW program. Scan the barcodes on the

following pages in order of appearance. You will begin and end with the Enter/Exit Programming Mode barcode. When the Reader

is in Programming Mode its top LED blinks continuously and after you scan each barcode the Reader will emit a specific (tone

pattern). It is advisable not to rush through the programming sequence. Allow the Reader time to accept the encoding – listen for

the tones.

Enter Pro rammin Mode

Scan the Enter/Exit Pro rammin Mode barcode to begin Reader setup for the USW program.

~ (tone pattern) # > # # # # ~

Enable Interleaved 2 of 5 Standard

This setting will enable your Scanner to read the Interleaved 2 of 5 Symbology printed by the USW program.

~ (tone pattern) # # ~

I 2 of 5 Minimum Reads

The following specifies the minimum number of consecutive times an Interleaved 2 of 5 Label must be decoded before it is

accepted as a good read.

~ (tone pattern) # # ~

Page 3 of 4

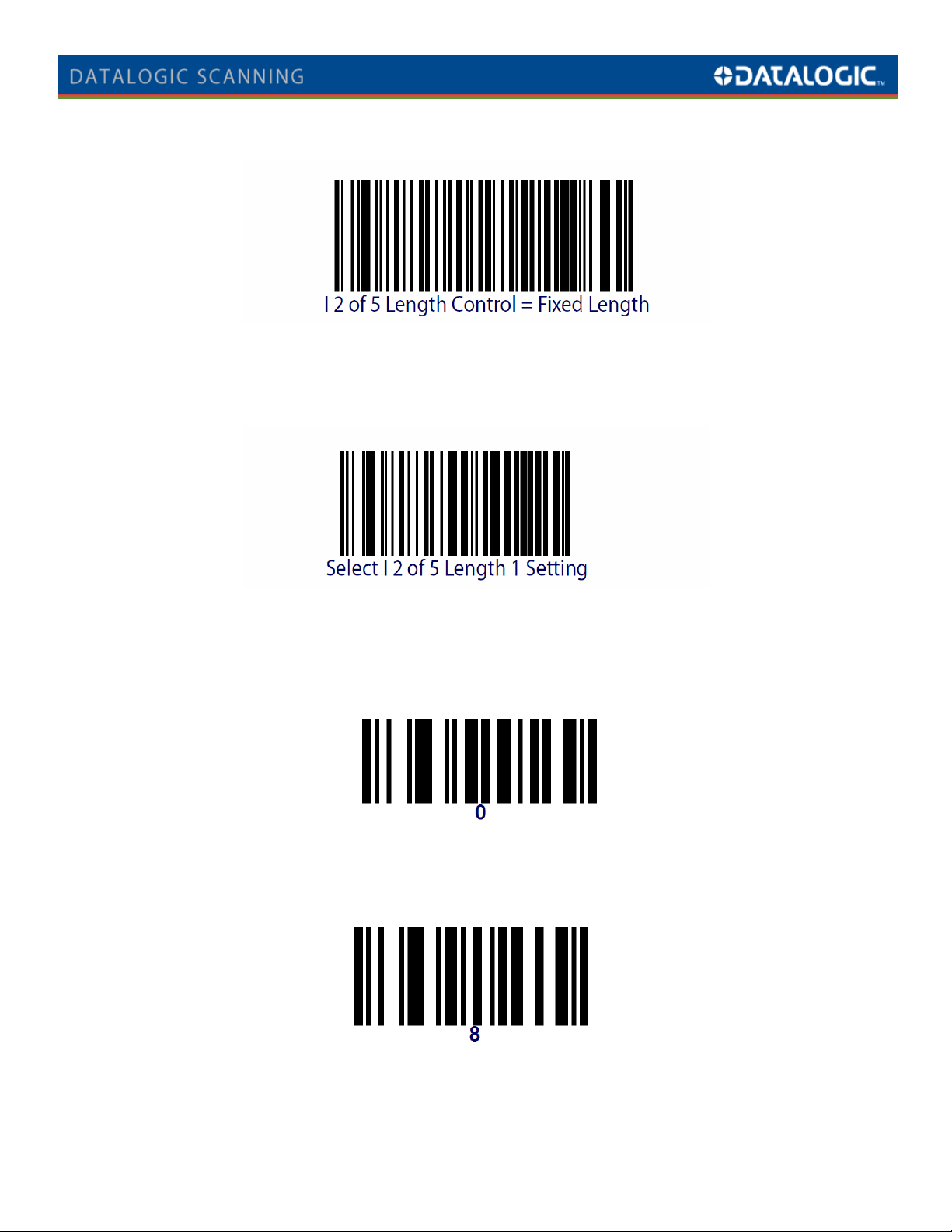

I 2 of 5 Len th Control

This setting specifies that Fixed Length Decoding will be used for the Interleaved 2 of 5 Symbology.

~ (tone pattern) # # ~

I 2 of 5 Set Len th 1

This setting specifies the minimum Fixed Length in Fixed Length Decoding.

~ (tone pattern) # ~

Set the I 2 of 5 Fixed Read Len th 1

Scan the following two numeric barcodes one after another to set the Fixed Length 1.

~ (tone pattern) # ~

~ (tone pattern) # # ~

Page 4 of 4

Set the I 2 of 5 Fixed Read Len th 2

The setting codes that follow instruct the Reader to ignore the Fixed Read Length 2 and provides for one Fixed Length.

~ (tone pattern) # ~

Set the Fixed Read Len th 2

Scan the following two numeric barcodes one after another to set the Fixed Length 2.

~ (tone pattern) # ~

~ (tone pattern) # # ~

Exit Pro rammin Mode

Scan the Enter/Exit Pro rammin Mode barcode to end and save Reader setup.

~ (tone pattern) # > # # # # > # # # # ~

STOP SCANNING - Your Reader is now setup to work with the USW program.
