PowerScan

™

BT8300 Reader

Using the PowerScan™ BT8300

The PowerScan™BT8300 family of readers can be used with either the

PowerScan BC 8030-BT base station or a Bluetooth-enabled PC to build a

Cordless Reading System for the collection, decoding and transmission of bar

coded data.

PowerScan™BT8300 laser readers automatically scan bar codes at a distance.

Simply aim and pull the trigger.

Scan Line Position

Code scanning is performed along the scan line emitted from the reading window.

This line must cross the entire code. The best reading angles are indicated in the

figure below:

Reading Angle

Successful scanning is obtained by tilting the reader with respect to the bar code to

avoid direct reflections that impair the reading performance, see the figure below.

Using the PowerScan™ BT8300

4 PowerScan™ BT8300

Aiming System

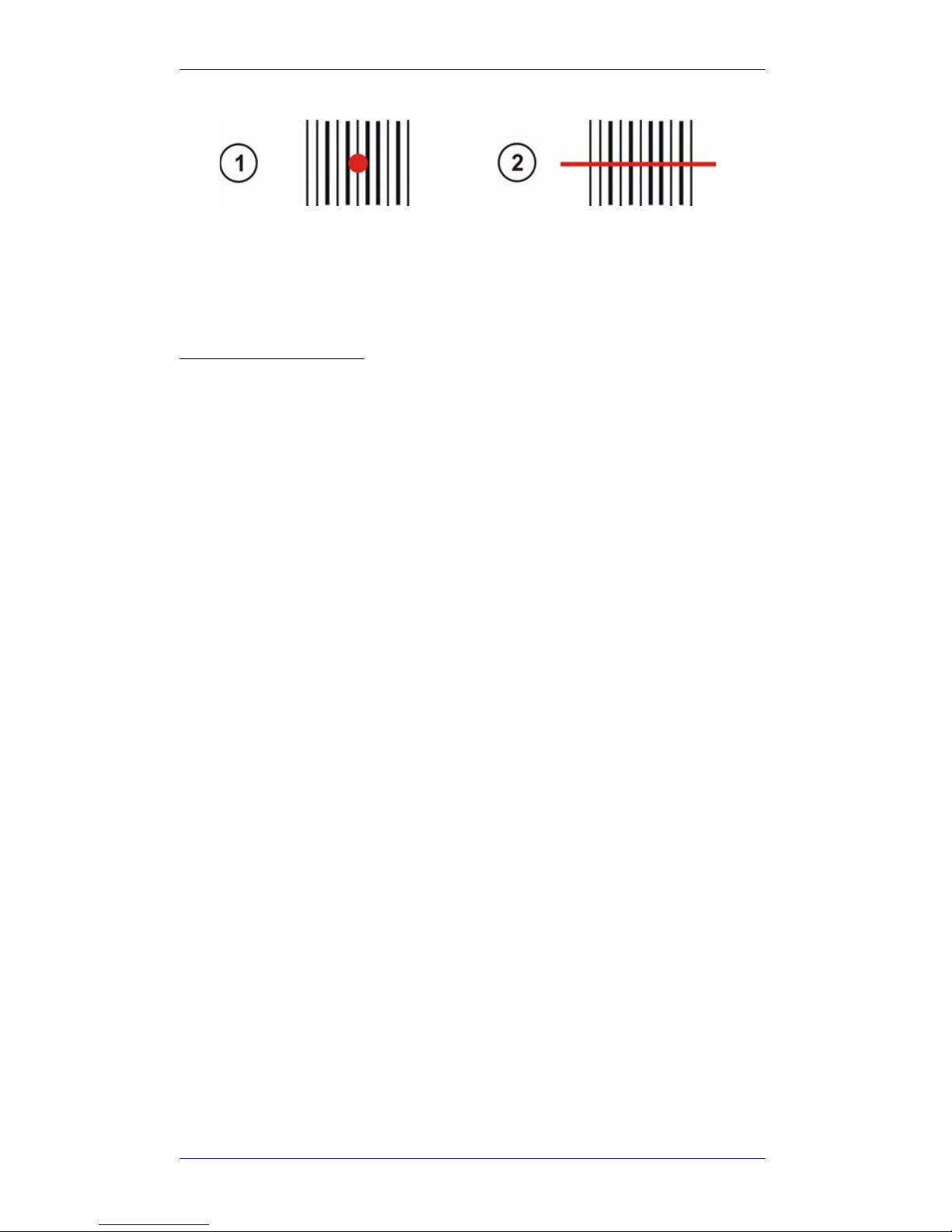

PowerScan™BT8300 provides an aiming system. If enabled, a partial trigger

press produces a red spot, which should be aimed over the code center to get the

best reading performance, see (1) in the figure above. By completely pressing the

trigger the scan line appears to start the code scanning, see (2).

After setting up the reader, you can enable or disable the aiming system by reading

the codes below:

Disable Aiming System (Default)

Ì$+Bj0$-"Î

Enable Aiming System

Ì$+Bj1$-'Î

Installing the Battery Pack

Quick Reference Guide 5

Installing the Battery Pack

To install, charge and/or do any other action on the battery, follow the

instructions in this manual.

To charge the Battery Pack, See “Charging the Batteries” on

page 7.

Datalogic recommends annual replacement of rechargeable

battery packs to ensure maximum performance.

WARNING

Do not discharge the battery using any device except for the

scanner. When the battery is used in devices other than the

designated product, it may damage the battery or reduce its

life expectancy. If the device causes an abnormal current to

flow, it may cause the battery to become hot, explode or ignite

and cause serious injury.

Lithium-ion battery packs may get hot, explode or ignite and

cause serious injury if exposed to abusive conditions. Be sure to

follow the safety warnings listed below:

• Do not place the battery pack in fire or heat.

• Do not connect the positive terminal and negative terminal of

the battery pack to each other with any metal object (such as

wire).

• Do not carry or store the battery pack together with metal

objects.

• Do not pierce the battery pack with nails, strike it with a ham-

mer, step on it or otherwise subject it to strong impacts or

shocks.

• Do not solder directly onto the battery pack.

• Do not expose the battery pack to liquids, or allow the battery

to get wet.

• Do not apply voltages to the battery pack contacts.

In the event the battery pack leaks and the fluid gets into your

eye, do not rub the eye. Rinse well with water and immediately

seek medical care. If left untreated, the battery fluid could

cause damage to the eye.

Installing the Battery Pack

6 PowerScan™ BT8300

As with other types of batteries, Lithium-Ion (LI) batteries will lose capacity over

time. Capacity deterioration is noticeable after one year of service whether the

battery is in use or not. It is difficult to precisely predict the finite life of a LI

battery, but cell manufacturers rate them at 500 charge cycles. In other words, the

batteries should be expected to take 500 full discharge / charge cycles before

needing replacement. This number is higher if partial discharging / recharging is

adhered to rather than full / deep discharging,

The typical manufacturer advertised useful life of LI batteries is one to three years,

depending on usage and number of charges, etc., after which they should be

removed from service, especially in mission critical applications. Do not continue

to use a battery that is showing excessive loss of capacity, it should be properly

recycled / disposed of and replaced. For most applications, batteries should be

replaced after one year of service to maintain customer satisfaction and minimize

safety concerns.

Collect and recycle waste batteries separately from the device in comply with

European Directive 2006/66/EC, 2002/95/EC, 2002/96/EC and subsequent

modifications, US and China regulatory and others laws and regulations about the

environment.

CAUTION

Always charge the battery at 32° – 113°F (0° - 45°C) tempera-

ture range.

Use only the authorized power supplies, battery pack, char-

gers, and docks supplied by your Datalogic reseller. The use of

any other power supplies can damage the device and void your

warranty.

Do not disassemble or modify the battery. The battery contains

safety and protection devices, which, if damaged, may cause

the battery to generate heat, explode or ignite.

Do not place the battery in or near fire, on stoves or other high

temperature locations.

Do not place the battery in direct sunlight, or use or store the

battery inside cars in hot weather. Doing so may cause the bat-

tery to generate heat, explode or ignite. Using the battery in

this manner may also result in a loss of performance and a

shortened life expectancy.

Do not place the battery in microwave ovens, high-pressure

containers or on induction cookware.

Immediately discontinue use of the battery if, while using,

charging or storing the battery, the battery emits an unusual

smell, feels hot, changes color or shape, or appears abnormal

in any other way.

Do not replace the battery pack when the device is turned on.

Do not remove or damage the battery pack’s label.

Do not use the battery pack if it is damaged in any part.

Battery pack usage by children should be supervised.

Installing the Battery Pack

Quick Reference Guide 7

Charging the Batteries

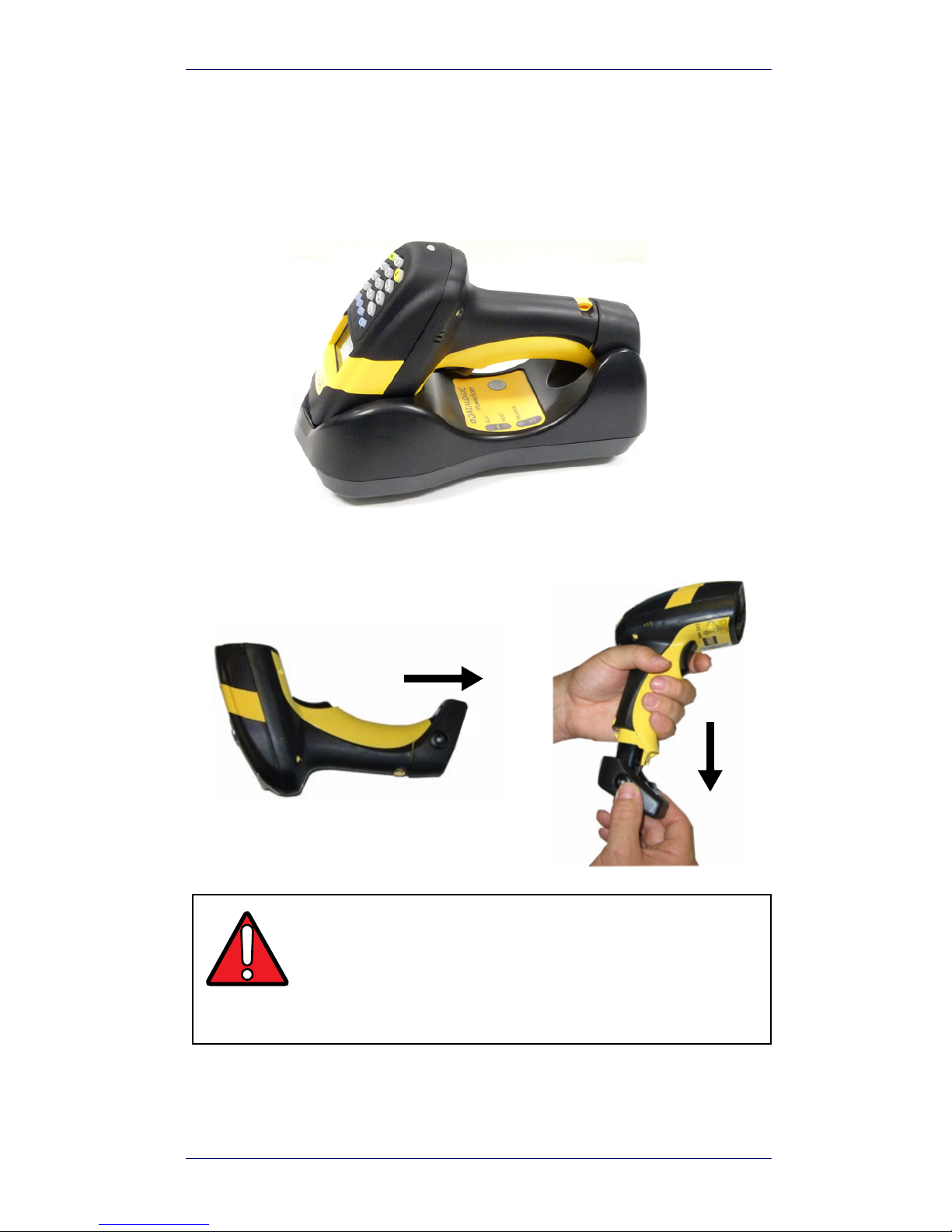

Once the BC 8030-BT/C-8000 is powered, you can charge the reader's batteries.

Place the PowerScan™BT8300 into the BC 8030-BT cradle or the C-8000

battery charger. The Reader LED on the cradle/battery charger turns red.

The battery is completely charged when the Reader LED on the cradle/battery

charger turns green.

Figure 1.

Changing the Batteries

Do not incinerate, disassemble, short terminals or expose to high

temperature. Risk of fire, explosion. Use specified charger only.

Risk of explosion if the battery is replaced by an incorrect type.

Dispose of the batteries as required by the relevant laws in force.

WARNING

Setup

8 PowerScan™ BT8300

Setup

Restore PowerScan BT 8300 Default

Before starting configuration and every time you want to restore factory settings,

read the label below. Please note that the default mode on PowerScan BT8300 is

Handheld - Cradle communication:

Restore PowerScan BT 8300 Default

Date and Time Setup

Scan the following bar codes in sequence to set the date and time for the

PowerScan BT8300.

Enter Configuration

Set Date

Six digits for Day, Month and Year (DDMMYY)

Set Time

Four digits for Hours and Minutes (HHMM)

Exit and Save Configuration

Other manuals for PowerScan BT8300 Family

Table of contents

Datalogic PowerScan BT8300 Family User manual

Popular Barcode Reader manuals by other brands
