Datalogic DIAMOND D531 User manual

DIAMOND™ D531 Scanners

Quick Reference

Diamond™ D531 Scanners

QUICK REFERENCE

DATALOGIC S.p.A.

Via Candini 2

40012 - Lippo di Calderara di Reno

Bologna - Italy

Diamond™ D531 Scanners

Ed.: 07/2006

Datalogic reserves the right to make modifications and improvements without prior

notification.

Datalogic shall not be liable for technical or editorial errors or omissions contained herein,

nor for incidental or consequential damages resulting from the use of this material.

Product names mentioned herein are for identification purposes only and may be

trademarks and or registered trademarks of their respective companies.

820001591 (Rev. B)

CONTENTS

Updates and Language Availability......................................................................v

Using Diamond™ ................................................................................................ 1

Sleep State.......................................................................................................... 1

Single Line Mode ................................................................................................ 2

Connections ........................................................................................................ 3

Connecting / Disconnecting the Cable................................................................ 5

Interface Selection .............................................................................................. 5

USB Interface Configuration ............................................................................... 6

USB Interface Selection ...................................................................................... 9

USB Keyboard Nationality................................................................................. 10

RS232 Reader Configuration ............................................................................ 11

Wedge Interface Selection ................................................................................ 12

Wedge Keyboard Nationality............................................................................. 15

Default Values................................................................................................... 16

Operating Test .................................................................................................. 18

Technical Features............................................................................................ 19

Reading Diagram .............................................................................................. 20

Scanner Data Entry........................................................................................... 21

Warranty............................................................................................................ 21

iii

Patents .............................................................................................................. 22

Services and Support........................................................................................ 22

Compliance ....................................................................................................... 23

UPDATES AND LANGUAGE AVAILABILITY

UK/US

The latest drivers and documentation updates for this product are available on

Internet.

Log on to : www.datalogic.com

Su Internet sono disponibili le versioni aggiornate di driver e documentazione di

questo prodotto. Questo manuale è disponibile anche nella versione italiana.

Collegarsi a : www.datalogic.com

Les versions mises à jour de drivers et documentation de ce produit sont

disponibles sur Internet. Ce manuel est aussi disponible en version française.

Cliquez sur : www.datalogic.com

Im Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation

von diesem Produkt. Die deutschsprachige Version dieses Handbuches ist

auch verfügbar.

Adresse : www.datalogic.com

En Internet están disponibles las versiones actualizadas de los drivers y

documentación de este producto. También está disponible la versión en

español de este manual.

Dirección Internet : www.datalogic.com

DIAMOND™ D531

USING DIAMOND™

The Datalogic Diamond™ D531 is an omni-directional scanner, which

generates a scan pattern of 16 lines, thus ensuring high performance scanning.

Barcodes are read simply on presentation to the scanner window.

The Diamond™ scanner can be used handsfree as well as hand-held, e.g.:

a) Handsfree scanning by presenting the item to the scanner using a

sweeping curved motion towards the scanner window.

b) You can also use it as a hand-held device by presenting the scanner to the

item using a sweeping curved motion towards the item.

SLEEP STATE

After a default stand-by timeout the scanner enters a "Sleep" state for minimum

power consumption in which the scanner Laser is OFF and the motor is not

rotating.

It is possible to exit this state by simply pressing the trigger.

DATALOGIC

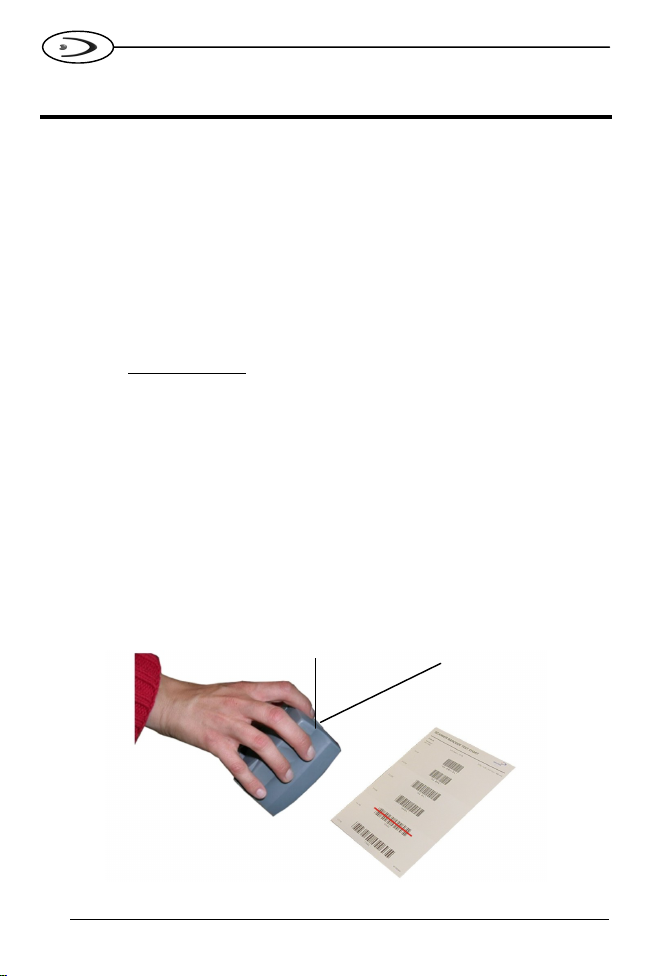

SINGLE LINE MODE

When many barcodes are present in the same reading area, like in barcode

price lists or in the case of configuration barcodes in this manual, selecting a

specific barcode to read is not practical with the large raster pattern emitted by

the Diamond™, so a special single line scanning mode can be easily entered to

perform this task. In this mode only a single scanning line is enabled so that

aiming and reading barcodes become very easy.

To use single line mode for barcode reading follow the procedure below:

1. While the normal raster pattern is present, press the trigger. A single laser

line will appear but barcodes cannot be decoded.

2. Position the presentation scanner over the code to read and press the

trigger within 5 seconds to decode the code.

When using the scanner for data entry, a programmable timeout is provided to

assure that Diamond™ will return to raster mode if barcode reading is not

successful in single line (Single Line Decoding Duration). Also a programmable

timeout is available to manage how long to wait after successful reading before

returning to raster mode (Single Line Timeout OFF Before Raster).

If you need to make consecutive readings in single line mode, simply repeat the

procedure before the Single Line Timeout OFF Before Raster expires.

When in configuration, Diamond™ will remain in single line until the Exit

Configuration barcode is read.

Single Line and

Wakeup Trigger Good Read

LED
