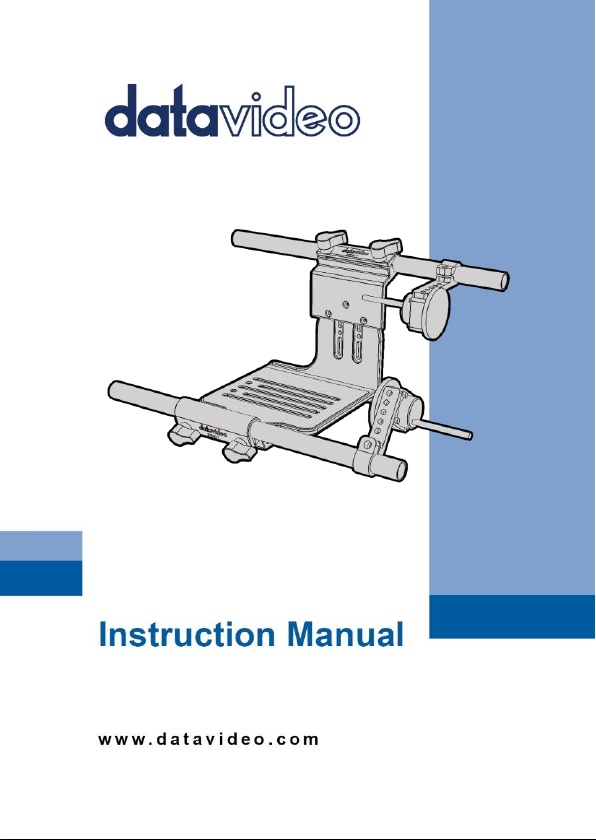

Data Video ZEK-1 User manual

ZEK-1

Zoom Encoder Kit

Table of Contents

FCC COMPLIANCE STATEMENT......................................4

WARNINGS AND PRECAUTIONS ....................................4

WARRANTY...................................................................6

STANDARD WARRANTY ......................................................6

THREE YEAR WARRANTY.....................................................7

DISPOSAL ......................................................................7

INTRODUCTION.............................................................9

FEATURES ........................................................................9

ASSEMBLY................................................................... 10

PRODUCT PARTS .............................................................10

INSTRUCTIONS ................................................................14

EXAMPLE SETUP.......................................................... 20

CAMCORDERS WITH INCOMPATIBLE ZOOM RINGS..................22

SPECIFICATIONS .......................................................... 23

ACCESSORY LIST .......................................................... 23

SERVICE AND SUPPORT............................................... 24

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a

guide only. At all times, Datavideo Technologies will try to give correct,

complete and suitable information. However, Datavideo Technologies

cannot exclude that some information in this manual, from time to time,

may not be correct or may be incomplete. This manual may contain

typing errors, omissions or incorrect information. Datavideo

Technologies always recommend that you double check the

information in this document for accuracy before making any purchase

decision or using the product. Datavideo Technologies is not

responsible for any omissions or errors, or for any subsequent loss or

damage caused by using the information contained within this manual.

Further advice on the content of this manual or on the product can be

obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later

reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use

liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit

may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are

provided for ventilation. To ensure safe and reliable operation of

this unit, and to protect it from overheating, do not block or cover

these openings. Do not place this unit on a bed, sofa, rug, or

similar surface, as the ventilation openings on the bottom of the

cabinet will be blocked. This unit should never be placed near or

over a heat register or radiator. This unit should not be placed in a

built-in installation unless proper ventilation is provided.

7. This product should only be operated from the type of power

source indicated on the marking label of the AC adapter. If you

are not sure of the type of power available, consult your

Datavideo dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate

this unit where the power cord will be walked on, rolled over, or

otherwise stressed.

9. If an extension cord must be used with this unit, make sure that

the total of the ampere ratings on the products plugged into the

extension cord do not exceed the extension cord rating.

10. Make sure that the total amperes of all the units that are plugged

into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet

ventilation slots, as they may touch dangerous voltage points or

short out parts that could result in risk of fire or electric shock.

Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not

attempt to service this product yourself. Opening or removing

covers that are marked “Do Not Remove” may expose you to

dangerous voltage points or other risks, and will void your

warranty. Refer all service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified

service personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal

operating conditions. Adjust only those controls that are

covered by the operating instructions in this manual;

improper adjustment of other controls may result in damage

to the unit and may often require extensive work by a

qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been

damaged;

f. When the product exhibits a distinct change in performance,

indicating a need for service.

Warranty

Standard Warranty

Datavideo equipment is guaranteed against any manufacturing

defects for one year from the date of purchase.

The original purchase invoice or other documentary evidence

should be supplied at the time of any request for repair under

warranty.

The product warranty period beings on the purchase date. If the

purchase date is unknown, the product warranty period begins on

the thirtieth day after shipment from a Datavideo office.

All non-Datavideo manufactured products (product without

Datavideo logo) have only one year warranty from the date of

purchase.

Damage caused by accident, misuse, unauthorized repairs, sand,

grit or water is not covered under warranty.

Viruses and malware infections on the computer systems are not

covered under warranty.

Any errors that are caused by unauthorized third-party software

installations, which are not required by our computer systems, are

not covered under warranty.

All mail or transportation costs including insurance are at the

expense of the owner.

All other claims of any nature are not covered.

All accessories including headphones, cables, batteries, metal parts,

housing, cable reel and consumable parts are not covered under

warranty.

Warranty only valid in the country or region of purchase.

Your statutory rights are not affected.

Three Year Warranty

All Datavideo products purchased after July

1st, 2017 qualify for a free two years

extension to the standard warranty,

providing the product is registered with

Datavideo within 30 days of purchase.

Certain parts with limited lifetime expectancy such as LCD panels,

DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb

Drive, Lighting, Non-PCIe Card and third party provided PC

components are covered for 1 year.

The three-year warranty must be registered on Datavideo's official

website or with your local Datavideo office or one of its authorized

distributors within 30 days of purchase.

Disposal

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging

indicates that this product must not be disposed

of with your other household waste. Instead, it is

your responsibility to dispose of your waste

equipment by handing it over to a designated

collection point for the recycling of waste

electrical and electronic equipment. The separate collection and

recycling of your waste equipment at the time of disposal will help to

conserve natural resources and ensure that it is recycled in a manner

that protects human health and the environment. For more

information about where you can drop off your waste equipment for

recycling, please contact your local city office, your household waste

disposal service or the shop where you purchased the product.

CE Marking is the symbol as shown on the left of

this page. The letters "CE" are the abbreviation of

French phrase "Conformité Européene" which

literally means "European Conformity". The term

initially used was "EC Mark" and it was officially

replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE

Marking" is now used in all EU official documents.

Introduction

ZEK-1 Zoom Encoder Kit is an electromechanical device that

adds automatic zoom positioning to the camcorder mounted

on PTR-10/10T MARK II Robotic Pan Tilt Head.

Please note that ZEK-1 does not work with PTR-10/10T.

Features

Automatic zoom positioning

Flexible mount positions

Two gears provided for M0.6 and M0.8 zoom rings

Gear A

Gear B

Gear Module

M0.6

M0.8 (with Gear Ring)

Compatible

Camcorder

Models

Sony Z280

Sony X200

Sony EX-3

Canon XF705

Panasonic AG-

HPX255

Assembly

There are two sections in this chapter. We will describe

different parts of the ZEK-1 in the first section and the assembly

procedure will be outlined in the second section.

Product Parts

The table below lists all the parts that you will find in the

product package.

Name

Descriptions
