Data Video DAC-60 User manual

DAC-60

HD/SD-SDI TO VGA

CONVERTER

Quick Start Guide

www.datavideo.com

Warranty

Standard Warranty

Datavideo equipment is guaranteed against any manufacturing defects

for one year from the date of purchase.

The original purchase invoice or other documentary evidence should

be supplied at the time of any request for repair under warranty.

Damage caused by accident, misuse, unauthorized repairs, sand, grit

or water is not covered by this warranty.

All mail or transportation costs including insurance are at the expense

of the owner.

All other claims of any nature are not covered.

Cables & batteries are not covered under warranty.

Warranty only valid within the country or region of purchase.

Your statutory rights are not affected.

Two Year Warranty

All Datavideo products purchased after 01-Oct.-2008 qualify for a free

one year extension to the standard Warranty, providing the product is

registered with Datavideo within 30 days of purchase. For information

on how to register please visit www.datavideo-tek.com or contact your

local Datavideo office or authorized Distributors

Certain parts with limited lifetime expectancy such as LCD Panels,

DVD Drives, Hard Drives are only covered for the first 10,000 hours, or

1 year (whichever comes first).

Any second year warranty claims must be made to your local Datavideo

office or one of its authorized Distributors before the extended warranty

expires.

Disposal

For EU Customers only - WEEE Marking

This symbol on the product indicates that it will not be

treated as household waste. It must be handed over to

the applicable take back scheme for the recycling of

electrical and electronic equipment. For more detailed

information about the recycling of this product, please

contact your local Datavideo office.

Packing List

1 x DAC-60

1 x Switching Adaptor 12V/500mA

1 x DAC-60 Quick Start Guide

1 x User Adjust Tool CD

Front Panel

HD/SD - SDI IN / OUT

HD/SD - SDI input and pass-through output connectors.

Power Switch

Switches the power On / Off.

DC In Socket

Connects the supplied 12V PSU to this socket. The

connection can be secured by screwing the outer

fastening ring of the DC In plug to the socket.

USB

Upgrades Firmware/ Control Box by PC

Rear Panel

VGA Output

Connects your VGA equipment to this connector

LED

The LEDs indicate VGA output format

Mode Select

Selects VGA Output Format

Press and hold down this button for 3 second into TV

SCREEN MODE, and then press this button again to

switch screen ratio mode.

Note: OPTIMAL RATIO = 16:9 mode

DAC-60 has Full Screen, Dot by Dot and Optimal Ratio

3 kind aspect ratio modes (Mini Switch).

Source = 1920x1080 (16:9)

1. Full Screen Mode

Source = 1920x1080 (16:9)

Output = 800x600 (4:3)

2. Dot by Dot Mode

A. Source = 1920 x 1080 (16:9)

Output = 800 x 600 (4:3)

B. Source = 720 x 480i 60

Output = 800 x 600 (4:3)

3. Optimal Ratio Mode

Source = 1920 x 1080 (16:9)

Output = 800 x 600 (4:3)

DAC-60 installation

1. First make sure your equipment is not connected to power or disconnect

all power connectors before connecting the video equipment.

2. Connect Video Source (SDI) to the BNC input connector.

3. Connect VGA equipment to the VGA connector.

4. Connect optional SDI equipment to the BNC output connector.

5. Connect the +12V DC power adapter to the converter.

LED Indication

DAC-60 can work with six presets, which can be selected by pressing the

menu button.

LED Indication Resolution

●○○

○○○

800x600 60Hz

○●○

○○○

1024x768 60Hz

○○●

○○○ 1280x1024

60Hz

○○○

●○○ 1366x768

60Hz

○○○

○●○ 1400x1050

60Hz

○○○

○○● 1600x1200

60Hz

●- LED ON ○- LED OFF

Firmware Upgrade

Firmware is upgradable in the field using the integrated USB

port

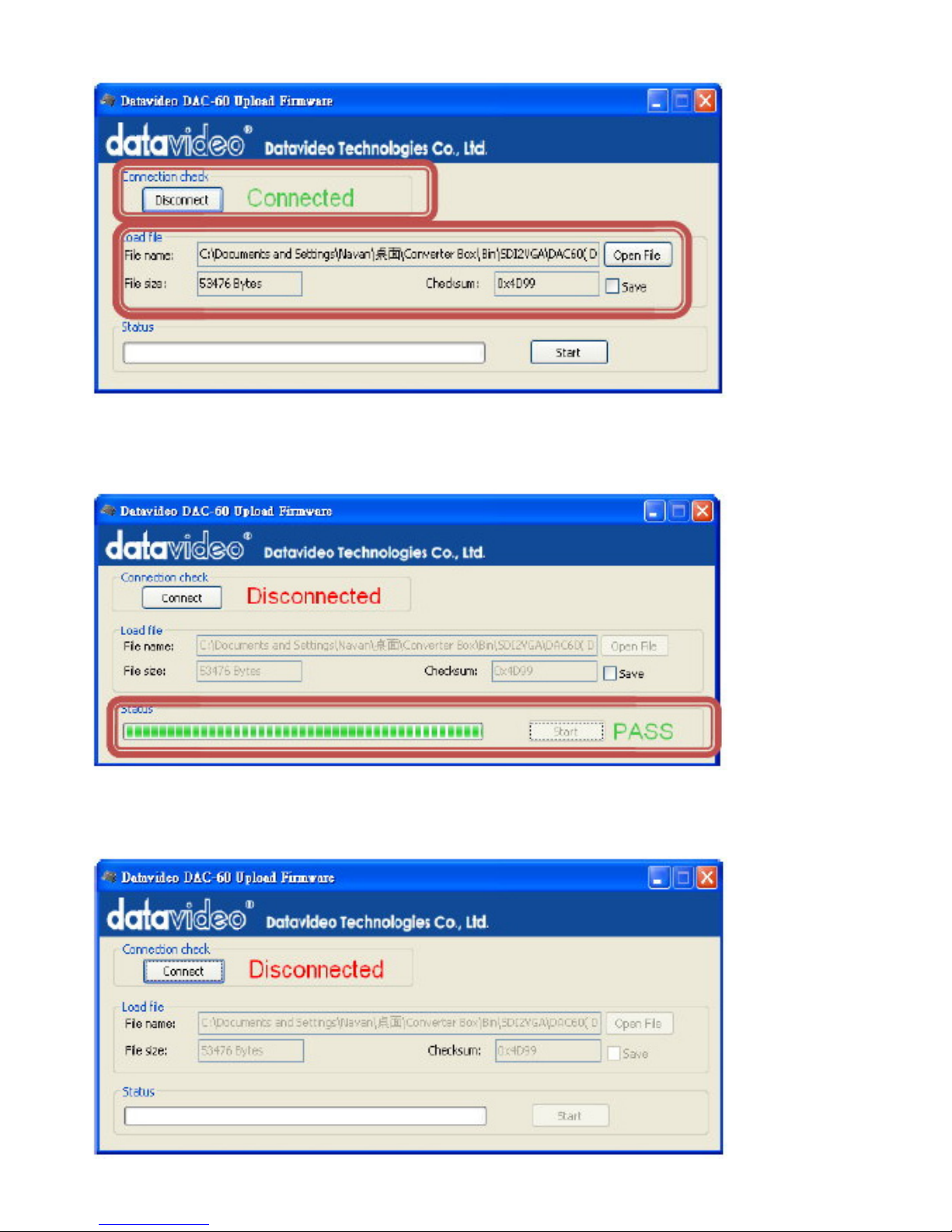

Step 1- open upload firmware program tools.exe, connect box to PC

by USB cable and turn off power

Step 2 - turn on power

Step 3 - turn off than turn on power and select firmware

Step 4 - push start button to update the firmware

Step 5 - close upload firmware program tools
