Daikin TSTATD1100-2 Operating instructions

Owner's

Manual

and

Installation

Instructions

TSTATD1100-2

RESIDENTIAL

for

Residential Use

Digital Thermostat

Non-Programmable

Table of Contents

Safety Warnings ...................................................................3

Front Panel.............................................................................4

Dispay.....................................................................................5

Normal Operation.................................................................6

Fahrenheit or Celsius...........................................................7

Preparation............................................................................8

Remove Old Thermostat ......................................................9

Battery Replacement ..........................................................10

Wire Connections................................................................11

Sample Wiring Diagrams...................................................12

Jumper Conﬁguration .........................................................18

Test Operation ......................................................................22

Troubleshooting ...................................................................23

Warranty................................................................................24

The two Alkaline “AA” batteries must be replaced at

least once every 12 months to ensure proper operation.

The Low Battery icon will appear on the display when it is

time to replace the batteries. If the thermostat is connected

to 24v power, the batteries should still be installed, but are

not required.

When “Low Battery” is displayed the batteries must be

replaced immediately. The manufacturer cannot be liable for

improper operation of the thermostat if the batteries are not

immediately replaced.

Annual battery replacement is especially critical in locations

subject to freezing temperatures. The thermostat will be

unable to turn on the heating system if the batteries are

exhausted.

This device complies with Part 15 of the FCC rules. Operation

is subject to the following two conditions: (1)This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

Follow Installation Instructions carefully.

DISCONNECT POWERTOTHE

HEATER - AIR CONDITIONER

BEFORE REMOVINGTHE OLD

THERMOSTAT AND INSTALLING

THE NEW THERMOSTAT.

Safety Warnings

Front Panel

COOLER &

WARMER

BUTTONS

DISPLAY

HEAT

BATTERIES

COOL

OFF

FAN

HEAT

AUTO

ON On or Auto

N SWITCH

BI-COLOR LED

Heat or Cool demand

indicator when system

powered: Red = Heat

Green = Cool

MODE SWITCH

Cool, Off, or Heat

BATTERY

DOOR

Display

1Heat and Cool indicators. In normal operation, Heat or Cool

appears, depending on the Mode Switch position. When heat

or cool is energized, the Heat or Cool indicator will ﬂash.

2Current room temperature.

3Desired set temperature indicator. When this indicator is on,

the large numbers represent the desired room temperature.

Pressing the COOLER or WARMER button during normal

operation will cause the large numbers to switch from the

current room temperature to the desired set temperature.

4Indicates battery life is low; it is recommended to replace the

batteries at this time.

SET TEMP

LOW

BATTERY

HEAT

COOL

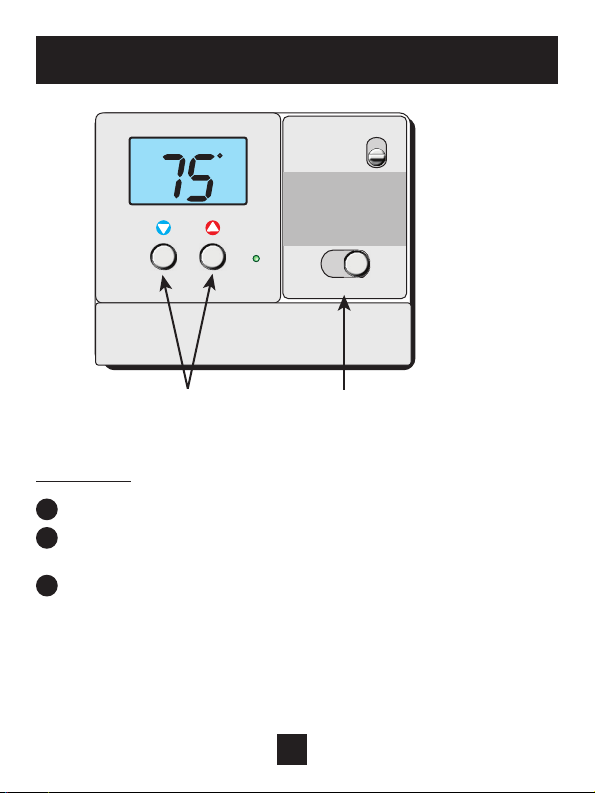

Normal Operation

1Select Cool or Heat with the Mode Switch.

2Normally leave the fan switched to Auto.

In Fan Auto, the fan will turn on only with a heat

or cool demand. When Fan On is selected, the fan

will run continuously.

3Adjust the desired set temperature with the

COOLER and WARMER buttons.

Operation

COOLER &

WARMER

BUTTONS

HEAT

BATTERIES

COOL

OFF

FAN

HEAT

AUTO

On or Auto

FAN SWITCH

MODE SWITCH

Cool, Off, or Hea

Fahrenheit or Celsius

1Select Off with the Mode Switch.

2Press and hold the COOLER and WARMER buttons at the same

time until the temperature is displayed in degrees Celsius.

3Repeat this process to display the temperature in degrees

Fahrenheit.

Operation

COOLER &

WARMER

BUTTONS

HEAT

BATTERIES

COOL

OFF

FAN

HEAT

AUTO

MODE SWITCH

Cool, Off, or Hea

Preparation

• Proper installation of the thermostat will be accomplished by

following these step by step instructions. If you are unsure about

any of these steps, call a qualiﬁed technician for assistance.

• These tools will be required:

• Make sure your Heater/Air Conditioner is working properly

before beginning installation of the thermostat.

• Carefully unpack the thermostat. Save the screws and

instructions.

• Turn off the power to the Heating/Air Conditioning system at

the main fuse panel. Most residential systems have a separate

breaker for disconnecting power to the furnace.

Flat Blade

Screwdriver

Wire Cutter

& Stripper

Remove & Replace Old Thermostat

• Remove the cover of the old thermostat. If it does not come off

easily check for screws.

• Loosen the screws holding the thermostat base or subbase to

the wall, and lift away.

• Disconnect the wires from the old thermostat.Tape the ends

of the wires as you disconnect them, and mark them with

the letter of the terminal for easy reconnection to the new

thermostat.

• Keep the old thermostat for reference purposes, until your new

thermostat is functioning properly.

Battery Replacement

FIG. 1

FIG. 2

Swing

down

FIG. 4

Snap closed

Push

FIG. 3

Old

batteries

out

New batteries in

FIG. 1

Battery

Door

Pull out

BATTERIES

COOL OFF HEAT

Alkaline

HEAT

The batteries are easily accessible from the battery door located on

the bottom front of the thermostat (ﬁg. 1).To open the battery slot,

pull out on the battery door (ﬁg. 1) and swing down (ﬁg. 2).

Remove the old

batteries and replace

with the new AA

alkaline batteries

(ﬁg. 3).

Push up on the battery door

and snap closed (ﬁg. 4).

The batteries must be replaced immediately when the thermostat

displays the low battery icon.
