INSTRUCTION MANUAL

DWD-FD2442

Washing Machine Instruction Manual

!Economic wash system

Using artificial intelligence, the washer uses minimum energy and water by

selecting optimal water lever and washing time.

!Low noise system

The washer minimizes the washing and spinning noises by sensing the

amount of laundry.

!Child-Lock

The Child-Lock system has been used to prevent children from pressing any

button to change the program during operation.

!Air bubble washing(Option)

This is an advanced technology that generates millions of air bubbles inside the drum on washing sequence, and

the bubbles dissolve the detergent particles completely and cleanse all the soil in clothes gently and neatly.

CONTENTS Page

PARTS AND FEATURES.................................................................................................................2

WASHER SAFETY...........................................................................................................................3

INSTALLATION INSTRUCTIONS....................................................................................................4

INLET HOSE CONNECTION...........................................................................................................5

ELECTRICAL REQUIREMENTS .....................................................................................................6

OPERATING YOUR WASHER........................................................................................................7

THE FUNCTIONS OF THE CONTROL PANEL...............................................................................9

WASHING PROCEDURE AND PROGRAM SELECTION.............................................................10

MAINTENANCE .............................................................................................................................19

HOW TO CLEAN THE FILTER......................................................................................................20

REMOVING STAINS......................................................................................................................21

TROUBLE SHOOTING ..................................................................................................................22

SPECIFICATION............................................................................................................................23

PARTS AND FEATURES

The parts and features of your washer are illustrated on the page.

Become familiar with all parts and features before using your washer.

Accessories

NOTE

The drawings in the book may vary from your washer model.

They are designed to show the different features of all models coverd by this book,

Your model may not include all features.

ADJUSTABLE LEG

CONTROL PANEL

DOOR

DETERGENT CASE

INLET HOSE

LOWER COVER

POWER CORD

HOSE DRAIN

Inlet hose Manual Cap holder(3EA)

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the

following basic precautions.

Understanding your responsibilities

• Do not use chlorine bleach and ammonia or acid(such as vinegar or rust remover) in the same

wash. Hazardous fumes can form.

• Unplug power supply cord before attempting to service your washer.

• Do not wash fiberglass material.

Small particles can stick to fabrics washed in following loads and cause skin irritation.

• Do not spray water on the control panel of the washer.

It could cause fire or an electric shock.

• In case of the dual valve model, if you connect only cold water inlet valve, while water

temperature is selected as hot or warm, there can be water leakage from unconnected water

inlet valve.

• This appliance must be grounded.

To avoide electrical shock, use a metal pipe for the ground connection.

• Flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be used

or stored in or near your washer.

Do not add flammable fluids to your wash

water.These substances give off vapors that

can create a fire hazard or explosion.

• After starting a cycle, do not reach into the

washer until all motions stop.

• Do not tamper with the controls.

• The appliance is not intended for use by

young children or infirm persons without

supervision.

• If the supply cord is damaged, it must be

replaced by the manufacturer, or its service

agent or a similarly qualified person in order

to avoid a hazard.

• If the appliance is supplied from a cord

extension set or electrical portable outlet

device it should be positioned so that it is not

subjected to splashing or ingress of

moisture.

Please ...

• Have only a qualified person install, repair,

or replace parts on washer.

• Maintain washer properly.

• Protect washer from the weather and keep

it where the temperature will not fall below

freezing.

• Do not install the washer at a place of

extremely high humidity. It could cause an

electric shock or a short circuit.

• Connect washer to the correct outlet,

electrical supply, water supply, and drain

supply.

WASHER SAFETY

Read all instructions before using your washer

Removing transit bolts

1. Before operating the washer, remove the

transit bolts(3ea) along with the rubber.

• If the bolts are not removed, it may cause

heavy vibration, noise and malfunction.

2. Unscrew the 3 bolts with the 10mm hex

wrench or spanner or cross-tip screwdriver.

Keep the 3 bolts for a later time.

• When the appliance is transported, transit

bolts will be re-used.

3. Close the holes with the cap holders supplied.

Location of washer

• Check location where the washer will be installed. Make sure you have everything necessary for

correct installation.

• Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.

• Do not place or store laundry products on top of washer at any times.

• Install the washer on the horizontal solid floor.

If the washer is installed on an unsuitable floor, it could make

considerable noise, vibrate severely and cause a malfunction. If the

washer is not level, adjust leg up or down for horizontal installation.

• Ventilation openings must not be obstructed by carpeting when the

washer is installed on a carpeted floor.

• Leave some space (right & left : 2cm, rear : 10cm).

• In case of built-in installation, the distance between top of the washer

and bottom of upper plate should be at least 3mm.

INSTALLATION INSTRUCTIONS

Laundry

Tub

Washer

approx.

2cm

Drain Hose

The washer should be connected to the water mains using new hose sets and old hose sets

should not be reused.

In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the

cold water inlet valve.

Option : Be careful not to confuse hot water inlet and cold water inlet.

For Ordinary Tap

For Screw-Shaped Tap

INLET HOSE CONNECTION

1Pull down the collar of the

inlet hose to separate it

from the water tap

adapter.

2Loosen the four screws

properly in order to fit into

water tap.

3Fit the water tap adapter

into the water tap and

tighten the four screws

evenly while pushing up

the adapter so that the

rubber packing can stick

to the water tap tightly.

4Remove the tape, and

screw connector B into

connect A tightly.

5Connect the inlet hose to

the water tap adapter by

pulling down the collar of

the hose end.

6Connect the inlet hose

adapter of the hose to the

water inlet of the washer

by turning it clockwise to

be fixed tightly.

• Please check the rubber

packing present inside the inlet

hose adapter of the hose.

1Connect the inlet hose to

the water tap by screwing

the connector tightly.

2Connect the connector-

inlet supplied if

necessary.

3Connect the inlet hose

adapter to the water inlet

of a washer and turn it to

be fixed.

*Check the packing in the inlet

TAPE

Raccorclement B

Raccorclement A

Connector

Rubber

Packing

Hose

Connector Rubber

Packing

Hose

Connector

inlet

Connector

ELECTRICAL REQUIREMENTS

• Electrical earth is required on this washer

• If it does not fit the outlet, have a proper outlet

installed by a qualified electrician.

• Don’t earth to a gas pipe.

• Don’t change the power supply cord plug.

• Check with a qualified electrician if you are not

sure the washer is properly earthed.

WARNING

Recommended earthing method

Electrical shock hazard : Failure to follow these instructions could result in

death or serious injury.

For your personal safety, this washer must be earthed.

This washer is equipped with a power supply cord ‘A’ having a earthing plug ‘B’.

To minimize possible shock hazard, the cord must be plugged into a mating

earthing-type wall receptacle ‘C’. If a mating wall receptacle is not available,

it is the personal responsibility and obligation of the customer to have the

proper earthed wall receptacle installed by a qualified electrician.

Drain system

• Never forget to install drain hose before operating your washer.

• Open the packing box, and there is a drain hose inside the drum.

• Connect the drain hose to the drain outlet at the back side of the washer.

•

Top of laundry tub must be at least 60cm high and no higher than 100cm from bottom of washer.

• When installing the drain hose to tub(sink), secure it tightly with a string.

• Proper securing of the drain hose will protect the floor from damage due to water leakage.

• When the drain hose is too long, do not force it back into the washer.

This will cause abnormal noise.

Level adjustment

1If the washer is installed on an

unsuitable floor, it could make

considerable noise, vibrate and

cause a malfunction.

OPERATING YOUR WASHER

2Adjust the level of washer using adjustable legs.

• Please check if there is any gap between the

four adjustable legs and the floor.

• Adjust the level of washer by turning

adjustable legs. And make it sure that there is

no swaying of washer.

• After the adjustment is finished, turn the fixing

nuts up tightly so that the washer maintains

the adjustment.

3Make it sure that the washer does not sway when you press

down the four corners of the washer's top plate.

adjustable leg

Fixing Nut

NOTE

There should be no swaying of washer and all the

adjustable legs should stick to the floor closely.

To obtain the best washing results, you must operate your washer properly.

This section gives you this important information.

• Close zippers, snaps, and hooks to avoid

snagging other items.

Remove pin, buckles, and other hard

objects to avoid scratching the washer

interior.

• Empty pockets and pull them inside out.

• Turn down cuffs and turn synthetic knits

inside out to avoid pilling.

• Tie strings and sashes to avoid tangling.

• Treat spots and stains.

(See “Removing stains” on page 21)

Preparing clothes for washing

• Drop items into washer loosely. Items should move

easily through wash water for best cleaning and

wrinkle-free results.

• Load washer properly and select correct load size

setting.

Overloading and selecting a setting too small for

the wash load can :

- Cause poor cleaning

- Increase wrinkling

- Create excessive lint

- Wear out items faster (because of pilling)

• Mix large and small items in each load. Load evenly

to maintain washer balance.

An unbalanced load can make the washer vibrate

during spin.

• Reduce wash time when using a small load size

setting. Load with only a few small items needs

less wash time.

• Use a large load size setting to reduce wrinkling

with permanent press clothes and some synthetic

knits. These items should have more room to move

in the water than heavy items. (towels, jeans)

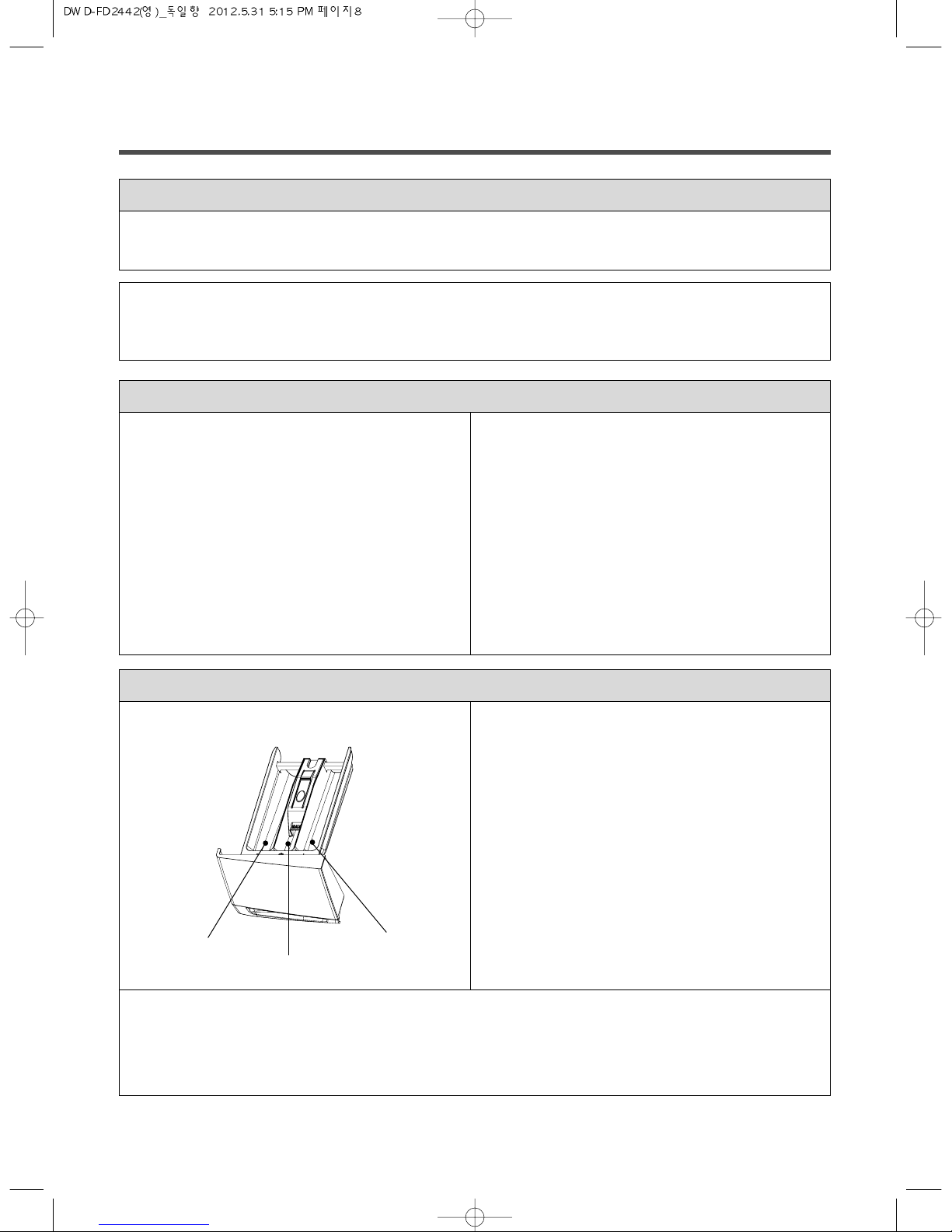

1Detergent case 2Adding fabric softener

• If desired, add measured liquid fabric

softener to the softener inlet.

• Pour liquid fabric softener into the

dispenser using the amount

recommended on the package.

• Do not exceed the maximum fill line.

Overfilling can cause early dispensing of the

fabric softener which could stain clothes.

• Do not open the detergent case when

water is supplied.

• Avoid pouring fabric softener directly on

the clothes.

Adding detergent

• Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together.

• Separate dark colors from light colors, colorfast items from non-colorfast item.

Sorting

Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.

Color (White, Lignts, Darks) Separate white clothes from colored clothes.

Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately.

Main wash Pre wash

Fabric softener

• Please use only the powder detergent for the front loader washing machine.

• Please use the proper amount of detergent in conformity with the instruction of the detergent manufacturer.

• A use of a large amount of fetergent more than the recommended amount can cause many soapsuds and

the overload to the motor. In addition to, this will deteriorate the washing and rinse performmance.

Press this switch to turn the power on or off.

Operation and temporary stop is repeated as it is pressed.

When you want to change program in operating;

press the “Start/Pause” button "Select the program that you want to change "press the

“Start/Pause” button again.

You can select the course you want, and each lamp is turned on when that course is selected.

For the more detailed information, please refer to the page 11~18.

It can be used to adjust temperature of water according to types of the load to be washed.

As the button is pressed, temperature of water is selected by

Cold "30˚C "40˚C "60˚C "95˚C

By pressing the spin button, the spin speed can be chosen.

Rinse Hold • Is selected by pressing the spin button repeatedly. This function leaves clothes

in the machine; suspended in the water after a rinse without entering into spin.

• To proceed through to a drain or spin, after the Rinse Hold function is

completed, use spin button.

Spin only • If you want only spin, you can operate spin only. (See page 18.)

Crease Care • If you want to prevent crease, select this button with spin speed.

Rinse+ • Is used to add a rinse, which may assist in removing traces of detergent

residue.

• By selecting Rinse+ function, the rinse time and the rinse water are increased.

Pre-Wash • The washer operates one additional wash and spin before the main wash.

• If the laundry is heavily soiled, Pre-Wash course is effective.

• Pre-Wash is available in Cotton and Synthetic programs.

All courses have pre-set washing times, but Time Save decreases it to 10 minutes.

Each time this button is pressed the watch icon is repeated on and off. When it is on, the Time

Save function is set. Time Save is available in Cotton, Eco and Synthetic programs.

It can be used to pre-engage time for wash.

Use this function when you want to protect any accident occurring from handling of washer by a

child.

During an operation of washer, press ‘Time Save’ and ‘Time Delay’ buttons simultaneously.

In Child Lock mode, no button functions except Power button.

In Child Lock mode, press ‘Time Save’ and ‘Time Delay’ buttons simultaneously like setting

Child Lock and Child Lock is cancelled.

To change to the desirde program, while in Child Lock mode;

1. Press both the Time save and Time delay buttons together once again.

2. Press the Start/Pause button.

3. Select the desired program and

press the Start/Pause button again.

* The Child Lock will be cancelled when

power is off.

THE FUNCTIONS OF THE CONTROL PANEL

Change the

desired

program

1. COTTON IS AUTOMATICALLY SELECTED UPON POWER ON

• Press the Power button to start.

• Press the Start/Pause button

• Initial condition

- Program : Cotton

- Wash : main wash

- Rinse : 3 times

- Spin : 800 rpm

- Water temperature : 40˚C

WASHING PROCEDURE AND PROGRAM SELECTION

2. MANUAL SELECTING

• Press the Power button to start

• Select the conditions which you want to use by turning the program dial and pressing each button.

• Press the Start/Pause button.

3. RESERVED WASHING

• Reservation can be made from 2 hours to 12 hours.

example) To make reservation to complete washing in 8 hours.

- Procedure to press the button.

* Each pressing of the button advances time delay by one hour.

• Now the reservation is made.

• If you want to check the selected program, press the “Start/Pause” button again.

• Preparing washing before starting “Time Delay”;

- Turn on the water tap

- Load laundry and close the door

- Place the detergent and fabric softener in the detergent case.

• To cancel the time delay, press the Power button.

ajust to "8"

select the

program

or manual

Table of contents

Languages:

Other Daewoo Washer manuals

Daewoo

Daewoo DWD-FC1011 User manual

Daewoo

Daewoo C-UD121DCEPB User manual

Daewoo

Daewoo DWF-170M User manual

Daewoo

Daewoo DWF-7094P User manual

Daewoo

Daewoo DW-503M User manual

Daewoo

Daewoo DWD-HB143 Series User manual

Daewoo

Daewoo DWF-800M User manual

Daewoo

Daewoo D-CV701PC Series User manual

Daewoo

Daewoo WM710T1WU4RS User manual

Daewoo

Daewoo DWF-178L User manual

Daewoo

Daewoo DWD-1211RT User manual

Daewoo

Daewoo DWC-LU1011 User manual

Daewoo

Daewoo KUF-150Q User manual

Daewoo

Daewoo DWD-FV2021-4 User manual

Daewoo

Daewoo DWF-750MS User manual

Daewoo

Daewoo DWD-FD1411 User manual

Daewoo

Daewoo MINI Series User manual

Daewoo

Daewoo DWF-200M User manual

Daewoo

Daewoo DWD-L100 Series User manual

Daewoo

Daewoo DWF-7589 User manual

Daewoo

Daewoo DWF-750M User manual

Daewoo

Daewoo DW-900C User manual

Daewoo

Daewoo DWF-165WD User manual

Daewoo

Daewoo DWF-200M(V) User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
