Daewoo RC900M0001 User manual

OCT. 2005

Model : RC-900M

RC900M0001

VACUUM CLEANER

CONTENTS

Page

1. SPECIFICATIONS ---------------------------------------------------- 2

2. EXTERNAL VIEWS --------------------------------------------------

-

3

3. DIAGRAM --------------------------------------

-

4

3-1. WIRING DIAGRAM

3-2. CIRCUIT DIAGRAM

4. TROUBLE SHOOTING GUIDE -----------------------------------

-

5

5. DISASSEMBLING AND TREATMENT

5-1. CLEANER ASSEMBLY ---------------------------------------------- 7

5-2. BODY ASSEMBLY -------------------------------------------------------

-

8

5-3. MOTOR ASSEMBLY ----------------------------------------------------

-

9

5-4. CORDREEL ASSEMBLY -----------------------------------------------

-

10

5-5. PCB ASSEMBLY ---------------------------------------------------------

-

12

5-6. HOSE ASSEMBLY -------------------------------------------------------

-

13

5-7. BRUSH ASSEMBLY -----------------------------------------------------

-

14

6. EXPLODED VIEW AND PARTS LIST

6-1. CLEANER ASSEMBLY ---------------------------------------------- 15

6-2. BODY ASSEMBLY ----------------------------------------------- 17

6-3. COVER BODY ASSEMBLY -------------------------------------------

-

19

6-4. COVER DUST ASSEMBLY --------------------------------------------

-

21

6-5. MOTOR ASSEMBLY ----------------------------------------------------

-

23

6-6. CORDREEL ASSEMBLY -----------------------------------------------

-

24

6-7. PCB ASSEMBLY ---------------------------------------------------------

-

26

6-8. HOSE ASSEMBLY -------------------------------------------------------

-

27

6-9. PIPE ASSEMBLY ------------------------------------- 30

6-10. BRUSH ASSEMBLY ---------------------------------------------------

-

31

1. SPECIFICATIONS

Rated Voltage AC 230V

Rated Frequency 50/60Hz

Input Watt 2000W

Suction Power 400W

Noise Level 78dB(A)

Weight (Body) 7.2Kg

Dimension (WXHXD) 546 X 250 X 290 mm

Cord Length 6.0m

Filter HEPA

Hose Current 1.6m

Pipe Telescopic(Steel)

Pedal

Crevice Tool

Upholstery Tool

Dusting Brush

Floor Tool

MODEL

Nozzle

RC-900M

2. EXTERNAL VIEWS

PART NAME RC-900M

AUNIT O

BFILTER HEPA

CHOSE ASSEMBLY 2-CURRENT

DPIPE ASSEMBLY TELESCOPIC (STEEL)

EBRUSH ASSEMBLY PEDAL

3. DIAGRAM

1) MODEL RC-900M

1) MODEL RC-900M

3-1. WIRING DIAGRAM

3-2. CIRCUIT DIAGRAM

4. TROUBLE SHOOTING GUIDE

TROUBLE CAUSE COUNTERMEASURE

SUCTION POWER FILTER BAG(CLOTH)/DUST BOX IS CHANGE IT WITH NEW ONE (See 5-1)

IS WEAK FULL WITH DUST REMOVE THE DUST IN DUST BOX

FILTER PRE IS CLOGGY WITH DUST REMOVE THE DUST (See 5-2)

CLOGGING OR TEAR IN HOSE REMOVE OBSTACLE

OR REPLACE THE HOSE (See 5-6)

DEFECTIVE MOTOR REPLACE THE MOTOR (See 5-3)

THE OPENING IN BRUSH IS CLOGGY REMOVE THE DUST (See 5-7)

WITH DUST

FILTER(HEPA) IS FULL WITH DUST CHANGE IT WITH NEW ONE (See 5-1)

VACUUM CLEANER DOES BREAKING IN POWER CORD REPLACE THE POWER CORD (See5-4)

NOT WORK (AT BLADE TIP OR ROOT OF PLUG)

BREAKING OF CONNECTIONS

IN HOSE ASSEMBLY

DEFECTIVE PCB REPLACE IT (See 5-3)

LOCATED IN CASE MOTOR REAR

DEFECTIVE PCB ASSEMBLY REPLACE IT (See 5-5)

BREAKING OF CONNECTIONS REPAIR (See 5-4)

OR POOR CONTACTS IN

CORD REEL ASSEMBLY

DEFECTIVE MOTOR REPLACE IT (See 5-3)

BREAKING OF CONNECTIONS REPAIR (See 5-2)

IN BODY ASSEMBLY

BREAKING IN A FUSE

MOTOR DOES NOT DEFECTIVE PCB ASSEMBLY REPLACE IT (See 5-5)

STOP EVEN IF

SWITCH

TROUBLE CAUSE COUNTERMEASURE

BROKEN REEL SPRING REPLACE IT (See 5-4)

OF CORD REEL

POWER CORD BROKE AWAY REPAIR (See 5-4)

FROM THE BOBBIN

ABRASION OF THE ROLLER BRAKE REPLACE THE ROLLER

OF CORD REEL BRAKE (See 5-4)

LEVER SPRING BROKE AWAY REPAIR (See 5-4)

FROM THE CORD REEL BRACKET

POWER CORD DOES

NOT STOP AT AN

ARBITRARY POSITION

POWER CORD IS

NOT WOUND UP

BE CAREFUL WHEN BREAKING UP THE CORD REEL, THE REELSPRING

MAY SPRING OUT OF THE SPRING COVER.

CAUTION

5. DISASSEMBLING AND TREATMENT

1) LIFT THE BUTTON(11), FILTER(12), GRILLE(13) AND UNSCREW THE 6 SCREWS(10)

AND THEN LIFT THE COVER ASSEMBLY(9) UP FROM THE BODY ASSEMBLY(1).

2) CHECK CONNECTION BETWEEN THE PCB(8) AND THE WIRES OF EACH ASSEMBLY(2,7,9)

3) LIFT THE MOTOR ASSEMBLY(2), CORDREEL ASSEMBLY(7) FROM THE BODY ASSEMBLY.

5-1. CLEANER ASSEMBLY

1) CHECK THE FILTER IN (15).

2) CHECK THE SCREW(20)

3) CHECK CONNECTION BETWEEN THE WIRE(21) AND THE MAIN PCB/ CORDREEL

ASSEMBLY.

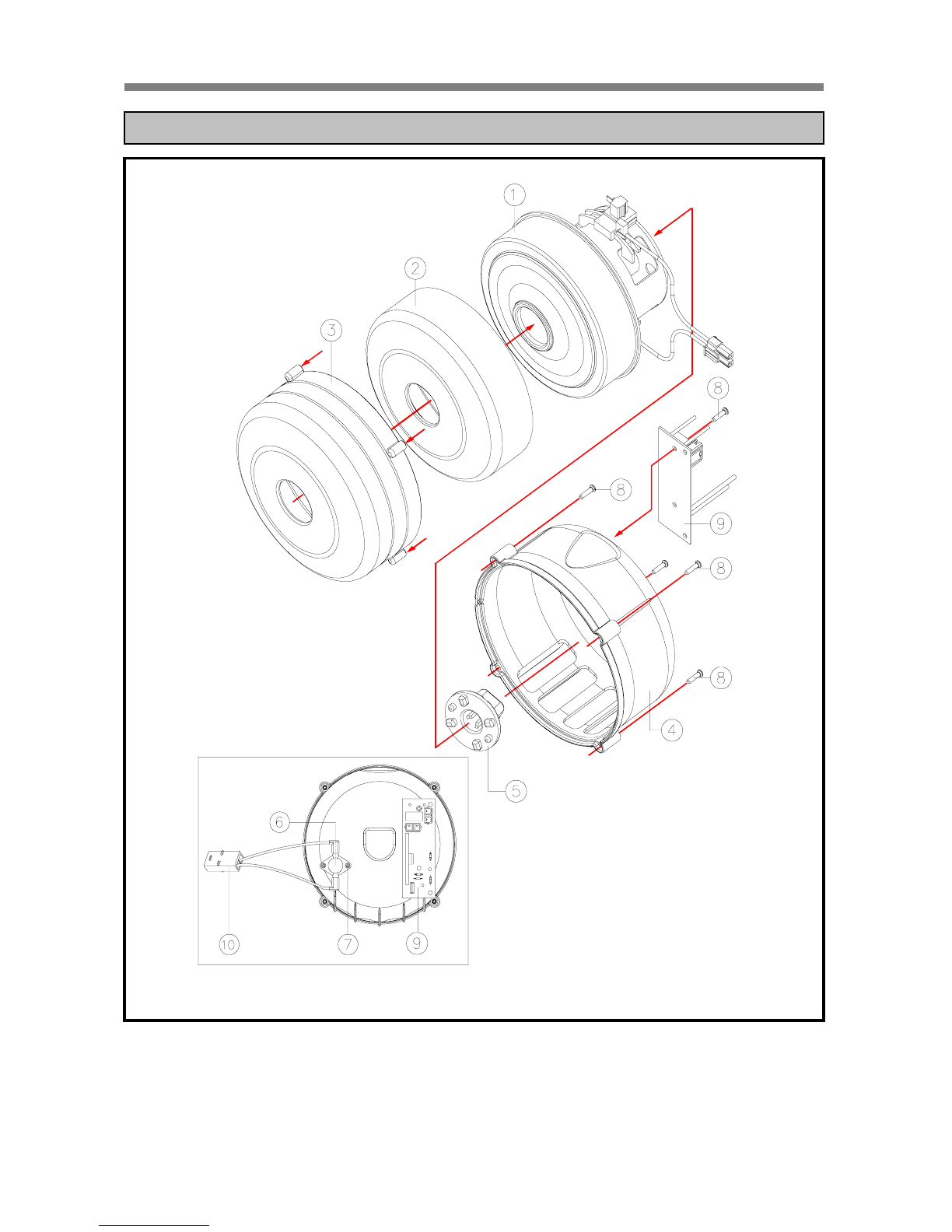

5-2. BODY ASSEMBLY

1) TAKE THE MOTOR OUT OF THE CASE (3, 4).

2) CHECK THE MOTOR(1) (WHETHER THE MOTOR IS BURNT OUT OR NOT).

3) CHECK CONNECTION BETWEEN MOTOR TERMINAL AND THE WIRES.

4) CHECK THE THERMOSTAT(6).

5) CHECK CONNECTION BETWEEN THE THERMOSTAT(6) AND THE WIRE HARNESS(10)

5-3. MOTOR ASSEMBLY
