D-Link DWR-M921 User manual

D-Link DWR-M921

You can apply this procedure on computer, PlayStation, XBOX, Nintendo and any other gaming device

PlayStation 4

In order to solve your PS4 problem please follow the below steps

Step 1: Firstly navigate to the settings menu on your PS4

Step 2: Next select Network

Step 3: You need to select “set up internet connection”

Step 4: You need to select “custom”

Step 5: You need now to select the method in which your PS4 connects to the internet

Step 6: Make sure to set your IP address manually

Step 7: Enter the desired IP address that you would like to use for your PlayStation®4.

IP Address: 192.168.0.50

Subnet Mask: 255.255.255.0

Default Router: 192.168.0.1 (IP Address of your router)

Primary DNS: 193.227.177.130

Secondary DNS: 194.126.16.38

Step 8: In MTU Settings, select automatic.

Step 9: In Proxy servers , select Do Not Use

Step 10: Select TEST Internet Connection.

Step 11: Connect a device to your D-Link router (using cable / WIFI)

Step 12: In your browser enter the address 192.168.0.1

Step 13: You will be prompted to enter Username: admin and Password: admin

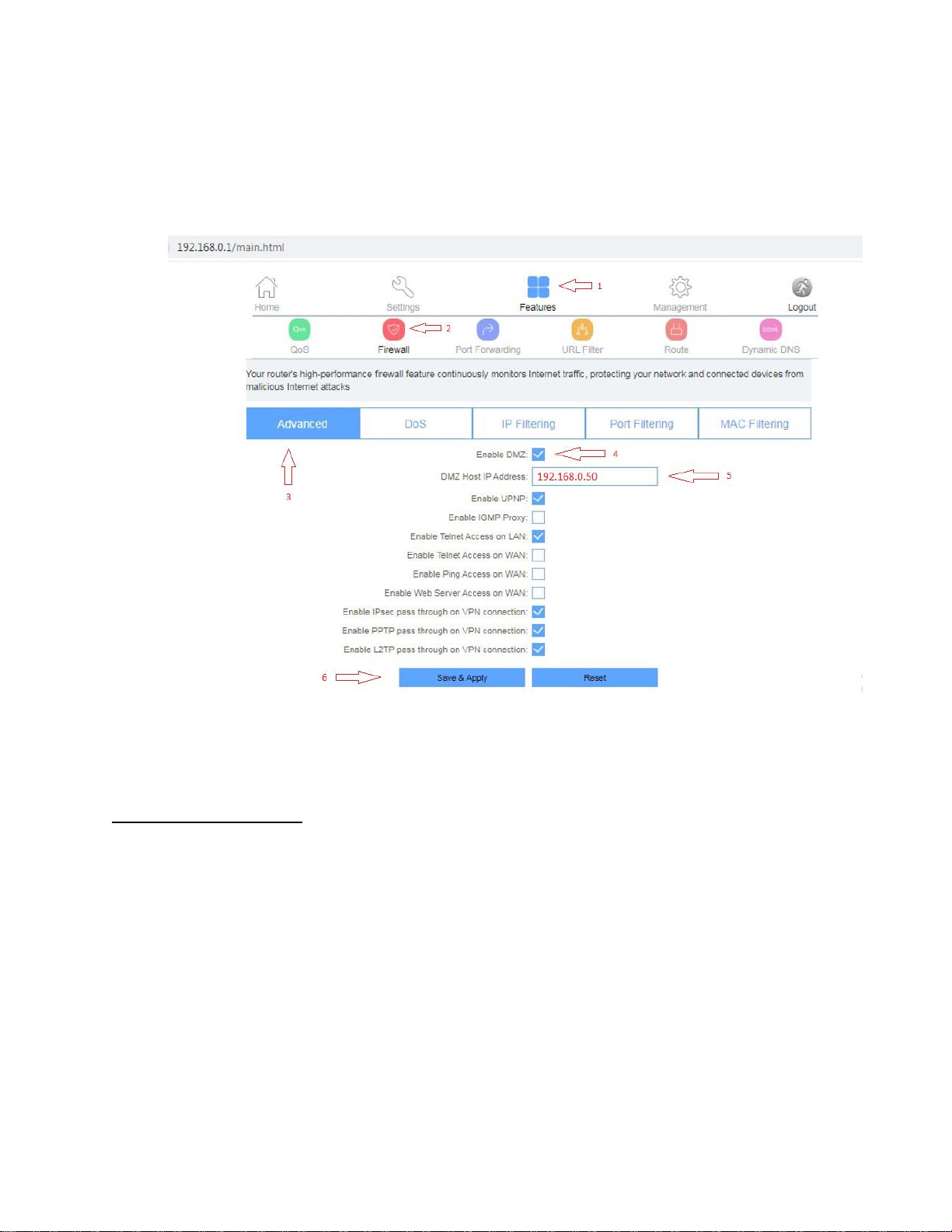

Step 14: Click Features then Firewall

Step 15: Go to Advanced and enable DMZ then type 192.168.0.50 in DMZ Host IP Address

Step 16: Click Save & Apply

Step 17: Reboot your PS4 and your NAT type problem should be solved

PlayStation 3

In order to solve your PS3 problem please follow the below steps:

Step 1: On your PS3: Go to network settings then Internet connection settings a

Step 2: Choose the type of connection you are using (wired/wireless) then choose Manual IP and

enter the following IP addresses:

IP Address: 192.168.0.50

Subnet Mask: 255.255.255.0

Default Router: 192.168.0.1

Primary DNS: 193.227.177.130

Secondary DNS: 194.126.16.38

Step 3: Disable the UPnP and leave the rest of the setting as they are

Step 4: Connect a device to your D-Link router (using cable / WIFI)

Step 5: In your browser enter the address 192.168.0.1

Step 6: You will be prompted to enter Username: admin and Password: admin

Step 7: Click Features then Firewall

Step 8: Go to Advanced and enable DMZ then type 192.168.0.50 in DMZ Host IP Address

Step 9: Click Save & Apply

Step 10: Reboot your PS3 and your NAT type problem should be solved

Laptop or Desktop

In order to solve your gaming problem on your computer please follow the below steps

Step 1: Click Start then Control Panel

Step 2: Click on network and internet then network and sharing center

Step 3: When the Network and Sharing Center opens, click on Change adapter settings.

Step 4: Right-click on your local or wireless adapter and select Properties

Step 5: In the Local Area Connection Properties window double-click Internet Protocol Version 4

(TCP/IPv4)

Step 6: Select use the following IP address and enter IPs and Subnet Mask

IP Address: 192.168.0.50

Subnet Mask: 255.255.255.0

Default Router: 192.168.0.1 (IP Address of your router)

Step 7: Then enter your Preferred and Alternate DNS server addresses

Primary DNS: 193.227.177.130

Secondary DNS: 194.126.16.38

Step 8: Connect a device to your D-Link router (using cable / WIFI)

Step 9: In your browser enter the address 192.168.0.1

Step 10: You will be prompted to enter Username: admin and Password: admin

Step 11: Click Features then Firewall

Step 12: Go to Advanced and enable DMZ then type 192.168.0.50 in DMZ Host IP Address

Step 13: Click Save & Apply

Step 14: Reboot your computer to solve gaming problem.
