DWL-3200AP Install GuideSystem Requirements

D-Link Air PremierTM DWL-3200AP

Managed Wireless Access Point

Using a power adapter with a different

voltage rating will damage and void the

warranty of this product.

Power Cord Power over Ethernet base unit

Ethernet Cable

Power Adapter-DC 48V, 0.4A

Mounting Plate

CD-ROM with Manual

System Requirements

Minimum System Requirements:

• CD-ROM Drive

• Computers with Windows®, Macintosh®, or Linux-based

operating systems

• Installed Ethernet Adapter Internet Explorer version 6.0 or

Netscape Navigator™ version 7.0 and above

Package Contents

D-Link Systems, Inc. 3

DWL-3200AP Install Guide Installing the Hardware

Installing the Hardware

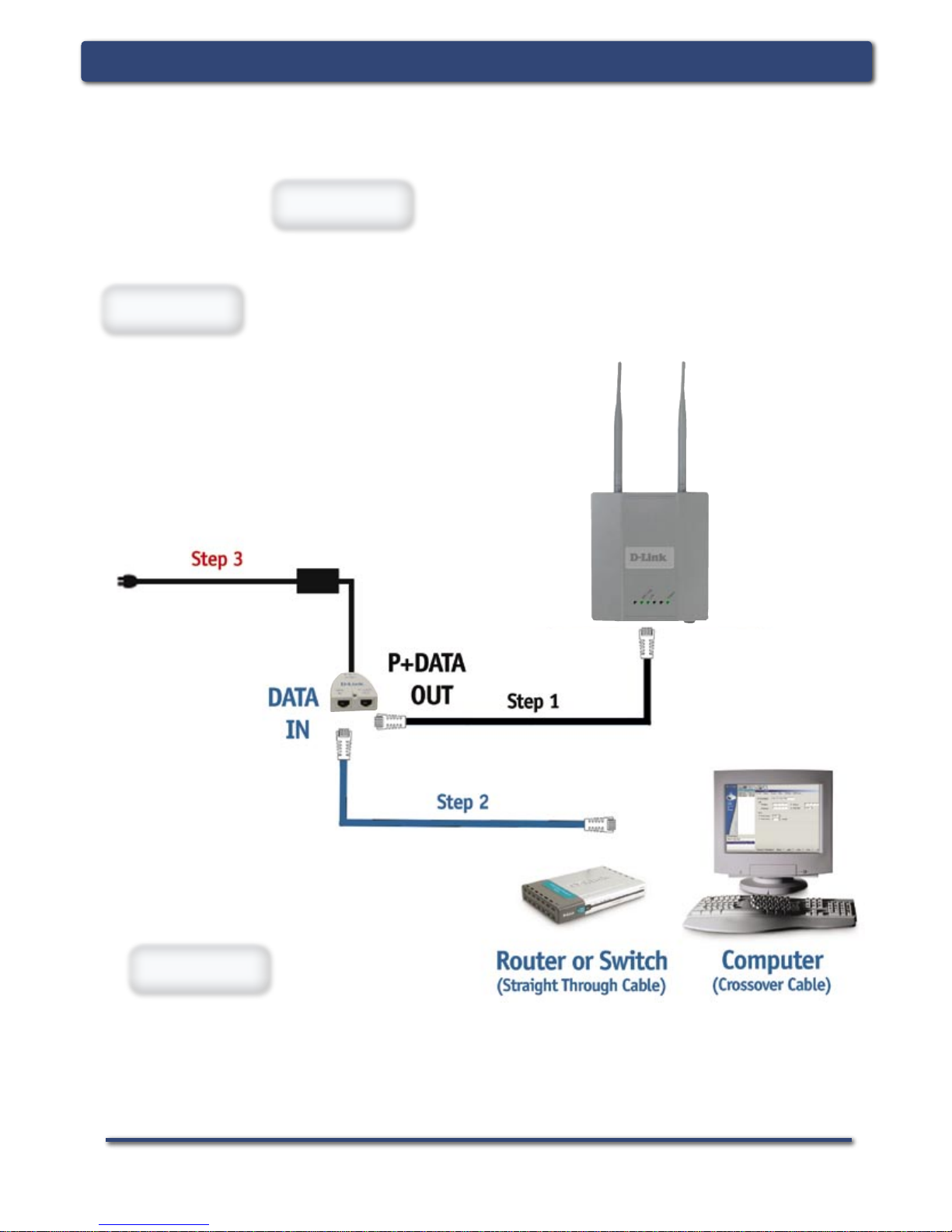

Step 1

Step 2

Connect one end of an Ethernet

cable (included with your package)

to the LAN port on the DWL-3200AP

and the other end of the Ethernet cable

to the port labeled P+DATA OUT on

the PoE base unit.

Connect another Ethernet cable

from the DATA IN port on the PoE

base unit to your router/switch or

to a PC.

Attach the power adapter to the connector labeled POWER IN on the

PoE base unit. Attach the power cord to the power adapter and into an

electrical outlet.

Step 3

4 D-Link Systems, Inc.

DWL-3200AP Install GuideThe Setup Wizard

Open your Web browser

and type http://192.168.0.50

into the URL address box.

Then press the Enter or

Return key.

Click Run Wizard

The logon pop-up screen will

appear.

Type admin

for the username and leave

the password ﬁeld blank.

Once you have logged in, the

Home screen will appear.

Using the Setup Wizard

D-Link Systems, Inc. 5

DWL-3200AP Install Guide The Setup Wizard

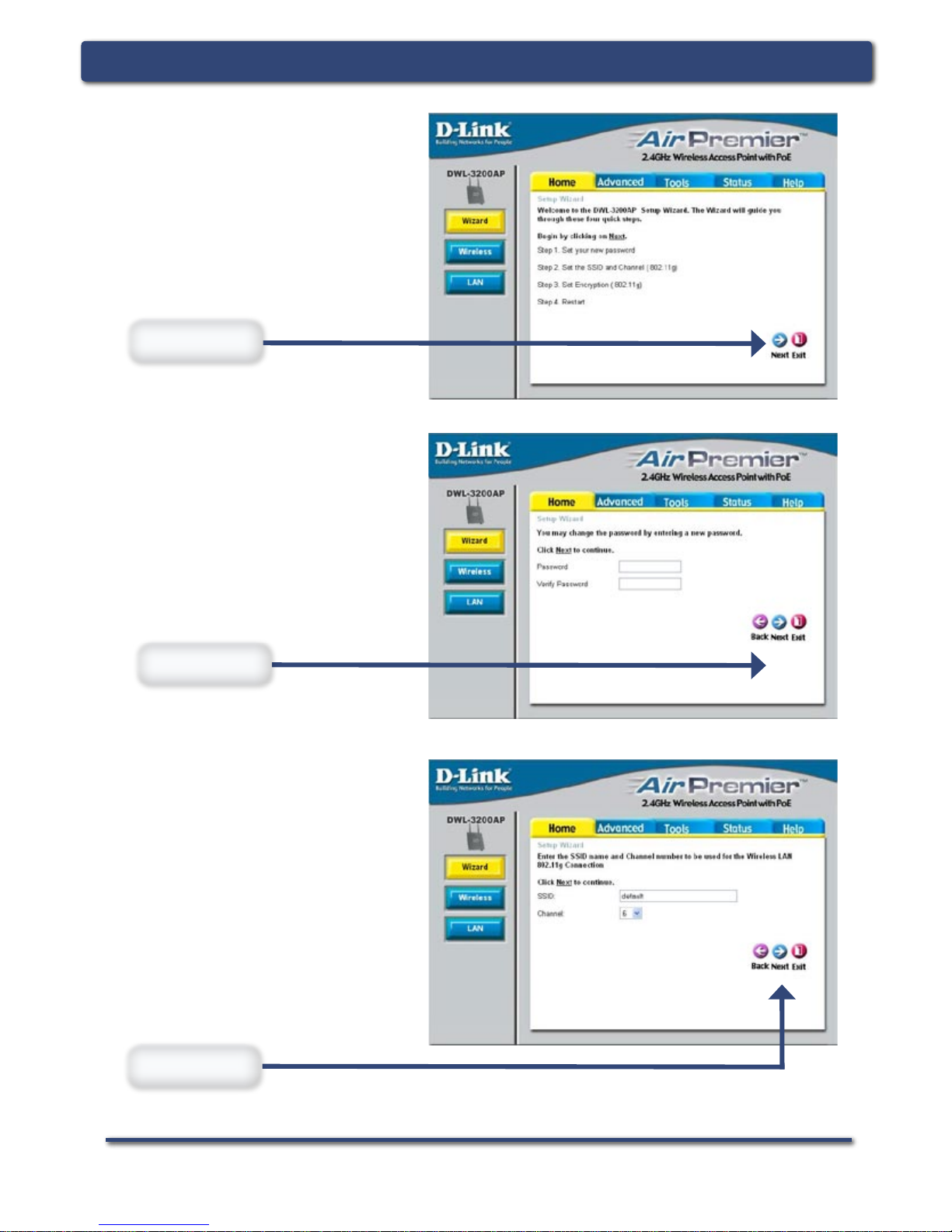

You will see the following

screens.

Click Next

Step 1 - Setup your new

password. You have the

option to establish a password.

Step 2 - Set Wireless LAN

Connection.

By default the DWL-3200AP

SSID is set to default with

a Channel setting of 6.

For 802.11g networks please

do the following:

Click Next

6 D-Link Systems, Inc.

DWL-3200AP Install GuideThe Setup Wizard

For 802.11g networks please

continue as follows:

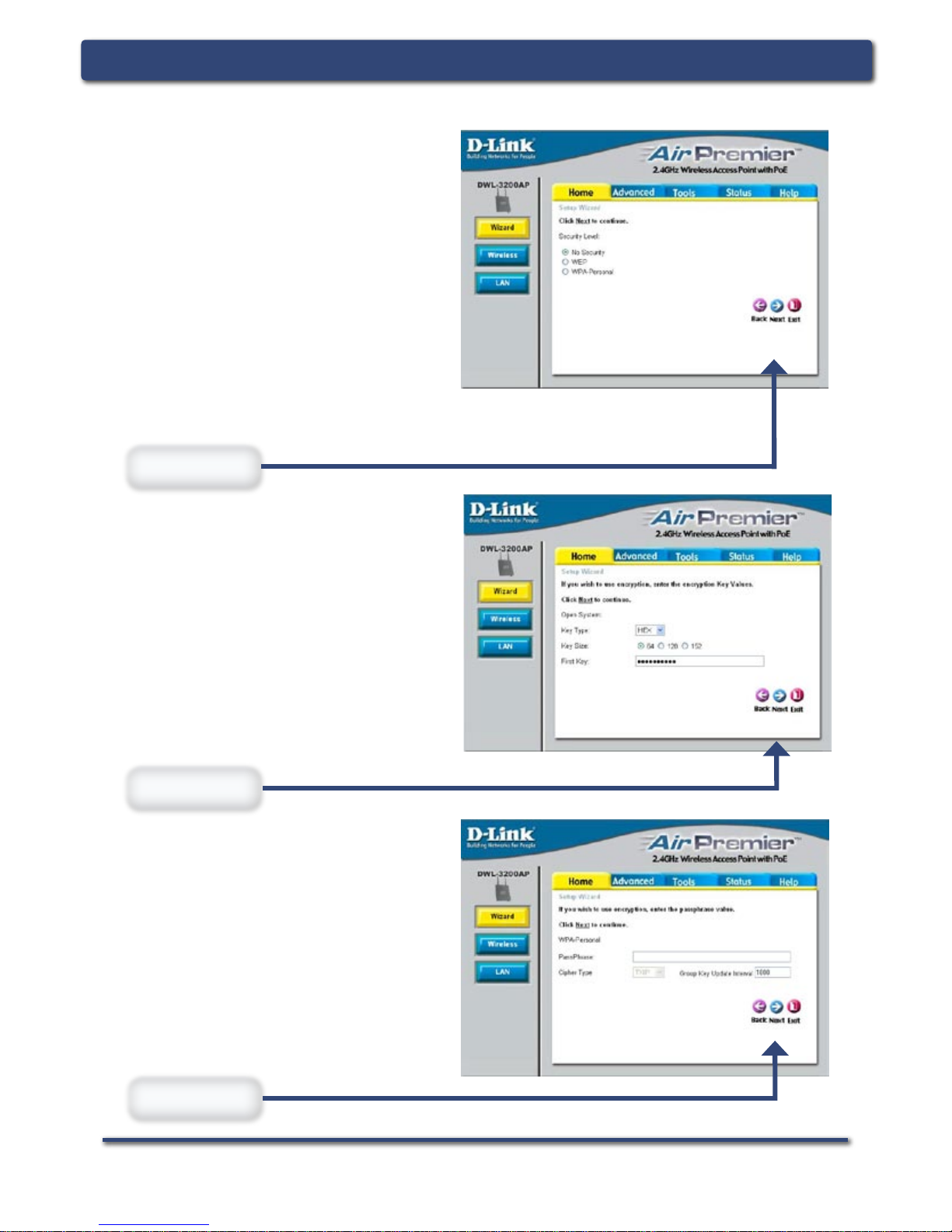

Step 3 - Security Level

The DWL-3200AP is capable

of three levels of wireless

encryption: No Security, WEP,

and WPA-Personal.

By default encryption is disabled.

You can change the encryption

settings for more secure wireless

communication.

Click Next

If you choose WEP, you can

use Hexadecimal or ASCII

Key type and select 64, 128,

or 152 bits.

You can only set the First Key

in the wizard.

If you choose WPA-Personal,

enter the passphrase here.

1800 for Group Key Update

Interval is recommended.

D-Link Systems, Inc. 7

DWL-3200AP Install Guide The Setup Wizard

Click Restart

Your Setup is Complete!

When you have completed the steps in this Quick Installation Guide, your

connected network should look similar to this:

Technical Support

D-Link’s website contains the latest user documentation and software updates

for D-Link products.

D-Link provides free technical support for customers within the United States

and Canada for the duration of the product’s warranty period.

U.S. and Canadian customers can contact D-Link Technical Support through

our website or by phone.

United States

Telephone

(877) 453-5465

Monday through Friday, 8:00am to 5:00pm PST.

World Wide Web

http://support.dlink.com

E-mail

suppor[email protected]

Canada

Telephone

(800) 361-5265

Monday through Friday, 7:30am to 9:00pm EST.

World Wide Web

http://support.dlink.ca

E-mail

suppor[email protected]

Version 1.03
