D-Link DWL-3200AP - AirPremier - Wireless Access... User manual

DWL-3200AP Install GuideInstalling the Hardware

DWL-3200AP Install Guide

D-Link Air Premier™DWL-3200AP

Managed Wireless Access Point

Using a power adapter with a different

voltage rating will damage and void the

warranty of this product.

Power Cord

Ethernet Cable

Mounting Plate

System Requirements

Minimum System Requirements:

• CD-ROM Drive

• Computers with Windows®, Macintosh®, or Linux-based

operating systems

• Installed Ethernet Adapter Internet Explorer version 6.0 or

Netscape Navigator™version 7.0 and above

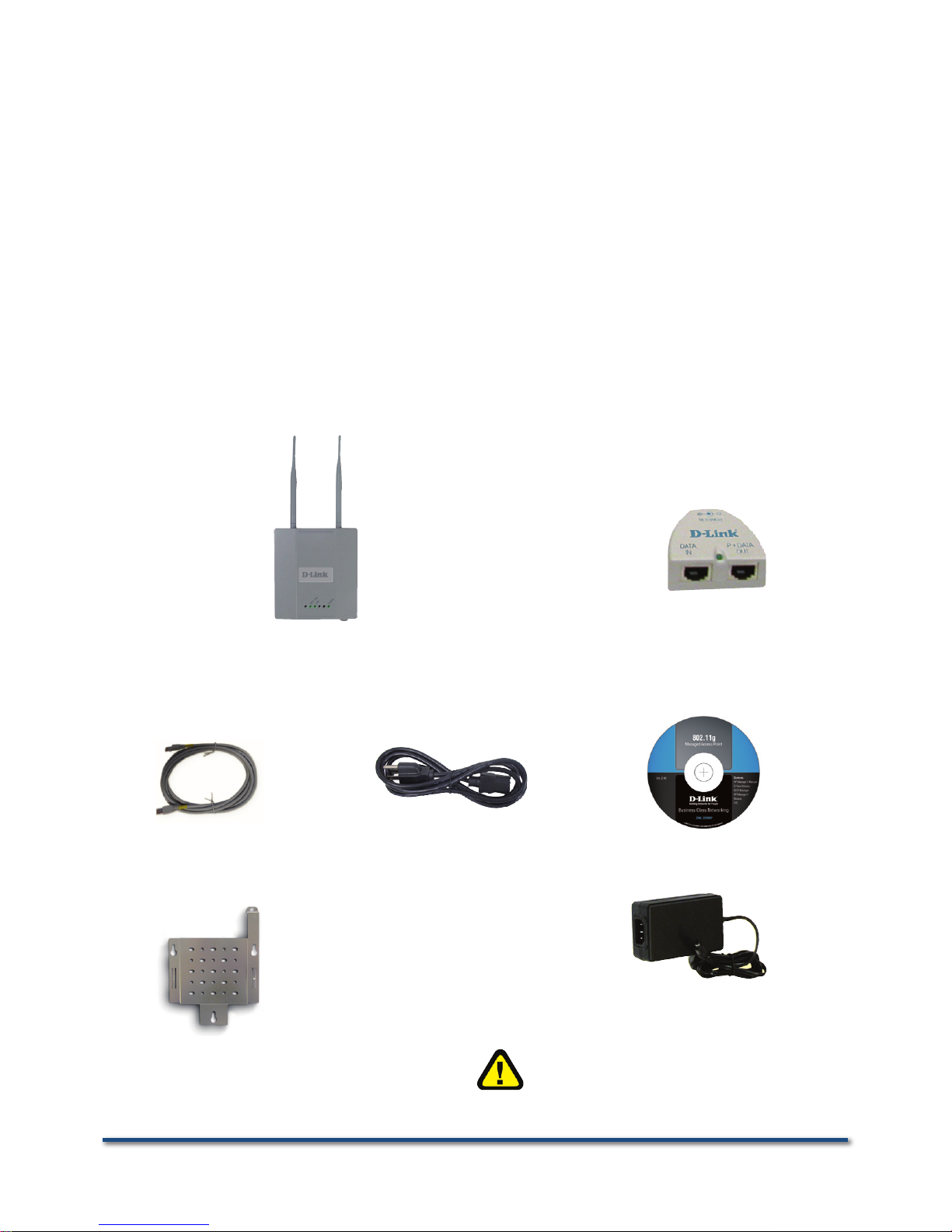

Package Contents

Power over Ethernet

base unit

CD-ROM with Manual

Power Adapter-DC 48V, 0.4A

DWL-3200AP Install Guide

Installing the Hardware

Step 1

Step 2

Connect one end of an Etherne cable (included with your

package) to the LAN port on the DWL-3200AP and the other

end of the Ethernet cable to the port labeled P+DATA OUT on

the PoE base unit.

Connect another Ethernet cable from the DATA IN

port on the PoE base unit to your router/switch or

to a PC.

Attach the power adapter to the connector labeled POWER IN on the PoE base unit.

Attach the power cord to the power adapter and into an electrical outlet.

Step 3

DWL-3200AP Install GuideInstalling the Hardware

DWL-3200AP Install Guide

Step 1: Insert provided wall anchors in the wall where the mounting plate will be at-

tached.

Mounting Plate Assembly

Step 2: Use the provided screws to secure the mounting plate on the wall.

DWL-3200AP Install Guide

Step 3: Attach the remaining screws securely to the back of the

DWL-3200AP.

Step 4: Attach the DWL-3200AP to the mounting plate.

DWL-3200AP Install GuideInstalling the Hardware

DWL-3200AP Install Guide

Step 5: Slide the DWL-3200AP down into the grooves on the mounting plate to secure it

to the plate.

DWL-3200AP Install Guide

When you have completed the steps in this Installation Guide and conﬁgured your

DWL-3200AP for your network, your network should look similar to this:

Your Setup is Complete

Technical Support

D-Link’s website contains the latest user documentation and software updates for D-Link

products.

U.S. and Canadian customers can contact D-Link Technical Support through our website

or by phone.

United States

Telephone

(877) 354-6555

World Wide Web

http://support.dlink.com

Canada

Telephone

(877) 354-6560

World Wide Web

http://support.dlink.com

Version 2.40

August 22, 2007

6DWL3200Q.06G

of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their

respective owners. All references to speed are for comparison purposes only. Maximum wireless signal rate derived from IEEE

Standard 802.11g speciﬁcations. Actual data throughput will vary. Network conditions and environmental factors, including

volume of network trafﬁc, building materials and construction, and network overhead, lower actual data throughput rate.

Environmental factors may adversely affect wireless signal range. Product speciﬁcations, size, and shape are subject to change

without notice, and actual product appearance may differ from that depicted herein. Visit www.dlink.com for more details.
