D-Link DSL-2740U User manual

Quick Installation Guide

DSL-2740U

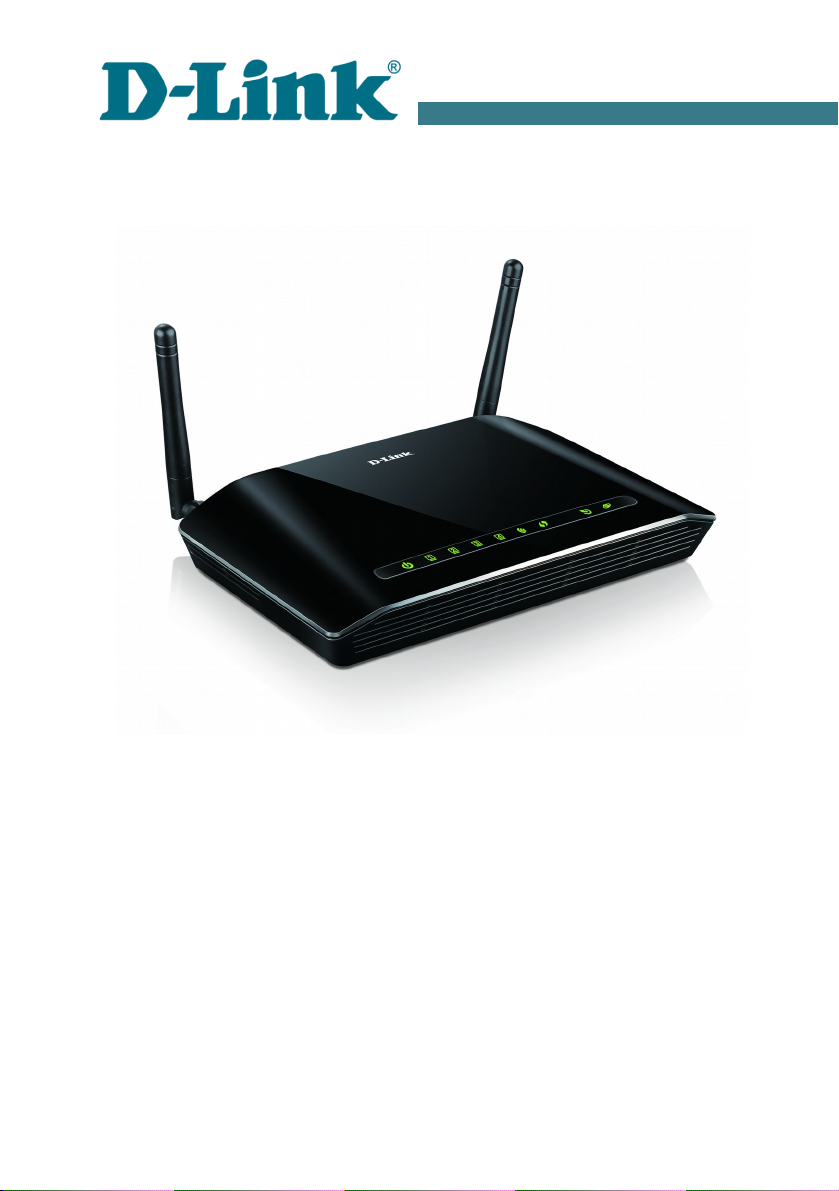

Wireless ADSL2+ Router with Ethernet WAN Support

DSL-2740U Quick Installation Guide

BEFORE YOU BEGI

Delivery Package

•Router DSL-2740U

•Power adapter DC 12V/0.5A

•RJ-11 telepho e cable

•Straight-through Ether et cable

•Splitter

•“Quick Installation Guide” (brochure).

If a y of the items are missi g, please co tact your reseller.

The “User Manual” a d “Quick Installation Guide” docume ts are available

o D-Li k website (see www.dli k.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DSL-2740U Quick Installation Guide

Default Settings

IP address of wireless router 192.168.1.1

Username (login) admin

Password admin

ame of wireless network (SSID) DSL-2740U

etwork key (PSK)

see WPS PIN o the

barcode label o the

bottom pa el of the

device

DSL-2740U Quick Installation Guide

System Requirements and Equipment

•A computer with a y operati g system that supports a web browser.

•A web browser to access the web-based i terface of the router:

◦Apple Safari 8 a d later

◦Google Chrome 48 a d later

◦Microsoft I ter et Explorer 10 a d later

◦Microsoft Edge 20.10240 a d later

◦Mozilla Firefox 44 a d later

◦Opera 35 a d later.

•A NIC (Ether et or Wi-Fi adapter) to co ect to the router.

•A 802.11b, g, or Wi-Fi adapter to create a wireless etwork.

DSL-2740U Quick Installation Guide

CO ECTI G TO PC

PC with Ethernet Adapter

1. Make sure that your PC is powered off.

2. Co ect a Ether et cable betwee a y of four Ether et ports located o

the back pa el of the router a d the Ether et port of your PC.

3. To connect the router to a DSL line: co ect a pho e cable betwee the

DSL port of the router a d the ADSL OUT port of the splitter. Co ect

your pho e to the PHO E port of the splitter. The co ect a other

pho e cable betwee a pho e jack a d the ADSL I port of the splitter.

4. To connect the router to an Ethernet line: ru the I itial Co figuratio

Wizard a d select the router's LAN port that will be used as the WAN

port. The co ect the Ether et cable betwee the selected Ether et port

located o the back pa el of the router a d the Ether et li e.

5. Co ect the power cord to the power co ector port o the back pa el of

the router, the plug the power adapter i to a electrical outlet or power

strip.

6. Tur o the router by pressi g the O /OFF butto o its back pa el.

7. Tur o your PC a d wait u til your operati g system is completely

loaded.

Now you should co figure your PC to obtai a IP address automatically (as

DHCP clie t).

DSL-2740U Quick Installation Guide

Obtaining P Address Automatically

in OS Windows XP

1. Click the Start butto a d proceed to the Control Panel > etwork

and Internet Connections > etwork Connections wi dow.

2. I the etwork Connections wi dow, right-click the releva t Local

Area Connection ico a d select the Properties li e i the me u

displayed.

3. I the Local Area Connection Properties wi dow, o the General

tab, select the Internet Protocol (TCP/IP) li e. Click the Properties

butto .

DSL-2740U Quick Installation Guide

4. Select the Obtain an IP address automatically a d Obtain D S

server address automatically radio butto s. Click the OK butto .

5. Click the ОК butto i the co ectio properties wi dow.

Now your computer is co figured to obtai a IP address automatically.

DSL-2740U Quick Installation Guide

Obtaining P Address Automatically

in OS Windows 7

1. Click the Start butto a d proceed to the Control Panel wi dow.

2. Select the etwork and Sharing Center sectio . (If the Co trol Pa el

has the category view (the Category value is selected from the View by

drop-dow list i the top right cor er of the wi dow), choose the View

network status and tasks li e u der the etwork and Internet

sectio .)

3. I the me u located o the left part of the wi dow, select the Change

adapter settings li e.

4. I the ope ed wi dow, right-click the releva t Local Area Connection

ico a d select the Properties li e i the me u displayed.

5. I the Local Area Connection Properties wi dow, o the

etworking tab, select the Internet Protocol Version 4 (TCP/IPv4)

li e. Click the Properties butto .

DSL-2740U Quick Installation Guide

6. Select the Obtain an IP address automatically a d Obtain D S

server address automatically radio butto s. Click the OK butto .

7. Click the OK butto i the co ectio properties wi dow.

Now your computer is co figured to obtai a IP address automatically.

DSL-2740U Quick Installation Guide

PC with Wi-Fi Adapter

1. To connect the router to a DSL line: co ect a pho e cable betwee the

DSL port of the router a d the ADSL OUT port of the splitter. Co ect

your pho e to the PHO E port of the splitter. The co ect a other

pho e cable betwee a pho e jack a d the ADSL I port of the splitter.

2. To connect the router to an Ethernet line: ru the I itial Co figuratio

Wizard a d select the router's LAN port that will be used as the WAN

port. The co ect the Ether et cable betwee the selected Ether et port

located o the back pa el of the router a d the Ether et li e.

3. Co ect the power cord to the power co ector port o the back pa el of

the router, the plug the power adapter i to a electrical outlet or power

strip.

4. Tur o the router by pressi g the O /OFF butto o its back pa el.

5. Tur o your PC a d wait u til your operati g system is completely

loaded.

6. Tur o your Wi-Fi adapter. As a rule, moder otebooks with built-i

wireless NICs are equipped with a butto or switch that tur s o /off the

wireless adapter (refer to your PC docume ts). If your PC is equipped

with a pluggable wireless NIC, i stall the software provided with your

Wi-Fi adapter.

Now you should co figure your Wi-Fi adapter.
