D-Link DNS-722-4 User manual
Quick Install Guide
DNS-722-4/DNS-726-4
2-Bay Network Video Recorder
2D-Link DNS-722-4/726-4 Quick Install Guide
Package Contents
Hardware Requirements
One or two 3.5” SATA hard disk drives*
Network Requirements
• IP Camera(s) (See the D-Link website for a list of supported cameras.)
• Subscribed broadband internet connection (for remote access)
• Gigabit Ethernet Switch and Internet Router (or Internet Router with a
with an available Gigabit Ethernet LAN port)
Remote PC Minimum Requirements
• Operating System: Windows® 2000/XP/2003/Vista™
• CPU: Pentium 4 – 2.4GHz or greater
• RAM: 512MB
• Web Browser: Internet Explorer v6.0 or later
Optional
UPS with USB interface
*Hard disk drives should be from the same manufacturer. To ensure maximum performance,
identical drives are recommended for RAID 1 congurations.
• D-Link DNS-722-4/ DNS-726-4 Network Video Recorder (NVR)
• CAT5 Ethernet Cable
• Power Adapter
• Cable Holder
• Keys
• Manual and Software on CD
• Quick Install Guide
Note: Using a power supply with a different voltage than the one included with
your product will cause damage and void the warranty for this product.
System Requirements
3D-Link DNS-722-4/726-4 Quick Install Guide
Hardware Overview
Power Button:
Press once to power on the NVR. Press and hold the button until the LED
begins to blink to power down the NVR.
Drive LEDs:
These LEDs will be solid BLUE when the drives are connected but inactive.
The LEDs will blink when the drives are being accessed, formatted or
synchronized. They will illuminate AMBER if a drive has failed.
Activity LED:
The LED will be solid BLUE when there is an Ethernet connection. It will
blink to indicate LAN trafc.
Front View
Network Activity LED
Power Button
Drive LED Drive LED
4D-Link DNS-722-4/726-4 Quick Install Guide
Key Lock:
Use this lock to secure the front panel of the NVR. The panel can be
unlocked with the provided key for initial installation.
Bottom
Key Lock
5D-Link DNS-722-4/726-4 Quick Install Guide
Rear Panel (Connections)
Power Receptacle:
The supplied power adapter connects here.
Gigabit Ethernet Port:
The Gigabit Ethernet port connects the NVR to a network.
Drive Eject Lever:
Use these levers to eject the hard drives. The front panel must be removed
before ejecting the drives. Make sure to reset the ejector before installing
the new hard drive.
Drive Eject Lever Drive Eject Lever
Cable Holder
Power Receptacle
Fan
Security Cable Slot
USB Connector
Reset Button Gigabit Ethernet Port
6D-Link DNS-722-4/726-4 Quick Install Guide
Reset Button:
A pinhole button located beside the Ethernet socket is used to reset the
system or restore the factory default settings. To reset, simply press and
hold the button until the power LED ashes.
USB Connector:
A UPS can be used as an emergency power supply for the NVR. The UPS
can use the USB interface to notify the NVR to perform a proper shutdown
before battery power runs out.
Security Cable Slot:
An external lock can be afxed to this slot to prevent theft.
Fan:
The NVR will adjust the system temperature automatically by turning the
fan on/off.
Cable Holder:
Holds the power cable to ensure a safe operating environment.
Note: After resetting the unit, you will still be able to access the recorded data
on your hard drives.
7D-Link DNS-722-4/726-4 Quick Install Guide

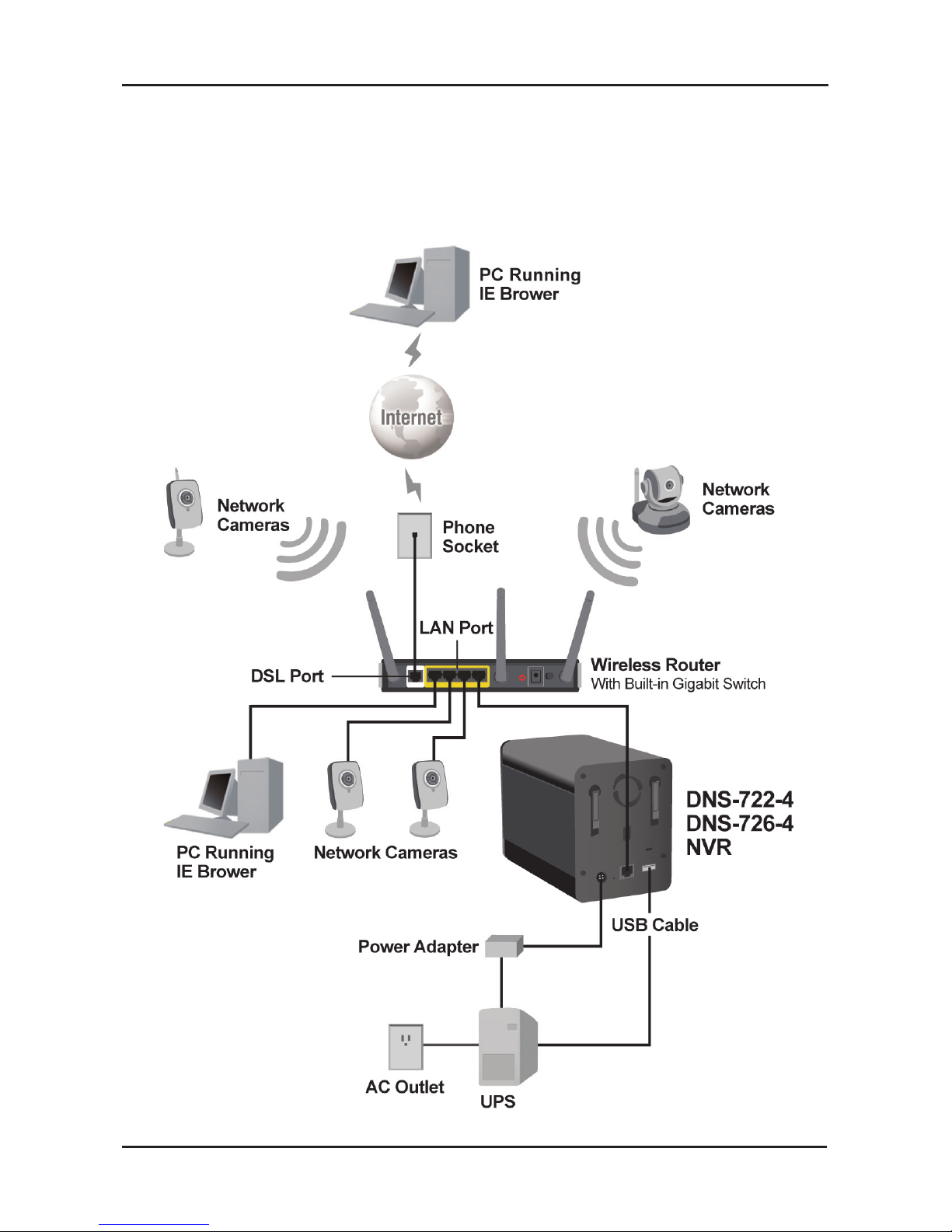

Connecting Your NVR to the Network
Your Network Setup
8D-Link DNS-722-4/726-4 Quick Install Guide
Hardware Installation
2. Slide the faceplate up until it
unlatches from the device.
3. Once the faceplate is unlatched,
pull it off the device, exposing the
drive bays.
Install the Hard Drives:
1. Please install a SATA HDD before
turning on the NVR. Use the key
to unlock the faceplate from the
bottom of the NVR.
9D-Link DNS-722-4/726-4 Quick Install Guide
4. Insert a 3.5” SATA hard drive into
an available drive bay. Make sure
to align the drive connector to the
SATA connector on the bottom edge
inside the drive bay of the NVR.
Gently push the drive in until it
connects. When a drive is inserted
properly, you will feel it “seat” into the
connector. Some hard drives that are
thin or oddly shaped may need to
be guided carefully into position. If a
drive is not properly seated, the LED
will not illuminate after powering on
the device.
Optional: When installing an optional
second HDD, please repeat Step
4. To avoid data incompatibility in
RAID 1 operation, useidentical SATA
drives from the same manufacturer.
Formatted drive capacity for RAID 1
operation is dependant on the HDD
with the lowest capacity.
5. Attach the faceplate to the front of
the device.
10D-Link DNS-722-4/726-4 Quick Install Guide
Note: To turn off the NVR, simply push the power button for 5 seconds. The
power LED will blink and the NVR will turn off after a moment.
Connect the UPS (Optional)
If you have a Universal Power Supply
(UPS) that you would like to use with the
NVR, you may connect it before powering
the unit on.
1. Connect the USB cable from the UPS to
the port on the back of the NVR.
2. Connect the power cable to the UPS.
(Ensure that the UPS is plugged in and
receiving power.)
Connect the Ethernet Cable
Connect an Ethernet cable to the Ethernet
port. Connect one end of the Ethernet
cable to the NVR. Connect the opposite
end of this cable to a Gigabit Ethernet
LAN port of a router or a switch, or directly
to a computer.
6. Lock the faceplate to secure the
HDDs.
