D-Link DSL-100D User manual

DSL-100D for PPPoEDSL-100D for PPPoE

PCI ADSL ModemPCI ADSL Modem

Quick Install GuideQuick Install Guide

DSL-100D for PPPoE

PCI ADSL Modem

Quick Install GuideQuick Install Guide

for Windows 98/SE/ME/2000

DSL100D.-05-08-01

Replace the cover and

POWER ON your computer.

Windows will recognize the

DSL-100D modem and

prompt for drivers.

Click Next

POWER OFF your computer.

Disconnect its power, and remove its case.

(Follow your PC manufacturer's instructions to prevent damage

or injury.)

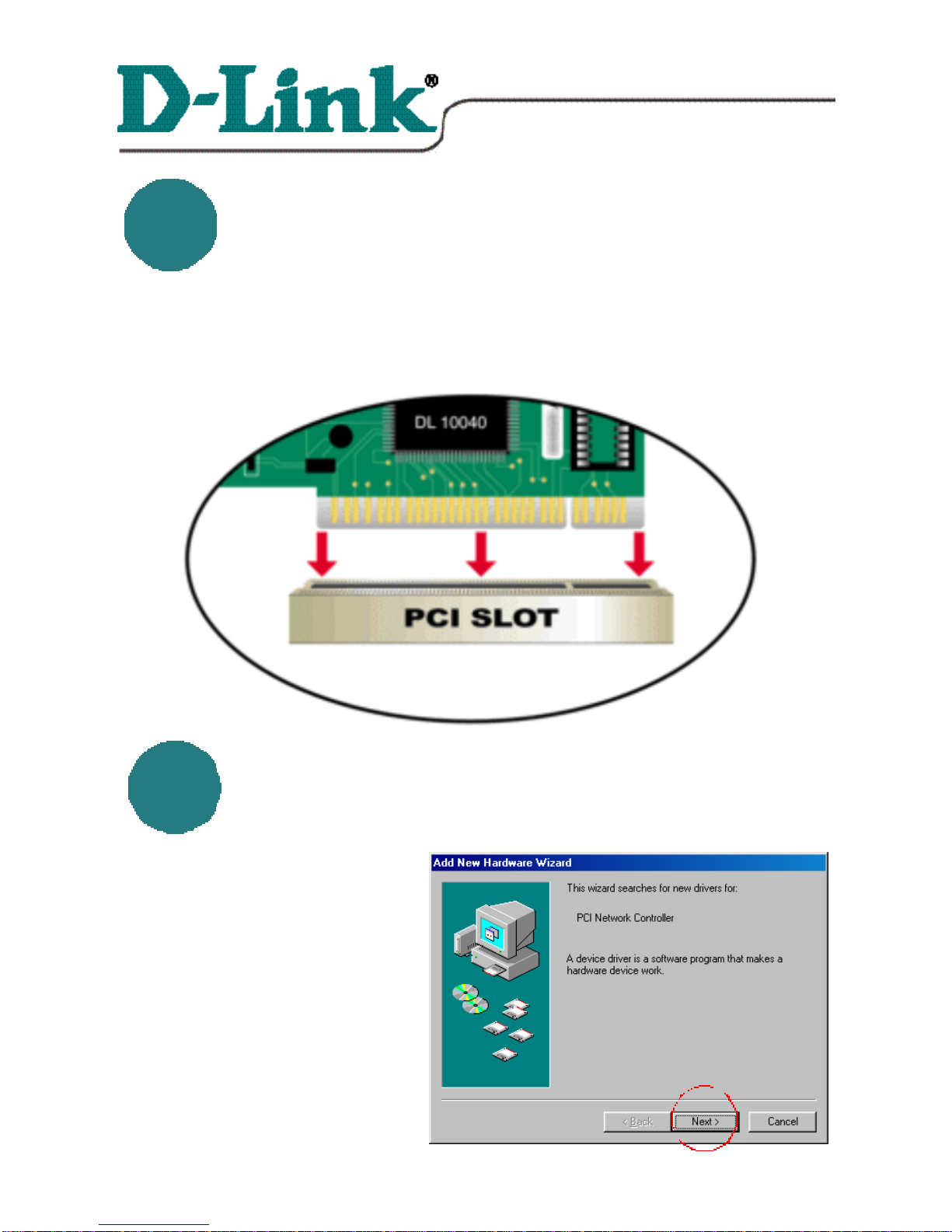

Place the DSL-100D into an available PCI slot.

DSL-100D Hardware InstallationDSL-100D Hardware Installation

DSL-100D Driver InstallationDSL-100D Driver Installation

* Please refer to the Manual on the CD-ROM for more detailed information.

22 DSL-100D Driver InstallationDSL-100D Driver Installation continued

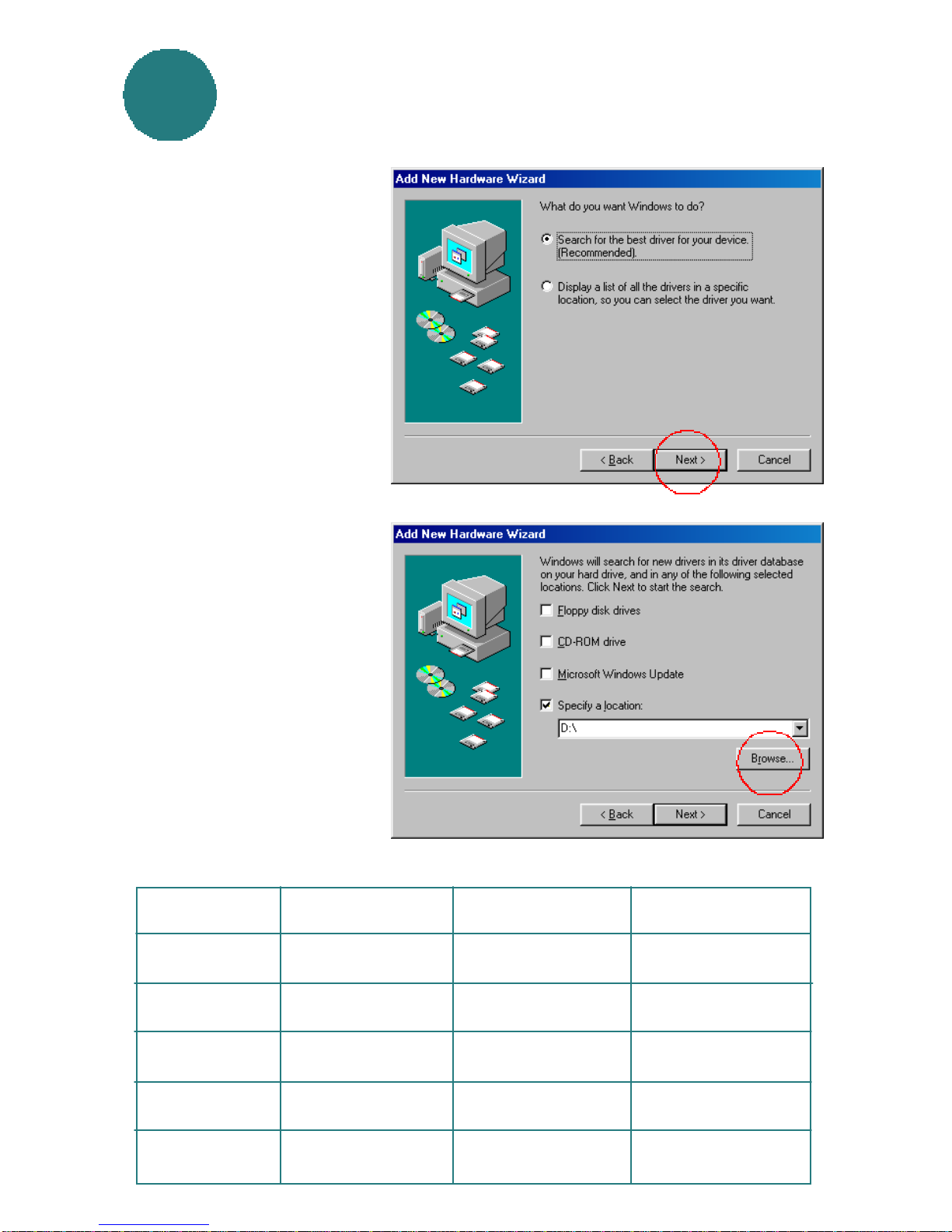

At this screen, make sure

that

“Search for the best

driver for your

device...” is selected.

Click Next

At this window, check

“Specify a location.”

Click Browse

Windows OS RFC 1483(MPoA) RFC 1577(IPoA) RFC 2364(PPPoA)

Windows 95 1483W95 1577W95 2364W95

Windows 98/SE 1483W98 1577W98 2364W98

Windows NT 4.0 1483NT4 1577NT4 2364NT4

Windows 2000 1483W2K 1577W2K 2364WME

Windows ME 1483WME 1577WME 2364WME

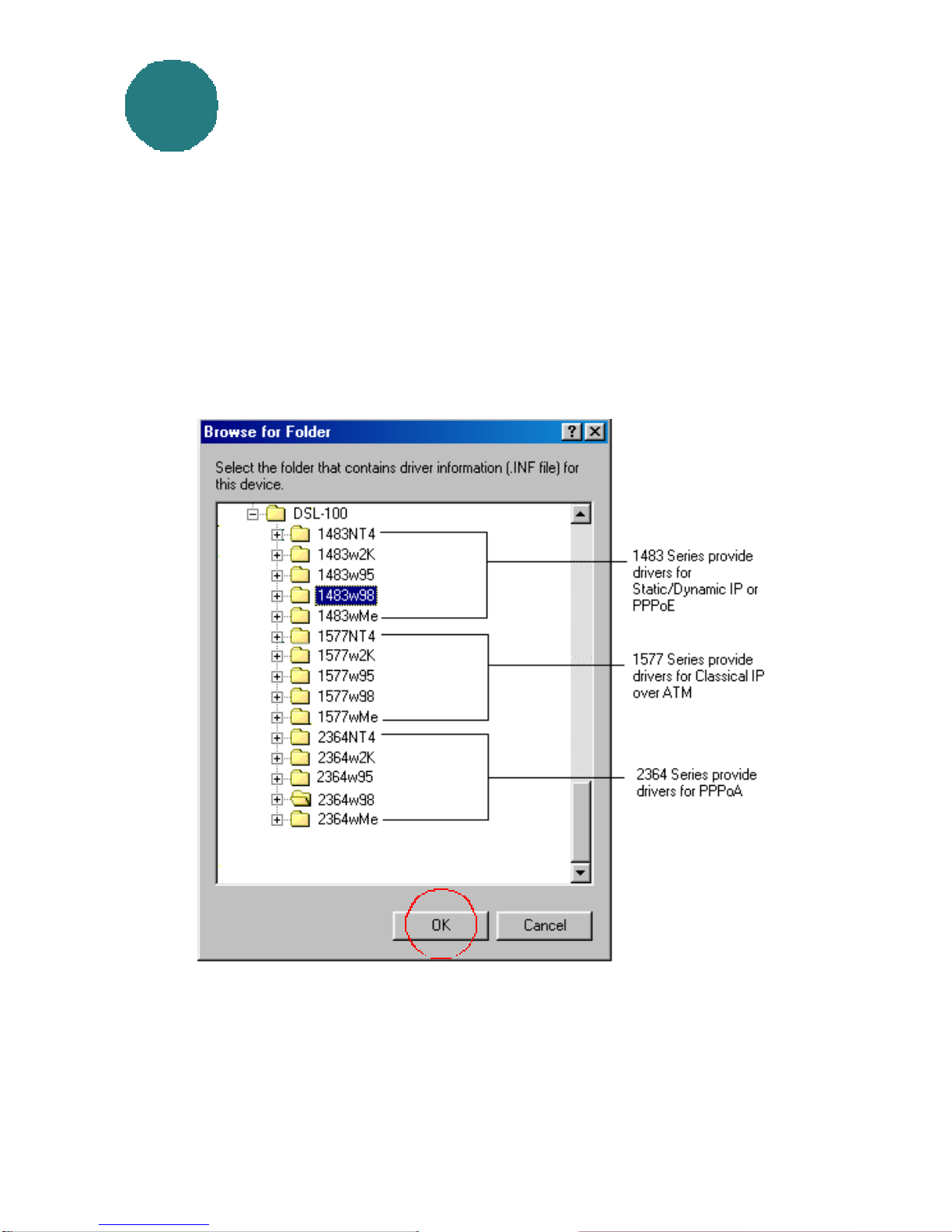

Match your OS with the correct RFC series (as shown in the table on the

previous page) to select the proper drivers for the DSL-100D modem.

Then select the proper folder in the “Browse for Folder” screen, as shown

below. If you are uncertain of the correct RFC series, please contact your

ISP(Internet Service Provider.)

DSL-100D Driver InstallationDSL-100D Driver Installation continued

Using the chart on the previous page, please highlight the folder, as shown

below, that corresponds to both your OS and your RFC series.

Click OK

22 DSL-100D Driver InstallationDSL-100D Driver Installation continued

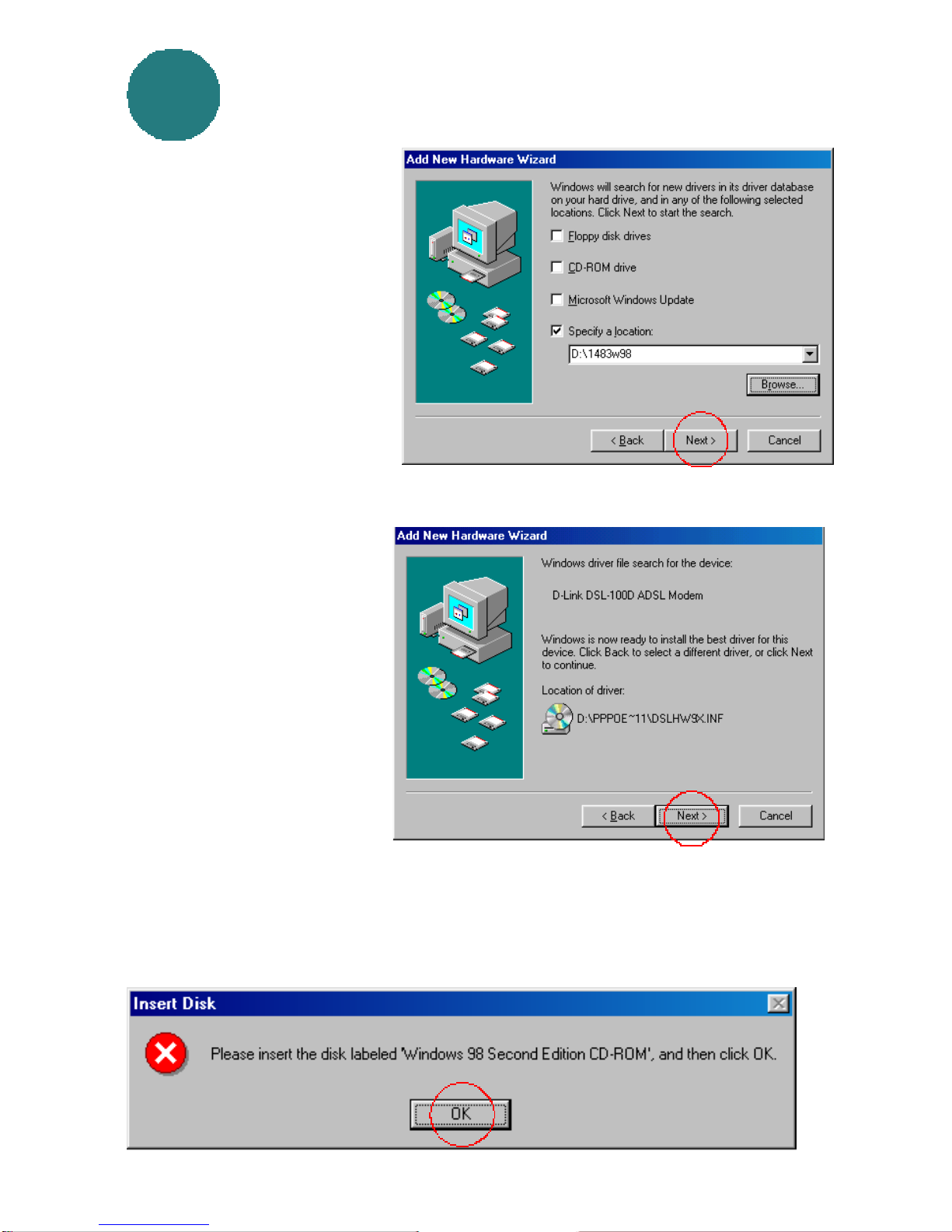

Click Next

The computer will now

install and build the drivers

information database.

If this screen appears, place your Windows Operating System CD into

your CD drive.

Click OK

Click Next

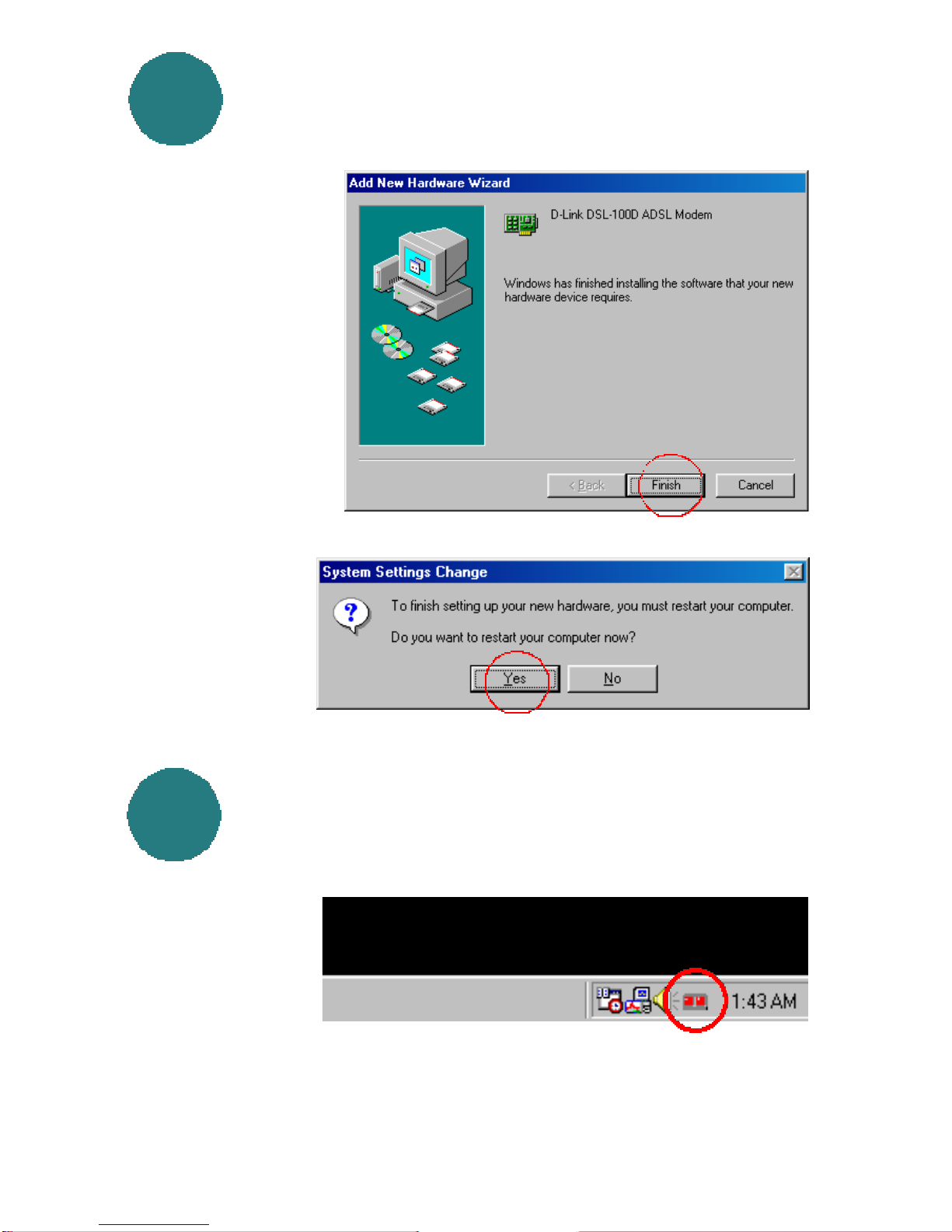

DSL-100D Driver InstallationDSL-100D Driver Installation continued

Click Finish

Click Yes and the

computer will

restart automatical-

ly.

DSL-100D Modem ConfigurationDSL-100D Modem Configuration

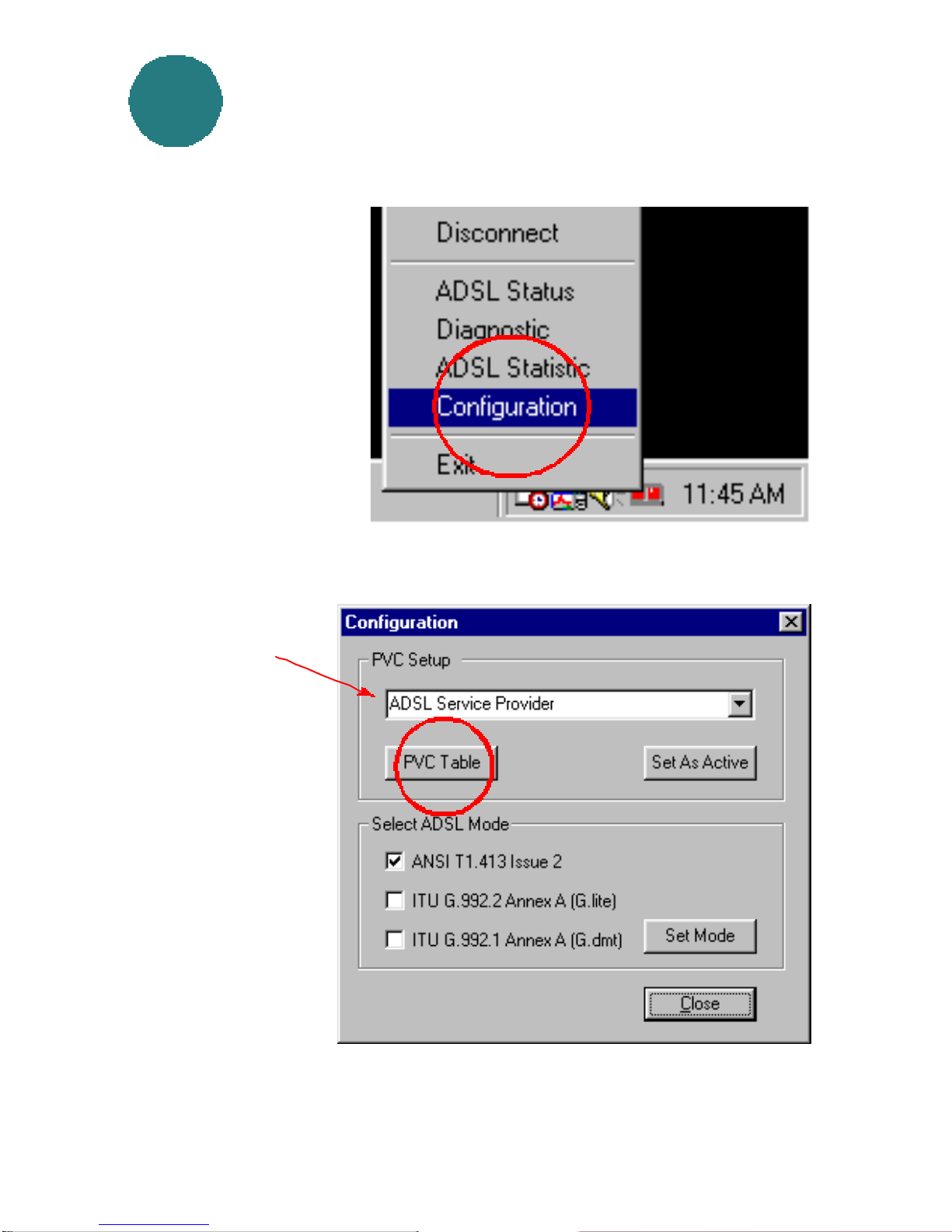

Right click on the

icon, circled here,

located in the lower

right hand corner of

your computer

screen, in the

systray box.

DSL-100D Modem ConfigurationDSL-100D Modem Configuration

continued

Select Configuration

When this screen

appears, make sure

that the ADSL

Service Provider is

selected.

Click on “PVC

Table,” to edit the

connection type.

Double Click on “Make

New Connection.”

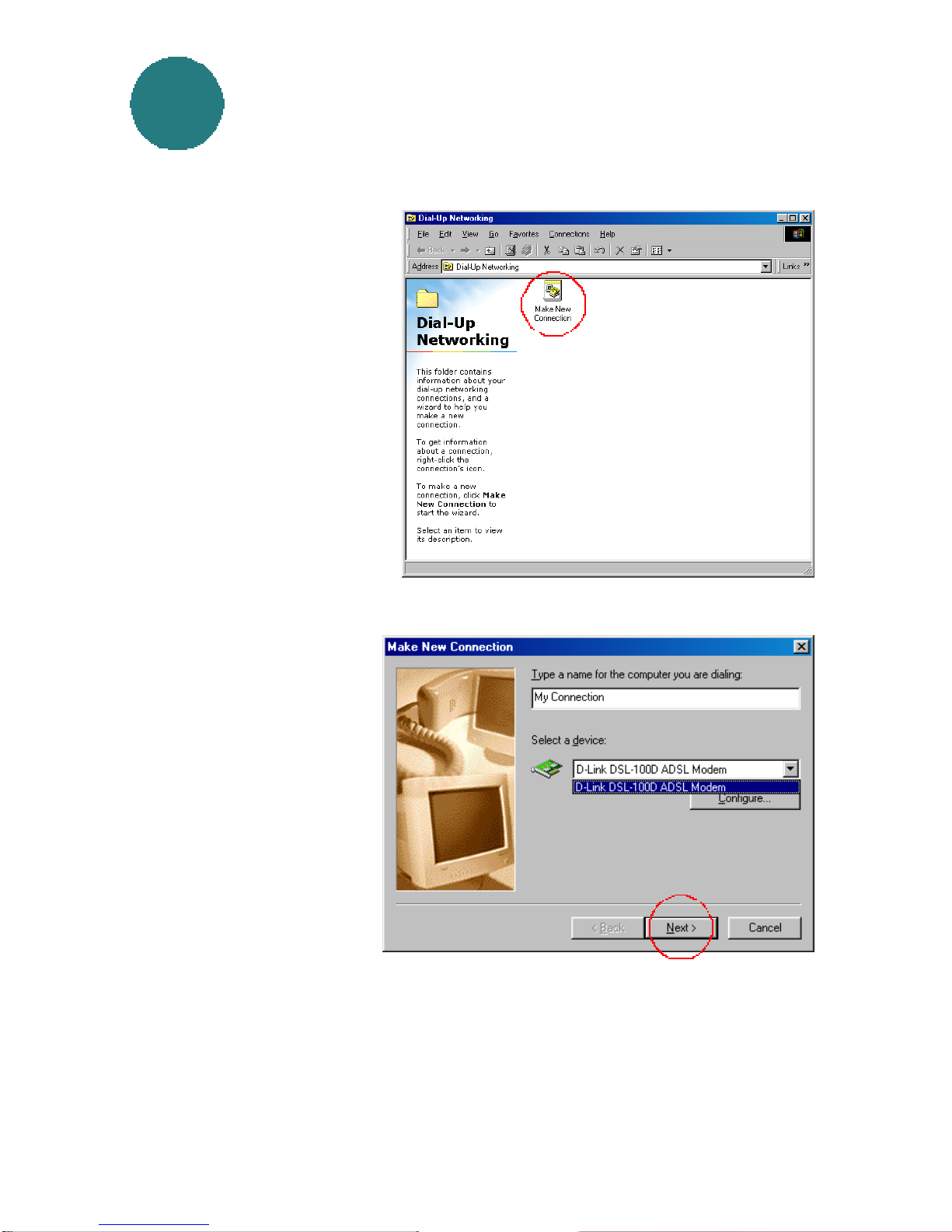

Go to

START>PRO-

GRAMS>COMMUNI-

CATIONS>DIAL-UP

NETWORKING

Manually Setting up Dial-Up NetworksManually Setting up Dial-Up Networks

Click Next

Make sure that “D-Link

DSL-100D ADSL

Modem” is selected in the

“Select a device” menu.

44 Setting up Dial-Up NetworksSetting up Dial-Up Networks

continuedcontinued

Enter “0” in the tele-

phone number section.

Click Next

Click Finish

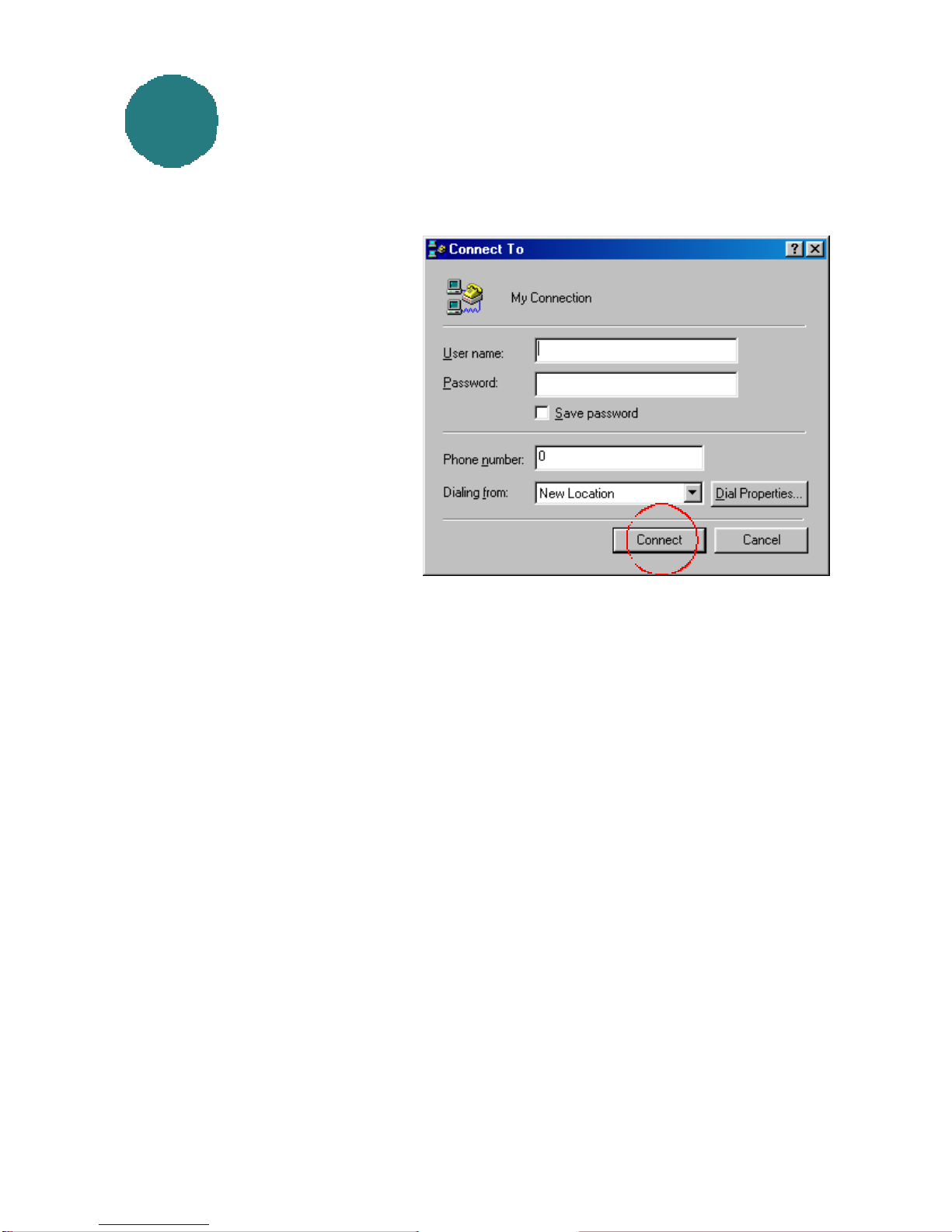

55 Logging OnLogging On

Enter User name and

Password.

Click Connect

You can now access the Internet using your DSL-100D ADSL modem!
