D-Link DHP-W310AV User manual

Quick Installation Guide

DHP-W310AV

PowerLine AV+ Wireless N

Mini Extender

Version 1.10 | April 11, 2013

Краткое руководство по установке

Guía de Instalación Rápida

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

DHP-W310AV

ENGLISH

Package Contents

Wi-Fi Conguration Note Wi-Fi Conguration Card

CAT5 Ethernet Cable

PowerLine AV+ Wireless N Mini Extender

Installation CD-ROM

Hardware Installation

1. Plug the DHP-W310AV Powerline AV+ Wireless N Mini Extender into a wall

outlet in a place you want to extend your network.

ROOM C

DHP-W310AV

iPad

Notebook

DHP-W310AV

ENGLISH

Hardware Installation

2. Connect the included Ethernet cable to your DHP-W310AV and computer.

You may also connect to the DHP-W310AV over Wi-Fi with the information

on the Wireless Conguration Card.

3. Your computer and DHP-W310AV are now connected. Please refer to “First-

time Conguration” on the next page to connect your DHP-W310AV with

your existing Powerline network.

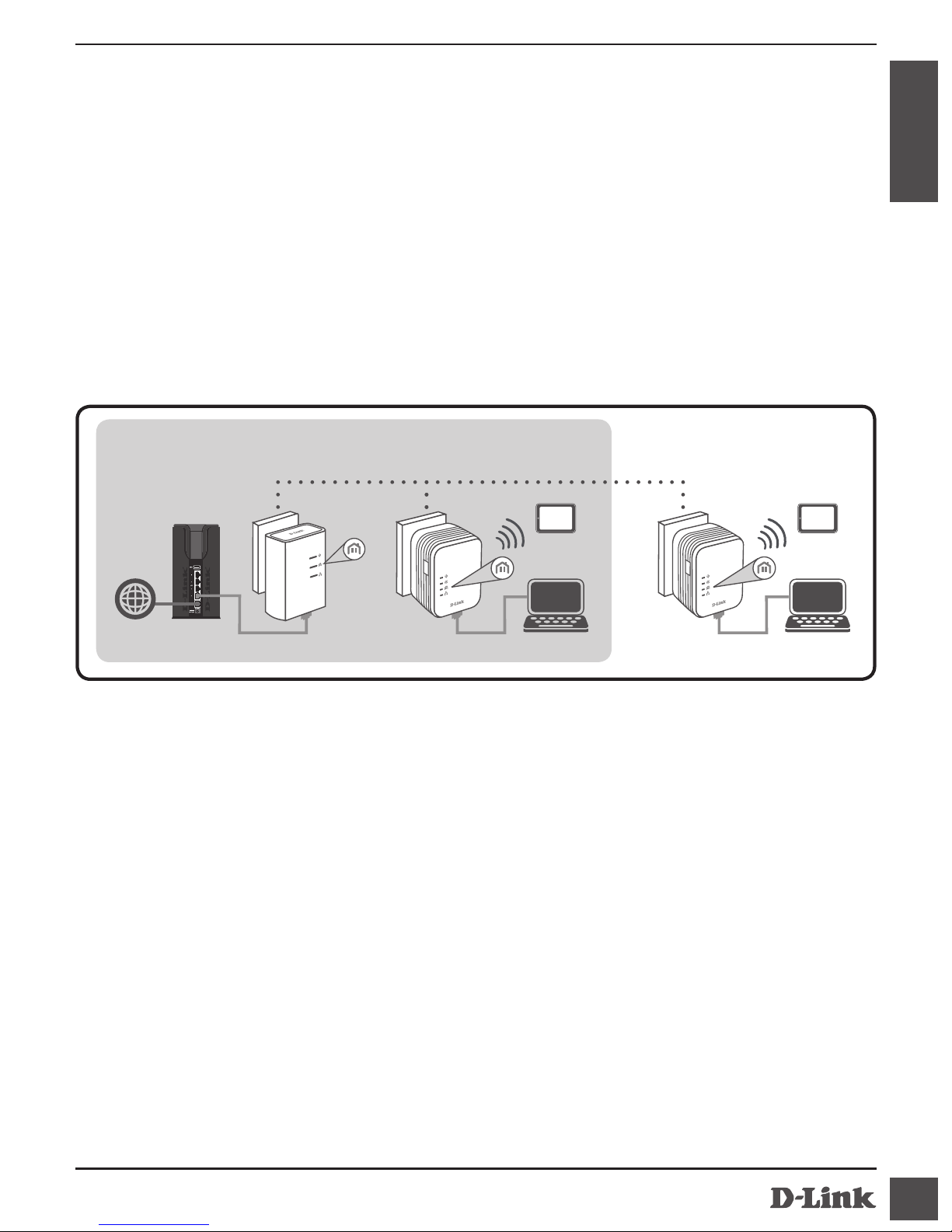

ROOM A ROOM B ROOM C

DHP-W310AV DHP-W310AV

DHP-308AV

RouterInternet Notebook Notebook

iPad iPad

DHP-W310AV

ENGLISH

First-time Conguration

1. Use your web browser to go to:

Windows: http://dlinkapWXYZ or http://dlinkap

Mac OS: http://dlinkapWXYZ.local. or http://dlinkap.local.

Where WXYZ is the last 4 digits of the MAC address. The full address is available

on the included Wireless Conguration Card.

2. Select ADMIN for the User Name and leave the Password blank.

3. From the landing page, start the Setup Wizard for Powerline Connection.

4. When prompted, press the Common Connect Button for 2 seconds on your

existing device to connect it to the DHP-W310AV.

Note: If you have not previously secured your existing Powerline network, you

will need to set up security for all of your existing Powerline devices. Perform

the following steps for each device: press the Common Connect Button on

the DHP-W310AV, then press the Simple Connect Button on your existing

Powerline device within 2 minutes.

5. Follow the wizard’s steps to set up your Powerline network. For more detailed

support, please refer to the User Manual.

DHP-W310AV

ENGLISH

Frequently Asked Questions

Q: Why can’t my DHP-W310AV nd my Powerline network?

• Be sure you are plugging directly into a wall outlet. Plugging into anything

else may slow or stop the connection.

• The electrical wiring must have a direct connection. For example, Powerline

connections may not be available across a street or to dierent units in an

apartment building.

Q: My connection is erratic and sometimes cuts out or is slow, why?

• Try to keep nearby outlets free of other devices, especially chargers and hair

dryers, to minimize electrical interference.

Q: How do I nd my wireless network? Why does it have such a weird

name? Can I change it?

• You can nd the Wi-Fi name (SSID) and password on the Wireless Congura-

tion Card. Common names and passwords like dlink or password are avoided

for security purposes.

• You can change your wireless settings by navigating a web browser to

http://dlinkapWXYZ.local. then Setup then Wireless Settings. WXYZ is an

example, the real address is on your conguration card.

Q: Can I use only the DHP-W310AV to get online?

• At least two Powerline devices work together to create a network. They com-

municate over your electrical wiring, but you still need an Internet connec-

tion from a router and/or modem.

Q: Can I use more than one DHP-W310AV device at a time?

• Yes you can! D-Link oers a host of Powerline devices that include adapters,

extenders, and routers.

DHP-W310AV

ENGLISH

Technical Support

Australia

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: suppor[email protected]

India

Tel: +91-22-27626600

Toll Free: 1800-22-8998

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam

Singapore: www.dlink.com.sg

Thailand: www.dlink.co.th

Indonesia: www.dlink.co.id

Malaysia: www.dlink.com.my

Philippines: www.dlink.com.ph

Vietnam: www.dlink.com.vn

Korea

Tel: +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web: http://d-link.co.kr

E-mail: [email protected]

New Zealand

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: suppor[email protected].nz

South Africa and Sub Sahara

Region

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday

8:30am to 9:00pm South Africa Time

Web: http://www.d-link.co.za

E-mail: suppor[email protected].za

Saudi Arabia (KSA)

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: Support.sa@dlink-me.com

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: info[email protected]om

Tech Support: support.me@dlink-me.com

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, oce C2

Tel: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: info[email protected]om

Tech Support: support.eg@dlink-me.com

Kingdom of Saudi Arabia

Oce # 84,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: info[email protected]om

Tech Support: support.sa@dlink-me.com

DHP-W310AV

ENGLISH

Technical Support

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: taoun@dlink-me.com

Bahrain

Technical Support: +973 1 3332904

Kuwait

Technical Support: +965 22453939

+965 22453949

Türkiye Merkez İrtibat Osi

Ayazağa Maslak yolu

Erdebil Cevahir İş Merkezi No:

5/A Ayazağa / Maslak İstanbul

Tel: +90 212 2895659

Ücretsiz Müşteri Destek Hattı:

0 800 211 00 65

Web:www.dlink.com.tr

Teknik Destek: suppor[email protected]

Pakistan

Islamabad Oce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Oce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Tel: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: info[email protected]om

Tech Support: support.pk@dlink-me.com

Iran

Unit 5, 5th Floor, No. 20, 17th Alley, Bokharest St.,

Argentine Sq.,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: info[email protected]om

Tech Support: support.ir@dlink-me.com

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029 Bureau

N° 312 ET 337

Casablanca, Maroc

Tel: +212 663 72 73 24

Email: support.na@dlink-me.com

Israel

רטנס ןולטמ

20 םימישגמה ׳חר

49348 ת״פ ,ןולטמ תירק

7060 .ד.ת

073-796-2797 :ןופלט

[email protected].il :יללכ לייאמ-יא

suppor[email protected].il :הכימת לייאמ-יא

DHP-W310AV

PYCC

Комплект поставки

Wi-Fi Conguration Note Карта с настройками беспроводной сети

Ethernet-кабель кат.5

PowerLine AV+ адаптер с беспроводной точкой доступа

Установочный CD-диск

Установка устройства

1. Подключите DHP-W310AV к розетке питания в месте, где необходимо

увеличить радиус действия сети.

 

DHP-W310AV

iPad

Ноутбук

DHP-W310AV

PYCC

Установка устройства

2. Подключите входящий в комплект поставки Ethernet-кабель к DHP-

W310AV и к компьютеру. Также можно подключиться к DHP-W310AV

по Wi-Fi, используя информацию, указанную на Карте с настройками

беспроводной сети.

3. Компьютер и DHP-W310AV подключены. Пожалуйста, перейдите к

разделу «Первоначальная настройка» на следующей странице, чтобы

выполнить подключение DHP-W310AV к существующей сети Powerline.

 A    

DHP-W310AV DHP-W310AV

DHP-308AV

МаршрутизаторИнтернет

Ноутбук Ноутбук

iPad iPad

DHP-W310AV

PYCC

Первоначальная настройка

1. Введите в Web-браузере:

Windows: http://dlinkapWXYZ  http://dlinkap

Mac ОS: http://dlinkapWXYZ.local.  http://dlinkap.local.

где WXYZ - последние 4 цифры MAC-адреса. Полный MAC-адрес указан

на входящей в комплект поставки карте с настройками беспроводной

сети.

2. В качестве имени пользователя выберите ADMIN, поле пароля оставьте

пустым.

3. Запустите на исходной странице Мастер установки соединения

Powerline.

4. После появления запроса нажмите кнопку на действующем устройстве

для подключения к DHP-W310AV.

: Если Ваша сеть Powerline не защищена, необходимо

установить защиту на всех Ваших устройствах Powerline. Выполните

следующие шаги для каждого устройства: нажмите кнопку Common

Connect Button на DHP-W310AV, затем в течение 2 минут нажмите

кнопку для подключения на Вашем устройстве Powerline.
