D-Link DPH-100H User manual

Manual

Building Networks for People

D-Link DPH-100H

IPPhone

Version 1.10

Contents

PackageContents ................................................................................3

Introduction............................................................................................4

Features andBenefits ...........................................................................5

GettingStarted......................................................................................6

Configuration ......................................................................................10

AdditionalFeatures.............................................................................25

TechnicalSpecifications ......................................................................28

Waranty...............................................................................................30

Registration ........................................................................................33

ContactingTechnicalSupport ..............................................................34

Package Contents

Operation Requirements:



Contents of Package:

D-Link DPH-100H IP Phone

Handset

Handset cord

Power adapter (12V DC at 1A)

If any of the above items are missing, please contact your reseller.



Local power outlet

Internet connection (via ISP)



Introduction

The DPH-100H is a fully featured IP telephone that allows both business and

residential customers to benefit from IP telephony services. It reduces costs

by providing access to local and long-distance voice and data services over a

single network connection.

Thiseasy-to-useIP phoneplugsdirectlyinto alocalareanetwork (LAN)through

a standard Ethernet jack. The IP phone utilizes 10/100-Mbps Ethernet for

connectivityandsupports afullrangeof telephonenetworkfeatures.In addition,

it provides access to a host of features for business applications, including

hold, mute, and speakerphone operation. The DPH-100H is equipped with a

LCD panel for easy configuration and use.

Features and Benefits

Designed for versatility and performance, the DPH-100H IP Phone provides

the following features:



Connects directly to 10/100-Mbps Fast Ethernet ports



Compliant with H.323v2

Operates as an Internet IP phone

DHCP (Dynamic Host Configuration Protocol) client or static IP

addressing

Large LCD panel (2 lines x 16 characters)

Configurable through LCD-driven menu prompts

Speakerphone function with automatic echo cancellation

Supports QoS to ensure voice quality

DTMFtonegeneration

Remote software upgrade and support



Visual status indicators

Communication interface:

PC jack: RJ-45 for Ethernet (MDI-X)

LANjack:RJ-45forEthernet(MDI-II)

User-adjustable volume control

Communications protocols: TCIP/IP, UDP



Voice compression: complies with 6.711 -law,G.711A-law, G.723 and

G.729 µ



Getting Started

Identifying External Components

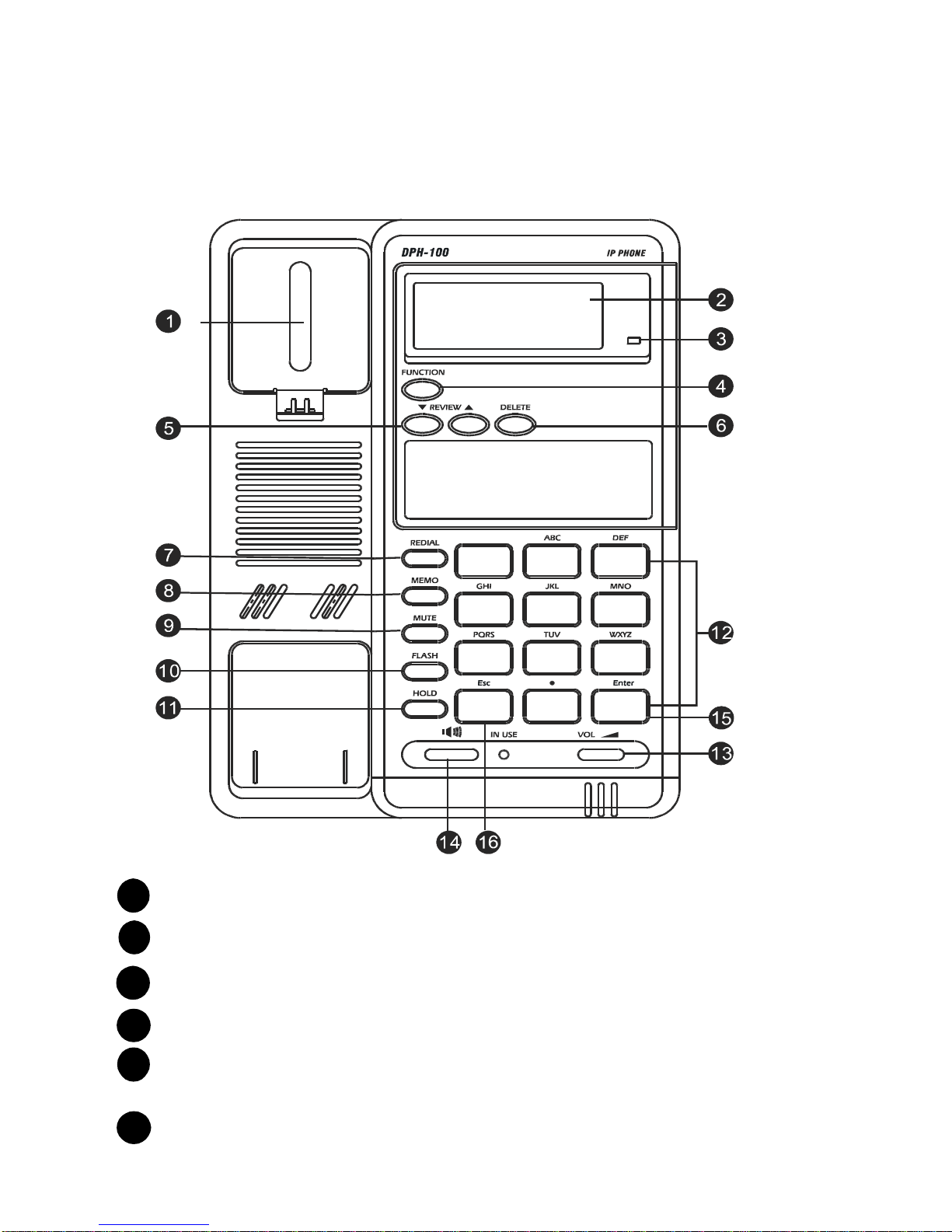

Parts of the Phone

HOOK SWITCH: Switches the phone off/on hook.

LCD Screen: Presents on-line messages and configuration settings.

HOLD INDICATOR: On when the HOLD function is in effect.

FUNCTION: Selects configuration menus.

REVIEW UP/DOWN: Movefowardand backwardthroughmenuitems;

move the cursor up and down.

DELETE: Deletes the character to the left of the cursor.

Getting Started

Identifying External Components

REDIAL: Dials the last number you called.

MEMO: Shifts the state to editing the name and number of the Speed

Dial and Address Book, or stores the configuration in non-volatile

memory.

MUTE: Turns sound pickup off and on.

FLASH: Transfers the call or clears the input string.

HOLD: Turns sound transmission and reception off and on.

DIAL PAD: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, *, #.

RING/SPEAKER VOLUME CONTROL: Increases or decreases ring

volume or speakerphone volume during a call.

SPEAKER PHONE: Enables/disables the speakerphone function.

ENTER: Confirms input or goes to the displayed submenu.

ESC: Cancels input or returns to the previous menu.

Handset Controls

HANDSET VOLUME CONTROL: Adjusts listening volume on a call

to Low, Medium, or High (default setting is Medium).

Getting Started

Identifying External Components

Connectors

HANDSET CONNECTOR: Connector for the handset cord.

POWER: Power adapter receptor

LAN ETHERNET: 10/100BASE-TX LAN to ITSP Internet connection.

PC ETHERNET: 10/100BASE-TX connection to PC.

Installation

The following are steps to install and power on your DPH-100H IP Phone:



Plug the RJ-45 Ethernet cable into the LAN jack.

Plug the power adapter into the appropriate wall outlet.

Plug the power adapter plug into the power jack (DC 12V/1A).

Getting Started

Installation

Installation Connections

LED Indicators

ON: 100 Mpbs

OFF: 10 Mbps

Condition Color

LAN Port LED

PC Port LED

Link OK

Green

Activity (Link in Use)

Speed 10/100 Mbps

Speed 10/100 Mbps ON: 100 Mpbs

OFF: 10 Mbps

ON: 100 Mbps

OFF: 10 Mbps

Timing

Steady

Flashing

Configuration

Configuring the Phone Using a Web Browser

Setting up the Connection

In order to use a Web browser to configure the DPH-100H IP phone, you must

make sure the phone has a valid Ethernet connection to a PC or LAN via its

Ethernet port. We recommend using a recent version of any widely used

browser. The browser must have JavaScript enabled.

ThephonecomeswithadefaultIPaddress of 10.1.1.100.Youmustmakesure

the computer is in the same IP domain as the IP phone. You can do this by

changing the IP address of the computer as shown below.

Oncethisisdone, run anyrecent,JavaScript-enabledbrowseron the computer

and point it to the default IP address of the phone as shown below:
