Section 1 - Product Overview

Product Overview

D-Link DHP-W310AV

Powerline AV+

Wireless N Mini Extender

CAT5 Ethernet Cable

Package Contents

4D-Link DHP-W310AV User Manual

Section 1 - Product Overview

Network Requirements • IEEE 802.11n or 802.11g wireless clients

• 10/100 Ethernet clients

Web-based Conguration

Utility Requirements

Computer with the following:

• Windows®, Macintosh®, or Linux-based operating system

• An installed Ethernet adapter

Browser Requirements:

• Internet Explorer 6.0 or higher

• Firefox 3.0 or higher

• Safari 3.0 or higher

• Chrome 2.0 or higher

Windows® Users: Make sure you have the latest version of Java installed.

Visit www.java.com to download the latest version.

CD Installation Wizard

Requirements

Computer with the following:

• Windows® XP with Service Pack 2 / Vista® / Windows 7

• An installed Ethernet adapter

• CD-ROM drive

System Requirements

5D-Link DHP-W310AV User Manual

Section 1 - Product Overview

Introduction

The DHP-W310AV Powerline AV+ Wireless N Mini Extender is ideal for home or ofce wireless networks that require

very fast Internet connections. The DHP-W310AV provides wireless transmission speeds of up to 300 Mbps, enabling

you to enjoy fast Internet access, stream High Denition content, and enjoy lag-free gaming and VoIP. The DHP-

W310AV also supports hybrid networking, which utilizes wireless, Powerline, and wired Ethernet to create a reliable

and efcient network for your entire home or ofce.

6D-Link DHP-W310AV User Manual

Section 1 - Product Overview

• Compatible with 802.11b and 802.11g Devices - The DHP-W310AV is still fully compatible with the

802.11b/g standards, so it can connect with existing 802.11b/g PCI, USB, and Cardbus adapters.

• Compliant with the HomePlug AV - Provides physical layer data rate of over 200Mbps over existing

in-home power lines.

• WPS PBC - (Wi-Fi Protected Setup Push Button Conguration) Push Button Conguration is a button

that can be pressed to add the device to an existing network or to create a new network. A virtual button

can be used on the utility while a physical button is placed on the side of the device.

This easy setup method allows you to form a secured wireless link between the DHP-W310AV and another

WPS enabled device. A PC is no longer needed to log into the Web-based interface.

• User-friendly Setup Wizard - Through its easy-to-use Web-based user you can congure your access

point to your specic settings within minutes.

Features

7D-Link DHP-W310AV User Manual

Section 1 - Product Overview

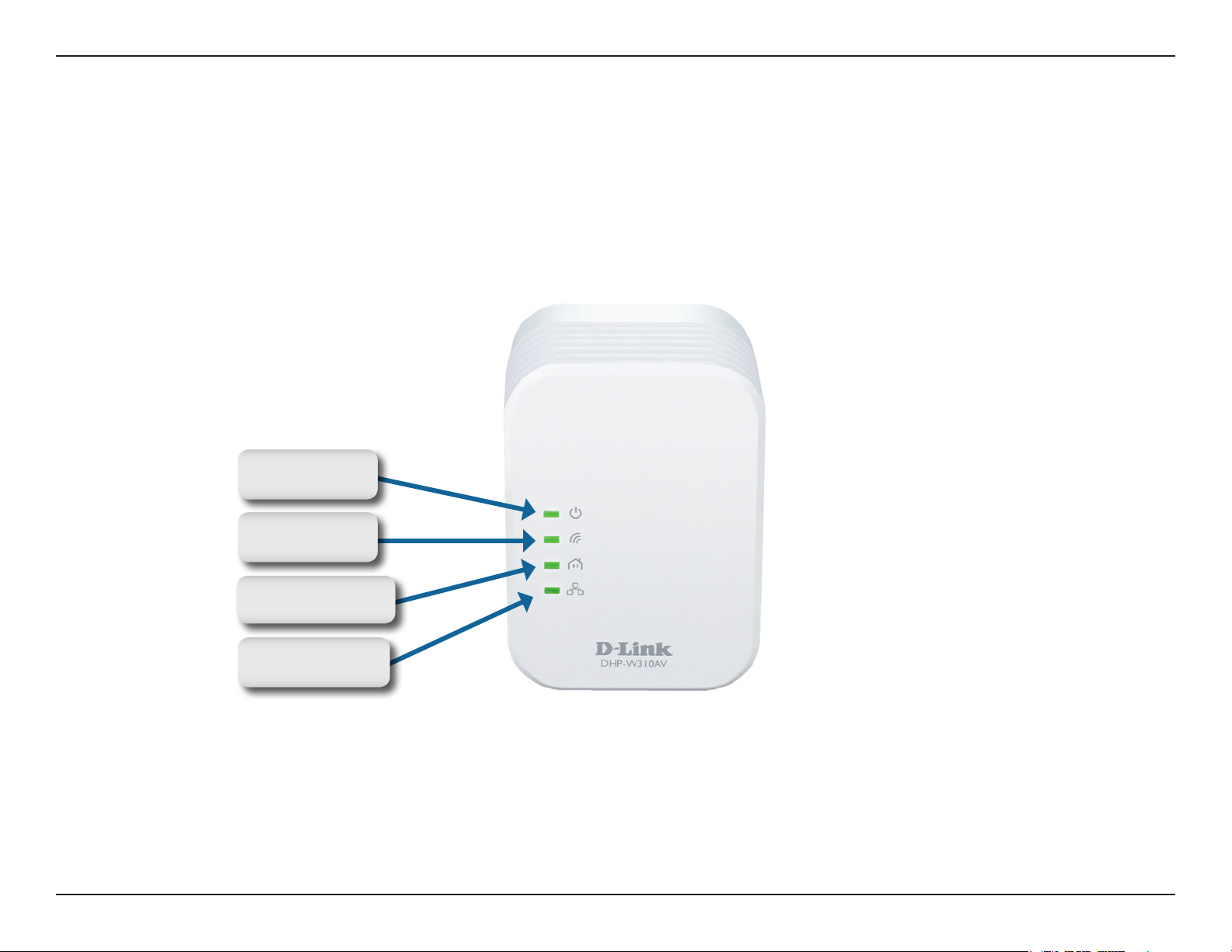

Hardware Overview

Connections

Powerline LED

Wi-Fi LED

Power LED

Ethernet LED

8D-Link DHP-W310AV User Manual

Section 1 - Product Overview

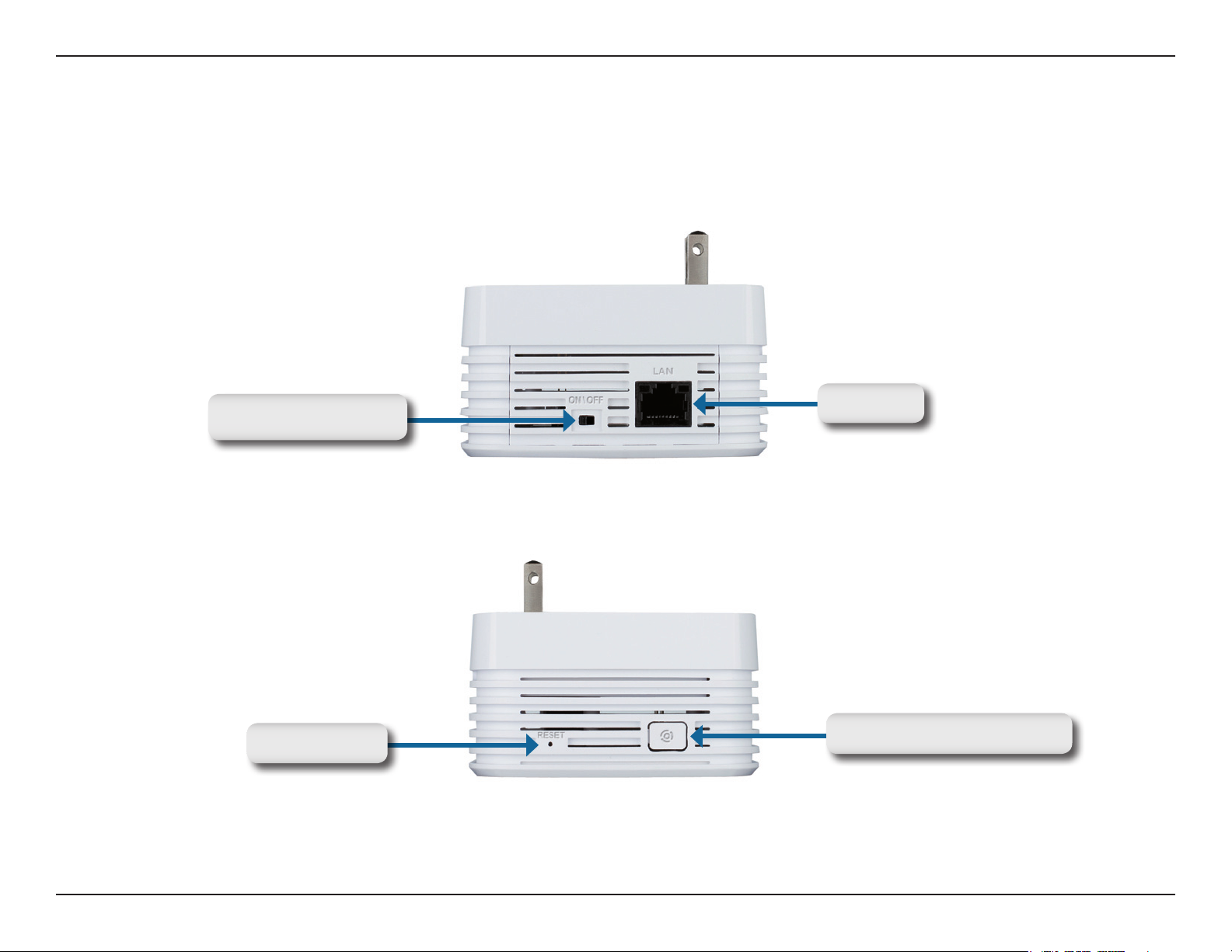

Hardware Overview

Side

Reset Button

Power On/Off Switch

Common Connect Button

LAN Port

9D-Link DHP-W310AV User Manual

Section 2 - Installation

Installation

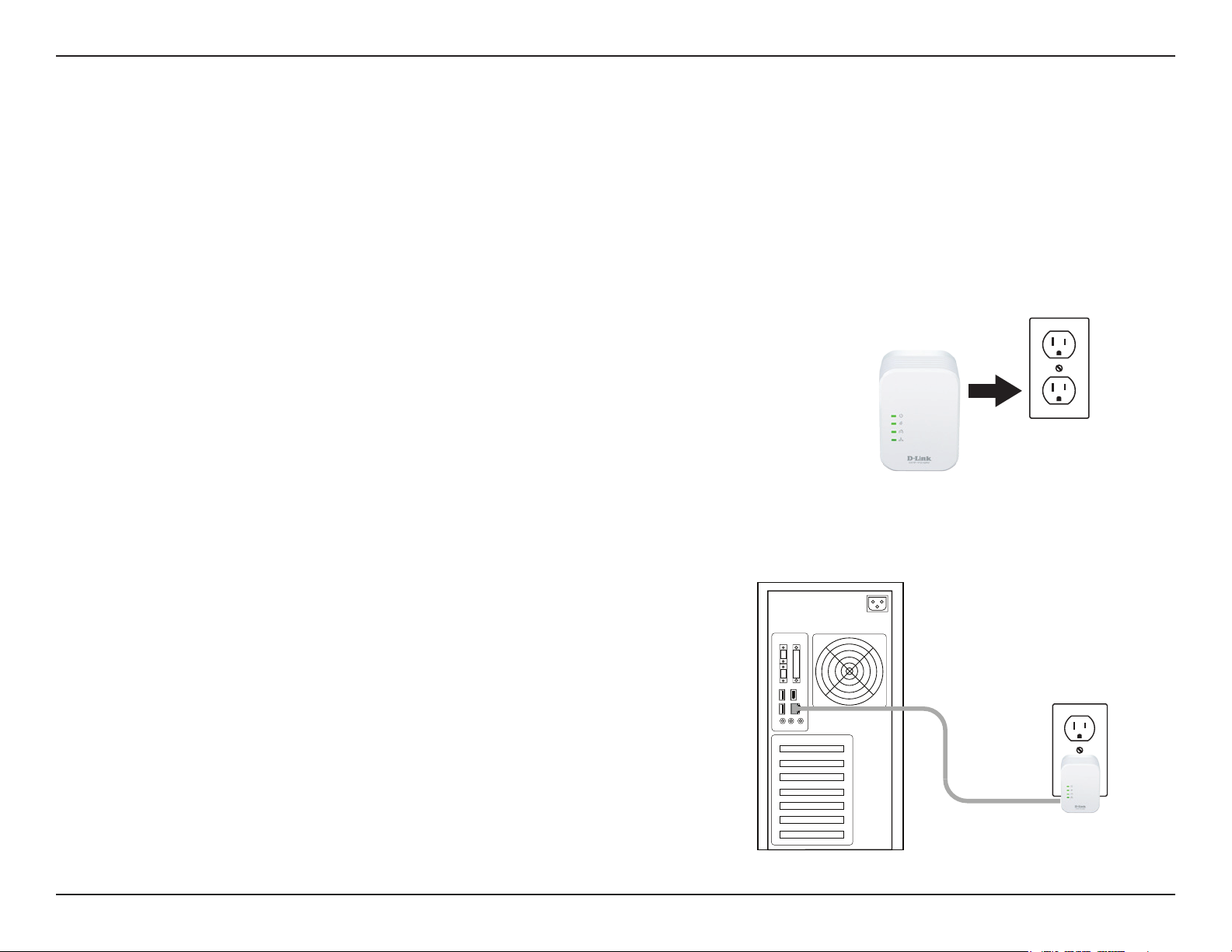

Connecting the Powerline AV Adapter

It is easy to connect the DHP-W310AV simply by performing the

following instructions:

1. Plug the DHP-W310AV into the wall outlet/socket.

2. Connect one end of the supplied CAT5 Ethernet cable to the

Ethernet port on the DHP-W310AV and the other end of the cable

to the device’s Ethernet interface. You can also enable wireless

to connect to the WiFi devices using WPS.

DHP-W310AV

Computer

10D-Link DHP-W310AV User Manual

Appendix C - Technical Specications

Technical Specications

DEVICE INTERFACES

• One RJ-45 Ethernet LAN ports

• 802.11n WLAN (AP wireless connection to computers)

• Common connect button

• Power ON/OFF switch

• Reset button

• Over 200Mbps Powerline

WIRELESS LAN

• 802.11b/g standards

• 802.11n standard

• Wireless speed: up to 300 Mbps (802.11n)

• 64/128-bit WEP data encryption

• WPA/WPA2 (Wi-Fi Protected Access)

ADVANCED FEATURES

• IPv6 support

• Multicast over Unicast Technology

OPERATION MODES

• AP 2.4 GHz

DIMENSIONS

• 90 x 65 x 50 mm

WEIGHT

• 500 grams (1.10 lb)

MAXIMUM POWER CONSUMPTION

• AC: 10 watts

• DC: 6 watts

TEMPERATURE

• Operating: 0 to 40 °C (32 to 104 °F)

• Storage: -20 to 65 °C (-4 to 149 °F)

HUMIDITY

• Operating: 10% to 90% non-condensing

• Storage: 5% to 95% non-condensing

CERTIFICATIONS

• CE/LVD

• FCC

• IC

• UL

• CB

• Homeplug AV

• IPv6

1. Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental

factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions

will adversely affect wireless signal range.

2. Range varies depending on country’s regulation.
