Cypress Semiconductor CY7C1018CV33 User manual

128K x 8 Static RAM

CY7C1018CV33

Cypress Semiconductor Corporation • 198ChampionCourt • San Jose,CA 95134-1709 • 408-943-2600

Document #: 38-05131 Rev. *D Revised August 3, 2006

Features

• Pin- and function-compatible with CY7C1018BV33

•Highspeed

—tAA = 10 ns

• CMOS for optimum speed/power

• Center power/ground pinout

• Data retention at 2.0V

• Automatic power-down when deselected

• Easy memory expansion with CE and OE options

• Available in Pb-free and non Pb-free 300-mil-wide

32-pin SOJ

Functional Description[1]

The CY7C1018CV33 is a high-performance CMOS static

RAM organized as 131,072 words by 8 bits. Easy memory

expansion is provided by an active LOW Chip Enable (CE), an

active LOW Output Enable (OE), and tri-state drivers. This

device has an automatic power-down feature that significantly

reduces power consumption when deselected.

Writing to the device is accomplished by taking Chip Enable

(CE) and Write Enable (WE) inputs LOW. Data on the eight I/O

pins (I/O0through I/O7) is then written into the location

specified on the address pins (A0through A16).

Reading from the device is accomplished by taking Chip

Enable (CE) and Output Enable (OE) LOW while forcing Write

Enable (WE) HIGH. Under these conditions, the contents of

the memory location specified by the address pins will appear

on the I/O pins.

The eight input/output pins (I/O0through I/O7) are placed in a

high-impedance state when the device is deselected (CE

HIGH), the outputs are disabled (OE HIGH), or during a write

operation (CE LOW, and WE LOW).

The CY7C1018CV33 is available in a standard 300-mil-wide

SOJ.

Note:

1. For guidelines on SRAMsystem designs, please referto the ‘System DesignGuidelines’ Cypress application note, availableon the internet at www.cypress.com.

Logic Block Diagram Pin Configurations

COLUMN

DECODER

ROW DECODER

SENSE AMPS

INPUT BUFFER

POWER

DOWN

I/O

ARRAY

I/O

A11

A13

A12

A10

A16

14 19

Top View

SOJ

15 17

I/O0

I/O1

VCC

A13

A16

A15

I/O7

I/O6

A12

A11

A10

I/O2

I/O4

VCC

I/O5

I/O3

VSS

A14

VSS

128K x 8

[+] Feedback

CY7C1018CV33

Document #: 38-05131 Rev. *D Page 2 of 7

Maximum Ratings

(Above which the useful life may be impaired. For user guide-

lines, not tested.)

Storage Temperature .................................–65°C to +150°C

Ambient Temperature with

Power Applied.............................................–55°C to +125°C

Supply Voltage on VCC Relative to GND[2] ...–0.5V to + 4.6V

DC Voltage Applied to Outputs[6]

in High-Z State.......................................–0.5V to VCC + 0.5V

DC Input Voltage[2].................................–0.5V to VCC + 0.5V

Current into Outputs (LOW).........................................20 mA

Static Discharge Voltage...........................................> 2001V

(per MIL-STD-883, Method 3015)

Latch-up Current.....................................................> 200 mA

Selection Guide

-10 -12 -15 Unit

Maximum Access Time 10 12 15 ns

Maximum Operating Current Comm’l 90 85 80 mA

Ind’l 85 mA

Maximum Standby Current 5 5 5 mA

Operating Range

Range Ambient Temperature VCC

Commercial 0°C to +70°C 3.3V ±10%

Industrial –40°C to +85°C 3.3V ±10%

Electrical Characteristics Over the Operating Range

Parameter Description Test Conditions

–10 –12 –15

UnitMin. Max. Min. Max. Min. Max.

VOH Output HIGH Voltage VCC = Min.,

IOH = – 4.0 mA 2.4 2.4 2.4 V

VOL Output LOW Voltage VCC = Min.,

IOL = 8.0 mA 0.4 0.4 0.4 V

VIH Input HIGH Voltage 2.0 VCC + 0.3 2.0 VCC + 0.3 2.0 VCC + 0.3 V

VIL Input LOW Voltage[2] –0.3 0.8 –0.3 0.8 –0.3 0.8 V

IIX Input Leakage

Current GND < VI< VCC –1 +1 –1 +1 –1 +1 µA

IOZ Output Leakage

Current GND < VI <VCC,

Output Disabled –1 +1 –1 +1 –1 +1 µA

ICC VCC Operating

Supply Current VCC = Max.,

IOUT = 0 mA,

f = fMAX = 1/tRC

Comm’l 90 85 80 mA

Ind’l 85 mA

ISB1 Automatic CE

Power-down Current

—TTL Inputs

Max. VCC, CE > VIH

VIN > VIH or

VIN < VIL, f = fMAX

Comm’l 15 15 15 mA

Ind’l 15 mA

ISB2 Automatic CE

Power-down Current

—CMOS Inputs

Max. VCC,

CE > VCC – 0.3V,

VIN > VCC – 0.3V,

or VIN < 0.3V, f = 0

Comm’l 5 5 5 mA

Ind’l 5 mA

Capacitance[3]

Parameter Description Test Conditions Max. Unit

CIN Input Capacitance TA= 25°C, f = 1 MHz,

VCC = 3.3V 8pF

COUT Output Capacitance 8 pF

Notes:

2. VIL (min.) = –2.0V for pulse durations of less than 20 ns.

3. Tested initially and after any design or process changes that may affect these parameters.

[+] Feedback

CY7C1018CV33

Document #: 38-05131 Rev. *D Page 3 of 7

AC Test Loads and Waveforms[4]

Switching CharacteristicsOver the Operating Range[5]

Parameter Description

-10 -12 -15

UnitMin. Max. Min. Max. Min. Max.

Read Cycle

tRC Read Cycle Time 10 12 15 ns

tAA Address to Data Valid 10 12 15 ns

tOHA Data Hold from Address Change 3 3 3ns

tACE CE LOW to Data Valid 10 12 15 ns

tDOE OE LOW to Data Valid 5 6 7ns

tLZOE OE LOW to Low-Z 0 0 0ns

tHZOE OE HIGH to High-Z[6, 7] 567ns

tLZCE CE LOW to Low-Z[7] 333ns

tHZCE CE HIGH to High-Z[6, 7] 567ns

tPU[8] CE LOW to Power-up 0 0 0ns

tPD[8] CE HIGH to Power-down 10 12 15 ns

Write Cycle[9, 10]

tWC Write Cycle Time 10 12 15 ns

tSCE CE LOW to Write End 8 9 10 ns

tAW Address Set-up to Write End 8 9 10 ns

tHA Address Hold from Write End 0 0 0ns

tSA Address Set-up to Write Start 0 0 0ns

tPWE WE Pulse Width 7 8 10 ns

tSD Data Set-up to Write End 5 6 8ns

tHD Data Hold from Write End 0 0 0ns

tLZWE WE HIGH to Low-Z[7] 333ns

tHZWE WE LOW to High-Z[6, 7] 567ns

Notes:

4. AC characteristics (except High-Z) for all speeds are tested using the Thèvenin load shown in Figure (a). High-Z characteristics are tested for allspeeds using

the test load shown in Figure (c).

5. Test conditions assume signal transition time of 3 ns or less, timing reference levels of 1.5V, input pulse levels of 0 to 3.0V.

6. tHZOE, tHZCE, and tHZWE are specified with a load capacitance of 5 pF as in (d) of AC Test Loads. Transition is measured ± 500 mV from steady-state voltage.

7. At any given temperature and voltage condition, tHZCE is less than tLZCE, tHZOE is less than tLZOE, and tHZWE is less than tLZWE for any given device.

8. This parameter is guaranteed by design and is not tested.

9. The internal Write time of the memory is defined by the overlap of CELOWandWE LOW. CEandWE mustbeLOW toinitiateaWrite,andthe transitionofany ofthese

signals can terminate the Write. The input data set-up and hold timing should be referenced to the leading edge of the signal thatterminates the Write.

10. The minimum Write cycle time for Write Cycle No. 3 (WE controlled, OE LOW) is the sum of tHZWE and tSD.

90%

10%

3.0V

GND

90%

10%

ALL INPUT PULSES

3.3V

OUTPUT

30 pF

(a)

R 317Ω

351Ω

Rise Time: 1 V/ns Fall Time: 1 V/ns

(b)

3.3V

OUTPUT

5 pF

(c)

R 317Ω

351Ω

High-Z characteristics:

[+] Feedback

CY7C1018CV33

Document #: 38-05131 Rev. *D Page 4 of 7

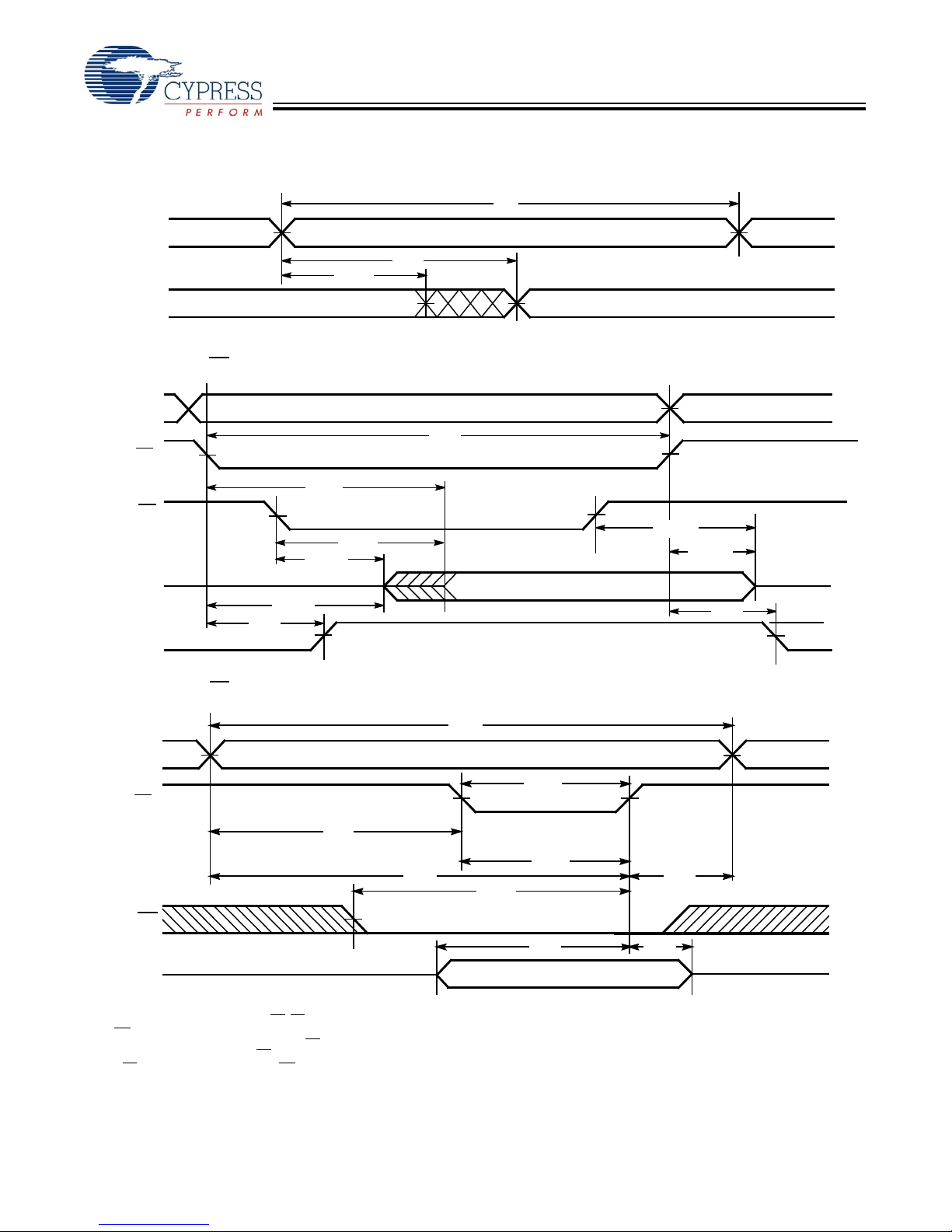

Switching Waveforms

Read Cycle No. 1[11, 12]

Read Cycle No. 2 (OE Controlled)[12, 13]

Write Cycle No. 1 (CE Controlled)[14, 15]

Notes:

11. Device is continuously selected. OE, CE = VIL.

12. WE is HIGH for Read cycle.

13. Address valid prior to or coincident with CEtransition LOW.

14. Data I/O is high impedance if OE= VIH.

15. If CEgoes HIGH simultaneously with WE going HIGH, the output remains in a high-impedance state.

PREVIOUS DATA VALID DATA VALID

tRC

tAA

tOHA

ADDRESS

DATA OUT

50%

DATA VALID

tRC

tACE

tDOE

tLZOE

tLZCE

tPU

HIGH IMPEDANCE

tHZOE tHZCE

tPD

HIGH

ICC

ISB

IMPEDANCE

ADDRESS

DATA OUT

VCC

SUPPLY

CURRENT

tWC

DATA VALID

tAW

tSA

tPWE

tHA

tHD

tSD

tSCE

ADDRESS

DATA I/O

[+] Feedback

CY7C1018CV33

Document #: 38-05131 Rev. *D Page 5 of 7

Write Cycle No. 2 (WE Controlled, OE HIGH During Write)[14, 15]

Write Cycle No. 3 (WE Controlled, OE LOW)[10, 15]

Switching Waveforms (continued)

tHD

tSD

tPWE

tSA

tHA

tAW

tSCE

tWC

tHZOE

DATAIN VALID

ADDRESS

DATA I/O

NOTE 16

DATA VALID

tHD

tSD

tLZWE

tPWE

tSA

tHA

tAW

tSCE

tWC

tHZWE

ADDRESS

DATA I/O NOTE 16

Truth Table

CE OE WE I/O0–I/O7Mode Power

H X X High-Z Power-down Standby (ISB)

L L H Data Out Read Active (ICC)

L X L Data In Write Active (ICC)

L H H High-Z Selected, Outputs Disabled Active (ICC)

Note:

16. During this period the I/Os are in the output state and input signals should not be applied.

[+] Feedback

CY7C1018CV33

Document #: 38-05131 Rev. *D Page 6 of 7

of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be

used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its

products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress

products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Package Diagram

All product and company names mentioned in this document are the trademarks of their respective holders.

Ordering Information

Speed

(ns) Ordering Code Package

Diagram Package Type Operating

Range

10 CY7C1018CV33-10VC 51-85041 32-lead 300-mil Molded SOJ Commercial

12 CY7C1018CV33-12VC 32-lead 300-mil Molded SOJ Commercial

CY7C1018CV33-12VXI 32-lead 300-mil Molded SOJ (Pb-Free) Industrial

15 CY7C1018CV33-15VXC 32-lead 300-mil Molded SOJ (Pb-Free) Commercial

32-lead (300-mil) Molded SOJ (51-85041)

51-85041-*A

[+] Feedback

CY7C1018CV33

Document #: 38-05131 Rev. *D Page 7 of 7

Document History Page

Document Title: CY7C1018CV33 128K x 8 Static RAM

Document Number: 38-05131

REV. ECN NO. Issue

Date Orig. of

Change Description of Change

** 109426 12/14/01 HGK New Data Sheet

*A 113432 04/10/02 NSL AC Test Loads split based on speed

*B 115046 05/30/02 HGK ICC and ISB1 modified

*C 116476 09/16/02 CEA Add applications foot note on data sheet, pg 1

*D 493543 See ECN NXR Added Industrial Operating Range

Removed 8 ns speed bin from Product offering

Changed the description of IIX from Input Load Current to

Input Leakage Current in DC Electrical Characteristics table

Removed IOS parameter from DC Electrical Characteristics table

Updated the Ordering Information Table

[+] Feedback

Table of contents

Other Cypress Semiconductor Computer Hardware manuals

Cypress Semiconductor

Cypress Semiconductor Astoria DMB-T Guide

Cypress Semiconductor

Cypress Semiconductor CY62148EV30 User manual

Cypress Semiconductor

Cypress Semiconductor CY14B256K User manual

Cypress Semiconductor

Cypress Semiconductor STK11C68-5 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1381DV25 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1422BV18 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1007BN User manual

Cypress Semiconductor

Cypress Semiconductor PSoC 3 FirstTouch User manual

Cypress Semiconductor

Cypress Semiconductor ISR 37000 CPLD User manual

Cypress Semiconductor

Cypress Semiconductor STK11C88 User manual

Cypress Semiconductor

Cypress Semiconductor CY8C23533 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1166V18 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1310BV18 User manual

Cypress Semiconductor

Cypress Semiconductor Perform CY7C1370D User manual

Cypress Semiconductor

Cypress Semiconductor NoBL CY7C1370DV25 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1146V18 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1020BN User manual

Cypress Semiconductor

Cypress Semiconductor Perform CY14B102L User manual

Cypress Semiconductor

Cypress Semiconductor MoBL CY62157E User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1339G User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1392BV18 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C1516JV18 User manual

Cypress Semiconductor

Cypress Semiconductor CY7C2563KV18 Quick guide

Cypress Semiconductor

Cypress Semiconductor CY62157CV30 User manual

Popular Computer Hardware manuals by other brands

EMC2

EMC2 VNX Series Hardware Information Guide

Panasonic

Panasonic DV0PM20105 Operation manual

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 user manual

Gigabyte

Gigabyte B660M DS3H AX DDR4 user manual

Raidon

Raidon iT2300 Quick installation guide

National Instruments

National Instruments PXI-8186 user manual

Hauppauge

Hauppauge WinTV-HVR-2250 Quick installation guide

Kontron

Kontron CP6002 user guide

Manhattan

Manhattan 702843 user manual

Aphex

Aphex 230 instruction manual

AMD

AMD Phenom II Product data sheet

Intel

Intel NUC 12 Pro user guide

dbx

dbx Zone Pro 1260 user manual

Galaxy

Galaxy GHDX2-2430S-24F4D Installation and hardware reference manual

Intel

Intel AXXRMFBU4 Quick installation user's guide

Kontron

Kontron DIMM-PC/MD product manual

ST X-NUCLEO-SAFEA1B How to use

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 installation manual
