CYP CH-1529TXV User manual

CH-1529TXV

4K UHD+HDMI over HDBaseT Transmitter

with HDR & OAR

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

• Please completely disconnect the power when the unit is not in

use to avoid wasting electricity.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

RDV1 02/05/18 Preliminary release

VS1 07/05/18 Final technical review

VS2 21/05/18 Updated section 6.1 & 6.5

CONTENTS

1. Introduction......................................................1

2. Applications.....................................................1

3. Package Contents ..........................................2

4. System Requirements......................................2

5. Features............................................................2

6. Operation Controls and Functions.................3

6.1 Front Panel ................................................. 3

6.2 Rear Panel.................................................. 5

6.3 Right Panel................................................. 6

6.4 IR Cable Pinouts ........................................ 6

6.5 RS-232 Control ........................................... 7

6.6 RS-232 Commands.................................... 7

6.7 EDID Management ................................... 9

6.7.1 EDID Dipswitch Settings ................... 9

6.7.2 EDID Management Tool................ 11

7. Connection Diagram ....................................15

8. Specications ................................................16

8.1 Technical Specications ........................ 16

8.2 Video Specications............................... 17

8.3 Audio Specications............................... 18

8.4 Cable Specications .............................. 19

8.5 HDBaseT Features.................................... 19

9. Acronyms .......................................................20

1. INTRODUCTION

This HDMI over single Cat.5e/6/7 Transmitter is a great solution for

extending HD audio and video as well as Ethernet and control via

a single run of Cat.5e/6/7 cable over distances of up to 100 meters.

Multiple data and control interfaces are provided, including IR, RS-232

and LAN connections. This Transmitter complies with the advanced

HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy

HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.Gbps

bandwidth limitation, 4K UHD HDMI video sources, up to and including

4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able

to be processed and extended by the use of AVLC (Adaptive Visually

Lossless Compression) when connected to a compatible AVLC

Receiver.

Beyond video, data, and control this unit also contains useful audio

features. The Optical Audio Return (OAR) feature supports transmitting

optical audio back from a compatible Receiver for local playback.

Rounding out the feature set is robust EDID management as well as

automatic HDBaseT clock stretching and TMDS re-clocking support.

This Transmitter (PSE) can provide 48V PoH (Power over HDBaseT)

to a compatible Receiver (PD), allowing for greater exibility within

different installation scenarios.

2. APPLICATIONS

• 48V PoH from Transmitter (PSE) to Receiver (PD)

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• 1×HDMI over HDBaseT Transmitter with HDR & OAR

• 1×48V/0.83A DC Power Adapter

• 1×Power Cord

• 1×3.5mm to IR Blaster Cable

• 1×3-pin Terminal Block to 9-pin D-sub Adapter Cable

• 1×Rackmount Ears (Set of 2)

• 1×Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI source equipment such as a media player, video game

console or set-top box.

• A compatible HDBaseT Receiver with AVLC and 48V PoH support is

recommended.

• The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly

recommended.

• The use of “Premium High Speed HDMI” cables is highly

recommended.

5. FEATURES

• HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible

• HDCP 2.2 and HDCP 1.x compliant

• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input

and output

• Supports Deep Color input and output up to 12-bit

• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output

• Supports CEC bypass

• Simultaneous transmission of uncompressed video, audio and data

over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p60 and

70m/230ft at 4K

• HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet,

48V PoH, and Control (bidirectional IR/RS-232 pass-through)

• Integrated AVLC (Adaptive Visually Lossless Compression) activates

when the bandwidth requirements of the source are beyond

10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) to

be sent to a compatible Receiver with no loss of visual quality

• The AVLC feature allows manual selection between High Quality

Mode (Full bandwidth) and Standard Mode (Lower bandwidth,

useful for longer cable runs with 4K sources)

• Supports the Optical Audio Return (OAR) function to transmit optical

audio from a compatible Receiver to the Transmitter

• Comprehensive EDID management support including 6 pre-dened

EDIDs, 9 user EDIDs and an EDID bypass mode

• PC-based EDID management software allows for the uploading of

customized user EDIDs via USB

• Supports HDMI DDC bus clock stretching for improved compatibility

with certain Blu-ray players

• Performs TMDS re-clocking and signal re-generation for improved

signal integrity

• Ultra-thin wall plate design (16mm thickness) for convenient

installation

• Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD)

(compatible Receivers only)

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

CONSOLE/

BYPASS

RS-232SERVICE

OPT. OUT

DC 48V

POWER

LINK

IR BLASTER 2IR EXTENDER 1

1 2 3 4 5 6 7 8

1DC 48V: Plug the 48V DC power adapter into this port and connect

it to an AC wall outlet for power.

Note: Please be sure to follow the polarity labels on the unit and

the adapter’s wires.

2POWER LED: This LED will illuminate to indicate the unit is on and

receiving power.

LINK LED: This LED will illuminate solidly when a live connection with

a compatible Receiver is active.

3OPT. OUT: Connect to powered speakers or an amplier for digital

audio output using an appropriate optical cable. Audio is sourced

from the Optical Audio Return input on a connected compatible

Receiver.

4IR EXTENDER 1: Connect to an IR Extender to extend the IR control

range of devices connected to the other end of the HDBaseT

connection. Ensure that the remote being used is within direct line-

of-sight of the IR Extender.

5IR BLASTER 2: Connect to the provided IR Blaster to transmit IR

signals from the other end of the HDBaseT connection to devices

within direct line-of-sight of the IR Blaster.

6SERVICE: This USB port is reserved for rmware update and user

EDID upload use.

7RS-232: Connect to a PC, laptop or other serial control device with

a 3-pin adapter cable for the extension of RS-232 signals to the

Receiver in "Bypass" mode, or for control this unit when in "Console"

mode.

Note: Depending on the controlled device connected to the

Receiver side, the Tx and Rx pins might need to be reversed.

8CONSOLE/BYPASS: This switch controls the operational mode of the

RS-232 port. When set to “Bypass”, RS-232 signals will be passed to

the connected Receiver. When set to “Console” the RS-232 port

may be used to send commands directly to the Transmitter.

Note: RS-232 bypass requires both the Transmitter and Receiver to

be set to “Bypass” mode.

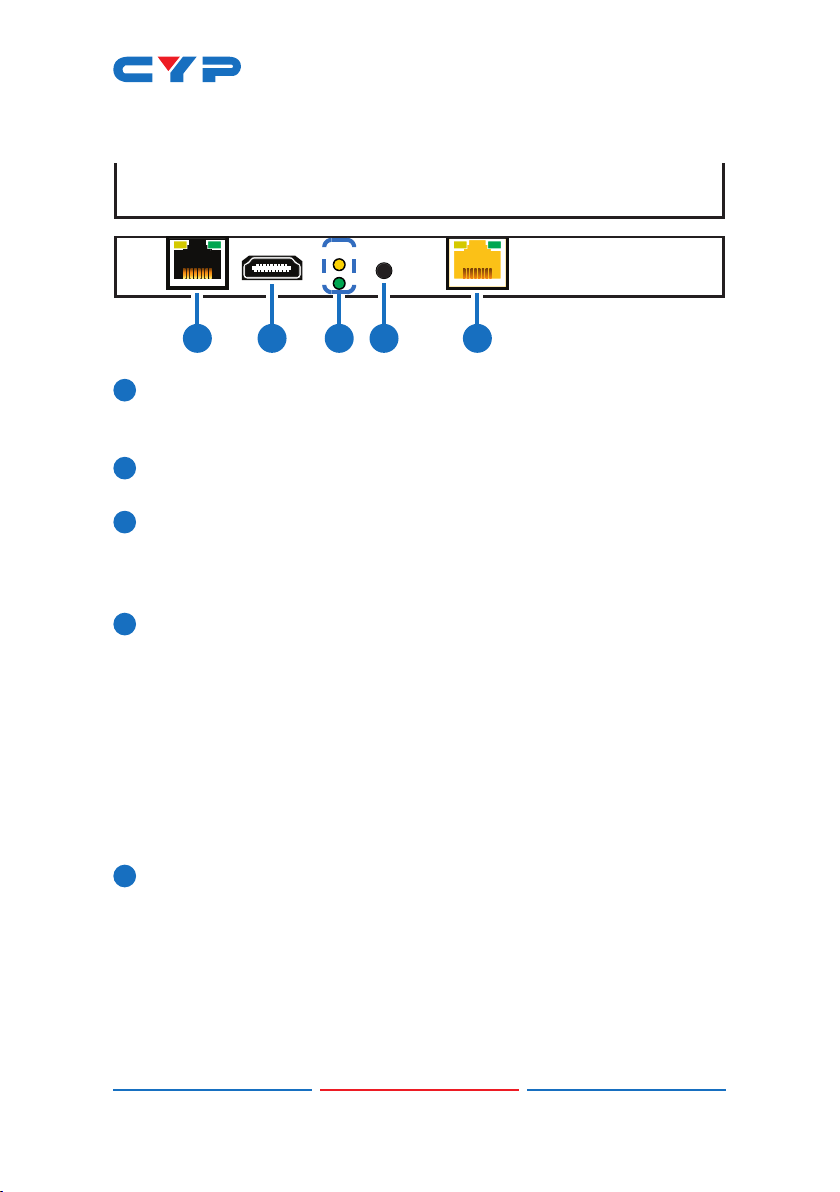

6.2 Rear Panel

CAT5e/6/7 OUTHQ / STD

SWITCH

STD

HDMI IN LAN

1 2 3 4 5

1LAN: Connect to an Ethernet supporting device or to your local

network, as appropriate, to extend the network to both ends of

the HDBaseT connection.

2HDMI IN: Connect to HDMI source equipment such as a media

player, game console or set-top box.

3HQ & STD LEDs: These LEDs illuminate to indicate which AVLC mode

will be used when AVLC is required. The lower green LED indicates

that AVLC will use HQ (High Quality) mode. The upper yellow LED

indicates that AVLC will use STD (Standard) mode.

4HQ/STD SWITCH: This switch allows the user to select which

compression mode to use when AVLC is active, High Quality or

Standard.

Note: HQ (High Quality) mode uses the least amount of

compression and provides the highest possible visual quality

(perceptually identical to the original). STD (Standard Quality)

mode applies additional signal reduction methods to lower

the bandwidth requirements of 4K sources further, improving

transmission reliability over longer cable runs at the cost of some

visual delity.

5CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with

a single Cat.5e/6/7 cable for transmission of all data signals. 48V

PoH will also be supplied when connected to a compatible PD

Receiver.

Note: The 48V PoH function is designed for powering compatible

Receiver units only. Non-PoH Receivers will need their own power

supply. Receivers from other brands may not be compatible.

Table of contents

Popular Transmitter manuals by other brands

NIVELCO

NIVELCO EasyTREK SCA-300 Series Programming manual

Honeywell

Honeywell 5816WMBR installation instructions

Kamstrup

Kamstrup READy MTU Installation and operation guide

Omega

Omega ZW Series user guide

ABB

ABB Field 264H Instructions for installation

Alinco

Alinco DJ-V17T Service manual

Dejero

Dejero EnGo 3x manual

Rosemount

Rosemount 4600 Reference manual

Speaka Professional

Speaka Professional 2342740 operating instructions

trubomat

trubomat GAB 1000 instruction manual

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 instructions

Rondish

Rondish UT-11 quick start guide

MG 10JRE instruction manual

Burkert

Burkert 8177 operating instructions

Firetide

Firetide HotPort 3203 Hardware installation guide

Tele Radio

Tele Radio T9-02 User instructions

Rotronic

Rotronic HygroFlex HF3 Series user guide

Jamara

Jamara FCX6 Pro Tel Instruction
