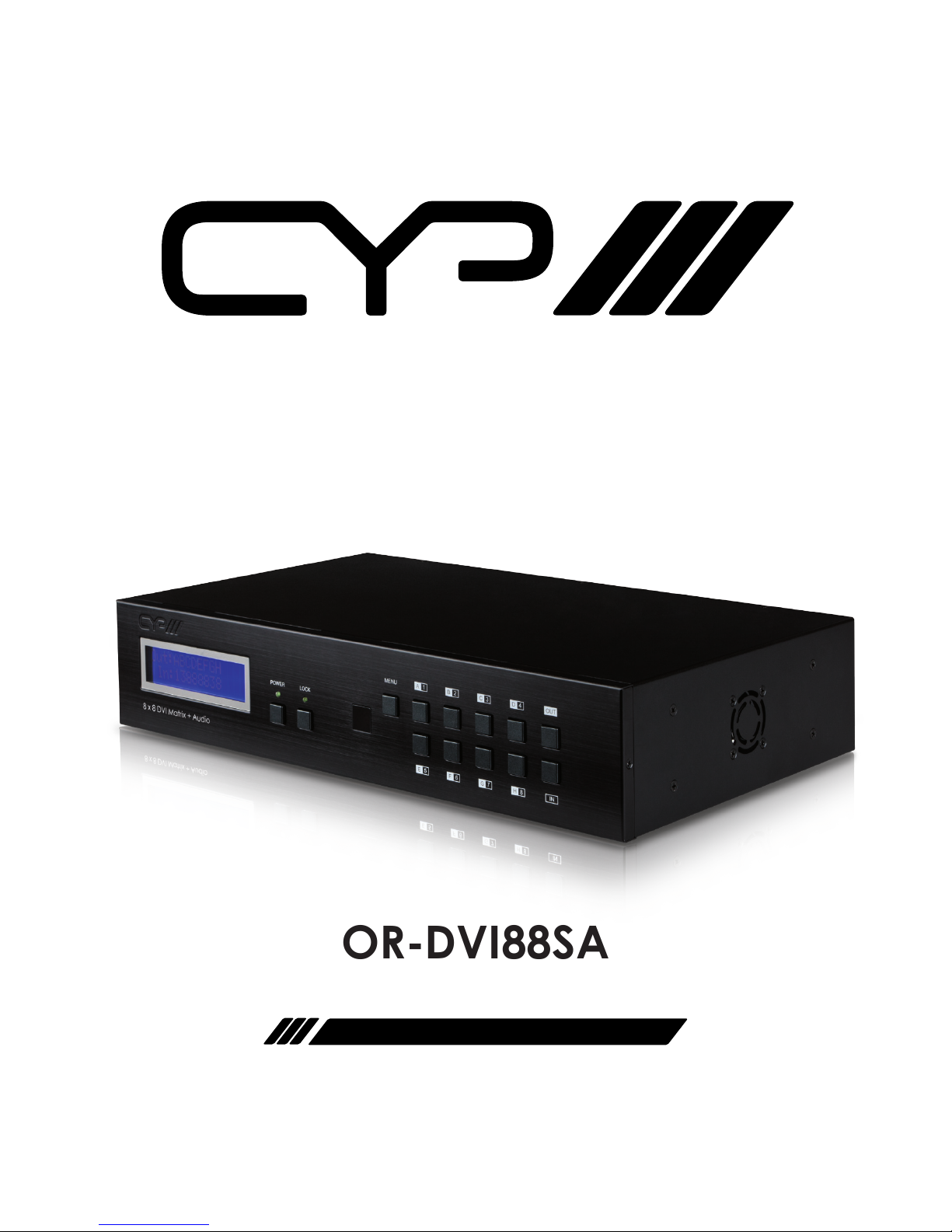

CYP OR-DVI88SA User manual
OR-DVI88SA
8 x 8 DVI Matrix with Audio
OPERATIONS MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 01/06/2012 Preliminary Release
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6.1 Front Panel ................................................... 8
6.2 Rear Panel ..................................................... 9
6.3 Side Panel ...................................................10
6.4 Remote Control ........................................10
6.5 RS-232 Protocols ......................................11
6.6 RS-232 Commands ..................................12
7. Specications ...................................... 13
8. Connection and Installation .............. 14
9. Acronyms ............................................. 15
6
1. INTRODUCTION
The OR-DVI88S Matrix Switcher connects eight DVI sources to eight
displays allowing any source to be independently displayed on any
screen connected to the DVI matrix outputs. This matrix switcher can be
controlled via the supplied IR Remote Control, RS-232, or by using the
selection buttons on the front of the unit. This device provides Audio
functionality, 'Deep Colour' support and 3D signal compatibility (3D
supported on HDMI cable using HDMI to DVI adaptor).
2. APPLICATIONS
Video/TV wall display
Commercial advertising and display
Lecture room display and control
3. PACKAGE CONTENTS
8x8 DVI Matrix with Audio
24V/6.25A DC adaptor x 1
Remote control x 1
IR receiver cable x 1
Operation manual
4. SYSTEM REQUIREMENTS
Input source equipment with DVI connection cables and 3.5mm phone
jack cable or other audio equipment.
Output DVI display with DVI connection cables.
7
5. FEATURES
Resolutions supported: PC - VGA to WUXGA; HDTV - 480i to 1080p plus
1080p24fps.
Supports DVI input up to 15m with 8bit Colour depth or 10m with
12bit Colour depth.
Input is Compensated, Clock / Phase Adjusted, and Jitter Eliminated
RS-232 and IR Remote Control, plus IR extender
Supports Audio
Supports 'Deep Colour' (10 & 12 bit).
Selectable EDID settings - TV (downstream) and STD (xed).
2U Rack Mount design
Supports 3D signals (HDMI to DVI adaptor cable required).
Key Lock function
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
1 62 3 4 5
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
8X8 DVI MATRIX CMSI-8D8DSA
1
LCM: This monitor displays your setting information with each input
and output selection.
2
POWER button & LED: Press this button to turn on the device and
the green LED will illuminate when the power is on. When the LED
illuminate in red it is in standby mode
3
LOCK button & LED: Press this button to lock all the buttons on the
panel. To unlock, just press it again.
4
IR: This IR window accepts the remote control signal of this device
only.
5
MENU: Press this button once to select EDID setting from STD (internal)
1 or TV (external) 2 then press it again to conrm the selection. Press
this button every to conrm the selection.
EDID TV: The device will read the EDID of HDMI output A and record it.
EDID STD: The device's built-in EDID is 1080p@60/12bits for video and
LPCM 2CH for Audio.
6
1 ~8 /A ~ H & Out/In button
Press Out/In button rst to select the output/input then press the
number button to make the selection accordingly. For example,
output A ~ D wish to select input 1 and E ~ H wish to select input
2. Press OutABCDIn1Menu, and then press Out
EFGHIn2Menu. If the menu button is not press the
selection will not be changed.
9
6.2 Rear Panel
1
2
3
4
V+
GND
GND GND
V+
LAN
IR IN
RS232 SERVICE
A B C D E F F G
DVI IN
DVI OUT
12345678
DVI OUT
AUDIO OUT
AUDIO IN
A B
1 2
C D E F G H
345678
12 3 4 765
1
LAN: Reserved.
2
RS-232: This slot is to connect with D-Sub 9pin cable from the PC/NB
device for RS-232 control.
3
IR-IN: This slot is to connect with the IR extender included in the
package for IR signal receiving from the remote control of this device.
4
SERVICE: This slot is to connect with USB cable for manufacturers’
rmware update only.
5
DVI OUT A~H with Audio: These slots are to connect with display or
monitor with DVI cables and active speakers with 3.5mm phone jack
for output image display and audio simultaneously.
6
DVI IN 1~8 with Audio: These slots are to connect with input source
equipment such as PC/NB or Graphic card with DVI cable or HDMI to
DVI converter cable for input signal sending along with 3.5mm phone
jack cable for audio signal input.
7
DC24V: This slot is to plug the power cord with adaptor included in
the package and then connect them with AC wall outlet for power
supply.
10
6.3 Side Panel
1
1
VENTILATOR: These are fan ventilator area, DO NOT block these area
or cover it with any object.
6.4 Remote Control
1
Power: Press this button to switch on the
device or set it to standby mode.
2
IN: Input ports selection 1~8.
3
OUT: Output ports selection A~H.
H
8
1 A
B
2
3
4D
5E
6F
7G
CR-110
IN OUT
1
2 3
C
