CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •18412-INS-RA •07/28/2022 •ECN9818 •PAGE 1

Product Registration and Warranty

CURT stands behind our products with industry-leading warranties. To get copies of the product

warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys

INSTALLATION MANUAL 18412

Tools Required

Wrench, 3/4" --

Level of Difficulty

Easy

Installation difficulty levels are based on time

and effort involved and may vary depending on

the installer level of expertise, condition of the

vehicle and proper tools and equipment.

NOTICE

Visit www.curtmfg.com for a full-color copy of this

instruction manual, as well as helpful videos, guides and much more!

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

Periodic inspection of your product should be performed

to ensure all hardware and / or components remain secure.

Product Photo

Weight Carrying Capacity

4 bikes 180 lbs.

WARNING

The tow vehicle must be equipped with a trailer hitch with 2" reciever tube opening

Check straps for wear and replace if worn

This product is not intended for off-road use, tandems or recumbents

Do not install on a trailer or other towed vehicle

Parts List

Item Qty Description

1 1 Bike rack

2 1 ActiveLink shank

3 1 Hairpin clip

4 1 Lock washer, 1/2"

5 1 Flat washer, 1/2"

6 1 Anti-rattle bolt

7 8 Velcro strap

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •18412-INS-RA •07/28/2022 •ECN9818 •PAGE 2

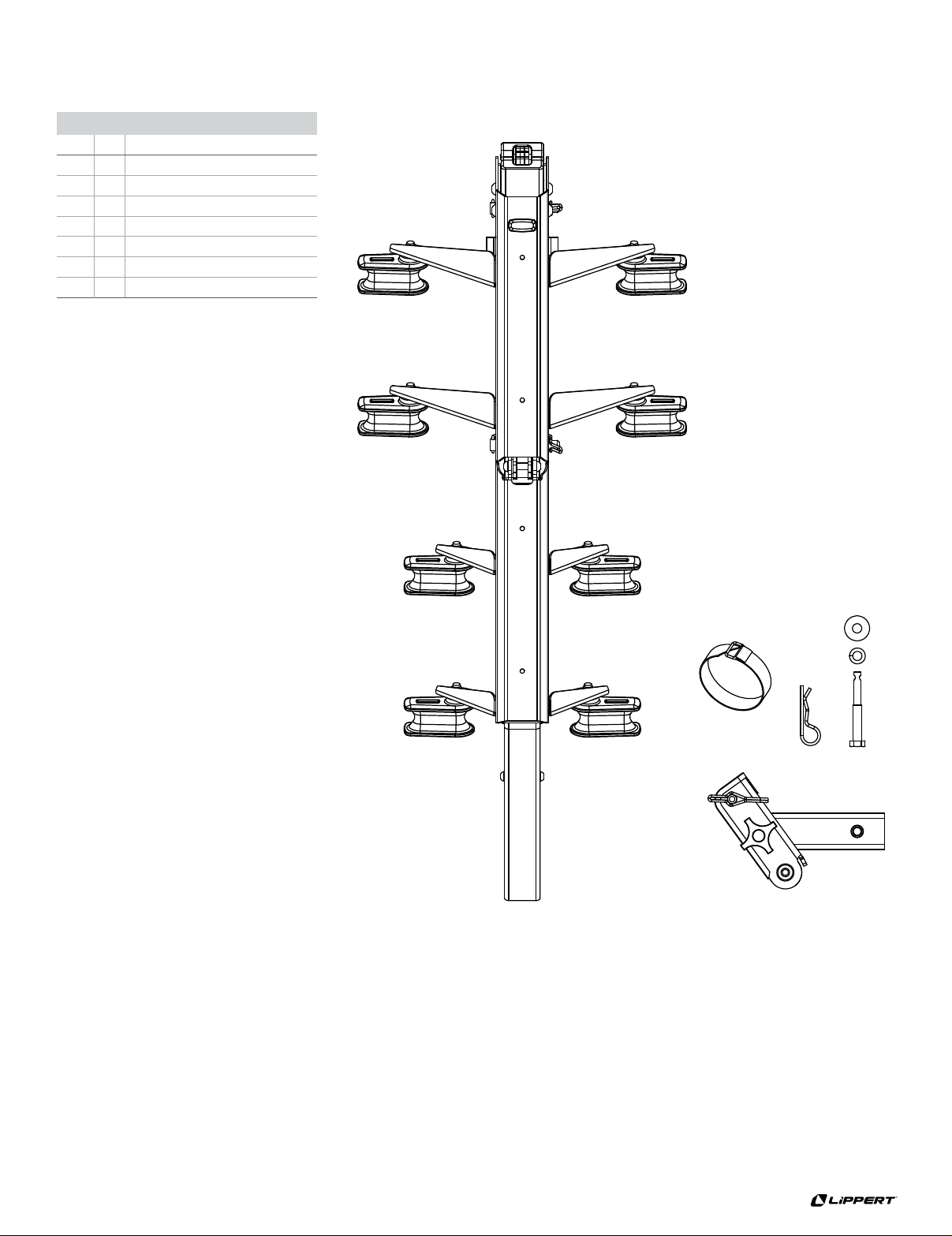

ASSEMBLY

Parts List

Item Qty Description

1 1 Bike rack

2 1 ActiveLink shank

3 1 Hairpin clip

4 1 Lock washer, 1/2"

5 1 Flat washer, 1/2"

6 1 Anti-rattle bolt

7 8 Velcro strap

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •18412-INS-RA •07/28/2022 •ECN9818 •PAGE 3

Step 2

Lower the bike rack onto the ActiveLink

shank pivot. Lift the rack until it latches.

Insert the safety pin through the upright tube

and ActiveLink shank. Use the hand wheel to

tighten the upright and reduce rattling.

Step 1

Insert the ActiveLink shank into the vehicle

receiver tube. Secure with 1/2" hex head bolt,

flat washer, star washer and clip.

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •18412-INS-RA •07/28/2022 •ECN9818 •PAGE 4

Step 3

Lift the arm until it latches

and insert the safety pin.

Step 4

Install the bikes on the rack and secure with the provided velcro straps.

Note: When carrying more than one bike, be sure to alternate the directions the

bikes are facing on the rack. First bike faces right, second bike faces left and so on.

Two and Four Bike Positions

The bike rack can be used in either

a two bike or four bike position.

To fold the top arm up for two bike position,

remove the safety pin from the center pivot,

rotate the arm back and reinsert the safety pin

into the hole nearest to the pivot pin.

FOLDING FEATURES

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •18412-INS-RA •07/28/2022 •ECN9818 •PAGE 5

Storage Position

To fold the arm down for to storage position,

pull the safety pin at the top that secures

the arm in the outward position. While holding

the arm press the handle on the back

of the upright and lower the arm to

the transport / storage position.

Reinsert the safety pin

Note: It is recommended to transport and

store the bike rack with the upper arm folded

down in the four bike position as shown.

Tilting Rack Away From Vehicle

At the base, remove the safety pin from

the ActiveLink shank. Lift the small handle

on the back of the upright and tilt

the rack away from the vehicle.
