Cuisinart Gourmet 600 User manual

Manual Revision #: 28112011 PD

ASSEMBLY

MANUAL

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

Assemble your grill immediately.

Missing or damaged parts should be claimed within 30 days of purchase.

For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.

www.cuisinartbbqs.com

LIMITED 5-YEAR WARRANTY

Cuisinart®Gourmet 600 85-3054-2 (G41801) Propane

85-3055-0 (G41802) Natural Gas

2 1

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

1-800-309-3452

HEAVY ARTICLE NEEDS 2 TO LIFT

Tools Needed for Assembly

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

• Rubber Mallot

Before assembling the barbecue, read

these instructions carefully.

Assemble the barbecue on a at, clean surface.

Grill is heavy.

Note: Do not fully tighten all the nuts

during this initial stage

HARDWARE PACK

1/4”-20UNCX13 Screw

X 16

Φ7 Washer

X 24

1/4”-20UNCX38 Screw

X 8

ST4.2X10 Tapping Screw

X 10

U Pin

X 1

Φ7 Lock Washer

X 24

φ5 Washer

X 4

1 2 3

4 5 6

No. Description Part Number Qty.

1 1/4"-20UNCX13 Screw 20120-13013-250 16

2 1/4"-20UNCX38 Screw 20120-13038-250 8

3Φ7 Lock Washer 41400-07000-250 24

4Φ7 Washer 40300-07000-250 24

5ST4.2X10 Tapping Screw 22500-42010-137 10

6φ5 Washer 40300-05000-250 4

7 U Pin G350-0026-9000 1

Sharp edges. Wear gloves when assembling

your grill.

Read and follow all safety statements,

assembly instructions, use and care directions

before attempting to assemble and cook.

Failure to follow all of the Manufacturer’s

instructions could result in hazardous ﬁres,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully prior

to operation of barbecue, even if grill was dealer

assembled. Do not try lighting this BBQ without

reading the Lighting Instructions section of the

Safety and Care Manual that accompanies this

grill.

This manual should be kept with the BBQ at

all times.

CAUTION DANGER

DANGER

CAUTION

WARNING

INSTALLER OR

ASSEMBLER/CONSUMER

1. If you smell Gas:

a. Shut off gas to the appliance

b. Extinguish any open ﬂame

c. Open lid

d. If odor continues, keep away from the

appliance and immediately call your gas

supplier or your ﬁre department

2. Do not store or use gasoline or other

ﬂammable liquids or vapours in the vicinity of

this or any other appliance.

3. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

1. Do not store or use gasoline or other

ﬂammable liquids or vapours in the vicinity of

this or any other appliance.

2. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

To ORDER non-warranty replacement parts or accessories,

or to register your warranty, please visit us on the web at

www.cuisinartbbqs.com

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CUISINART®CUSTOMER CARE HOTLINE

2 3

EXPLODED DIAGRAM (PROPANE)

FOR 85-3054-2 (G41801)

PARTS LIST (PROPANE) FOR 85-3054-2 (G41801)

AD AE AF

BB2

CD1

BB1

CD2

EE EF

Hardware

Pack

Tank

Screw

Assembly

Manual

Safe Use

& Care

Manual

EXTRAS

F1 F4F2 F3

Item No. Qty. Description Part No.

AA 1 Top Lid G418-2000-01

AB 1 Lid Handle G412-0035-01

AC 1 Thermometer G512-0085-01

AD 2 Screw for Top Lid G501-0005-02

AE 2 Lid Bumper, Front G508-0063-01

AF 2 Lid Bumper, Back G501-0066-01

AG 1 Logo Plate G418-0002-01

BA 1 Burner Box Assembly G418-4000-01

BB1 2 Main Burner - A G413-5000-01

BB2 1 Main Burner - B G412-3800-01

BC 2 Carryover Assembly G413-0004-01

BD 3 Flame Tamer G413-0036-01

BE 2 Cooking Grate G412-0028-01

BF 1 Warming Rack G413-0002-01

BG 1 Upper Back Panel G418-0011-01

BH 1 Match holder G608-0019-01

CA 1 Manifold Assembly, LP G418-6000-01

CB 1 Regulator G606-0008-01

CC 3 Control Knob G525-0013-01

CD1 1 Electronic Ignition Assembly G522-00A5-02

CD2 1 Electronic Ignition Battery Cap G515-0030-01

CE 3 Electrode Set, Main Burner G418-0007-01

CF 1 Control Panel G418-0005-01

CG 1 Heat Shield G418-0008-01

CH 1 Grease Tray G418-0700-01

CI 1 Grease Cup G416-0015-01

CJ 3 Bezel, Control Knob G525-0012-01

CK 1 Front Brace G418-0009-01

Item No. Qty. Description Part No.

DA 1 Side Shelf Table, Left G525-0700-01

DB 1 Side Shelf Fascia, Left G418-0600-01

DC 2 Towel Bar G525-0029-01

DD 1 Electronic Ignition Button G525-0028-01

DE 1 Side Shelf Table, Right G418-0900-01

DF 1 Side Shelf Fascia, Right G418-1000-01

EA 1 Left Cart Side Panel G525-0018-01

EB 1 Right Cart Side Panel G525-0019-01

EC 1 Front Panel G418-0010-01

ED 1 Bottom Shelf, LP G418-0500-01

EE 2 Locking Wheel G350-0023-01

EF 2 Wheel G350-0024-01

F1 1 Hardware Pack G418-B001-01

F2 1 Assembly Manual G418-M001-01

F3 1 Safe Use and Care Manual G418-M001-02

F4 1 Tank Screw G505-0047-01

4 5

AD AE AF

DA BA

BB2

CD1

BB1

CD2

EE EF

EXPLODED DIAGRAM (NATURAL GAS)

FOR 85-3055-0 (G41802)

PARTS LIST (NATURAL GAS) FOR 85-3055-0 (G41802)

Hardware

Pack

Assembly

Manual

Safe Use

& Care

Manual

EXTRAS

F1 F2 F3

Item No. Qty. Description Part No.

AA 1 Top Lid G418-2000-01

AB 1 Lid Handle G412-0035-01

AC 1 Thermometer G512-0085-01

AD 2 Screw for Top Lid G501-0005-02

AE 2 Lid Bumper, Front G508-0063-01

AF 2 Lid Bumper, Back G501-0066-01

AG 1 Logo Plate G418-0002-01

BA 1 Burner Box Assembly G418-4000-01

BB1 2 Main Burner - A G413-5000-01

BB2 1 Main Burner - B G412-3800-01

BC 2 Carryover Assembly G413-0004-01

BD 3 Flame Tamer G413-0036-01

BE 2 Cooking Grate G412-0028-01

BF 1 Warming Rack G413-0002-01

BG 1 Upper Back Panel G418-0011-01

BH 1 Match holder G608-0019-01

CA 1 Manifold assembly, NG G418-2200-01

CB 1 Natural gas Hose G501-0099-01

CC 3 Control Knob G525-0013-01

CD1 1 Electronic Ignition Assembly G522-00A5-02

CD2 1 Electronic Ignition Battery Cap G515-0030-01

CE 3 Electrode Set, Main Burner G418-0007-01

CF 1 Control Panel G418-0005-01

CG 1 Heat shield G418-0008-01

CH 1 Grease Tray G418-0700-01

CI 1 Grease Cup G416-0015-01

CJ 3 Bezel, Control Knob G525-0012-01

CK 1 Front Brace G418-0009-01

Item No. Qty. Description Part No.

DA 1 Side Shelf Table, Left G525-0700-01

DB 1 Side Shelf Fascia, Left G418-0600-01

DC 2 Towel Bar G525-0029-01

DD 1 Electronic Ignition Button G525-0028-01

DE 1 Side Shelf Table, Right G418-0900-01

DF 1 Side Shelf Fascia, Right G418-1000-01

EA 1 Left Cart Side Panel G525-0018-01

EB 1 Right Cart Side Panel G525-0019-01

EC 1 Front Panel G418-0010-01

ED 1 Bottom Shelf, NG G418-0800-01

EE 2 Locking Wheel G350-0023-01

EF 2 Wheel G350-0024-01

F1 1 Hardware Pack G418-B001-01

F2 1 Assembly Manual G418-M001-01

F3 1 Safe Use and Care Manual G418-M001-02

6 7

Separate the 2 different types of wheels: 2

Locking Wheels (EE) and 2 regular Wheels (EF).

Insert the U Pin (#7) into one of the regular

Wheels (EF), as shown in image B. Attach the

regular Wheel (EF) to the front of the Bottom

Shelf (ED), and use the U Pin (#7) to secure and

tighten.

Repeat for remaining 3 wheels (EE & EF).

NOTE: Regular Wheels (EF) need to be

assembled to the front of the Bottom

Shelf (ED), and Wheels with Lock (EE)

need to be assembled to the back of

the Bottom Shelf (ED), as shown in

image A.

Attach the Front Brace (CK) to the Left and

Right Cart Side Panels (EA and EB).

TIP: One person should align the left side,

while the second person assembles the

right side.

Ensure that the Wheels are rmly locked in the

“ON” position before continuing.

Assemble the Left Cart Side Panel (EA) and the

Right Cart Side Panel (EB) to the Bottom Shelf

(ED).

X 1

X 4

X 6

X 2

X 6

X 2

X 6

X 2

YOU WILL NEED:

1. 3.

Back view Back view

Front view

Back view

Close up Close up

Close up

EB EC

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

Attach the Front Panel (EC) to the Left and

Right Cart Side Panels (EA & EB), as shown.

8 9

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

5. THIS STEP REQUIRES 3 OR MORE

PEOPLE. DO NOT ATTEMPT ALONE.

EXTREMELY HEAVY.

a. Position the Top Lid and Burner Box

Assembly (A and B) onto the Cart Assembly

(C), as shown.

c. Assemble the front of the Burner Box

Assembly (A and B) to the Front Brace (CK),

as shown.

TIP: One person should align the Front

Brace (CK) from inside the cart, while

the other person completes the

hardware assembly from the outside.

b. Assemble Burner Box Assembly (A and B)

the Left and Right Cart Side Panels (EA and

EB), as shown.

X 2

YOU WILL NEED:

Front, left side view

View under left side shelf

Back view, right side assembly

Front view

View under left side shelf

b. Secure using hardware, as shown in gure B

and C.

a. Open the lid. Assemble the Left Side Shelf

(DA and DB) to the Cart Assembly by inserting

the Side Shelf tabs into the holes on the Cart

Assembly (gure A).

A+B

EB EA

X 4

X 2

X 4

X 2

X 4

X 2

YOU WILL NEED:

10 11

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

View under left side shelf

View under right side shelf

a. Assemble the Towel Bar (DC) to the Control

Panel (CF) and Left Side Shelf Table (DA), as

shown in gure A & B.

a. Open the lid. Assemble the Right Side

Shelf (DE and DF) to the Cart Assembly by

inserting the Side Shelf tabs into the holes on

the Cart Assembly, as shown in gure A.

b. Attach the two Ignition Button wires to the

Electronic Ignition Button (DD), as shown in

gure C.

b. Secure using hardware, as shown in gure B

and C.

X 1

X 2

X 1

X 2

X 1

X 2

YOU WILL NEED:

X 2 X 2

YOU WILL NEED:

5 6

12 13

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

Right side view

Back View

Close up, left side view

Attach the Upper Back Panel (BG) to both the

Left and Right Cart Side Panels (EA and EB).

10.

11.

BDE

DC 6

X 1 X 1 X 1

YOU WILL NEED:

1 3 4

Assemble the Towel Bar (DC) to the Control

Panel (CF) and Right Side Shelf Table (DE), as

shown in gure A and B.

X 4 X 4 X 4

YOU WILL NEED:

2 3 4

Back view

Front view

Back view

a. Place the Heat Shield (CG) into the two

grooves on the Front Brace (CK), as shown

in gure B.

b. Attach the Heat Shield (CG) to the Upper

Back Panel (BG) by using the self tapping

screws, as shown in gure C.

X 2

YOU WILL NEED:

14 15

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

12. 13. a. Insert the Grease Tray (CH) into the opening

in the Upper Back Panel (BG), making sure to

engage tracks located under the Burner Box

Assembly (BA).

b. Place the Grease Cup (CI) onto the tracks

located on the underside of the Grease Tray

(CH).

CAUTION: Be careful when removing

the Grease Tray (CH) and the Grease

Cup (CI). When in position, the Grease

Cup (CI) will sit recessed under the

burner box (BA).

Back view

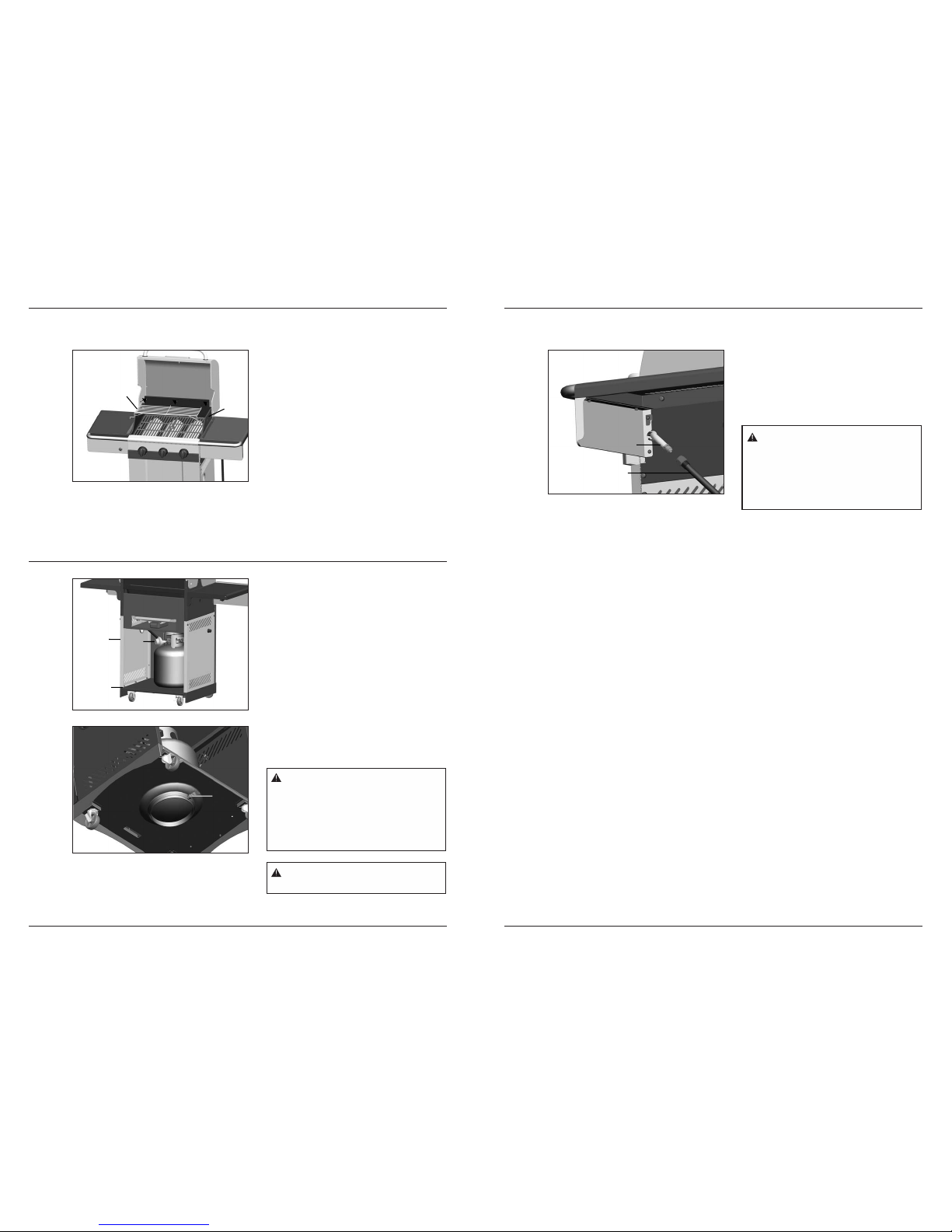

a. Place the Flame Tamers (BD) into the Burner

Box (BA).

b. Place the Cooking Grates (BE) into the

Burner Box (BA), as shown.

14 .

a. Remove the Electronic Ignition Battery Cap

(CD2) and the plastic nut from the Electronic

Ignition Box (CD1).

b. Feed the Electronic Ignition Assembly (CD1)

through the opening in the Left Cart Side

Panel (EA) and secure using the nut.

CD1

CD2 +-

TIP: The Electrode Set, Main Burner (CE) wires

can be found attached to the Control

Panel heat shield (CF), as shown.

d. Insert the three Electrode Set, Main Burner

(CE) wires into the Electronic Ignition

Assembly (CD1), as shown in gure D.

e. Insert the two Electronic Ignition Button (DD)

wires into the Electronic Ignition Assembly

(CD1), as shown in gure E.

CD1

CD2

CD1

c. Insert one “AA” battery into the battery

compartment with the positive end facing

outward, as shown. Secure using the

Electronic Ignition Battery Cap (CD2).

16 17

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS

14.

15.

c. Place Warming Rack (BF) onto Burner Box

(BA) by inserting the three positioning rods

into the rear panel of the Burner Box (BA),

as shown.

FOR PROPANE MODELS ONLY.

For natural gas models, follow step 16.

a. Position the Regulator hose (CB) through the

hole in the Right Cart Side Panel (EB).

b. Position the 20 lb propane tank onto the

bottom shelf (ED), and secure using the

bolt (F4) (already attached) located on the

underside of the bottom shelf, as shown in

gure B.

c. Attach the Regulator coupling nut (CB) to

the LP cylinder valve. Be careful not to cross

thread. Hand tighten only.

d. Perform leak test. See page 4 of the

Cuisinart® Safety & Care Manual.

ATTENTION: For your families safety,

do not attempt to light this BBQ until

you have reviewed pages 4-8 of the

Cuisinart® Safety and Care Manual.

All Safety and Leak test MUST BE

PERFORMED BY THE END USER,

prior to lighting this BBQ.

WARNING Do not store extra

propane tanks within BBQ cart.

FOR NATURAL GAS MODEL ONLY.

a. Attach the Natural Gas Hose (CB) to the

Manifold Assembly (CA), as shown.

b. Perform Leak Test. See page 6 of the

Cuisinart® Safety and Care Manual.

16 .

ATTENTION: In order to complete

installation of your Natural Gas BBQ a

1/2” or 3/8” adapter may be required to

connect your BBQ’s Natural Gas hose

to your home gas supply. Contact your

Natural Gas supplier to purchase the

necessary part.

View under right side shelf

This manual suits for next models

Table of contents

Other Cuisinart Grill manuals

Cuisinart

Cuisinart Griddler GR-11P1 Service manual

Cuisinart

Cuisinart CERAMIC SMALL SPACES G35801 User manual

Cuisinart

Cuisinart CGG200 - 12000 BTU Compact Portable Gas... User manual

Cuisinart

Cuisinart CERAMIC 900 User manual

Cuisinart

Cuisinart CEG-980T User manual

Cuisinart

Cuisinart CGG-340 User manual

Cuisinart

Cuisinart GR2298905-CU-00 Quick reference guide

Cuisinart

Cuisinart Griddler CGR-4NWC Service manual

Cuisinart

Cuisinart CLERMONT User manual

Cuisinart

Cuisinart CEG-980 User manual

Cuisinart

Cuisinart GAS0356AS User manual

Cuisinart

Cuisinart CGWM-093 Deluxe User manual

Cuisinart

Cuisinart Q33 User manual

Cuisinart

Cuisinart CGG-522 User manual

Cuisinart

Cuisinart Griddler GC-17NC User manual

Cuisinart

Cuisinart GAS0656AF User manual

Cuisinart

Cuisinart CGG-240 Assembly and User manual

Cuisinart

Cuisinart G41810 User manual

Cuisinart

Cuisinart COS-330 User manual

Cuisinart

Cuisinart Compact Grill Centro GC-15 User manual

Cuisinart

Cuisinart CGG-2C Operational manual

Cuisinart

Cuisinart C780SR User manual

Cuisinart

Cuisinart CGG-7400 User manual

Cuisinart

Cuisinart CGG-7400 User manual

Popular Grill manuals by other brands

Orbegozo

Orbegozo GR 2300 instruction manual

bora

bora PT11 Operating and installation instructions

Klarstein

Klarstein 10031664 manual

Garland

Garland MWE3W Installation and operation manual

Char-Broil

Char-Broil 463722714 Product guide

Nexgrill

Nexgrill 720-0830HK Operating instruction

Kenmore

Kenmore 415.16123800 Use and care guide

Camp Chef

Camp Chef PG24CLAU Warning & instruction booklet

Tucker Barbecues

Tucker Barbecues GTR Series Assembly, installation and operating instructions

Monogram

Monogram ZGG540NCP1SS owner's manual

Equipex

Equipex Sodir Savoy Operation manual

Gaggenau

Gaggenau VR 414 610 use and care manual

Miele

Miele KM 408-1 operating instructions

George Foreman

George Foreman GGR50B owner's manual

AOG

AOG T series quick start guide

Gorenje

Gorenje TG2000CB Instruction manua

Weber

Weber Genesis Silver-B Permamount NG 051701 owner's guide

Glen

Glen SA 3037 user guide
