Cuisinart C560S User manual

Manual Revision #: 22102010 PD

CUISINART™ C560S

Assembly Manual

85-3030-8 (G41208) Propane

85-3031-6 (G41209) Natural Gas

LIMITED 5YEAR WARRANTY

Read and save manual for future reference.

Assemble your grill immediately.

Missing or damaged parts should be

claimed within 30 days of purchase.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-800-309-3452.

www.cuisinartbbqs.com

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous res,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, and use and care

directions before attempting to assemble

and cook.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-800-309-3452

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at

all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

Before assembling the barbecue, read these

instructions carefully.

Assemble the barbecue on a at, clean surface.

Grill is heavy. You should have at least two people

assemble the barbecue together.

Notes: Do not fully tighten all the nuts during this

initial stage.

HARDWARE PACK

¼” - 20UNCX13 Screw

X 6

ø7 Lock Washer

X 14

ST4.2x10 Tapping Screw

X 2

¼” - 20UNCX38 Screw

X 4

ø7 Washer

X 14

ø5 Lock Washer

X 24

¼” - 20UNCX16 Screw

X 4

NO. 10-24UNC10 Screw

X 20

ø5 Washer

X 24

U Pin

X 1

NO. 10-24UNCx13 Screw

X 4

1 2 3

456

78 9

10 11 12

13 14

Wing Nut

X 1

Venturi Clip, Side Burner

X 1

Control Knob

No. Description Part Number Quantity

1¼"-20UNCX13 Screw 20120-13013-250 6

2 ¼"-20UNCX38 Screw 20120-13038-250 4

3 ¼"-20UNCX16 Screw 20120-13016-250 4

4 ø7 Lock Washer 41400-07000-250 14

5ø7 Washer 40300-07000-250 14

6 NO.10-24UNCx10 Screw 20124-10010-250 20

7ø 5 Lock Washer 41400-05000-250 24

8 ø 5 Washer 40300-05000-250 24

9ST4.2x10 Tapping Screw 22500-42010-137 2

10 U Pin G350-0026-9000 1

11 NO.10-24UNCx13 Screw 20124-10013-250 4

12 Control Knob G412-4500-9000 1

13 Wing Nut 33301-04000-032 1

14 Venturi Clip, Side Burner G405-0019-9200 1

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.cuisinartbbqs.com

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance

b. Extinguish any open ame

c. Open lid

d. If odor continues, keep away from

the appliance and immediately

call your gas supplier or your

re department

2. Requires two people to complete the

assembly process.

3. Beware of sharp edges.

WARNING

1. Do not store or use gasoline or other

ammable liquids or vapours in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

2 3

Item No. Quantity Description Part No.

AA 1 Top Lid G412-6300-01

AB 1 Lid Handle G412-0035-01

AC 1 Thermometer G512-0085-01

AD 2 Screw for Top Lid G501-0005-02

AE 2 Lid Bumper G508-0063-01

BA1 1 Burner Box Weldment G412-6500-01

BA2 1 Rear Panel, Burner Box G416-0013-01

BB 1 Upper Side Panel - Left G412-1700-01

BC 1 Upper Side Panel - Right G412-4900-01

BD1 2 Main Burner - A G413-5000-01

BD2 1 Main Burner - B G412-3800-01

BE 2 Carryover Assembly G413-0004-01

BF 3 Flame Tamer G413-0036-01

BG 2 Cooking Grate G412-0039-01

BH 1 Warming rack G413-0002-01

BI 1 Upper Back Panel G412-0002-01

BJ 1 Match Holder G608-0019-01

CA 1 Manifold Assembly G412-4600-01

CB 1 Regulator G606-0008-01

CC 3 Control Knobs G512-7900-01

CD1 1 Electronic Igniter Assembly G412-0038-01

CD2 1 Electronic Ignition Button G512-0070-01

CE 3 Electrode Set, Main Burner G412-0009-01

CF 1 Control Panel G412-0037-01

CG 1 Heat Shield G412-0017-01

CH 1 Grease Tray G412-1900-01

CI 1 Grease Cup G416-0015-01

CJ 1 Side Burner Lid G501-0070-01

CK 1 Side Burner Drip Pan G617-0035-01

CL1 1 Side Burner Valve G512-0055-01

CL2 1 Side Burner Metal Hose G608-0039-01

CM 1 Side Burner Assembly G512-2600-02

CN 1 Side Burner Electrode Set G433-0047-02

CO 1Side Burner Cooking Grate G501-0077-01

DA 1 Side Burner Shelf Table - Left G501-3600-01

DB 1 Side Burner Shelf Fascia - Left G412-0041-01

DC 1 Side Shelf Table - Right G501-0800-02

DD 1 Side Shelf Fascia - Right G412-0040-01

DE 1 Cart Side Panel - Left G412-0500-01

DF 1 Cart Side Panel - Right G412-0600-01

DG 2 Pillars G412-0013-01

DH 1 Front Panel G412-0012-01

DI 1 Bottom Shelf G412-1800-01

DJ 2 Wheel with Lock G515-0082-01

DK 2 Wheel G350-0024-01

DL 1 Bottom Shelf Weight G412-0030-01

E1 1 Hardware Pack G412-B008-01

E2 1 Assembly Manual G412-M008-01

E3 1 Safety & Care Manual G412-M008-02

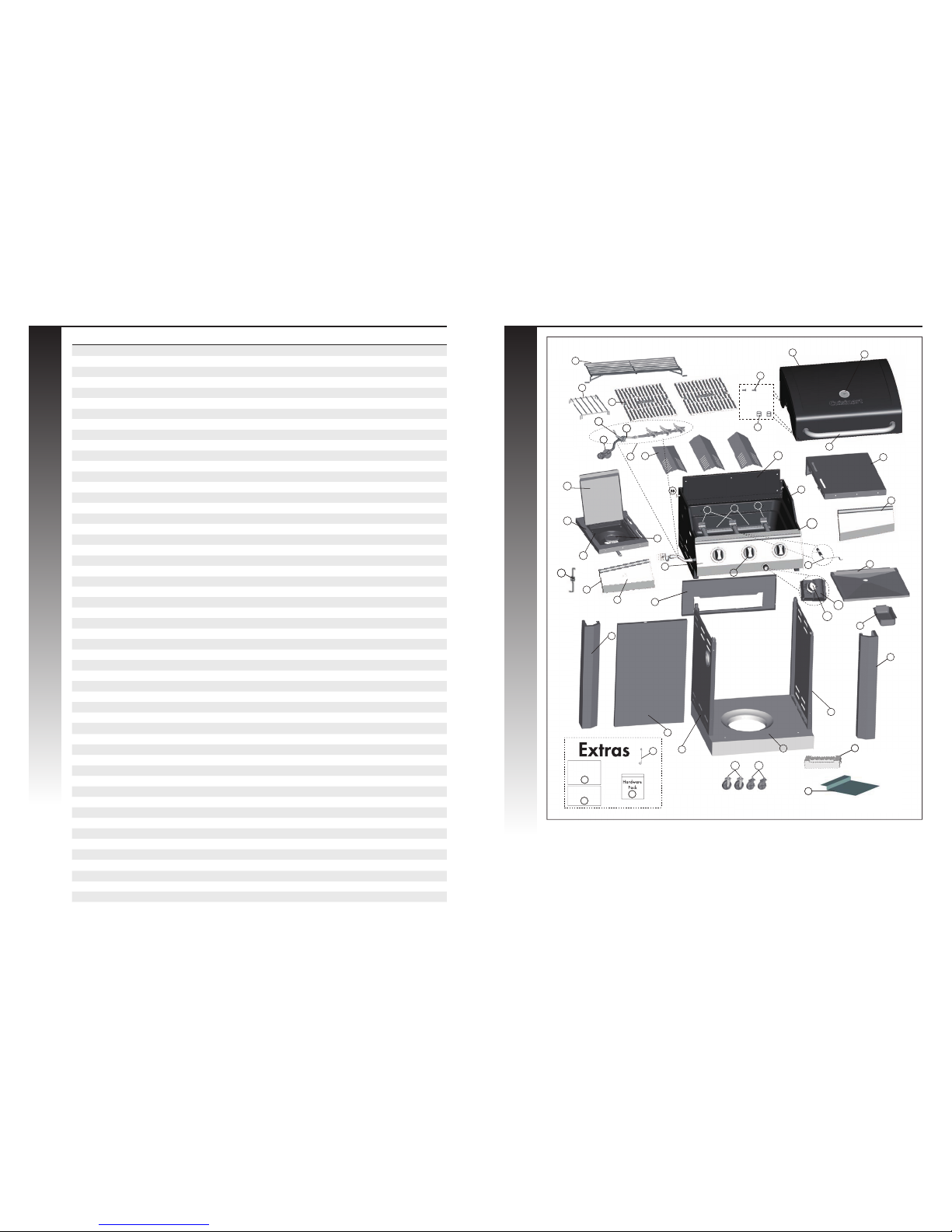

PARts List (PRoPAnE) foR 85-3030-8 (G41208) EXPLoDED DiAGRAM (PRoPAnE) foR 85-3030-8 (G41208)

DK DJ

2DC

CD1

BA2

BA1

Heat shield

CL1

Heat shield

BD2

Safety & Care

Manual

Assembly

Manual

BA1

BA2

CE CH

CD1

CD2

BA1

DK DJ

CL2

BD1

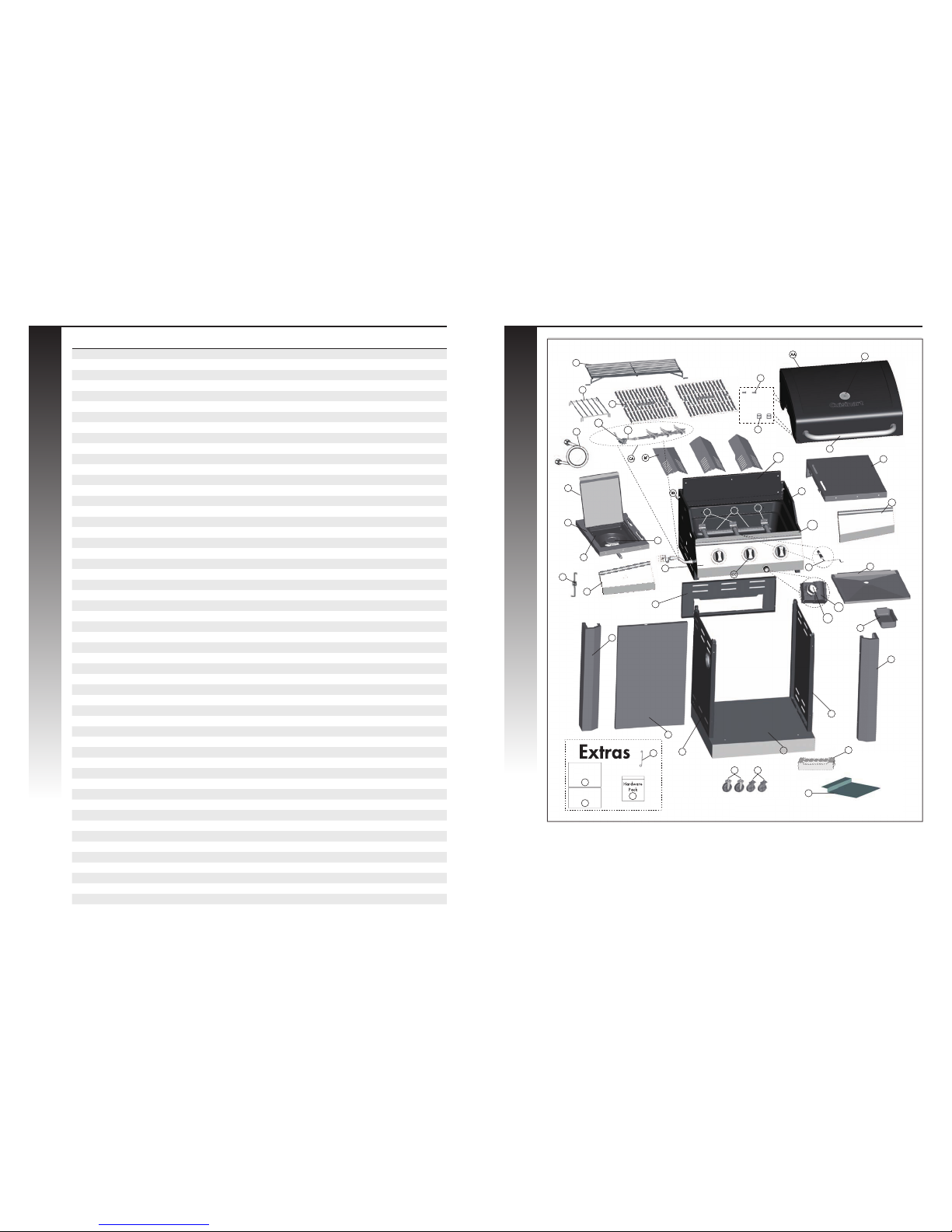

PARts List (nAtuRAL GAs) foR 85-3031-6 (G41209) EXPLoDED DiAGRAM (nAtuRAL GAs) foR 85-3031-6 (G41209)

Item No. Quantity Description Part No.

AA 1 Top Lid G412-6300-01

AB 1 Lid Handle G412-0035-01

AC 1 Thermometer G512-0085-01

AD 2 Screw for Top Lid G501-0005-02

AE 2 Lid Bumper G508-0063-01

BA1 1 Burner Box Weldment G412-6500-01

BA2 1 Rear Panel, Burner Box G416-0013-01

BB 1 Upper Side Panel - Left G412-1700-01

BC 1 Upper Side Panel - Right G412-4900-01

BD1 2 Main Burner - A G413-5000-01

BD2 1 Main Burner - B G412-3800-01

BE 2 Carryover Assembly G413-0004-01

BF 3 Flame Tamer G413-0036-01

BG 2 Cooking Grate G412-0039-01

BH 1 Warming rack G413-0002-01

BI 1 Upper Back Panel G412-0002-01

BJ 1 Match Holder G608-0019-01

CA 1 Manifold Assembly G412-4700-01

CB 1 Natural Gas Hose G501-0099-01

CC 3 Control Knobs G512-7900-01

CD1 1 Electronic Igniter Assembly G412-0038-01

CD2 1 Electronic Ignition Button G512-0070-01

CE 3 Electrode Set, Main Burner G412-0009-01

CF 1 Control Panel G412-0037-01

CG 1 Heat Shield G412-0017-01

CH 1 Grease Tray G412-1900-01

CI 1 Grease Cup G416-0015-01

CJ 1 Side Burner Lid G501-0070-01

CK 1 Side Burner Drip Pan G617-0035-01

CL1 1 Side Burner Valve G512-0067-01

CL2 1 Side Burner Metal Hose G608-0039-01

CM 1 Side Burner Assembly G512-2600-02

CN 1 Side Burner Electrode Set G433-0047-02

CO 1Side Burner Cooking Grate G501-0077-01

DA 1 Side Burner Shelf Table - Left G501-3600-01

DB 1 Side Burner Shelf Fascia - Left G412-0041-01

DC 1 Side Shelf Table - Right G501-0800-02

DD 1 Side Shelf Fascia - Right G412-0040-01

DE 1 Cart Side Panel - Left G412-0500-01

DF 1 Cart Side Panel - Right G412-0600-01

DG 2 Pillars G412-0013-01

DH 1 Front Panel G412-0012-01

DI 1 Bottom Shelf G412-5500-01

DJ 2 Wheel with Lock G515-0082-01

DK 2 Wheel G350-0024-01

DL 1 Bottom Shelf Weight G412-0030-01

E1 1 Hardware Pack G412-B008-01

E2 1 Assembly Manual G412-M008-01

E3 1 Safety & Care Manual G412-M008-02

DK DJ

2DC

CD1

BA2

BA1

Safety & Care

Manual

Assembly

Manual

DE DI

BA2

BA1

CD1

CD2

CL1

CL2

BD1

BD2

Attach the front panel (DH) to the pillars (DG).

DG DG

Front view

Back view

Separate the 2 dierent types of wheels, 2

locking wheels (DJ) and 2 regular wheels (DK).

Insert the U Pin (#10) into one of the regular

wheels (DK), as shown in image B. Attach the

regular wheel (DK) to the front of the bottom

shelf (DI), and use the U Pin (#10) to secure and

tighten.

Repeat for remaining 3 wheels (DK & DJ).

NOTE: Regular wheels (DK) need to be

assembled to the front of the bottom

shelf (DI), and wheels with lock (DJ)

need to be assembled to the back of the

bottom shelf (EF), as shown in image A.

Ensure that the wheels are rmly locked in the

“ON”position before continuing.

Assemble the left side panel (DE) and the right

side panel (DF) to the bottom shelf (DI).

Assemble the left and right pillars (DG), to the

cart side panels, as shown in gure A and B.

A B

1 3

AssEMBLY instRuCtions AssEMBLY instRuCtions

6YOU WILL NEED:

YOU WILL NEED:

Back view

Close up

Back view

Bottom of pillar Top of pillar

X 6 X 6 X 6

X 6

X 4 X 4 X 4

X 6 X 6

X 1

YOU WILL NEED:

THIS STEP REQUIRES 3 OR MORE PEOPLE.

DO NOT ATTEMPT ALONE. EXTREMELY

HEAVY.

Position the top lid and burner box assembly

(A and B) onto the cart assembly (C) as shown.

in gure A. Use the hardware to connect both

parts, on the left and right sides, at the two

points indicated in gure B.

YOU WILL NEED: YOU WILL NEED:

YOU WILL NEED:

AssEMBLY instRuCtions AssEMBLY instRuCtions

YOU WILL NEED:

Attach the right side shelf fascia(DD) to the right

side shelf (DC).

Attach the upper back panel (BI) to both the left

and right side panels (DE and DF).

Only install hardware in the bottom portion of

the upper back panel (BI), as shown in gure B.

Front

Back

TIP: To position the side shelf, insert the two

hooks on the right side shelf assembly into

the support brackets located on the upper

right side panel (BC).

Assemble the right side shelf assembly to the

upper right side panel (BC), as shown in gure B.

X 4 X 4 X 4

X 2 X 2 X 2

X 3 X 3 X 3

X 2 X 2 X 2

X 1X 1X 1

X 2 X 2 X 2

Back, left side view

10 11

AssEMBLY instRuCtions

YOU WILL NEED:

6 7 8

Attach the left side burner shelf fascia (DB) to the

left side burner shelf table (DA).

Front

TIP: To position the left side burner shelf, insert

the two hooks on the side shelf assembly

into the support brackets located on the

upper left side panel (BB).

Assemble the left side shelf assembly to the left

upper side panel (BB).

AssEMBLY instRuCtions

YOU WILL NEED:

Remove the hardware that is pre-assembled to

the side burner valve bracket (CL1), as shown

in gure B. Insert the side burner valve stem

through the rear of the left side shelf fascia(DB).

Assemble the side burner valve (CL1) to the side

shelf fascia (DB), using the hardware removed.

Assemble the side burner control knob (#12) to

the side burner valve (CL1).

Hardware may be included with the hardware

pack.

X 3 X 3 X 3

X 1

YOU WILL NEED:

7 8

X 2 X 2 X 2

X 1X 1X 1

X 2 X 2 X 2

12 a. Position the side burner (CM) through the

opening in the left side burner drip pan (CK).

Underside view

b. Make sure that the side burner (CM) engages

the side burner valve (CL1) as shown in

gure B.

CL1

CL1 CL2

12 13

Place the heat shield (CG) into the groove which

is located at the back side of the front panel as

shown in gure A. Next, attach the heat shield

(CG) to the upper back panel (BI) by using the self

tapping screw (x2), as shown in gure B.

First place the ame tamers (BF) and then the

cooking grates (BG) into the burner box.

Place the warming rack (BH) onto the burner box.

Back view

AssEMBLY instRuCtions

YOU WILL NEED:

AssEMBLY instRuCtions

b. Using the wing nut provided, assemble the side

burner (CM) to the side burner drip pan (CK), as

shown in gure C.

c. Attach the end of the side burner electrode

wire (CN) to the underside of the side burner

electrode, as shown in gure D.

Ensure that the wire is pushed in rmly.

a. Use the side burner Venturi clip (#14) to

connect the side burner (CM) to the side

burner valve (CL1).

d. Place the side burner cooking grate (CO) into

postion on the side burner shelf, as shown in

gure E.

YOU WILL NEED:

X 2

X 1

CL1

14 15

FOR NATURAL GAS MODEL ONLY.

Attach the natural gas hose (CB) to the side

burner valve (CL1) as shown.

ATTENTION: In order to complete installa-

tion of your Natural Gas BBQ a 1/2”or 3/8”

adapter may be required to connect your

BBQ’s Natural Gas hose to your home gas

supply. Contact your Natural Gas supplier to

purchase the necessary part.

FOR PROPANE MODEL ONLY.

For natural gas model, follow step 18.

a. Position the 20 lb propane tank onto the

bottom shelf (DI), and secure using the bolt

(already attached) located on the underside of

the bottom shelf, as shown in gure B.

b. Attach the Regulator coupling nut (CB) to the

LP cylinder valve.

ATTENTION: For your families safety, do

not attempt to light this BBQ until you have

reviewed pages 4-7 of the Cuisinart™ Safe

Use and Care Manual. All Safety and Leak test

MUST BE PERFORMED BY THE END USER, prior

to lighting this BBQ.

WARNING

Do not store extra propane tanks within

BBQ cart.

AssEMBLY instRuCtions

a. Insert the grease tray (CH) into the opening

in the upper back panel (BI), making sure to

engage tracks located under burner box.

b. Place the grease cup (CI) onto the tracks,

located on the underside of the grease tray

(CH).

Back view

Unscrew the electronic ignitor button (CD2) and

insert one AA battery into the electronic igniter

battery compartment, with the positive end

facing outward.

* Battery not included.

CD2

AssEMBLY instRuCtions

CL1

www.cuisinartbbqs.com

Table of contents

Other Cuisinart Grill manuals

Cuisinart

Cuisinart Griddler CGR-4NWC Service manual

Cuisinart

Cuisinart GAS9456AF User manual

Cuisinart

Cuisinart Gourmet INFRARED PRO 900 User manual

Cuisinart

Cuisinart GRIDDLER GR40AR User manual

Cuisinart

Cuisinart Stack5 GR-M3 Series User manual

Cuisinart

Cuisinart CGG-240 Assembly and User manual

Cuisinart

Cuisinart Gourmet 700 User manual

Cuisinart

Cuisinart CGG-220 User manual

Cuisinart

Cuisinart Chef's Style CGG-306 User manual

Cuisinart

Cuisinart Gourmet 710 User manual

Cuisinart

Cuisinart PORTABLE LP GAS GRILL CGG-180T User manual

Cuisinart

Cuisinart CGG-522 User manual

Cuisinart

Cuisinart Searin CGG-059 User manual

Cuisinart

Cuisinart Gourmet INFRARED 800 User manual

Cuisinart

Cuisinart Griddler Deluxe GR-150 User manual

Cuisinart

Cuisinart Gourmet 600 User manual

Cuisinart

Cuisinart GAS1456ASO User manual

Cuisinart

Cuisinart GR-4NAM - Griddler User manual

Cuisinart

Cuisinart CGG-180 Assembly and User manual

Cuisinart

Cuisinart CR-8C Operational manual

Cuisinart

Cuisinart PL60U User manual

Cuisinart

Cuisinart C792IRS-R User manual

Cuisinart

Cuisinart Contact Griddler GR-12S Series Service manual

Cuisinart

Cuisinart CPO-600 User manual

Popular Grill manuals by other brands

Orbegozo

Orbegozo GR 2300 instruction manual

bora

bora PT11 Operating and installation instructions

Klarstein

Klarstein 10031664 manual

Garland

Garland MWE3W Installation and operation manual

Char-Broil

Char-Broil 463722714 Product guide

Nexgrill

Nexgrill 720-0830HK Operating instruction

Kenmore

Kenmore 415.16123800 Use and care guide

Camp Chef

Camp Chef PG24CLAU Warning & instruction booklet

Tucker Barbecues

Tucker Barbecues GTR Series Assembly, installation and operating instructions

Monogram

Monogram ZGG540NCP1SS owner's manual

Equipex

Equipex Sodir Savoy Operation manual

Gaggenau

Gaggenau VR 414 610 use and care manual

Miele

Miele KM 408-1 operating instructions

George Foreman

George Foreman GGR50B owner's manual

AOG

AOG T series quick start guide

Gorenje

Gorenje TG2000CB Instruction manua

Weber

Weber Genesis Silver-B Permamount NG 051701 owner's guide

Glen

Glen SA 3037 user guide
