Crux Sightline VIMPR-90P User manual
PORSCHE
2017 –2018 911
2017 –2018 718 Boxster / Cayman
2017 –2018 Cayenne
2017 –2018 Macan
2017 –2018 Panamera
- Retains functionality of Factory-installed Navigation System for passenger access at any time.
- Plug and Play Installation.
- Compatible with Porsche PCM4 and PCM4.1 Navigation radios.
- On some vehicles, the navigation will not work while the video-in-motion function is active. This
can only be detected by a test drive. Please see notes on page 3.
1 / 3
rev.121818

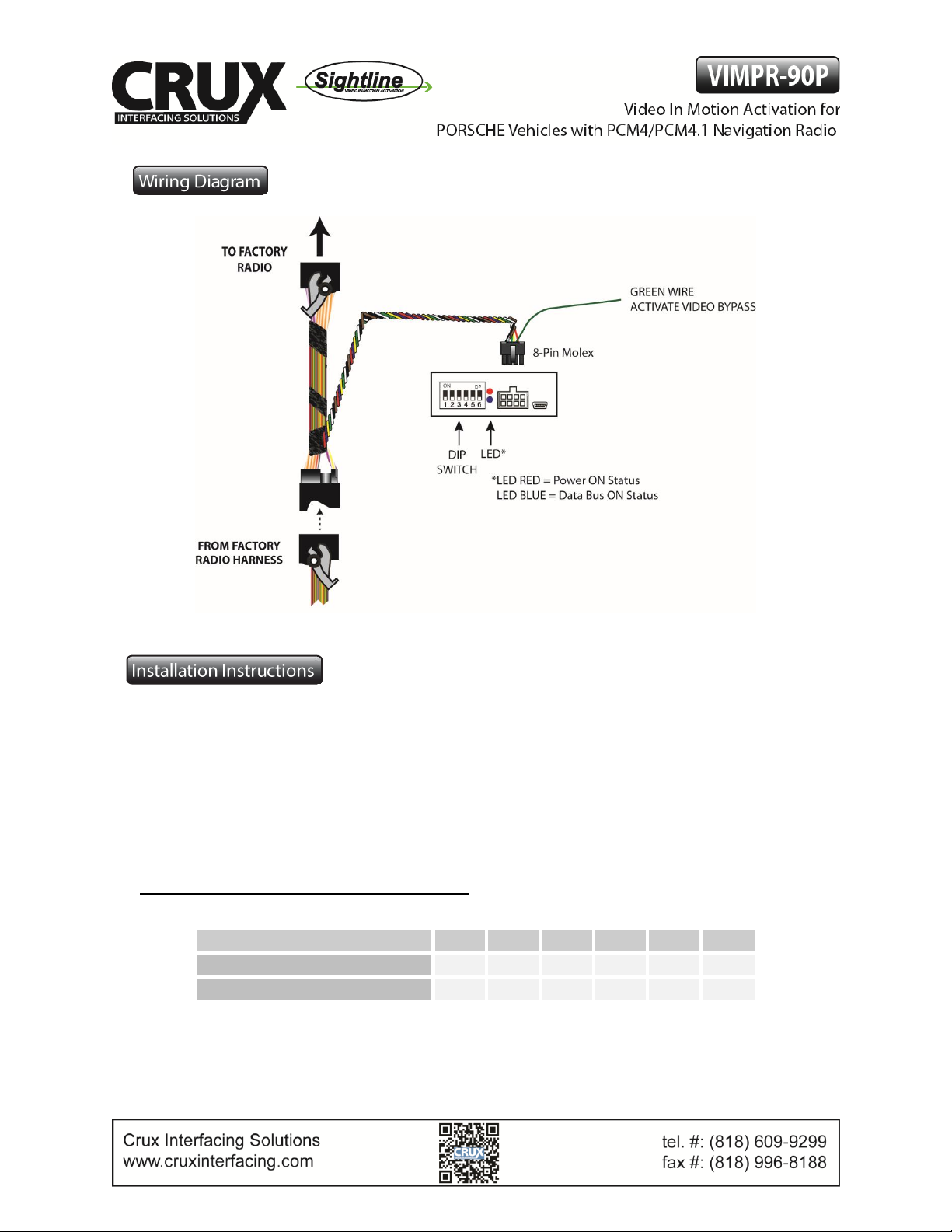

1. Remove the factory radio from the dashboard.
2. Remove the factory connectors from behind the factory radio.
3. Mate the T-Harness connections to the factory harness and radio. (Make sure all connectors are
properly seated into the interface and into the radio.)
4. Connect the 8-pin Molex connector from the T-harness to the VIMPR-90P module.
5. Set the DIP switches according to the table below.
6. Test the interface and re-install the radio into the dash.
Setting the DIP Switches of the VIMPR-90P
Porsche
Dip 1
Dip 2
Dip 3
Dip 4
Dip 5
Dip 6
Video-in-motion permanent
ON
OFF
OFF
OFF
OFF
OFF
Video-in-motion selective*
OFF
OFF
OFF
OFF
OFF
OFF
*With DIP#1 set to OFF the included green wire is used to activate the video-in-motion function.
2 / 3
rev.121818
Note: DIP switch functions of the VIMPR-90P
Dip 1 –Activate Video In Motion
Dip 2 –no function
Dip 3 –no function
Dip 4 –no function
Dip 5 –CAN-bus termination resistor on the vehicle side
Dip 6 –CAN-bus termination resistor on the head-unit side
NOTE: Vehicles with affected navigation performance
On some vehicles, the navigation performance is affected as long as the video-in-motion function is
activated. This can only be detected by a test drive and with DIP# 1 set to ON.
If the navigation performance is affected you have to set DIP#1 to OFF. As long as the video-in-motion
function is activated, the navigation will NOT work. The green wire on the T-harness can be used to
activate the video-in-motion function (Video-in-motion selective) by connecting a switch (not included)
between the GREEN wire and +12V ACC.
Cable colour
Assignment
●Red
+12V Constant Pin 18
●Brown
Ground Pin 17
●●Orange/Violet
CAN HIGH Pin 6
●●Orange/Brown
CAN LOW Pin 12
ACTIVATING AND DEACTIVATING THE VIM FEATURE
The video-in-motion can be activated and deactivated either by setting DIP# 1 to ON (permanent VIM)
or by the connecting a switch (not included) between the GREEN wire and +12V (selective VIM).
Video-in-motion permanent
With DIP#1 set to ON, the video-in-motion function is activated permanently without disturbing the
navigation performance.
Video-in-motion selective
With DIP#1 set to OFF, the GREEN wire is used to activate the video-in-motion function.
Connect a switch between the GREEN wire and +12V ACC.
●+12V = VIM is activated
●0V = VIM is deactivated
3 / 3
rev.121818
