Crestron MMK-4L & WMKM-4L

Mud Mount Kits

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron MMK-4L & WMKM-4L Mud Mount Kits

Mud Mount Kits: MMK-4L &

WMKM-4L

Description

Mud Mount Kits are the preferred mounting option for the Crestron Isys®

TPS-4L and TPMC-4L wall mounted touchpanels when cutouts made in the drywall

for touchpanel installation are too large. These kits provide support for additional

plastering that can be applied to hide large irregularities in the touchpanel cutout.

NOTE: If mounting into another material (other than drywall – for example, wood

lectern, concrete, or rock) use the cutout template, available in the post-construction

kit WMKM-4L. For concrete and rock mounting material, allow for proper

ventilation before mounting the touchpanel.

There are two Mud Mount Kits. The MMK-4L is a pre-construction accessory.

Pre-construction refers to framed walls prior to hanging drywall. This accessory

must be used with either the Pre-Construction Mount Kit (PMK-4L) or Back Box Kit

(BB-4L).

The WMKM-4L is a post-construction kit. Post-construction refers to framed walls

with drywall hung. This accessory is designed with a mounting plate so that it can be

placed anywhere on a wall without the support of a stud.

NOTE: If necessary, consult the latest revision of the TPS-4L Operations Guide

(Doc. 6449) or the TPMC-4L Operations Guide (Doc. 6450) for a complete list of

mounting options. Both documents are available from the Crestron website

(www.crestron.com/manuals).

Supplied Hardware

The MMK-4L consists of three parts. These parts produce an assembly that attaches

to the PMK-4L or BB-4L. The WMKM-4L consists of five parts–three of which

make up the MMK-4L–as well as one mounting plate and one cutout template. The

mounting plate provides the necessary support for post-construction applications.

Installation Guide – DOC. 6389 Mud Mount Kits: MMK-4L & WMKM-4L •1

Mud Mount Kits Crestron MMK-4L & WMKM-4L

Supplied Hardware of the MMK-4L and WMKM-4L

DESCRIPTION PART NUMBER QUANTITY

Metal Plate, Mounting

(WMKM-4L only)

2013242 1

Metal Plate, Mud Ring 2013240 1

Metal Plate, Adjustment 2013243 2

Overlay Template, Cutout

(WMKM-4L only)

4007975 1

Hardware, Push-On Fastener 2004121 4

Dimensional Drawings

6.75 in

(17.15 cm)

5.55 in

(14.10 cm)

0.06 in

(0.15 cm)

0.38 in

(0.97 cm)

6.67 in

(16.94 cm)

0.37 in

(0.94 cm)

7.06 in

(17.93 cm)

5.09 in

(12.93 cm)

0.02 in

(0.05 cm)

2.26 in

(5.74 cm)

MOUNTING PLATE

FOR WMKM-4L

ADJUSTMENT PLATE

FOR MMK-4L AND

WMKM-4L

MUD RING PLATE FOR MMK-4L AND WMKM-4L

2 •Mud Mount Kits: MMK-4L & WMKM-4L Installation Guide – DOC. 6389

Crestron MMK-4L & WMKM-4L Mud Mount Kits

Drywall Cutout Templates and Dimensions (supplied with WMKM-4L only)

6.75 in

(17.15 cm)

0.76 in

(1.93 cm)

0.21 in

(0.53 cm) 4.04 in

(10.26 cm )

3.83 in

(9.73 cm)

5.55 in

(14.10 cm)

0.56 in

(1.42 cm)

1.30 in

(3.30 cm)

4.32 in

(10.97 cm)

5.63 in

(14.30 cm)

5.63 in

(14.30 cm) 0.21 in

(0.53 cm)

3.63 in

(9.22 cm)

3.02 in

(7.67 cm)

1.30 in

(3.30 cm)

4.04 in

(10.26 cm)

Installation

This section provides an installation procedure for each Mud Mount Kit. The

procedure for the MMK-4L starts below and the “WMKM-4L Procedure” starts on

page 6. Be sure to review each procedure before starting.

MMK-4L Procedure

The procedure in this section provides the necessary steps for the assembly of the

MMK-4L to either the PMK-4L or BB-4L. It is assumed that the PMK-4L or BB-4L

has been secured to the stud according to the procedures in their latest Installation

Installation Guide – DOC. 6389 Mud Mount Kits: MMK-4L & WMKM-4L •3

Mud Mount Kits Crestron MMK-4L & WMKM-4L

Guides (Doc. 6388 and Doc. 6387, respectively). Also, it is assumed that drywall is

in place and a rectangular cutout for the touchpanel is made in the drywall.

Complete the steps in the order provided. The only tools or materials required and

not supplied are a drywall saw or equivalent, four standard drywall screws, #2

Phillips screwdriver, a level, and tools/material to apply drywall joint compound.

CAUTION: Allow an air gap of at least 12 inches in the wall cavity above and

below the touchpanel for heat dissipation.

NOTE: The illustrations in this procedure show the installation of the MMK-4L

with the PMK-4L. Even though the illustrations only show the PMK-4L, they are

identical for the BB-4L as well.

1. Pass an adjustment plate through the opening and align its two center

holes with the top two pins on the PMK-4L. Verify that the pins on the

adjustment plate are not between (facing) the adjustment plate and the

PMK-4L. Refer to the illustration after this step for visual guidance.

Secure Adjustment Plates to PMK-4L (or BB-4L)

PMK-4L

(2) ADJUSTMENT PLATE

(2013243)

(4) PUSH-ON

FASTENER

(2004121)

2. Slide a push-on fastener over each pin of the PMK-4L (or

BB-4L) to loosely secure the adjustment plate and the mounting plate.

Do not push the push-on fasteners all the way down onto the pins. Slide

them on enough to keep the adjustment plate and mounting plate as one

adjustment/mounting plate assembly.

3. Use the second adjustment plate and repeat steps 1 and 2 using the

lower two PMK-4L (or BB-4L) pins.

NOTE: When installing into the PMK-4L, verify that the 18 AWG bus wire

securing the cables for the touchpanel remain attached.

4 •Mud Mount Kits: MMK-4L & WMKM-4L Installation Guide – DOC. 6389

Crestron MMK-4L & WMKM-4L Mud Mount Kits

4. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

Insert and Secure Mud Ring Plate into PMK-4L (or BB-4L)

PMK-4L

DRYWALL

FLANGE

MUD RING PLATE

(2013240)

HOLES FOR DRYWALL

SCREWS (NOT INCLUDED).

SCREW LENGTH SHOULD

NOT EXCEED DRYWALL

THICKNESS BY MORE

THAN ½ INCH.

5. When the mud ring plate is in position, bend the top two flanges of the

plate upward and the bottom two flanges downward.

• If mounting into the PMK-4L, bend the flanges approximately

90 degrees.

• If mounting into the BB-4L, bend the flanges back as far as they

can go.

6. Use four standard drywall screws (length should not exceed drywall

thickness by more than ½ inch) to secure the mud ring plate to the rest

of the assembly. The screws pass through the clearance holes in the

PMK-4L (or BB-4L) and are secured in the extruded holes of the

adjustment plates.

7. Verify that the mud ring plate is level.

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the mud ring

plate.

8. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

9. Apply drywall joint compound as needed to finish the cutout. Avoid

covering the four tapped mounting holes.

10. Run the necessary cables for the touchpanel and secure them behind the

drywall.

11. When dry, the touchpanel can be installed using the four tapped holes

in the PMK-4L. Refer to the latest revision of the

TPS-4L Operations Guide (Doc. 6449) or the TPMC-4L Operations

Guide (Doc. 6450) for installation instructions.

Installation Guide – DOC. 6389 Mud Mount Kits: MMK-4L & WMKM-4L •5

Mud Mount Kits Crestron MMK-4L & WMKM-4L

WMKM-4L Procedure

The procedure in this section provides the necessary steps for the assembly and

installation of the WMKM-4L into a wall. Review the procedure and complete the

steps in the order provided. The only tools or materials required and not supplied are

a drywall saw or equivalent, a level, four standard drywall screws, #2 Phillips

screwdriver, and tools/material to apply drywall joint compound.

CAUTION: Allow an air gap of at least 12 inches in the wall cavity above the

touchpanel for heat dissipation.

1. Insert the two pins on one adjustment plate into the top two outer holes

on the mounting plate, as shown in the following illustration.

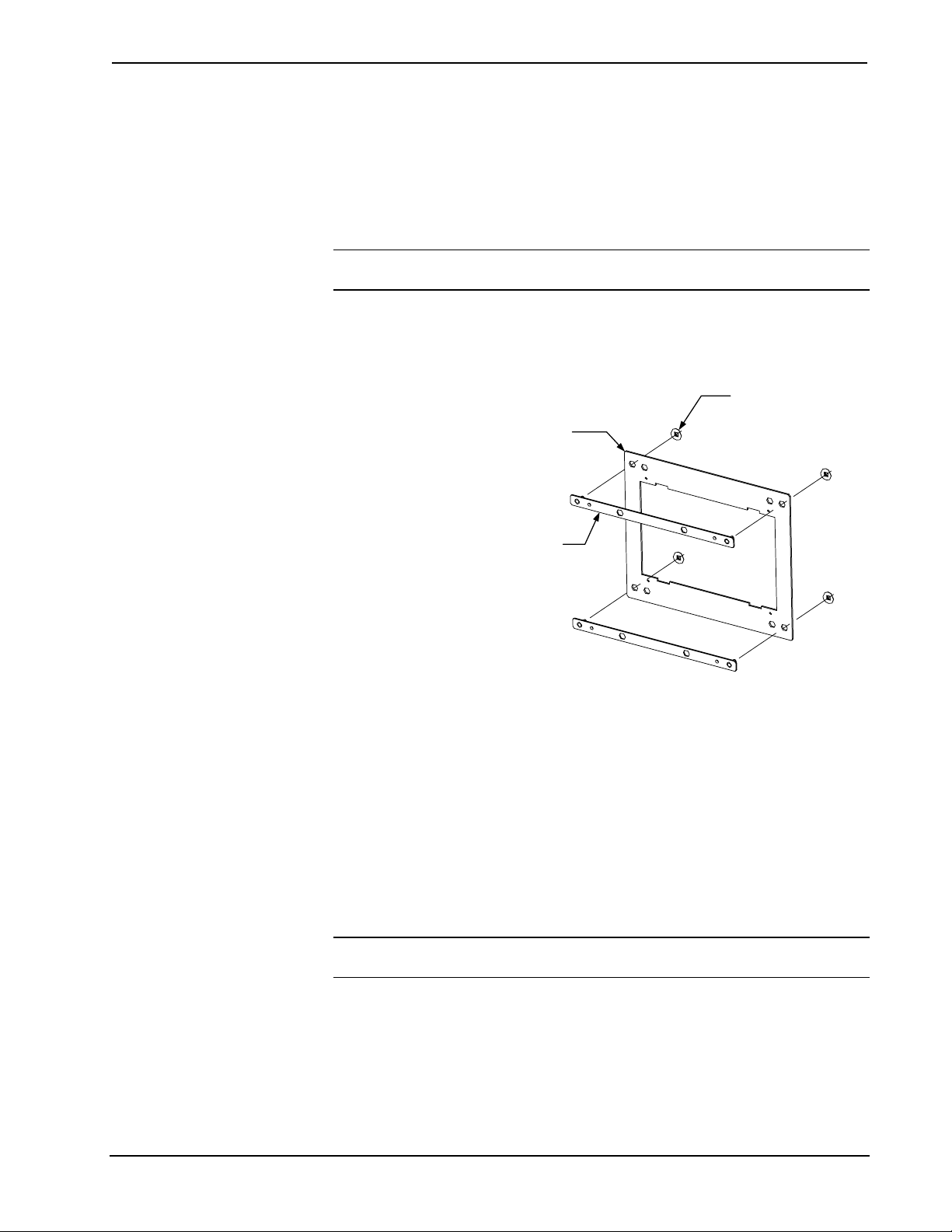

Create the Adjustment/Mounting Plate Assembly

(1) MOUNTING PLATE

(2013242)

(2) ADJUSTMENT PLATE

(2013243)

(4) PUSH-ON FASTENER

(2004121)

2. Slide a push-on fastener over each pin on the adjustment plate to

loosely secure the adjustment plate and the mounting plate. Do not

push the push-on fasteners all the way down onto the pins. Slide them

on enough to keep the adjustment plate and mounting plate as one

adjustment/mounting plate assembly.

3. Use the second adjustment plate and repeat steps 1 and 2 using the

lower two pins.

4. Locate an area on the wall that is free of miscellaneous wiring and

studs.

5. Make a small hole near the middle of the designated site; verify that the

location is suitable.

NOTE: Make the cutout as level as possible. The mounting plate allows for only

minor leveling adjustments.

6. Use the drywall saw or equivalent to produce a level, rectangular cutout

in the drywall as shown on page 3.

7. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

6 •Mud Mount Kits: MMK-4L & WMKM-4L Installation Guide – DOC. 6389

Crestron MMK-4L & WMKM-4L Mud Mount Kits

Insert the Mud Ring Plate into the Opening

DRYWALL

FLANGE

HOLES FOR DRYWALL

SCREWS (NOT INCLUDED).

SCREW LENGTH SHOULD

NOT EXCEED DRYWALL

THICKNESS BY MORE

THAN ½ INCH.

MUD RING PLATE

(2013240)

8. Carefully pass the adjustment/mounting plate assembly through the

opening and rest the assembly against the interior surface of the

drywall. Verify that the adjustment plates are between the mounting

plate and the drywall.

9. When the adjustment/mounting plate assembly is in position, bend the

top two flanges of the mud ring upward (approximately 90 degrees) and

the bottom two flanges downward (approximately 90 degrees). Refer to

the illustration after this step.

NOTE: Adjustment/mounting plate assembly will have slight play; this is normal. It

allows for minor adjustments to the touchpanel during installation.

Bend Flanges

10. Use four standard drywall screws (of adequate length) to secure the

plate to the adjustment/mounting plate assembly. The screws pass

through the clearance holes in the plate and are secured in the extruded

holes of the adjustment plates.

11. Verify that the plate is level before tightening.

Installation Guide – DOC. 6389 Mud Mount Kits: MMK-4L & WMKM-4L •7

Mud Mount Kits Crestron MMK-4L & WMKM-4L

NOTE: Do not over tighten screws. Doing so may damage the plate.

12. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

13. Run the necessary cables for the touchpanel and secure them behind the

drywall.

14. Apply drywall joint compound as needed to finish the cutout. Avoid

covering the four tapped mounting holes.

15. When dry, the touchpanel can be installed using the four tapped holes

in the mounting plate. Refer to the latest revision of the

TPS-4L Operations Guide (Doc. 6449) or the TPMC-4L Operations

Guide (Doc. 6450) for details.

Further Inquiries

If you cannot locate specific information or have questions after reviewing this

guide, please take advantage of Crestron's award winning customer service team by

calling the Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876].

For assistance in your local time zone, refer to the Crestron website

(www.crestron.com) for a listing of Crestron worldwide offices.

You can also log onto the online help section of the Crestron website to ask

questions about Crestron products. First-time users will need to establish a user

account to fully benefit from all available features.

As of the date of manufacture, the MMK-4L and WMKM-4L have been tested and

found to comply with specifications for CE marking.

Future Updates

As Crestron adds improvements to the MMK-4L or WMKM-4L, additional

information may be made available as manual updates. These updates are solely

electronic and serve as intermediary supplements prior to the release of a complete

technical documentation revision.

Check the Crestron website periodically for manual update availability and its

relevance. Updates are identified as an “Addendum” in the Download column.

8 •Mud Mount Kits: MMK-4L & WMKM-4L Installation Guide – DOC. 6389

This manual suits for next models

Table of contents

Other Crestron Rack & Stand manuals

Crestron

Crestron PMK-4000L User manual

Crestron

Crestron MK-IM-RX User manual

Crestron

Crestron UCA-RMK-1U User manual

Crestron

Crestron TSW-UMB-PMK User manual

Crestron

Crestron MMK-4000L User manual

Crestron

Crestron MPC3-101-RMB User manual

Crestron

Crestron MMK-V15 User manual

Crestron

Crestron TMK-12L User manual

Crestron

Crestron BB-1000L User manual

Crestron

Crestron PMK-6X-DSW User manual

Crestron

Crestron Pre-Construction Wall Mount Back Box... User manual

Crestron

Crestron TMK-1000L User manual

Crestron

Crestron TSD-2020-WMK-BB User manual

Crestron

Crestron BB-1000L User manual

Crestron

Crestron RMK-12L User manual

Crestron

Crestron TSW-RMB User manual

Crestron

Crestron MMK-15L User manual

Crestron

Crestron CPC-TMT How to use

Crestron

Crestron DMF-CI-8 User manual

Crestron

Crestron WMKU-4SM User manual

Crestron

Crestron SMK-12 User manual

Crestron

Crestron MMK-CB User manual

Crestron

Crestron TS-70 Series User manual

Crestron

Crestron TSW-560 User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
