Creative Handsfree with Bluetooth Technology CB2455 User manual

Creative Headset CB2455 With

Bluetooth Technology

Microphone

Earpiece

Light Emitting

Diode (LED)

Power adapter jack

Multi-function

button

Volume

Increase

button

Volume Decrease button

When your headset is not in use, clip the earpiece to your headset as shown below.

Wireless Bluetooth headset_cutdown.fm Page 1 Wednesday, December 29, 2004 6:11 PM

Getting Started

1Charge your headset

Fully charge your headset before using it for the first time. This takes approximately five

hours. Consequently, charging your headset takes three hours.

Reading your headset’s LED

The table below shows you the various LED indications available.

LED Meaning

Red On (when charging) Battery is charging.

Blinks every five

seconds Battery low.

Blue

On (when charging) Fully charged.

Blinks once every five

seconds Headset is paired to your mobile phone and is in standby mode.

Blinks once every 15

seconds Call in progress.

Blue and

red Blinks alternately Headset is in pairing mode and is ready for pairing.

Headset is paired, connected and the microphone is muted.

Wireless Bluetooth headset_cutdown.fm Page 2 Wednesday, December 29, 2004 6:11 PM

2Pair your headset and mobile phone

1. If your headset is turned on, turn it off by pressing and holding the Multi-function

button until the LED turns red.

2. Place your headset within one meter of your mobile phone.

3. Press and hold the Multi-function button and one of the Volume buttons

simultaneously, until the LED alternately blinks red and blue.

4. Turn on your mobile phone’s Bluetooth feature. For more information, see your

mobile phone’s documentation.

5. Set your mobile phone to detect Bluetooth devices.

6. From the list that appears, select CB2455Creative.

7. When prompted for a passkey, enter 0000 to complete pairing.

• If the pairing is not completed within two minutes, your headset turns itself off

automatically.

Wireless Bluetooth headset_cutdown.fm Page 3 Wednesday, December 29, 2004 6:11 PM

Using Your Headset

*Some features are available only for certain mobile phones. Refer to your mobile phone’s documentation.

Usage Action

Turning on

headset Press and hold the Multi-function button for three seconds. The LED turns

blue.

Turning off

headset Press and hold the Multi-function button until the LED turns red.

Making a call Make sure that your headset is turned on (it may be in standby mode when

inactive), dial the number, and then proceed with your call.

Answering a call If there is an incoming call, your earpiece and mobile phone rings, and your

headset beeps. Press the Multi-function button.

Ending a call Press the Multi-function button to end a call. You can also end a call using

your mobile phone.

Voice Dial* Press the Multi-function button and when you hear a beep, say the voice

tag.

Last Number

Redial* Press the Multi-function button twice within one second.

Adjusting volume Press the Volume Increase or Volume Decrease button to gradually

increase or decrease the volume.

Rejecting a call Press and hold the Multi-function button for three seconds.

Putting a call on

hold Press and hold the Volume Increase and Volume Decrease buttons

simultaneously, for one second.

Switchingbetween

calls Press the Volume Increase and Volume Decrease buttons

simultaneously.

Mute Press and hold one of the Volume buttons until the LED alternately blinks

red and blue.

To unmute the microphone, press and hold one of the Volume buttons until

the LED blinks blue.

Clearing all

headset pairings

Makesure that your headset is turned off. Press and hold one of the Volume

buttons for 20 seconds. The LED alternately blinks red and blue. Press and

hold one of the Volume buttons again until you hear two beeps. Charge

your headset for a few seconds to reset your headset. All current pairings

are cleared.

Wireless Bluetooth headset_cutdown.fm Page 4 Wednesday, December 29, 2004 6:11 PM

Frequently Asked Questions

The headset fails to pair with my mobile phone.

• Check that your mobile phone’s Bluetooth feature is turned on.

• Make sure that your headset is turned on, fully charged and is within one meter of your

mobile phone.

• Recharge your headset and mobile phone, and try pairing both devices again.

What causes poor signal quality?

Keep your headset within 10 meters of your mobile phone and make sure that there are no

obstructions, such as walls or other electronic devices, between your headset and mobile

phone (for example, cordless phones and some wireless networking devices).

Will my headset interfere with my computer or car’s electronic devices?

You should not experience any interference when using your headset near standard

consumer-grade electronics equipment.

Can other Bluetooth-enabled mobile phone users accidentally tune in on my

conversation?

When you pair your headset to your mobile phone, you are creating a private link between

both devices. The wireless Bluetooth technology prevents monitoring by third parties.

Can I use my headset with other Bluetooth products?

Your headset will work with all Bluetooth version 1.1 or higher devices. These devices,

however, must have the Headset or Handsfree profile. For more information on

international Bluetooth standards, go to www.bluetooth.com.

How do I change my headset’s cover?

Wireless Bluetooth headset_cutdown.fm Page 5 Wednesday, December 29, 2004 6:11 PM

General Specifications

Bluetooth operation: • Bluetooth version1.2 compliance

• Bluetooth 2.4 GHz Class 2 radio,up to a radius of 10 meters

(32.8 feet) (varies depending on environment)

Supported Bluetooth profile: Headset and handsfree profiles

Frequency range: 2.4000 - 2.4835 GHz

Battery type: Built-in Lithium-ion battery (rechargeable)

Talk Time: Up to 6 hours *

Standby Time: Up to 200 hours *

* May vary depending on operation mode and mobile phone settings.

More Information

Enjoy a host of benefits by registering your product during installation, or at

www.creative.com/register.

Benefits include:

• Service and product support from Creative

• Exclusive updates on promotions and events.

Please note that your warranty rights are not dependent on product registration.

For more information on Creative Customer Support Services and Warranty, go to

www.europe.creative.com/support.

Creative Knowledge Base

Resolve and troubleshoot technical queries at Creative's 24-hour self-help

Knowledge Base. Go to www.creative.com and select your region.

Wireless Bluetooth headset_cutdown.fm Page 6 Wednesday, December 29, 2004 6:11 PM

Safety Advice

General Safety

Power Adapter Safety Notice

Power Source

This product is specially designed for operation within the electrical range(s) specified on

the provided power adapter. Any usage outside of these ranges is at your own risk.

If you are not sure of the type of power supply to your home, consult your product dealer

or local Power Company.

Cleaning

Unplug your headset from the power source and turn your headset off before cleaning. Do

not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Servicing

Do not attempt to service the product or change the battery on your own. Refer all

servicing to your local Customer Support Services center.

nc.,USA.Allotherproductsaretrademarksorregisteredtrademarksoftheirrespectiveownersandareherebyrecognize

ssuch.Allspecifications aresubject to changewithoutpriornotice.Actual contentsmaydifferslightlyfromthose picture

Wireless Bluetooth headset_cutdown.fm Page 7 Wednesday, December 29, 2004 6:11 PM

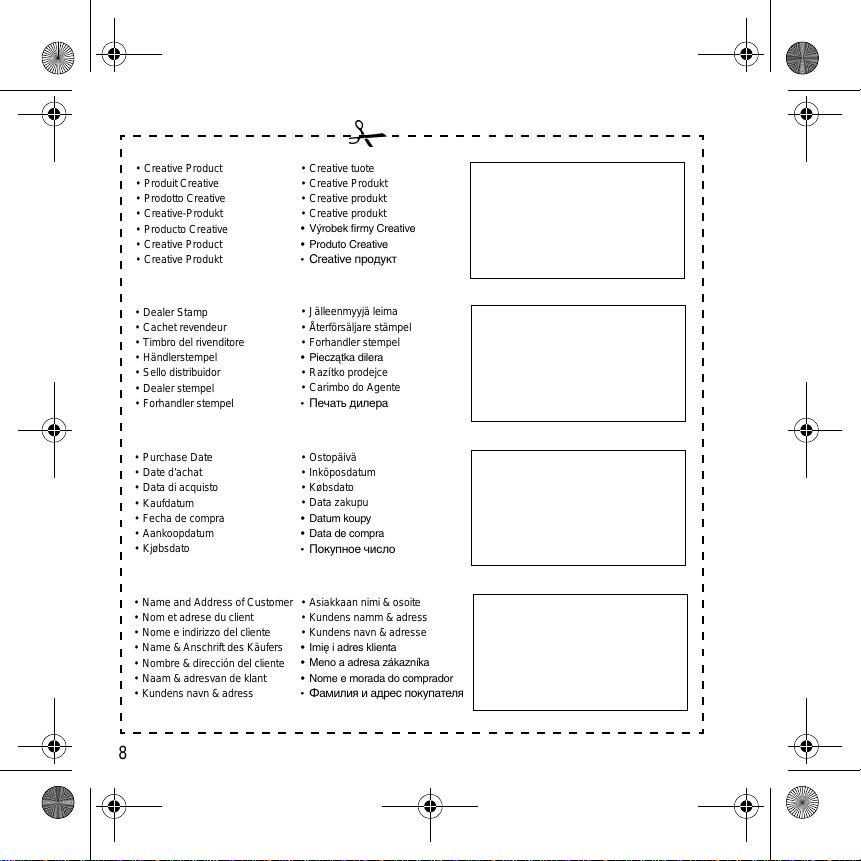

• Creative Product

• Produit Creative

• Prodotto Creative

• Creative-Produkt

• Producto Creative

• Creative Product

• Creative Produkt

• Creative tuote

• Creative Produkt

• Creative produkt

• Výrobek firmy Creative

• Produto Creative

• Creative продукт

• Dealer Stamp

• Cachet revendeur

• Timbro del rivenditore

• Händlerstempel

• Sello distribuidor

• Dealer stempel

• Forhandler stempel

• Jälleenmyyjä leima

• Återförsäljare stämpel

• Forhandler stempel

• Pieczątka dilera

• Razítko prodejce

• Carimbo do Agente

• Печать дилера

• Purchase Date

• Date d’achat

• Data di acquisto

• Kaufdatum

• Fecha de compra

• Aankoopdatum

• Kjøbsdato

• Ostopäivä

• Inköposdatum

• Købsdato

• Data zakupu

• Datum koupy

• Data de compra

• Покупное число

• Name and Address of Customer

• Nom et adrese du client

• Nome e indirizzo del cliente

• Name & Anschrift des Käufers

• Nombre & dirección del cliente

• Naam & adresvan de klant

• Kundens navn & adress

• Asiakkaan nimi & osoite

• Kundens namm & adress

• Kundens navn & adresse

• Imię i adres klienta

• Meno a adresa zákazníka

• Nome e morada do comprador

• Фамилия и адрес покупателя

Wireless Bluetooth headset_cutdown.fm Page 8 Wednesday, December 29, 2004 6:11 PM

• Creative Product

• Produit Creative

• Prodotto Creative

• Creative-Produkt

• Producto Creative

• Creative Product

• Creative Produkt

• Creative tuote

• Creative Produkt

• Creative produkt

• Výrobek firmy Creative

• Produto Creative

• Creative продукт

• Dealer Stamp

• Cachet revendeur

• Timbro del rivenditore

• Händlerstempel

• Sello distribuidor

• Dealer stempel

• Forhandler stempel

• Jälleenmyyjä leima

• Återförsäljare stämpel

• Forhandler stempel

• Pieczątka dilera

• Razítko prodejce

• Carimbo do Agente

• Печать дилера

• Purchase Date

• Date d’achat

• Data di acquisto

• Kaufdatum

• Fecha de compra

• Aankoopdatum

• Kjøbsdato

• Ostopäivä

• Inköposdatum

• Købsdato

• Data zakupu

• Datum koupy

• Data de compra

• Покупное число

• Name and Address of Customer

• Nom et adrese du client

• Nome e indirizzo del cliente

• Name & Anschrift des Käufers

• Nombre & dirección del cliente

• Naam & adresvan de klant

• Kundens navn & adress

• Asiakkaan nimi & osoite

• Kundens namm & adress

• Kundens navn & adresse

• Imię i adres klienta

• Meno a adresa zákazníka

• Nome e morada do comprador

• Фамилия и адрес покупателя

Wireless Bluetooth headset_cutdown.fm Page 8 Wednesday, December 29, 2004 6:11 PM

This device complies with part 15 of the FCC Rules. Operation is subject to the following two 

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any 

interference received, including interference that may cause undesired operation. See 47 CFR Sec. 

15.19(3).

General Information

FCC Notice to Users

This equipment has been tested and found to comply with the limits for a Class B digital device, 

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and 

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, 

may cause harmful interference to radio communications. However, there is no guarantee that 

interference will not occur in a particular installation. If this equipment does cause harmful 

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or 

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is 

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Note: The manufacturer is not responsible for any radio or TV 

interference caused by unauthorized modifications made by the 

user to this equipment. Such modifications could void the 

user's authority to operate the equipment.

Other manuals for Handsfree with Bluetooth Technology CB2455

Table of contents

Other Creative Headset manuals

Creative

Creative SOUND BLASTER WORLD OF WARCRAFT HEADSET - Reference guide

Creative

Creative Aurvana Air User manual

Creative

Creative WP-350 User manual

Creative

Creative SOUND BLASTER RECON3D OMEGA WIRELESS - Reference guide

Creative

Creative SOUND BLASTER TACTIC3D OMEGA WIRELESS User manual

Creative

Creative SOUND BLASTER TACTIC3D OMEGA WIRELESS User manual

Creative

Creative Sound BlasterX H6 User manual

Creative

Creative WP-250 User manual

Creative

Creative SOUND BLASTER WORLD OF WARCRAFT HEADSET - User manual

Creative

Creative SoundBlaster Tactic 3D Rage GH0220A... Quick start guide

Creative

Creative Sound Blaster EVO ZxR Guide

Creative

Creative SOUND BLASTER WORLD OF WARCRAFT HEADSET - User manual

Creative

Creative SXFI AIR GAMER User manual

Creative

Creative Sound Blaster EVO User manual

Creative

Creative HS-720 V2 User manual

Creative

Creative SoundBlaster Tactic 3D Rage GH0220A... User manual

Creative

Creative Aurvana Live!2 User manual

Creative

Creative SOUND BLASTER TACTIC3D OMEGA WIRELESS User manual

Creative

Creative HEADSET HS-1200 User manual

Creative

Creative Sound Blaster Jam User manual

Creative

Creative HEADSET HS-1200 User manual

Creative

Creative Sound Blaster EVO User manual

Creative

Creative Sound Blaster Blaze V2 User manual

Creative

Creative SOUND BLASTER TACTIC360 ION - User manual

Popular Headset manuals by other brands

Sena

Sena SMH10 quick start guide

IASUS

IASUS Stealth IA-NT4-BASIC-BT manual

Sennheiser

Sennheiser EPOS ADAPT 230 user guide

Doro

Doro Flexus HS2005 user guide

GE 98971 datasheet

Hama

Hama 00184070 quick start guide

Plantronics

Plantronics Blackwire 3200 Series user guide

Blue Tiger

Blue Tiger Advantage PLUS user manual

Jawbone

Jawbone Icon user manual

Jabra

Jabra FR 20 user guide

Roxcore

Roxcore Flow A+ manual

Turtle Beach

Turtle Beach XP 510 user guide

Philips

Philips SHB6101 Specification sheet

Jabra

Jabra PRO 9460 Duo datasheet

HyperX

HyperX HyperX Cloud Flight manual

Bose

Bose MIE2 Mobile owner's guide

Jabra

Jabra Steel quick start guide

HyperX

HyperX cloud ii quick start guide
