Cozzia CZ-357 User manual
USER MANUAL CZ-357
Hello.
Cozzia CZ-357.
At Cozzia we understand that every body is different and have carefully designed your massage chair with that in mind.
1
MASSAGE
INTRO
TABLE OF CONTENTS
Dimensions
Contents
Operation Guide
Pre-Programed Description
2
3
8-10
11-12
CARE
Care and Storage
Warranty
Safety
FCC Statement
13-14
Grounding Instruction 15
15
16
Troubleshooting 16
17
CHAIR
Move & Clearance
Components
Massage Points
Specification
4
5
6
7
2
DIMENSIONS
First, let’s get your chair inside.
44.5”
63.0”
30.1”
Base Footrest
1
Box 2
Box
20.9”
22.8”
24.4”
31.5”
59.8”
38.6”
3

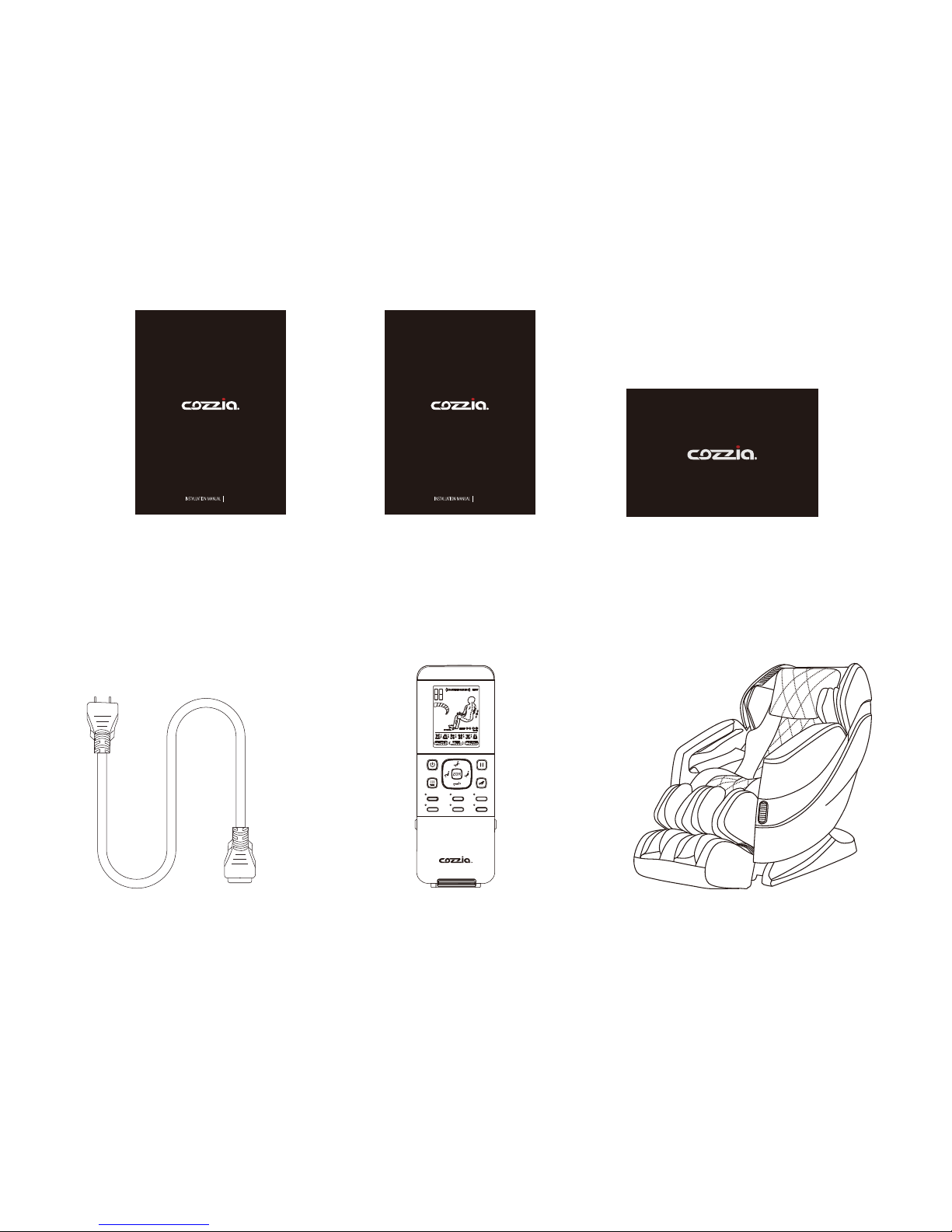

CONTENTS
CZ-357
www.cozziausa.com
Warranty Postcard
CZ-357 Massage Chair Remote ControlPower Cord
Everything you need for a relaxing experience.
User Manual
CZ-357
DEMOGentle Relax
Neck & ShoulderStretchVigorous
Installation Manual
CZ-357
4
Move & Clearance
Reserve space on left and right Reserve space on the front and back
8” 8”
31.5”
3”
CLEARANCE
HOW TO MOVE
Two people are needed to lift the chair
A few simple steps to find the best place for your new chair.
Lift up footrest 45 degrees onto the wheels
5
CHAIR COMPONENTS
Note: The speaker will only operate when the massage chair is in operation
Some of your chair’s most important features.
LED
Backrest Pad
Remote Control
Side Panel
Footrest
Pillow
Shoulder Panel
Armrest
Seat Pad
To play music using your massage chair’s speakers please connect your
smartphone, tablet, or other electronic device to your chair using bluetooth.
Speaker
Castor
DEMOGentle Relax
Neck&ShoulderStretchVigorous
6
MASSAGE POINTS
12 Air Bags
18 Air Bags
8 Air Bags
Back Massage Mode Air Bag RollerHeaters
7
CHAIR SPECIFICATIONS
Model No.
CZ-357
Power Consumption
100W
Max Massage Time
30 minutes
Shipping Weight
Gross weight: 225 lbs
Net weight: 185.2 lbs
Safety Feature
Equipped with overheatingand power
surge detectors safety feature
Dimensions (L x W x H)
Chair dimension: 63.0"x30.1"x44.5"
Reclined dimension: 72.1"x30.1"x37.0"
A few important facts about your massage chair.
Rated Voltage
110 - 120V
Rated Frequency
60Hz
Power of Speakers
14W (2 sides)
Length of Wiring
Controller wiring27.6"
Power supply wiring70.9”
Usage Condition
Environment temperature: 10。
C-40。
C
Contrastinghumidity: 30-85RH
Storage Condition
Storage temperature: -20。
C-60。
C
Storage humidity level: 30-85RH
8
OPERATION GUIDE
Connect to the power supply, and turn the switch to “I” position, chair is now in idle mode.
During its idle mode ON/OFF button will blink.
During its idle mode, only ON/OFF, Pause, Leg rest Recline/Restore, Chair Recline/Restore buttons can be operated.
DEMOGentle Relax
Neck & ShoulderStretchVigorous
Manual
Vibration Full Air Partial Air Intensity
Strength Speed Width
DEMOGentle Relax
Neck & ShoulderStretchVigorous
1 2
13
11
14
17
16
21
20
24
25
15
12
18
19
22
23
27
26
4
6
7
10
3
5
8
9
