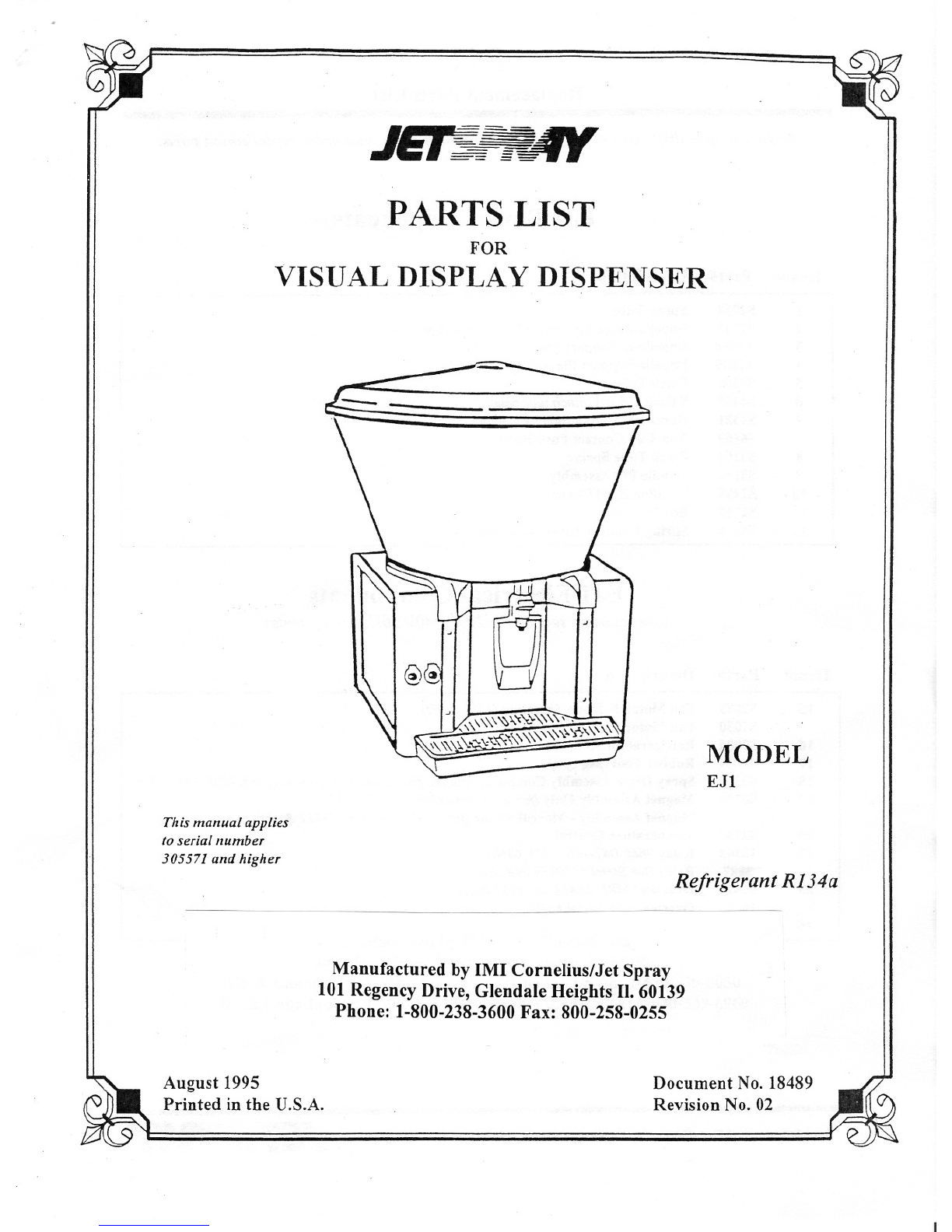

Cornelius Jet Spray EJ1 User manual

PARTS LIST

FOR

VISUAL DISPLAY DISPENSER

This manual applies

to seriaillumber

305571 and higher

Manufactured by IMI Cornelius/Jet Spray

101 Regency Drive, Glendale Heights II. 60139

Phone: 1-800-238-3600Fax: 800-258-0255

August 1995

Printed in the U.S.A.

MODEL

EJ1

Refrigerant R134a

Document No. 18489

Revision No.02

EJI

Replacement Parts List

Be sure to give dispenser serial and model number whenyou orderreplacementparts.

Item# Part# Description

'34

S2722

S2721

A3058

A2549.

S4206

S4467

S4381

S6469

S4363

S3150

S2498

SI717

S4576

EJI Bowl Components

Spray Tube

Impella Assembly (beige) 1113/'circulationhole

Impella & Support Pin

Impella Support Pin w/Clip

Pinch Tube

8 Gallon Bowl (pinch tube type)

Handle Assembly (pinch tube type)

Non-Cup Contact Push Handle

Pinch Tube Spring

Handle Pin Assembly

8 Gallon Bowl Cover

Bowl Gasket

Spring Retainer Rivet Only (Pkgof 6)

EJI Electrical Components

(see separate section for 220VI240V 50Hz components)

Description

Fan Motor & Blade Assembly (J15V160Hz)

Fan Motor Only (J 15V160Hz)

Refrigeration Spray Switch

Rubber Foot (pkg of 4) .

Spray Drive Assembly Complete(includes.fan assembly &mounting bracket)(115VI60Hz)

Magnet Assembly Only (forspray drive)(belowsin 3182/2) .

Magnet Assembly -Morrill Motor (for spray drive)(sln 3182/2 &above)

Temperature Control

Relay 9660-042-166 (l15V 60Hz)

Relay (for Serial #339669 and above)

Overload MRP-26ALL 69 (115 V 60Hz)

Overload (jor Serial #339669 and above)

Power Cord (domestic &WI6 only)

YourStandard of Excellence for Beverage Merchandising on Six Continents

Item# Part#

15 S2883

S1630

16 S3004

17 A0081

18 S3357

19 S6750

20 S2747

22 18368

3887

23 S2828

18370

25 S1249

EJI

Replacement Parts List

Be sure to give dispenser serial and model number when you order replacementparts.

ACCESSORY

15-6737

For older unIts

«,

Replaces Items

:1 and #2 for

pulpy products

ACCESSORY

/JA 1620

Replaces Items

#1 and 2 for

Foam Product

---

-- - /1J8-@

*Seealternate 22.0V/240V50Hz Parts Listing

YourStandard of Excellence for Beverage Merchandising on Six Continents

EJI

Replacement Parts List.

Be sure to give dispenser sertal and model number when you order replacement parts.

All prices and specifications are subject to change without notice.

lei Spray dispensers are manufactured under anumber of us. and Foreign Patents.

imitation afthis equipment will be vigorollsly prosecuted. Any infringement or

Your Standard of Excellence for Beverage Merchandising on Six Continents

EJl Chassis Components

Item# Part# Description

31 A7342 Drip Tray Cover (std white)

19273 Drip Tray Cover (black)

32 A7343 Drip Tray (std white)

19274 Drip Tray (black)

33 S2009 Front Panel Assembly

34 A7304- Right Side (std white)

19269 Right Side (black)

35 A7291 Rear Panel (std white)

19270 Rear Panel (black)

36 S1150 Cabinet Screws (pkgof 12)

37 S3430 Perforated Side (screwfastened)

38 A7288 .Left Side (std white)

19268 Left Side (black)

39 S2836 Spray Switch Plate (white)

19271 Spray Switch Plate (black)

40 S2837 Refrigeration Switch Plate (white)
