3. Disconnect PRIMARY QUICK-DISCONNECT by grabbing sides

and pulling away from fixture. (Fig. 3)

NOTE: Fusing and the cube starter are accessible from

the bottom, exposed side of the POWER TRAY. They

may be serviced without opening the POWER TRAY.

4. Hold POWER TRAY HANDLE and press POWER TRAY

LATCH away from the power tray. Hinge power tray up

and lift from fixture.

(Fig. 4)

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-572 AVU040062

Ascent/Strut Fixtures

Sheet 1 of 5

4/26/04 IMI-572

INSTALLATION INSTRUCTIONS

IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.

General: Upon receipt of fixture thoroughly inspect for any

freight damage, which should be brought to the attention of

the delivery carrier. Compare the catalog description listed

on the packing slip with the fixture label on the housing to

assure you have received the correct merchandise.

Safety: This fixture must be wired in accordance with

the national electrical code and applicable local codes

and ordinance. Proper grounding is required to insure

personal safety. Carefully observe grounding procedure.

All work should be done by an electrician.

WARNING: Risk of Electric Shock. Disconnect power at fuse or circuit breaker panel or

fuse box before installing or servicing.

WARNING: Risk of Personal Injury. Fixture may become damaged and/or unstable if not

installed properly. Tighten all fixture components to their recommended torque

values.

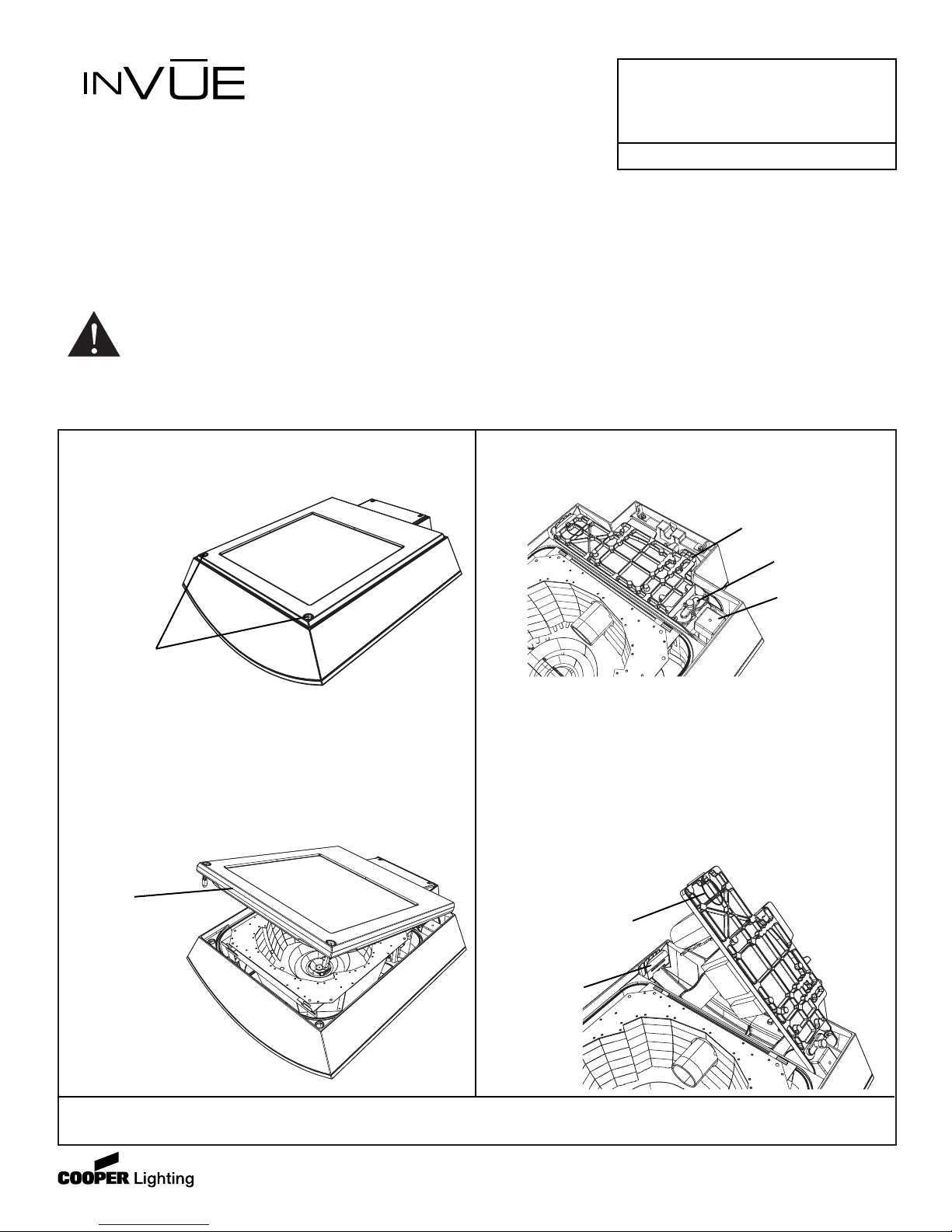

1. Open door by depressing LATCH BUTTONS into door and

lifting. (Fig. 1)

2. Remove DOOR while it is at a 20°- 30°angle to the housing.

This will allow the door to slide over and forward from the

hinges. (Fig. 2)

Fig. 1

Fig. 2

Fig. 3

LATCH

BUTTONS

PRIMARY

QUICK

DISCONNECT

FUSES

STARTER

Fig. 4

POWER TRAY

HANDLE

POWER TRAY

LATCH

DOOR

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-572 AVU040062

Ascent/Strut Fixtures

Sheet 2 of 5

4/26/04 IMI-572

INSTALLATION INSTRUCTIONS

IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.

WARNING: Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing

or servicing.

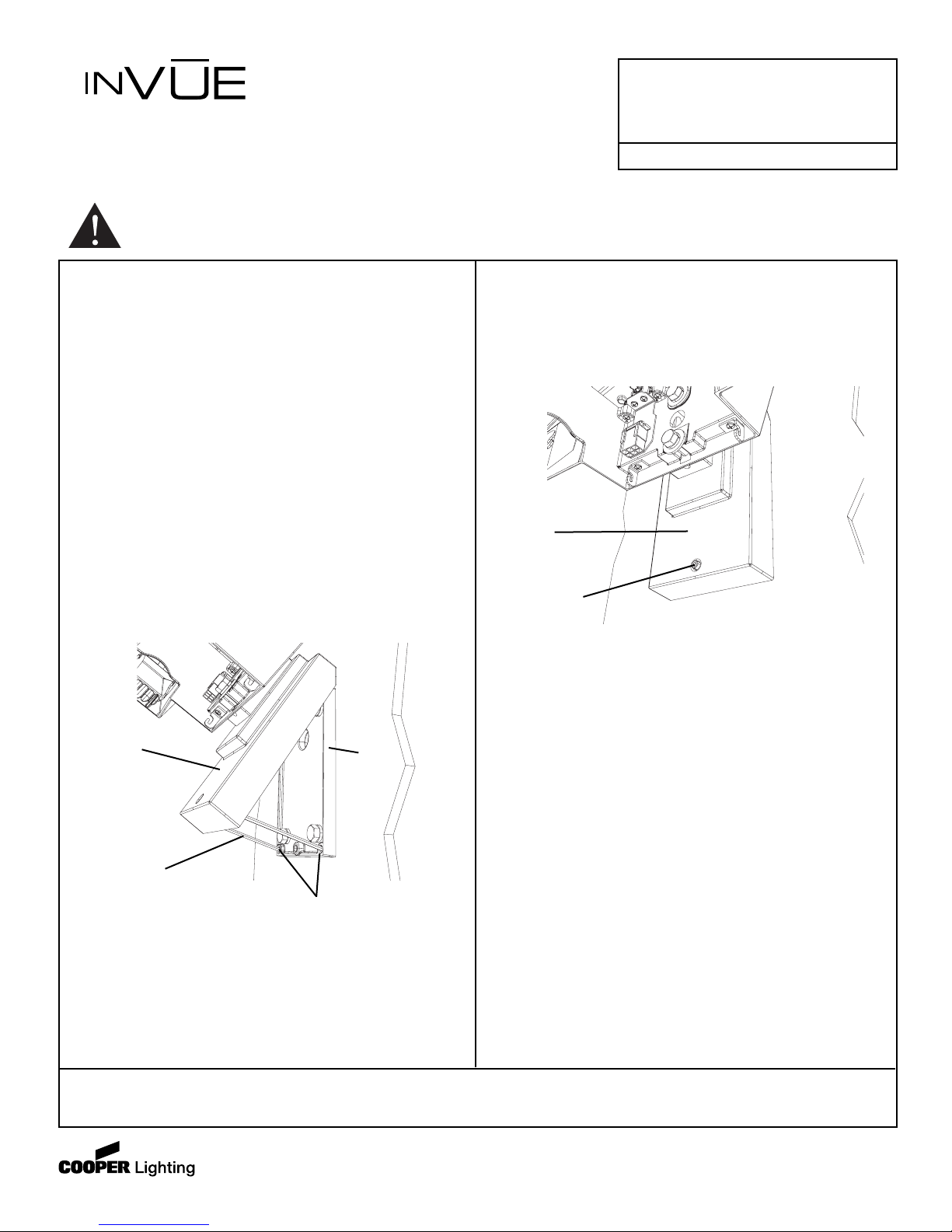

5. Using WALL PLATE as a template, drill (4) holes in wall. Install

appropriate wall anchors (not supplied) and secure GASKET

and WALL PLATE to wall with (4) 1/2-13 X 1-12 long BOLTS

and (4) Lockwashers (Fig. 5). Torque BOLTS to 450 in/lbs.

NOTE: The SPACER, WALL BRACKET and associated

components and hardware are shipped separately from the

fixture.

6. Assemble WALL BRACKET to SPACER and HOUSING with

(2) BOLTS, (2) FLAT WASHERS, and (2) LOCK WASHERS by

feeding BOLTS through holes in SPACER and into tapped

holes in WALL BRACKET. (Fig. 6A & 6B)

Torque BOLTS as follows:

•(2) 1/2 - 13 (AEM) = 450 in/lbs OR

•(2) 5/16 - 18 (AES) = 130 in/lbs

WARNING

Risk of Personal Injury

Fixture may become damaged and/or

unstable if not installed properly

Tighten all fixture components to their

recommended torque values

WARNING: Risk of Personal Injury. Fixture may become damaged and/or unstable if not installed properly.

Tighten all fixture components to their recommended torque values.

Fig. 6A

BOLTS

LOCK

WASHERS

FLAT

WASHERS

HOUSING

SPACER

WALL

BRACKET

Fig. 6B

SUPPORT

BRACKET

WALL

BRACKET

BOLTS

LOCK

WASHERS

WALL

PLATE

BOX

HOLES

GASKET

Fig. 5

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-572 AVU040062

Ascent/Strut Fixtures

Sheet 3 of 5

4/26/04 IMI-572

INSTALLATION INSTRUCTIONS

IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.

RETAIN FOR FUTURE REFERENCE.

WARNING: Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing

or servicing.

7. Hook WALL BRACKET over WALL PLATE and place

SUPPORT BRACKET into SUPPORT HOLES in WALL PLATE

to support fixture as shown. (Fig. 7)

Make wire connections in WALL BRACKET.

Wire the fixture ground lead to the supply ground lead.

Wire the fixture voltage lead to the supply voltage lead.

Wire the fixture common lead to the supply common

lead.

NOTE: To wire to circuits not having a neutral lead (such

as 480V), connect the fixture voltage lead to one of the

supply leads and the fixture common lead to the other

supply lead.

8. Push SUPPORT BRACKET into WALL BRACKET and lower

fixture until WALL BRACKET fits over WALL PLATE. Tighten

1/4-20 SOCKET SCREW. (Fig. 8)

NOTE: Ensure wires are not pinched while closing WALL

BRACKET to WALL PLATE.

Fig. 7

WALL

BRACKET

SUPPORT

BRACKET

SUPPORT

HOLES

WALL

PLATE

Fig. 8

WALL

BRACKET

SOCKET

SCREW

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-572 AVU040062

Ascent/Strut Fixtures

Sheet 4 of 5

4/26/04 IMI-572

INSTALLATION INSTRUCTIONS

IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.

WARNING: Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing

or servicing.

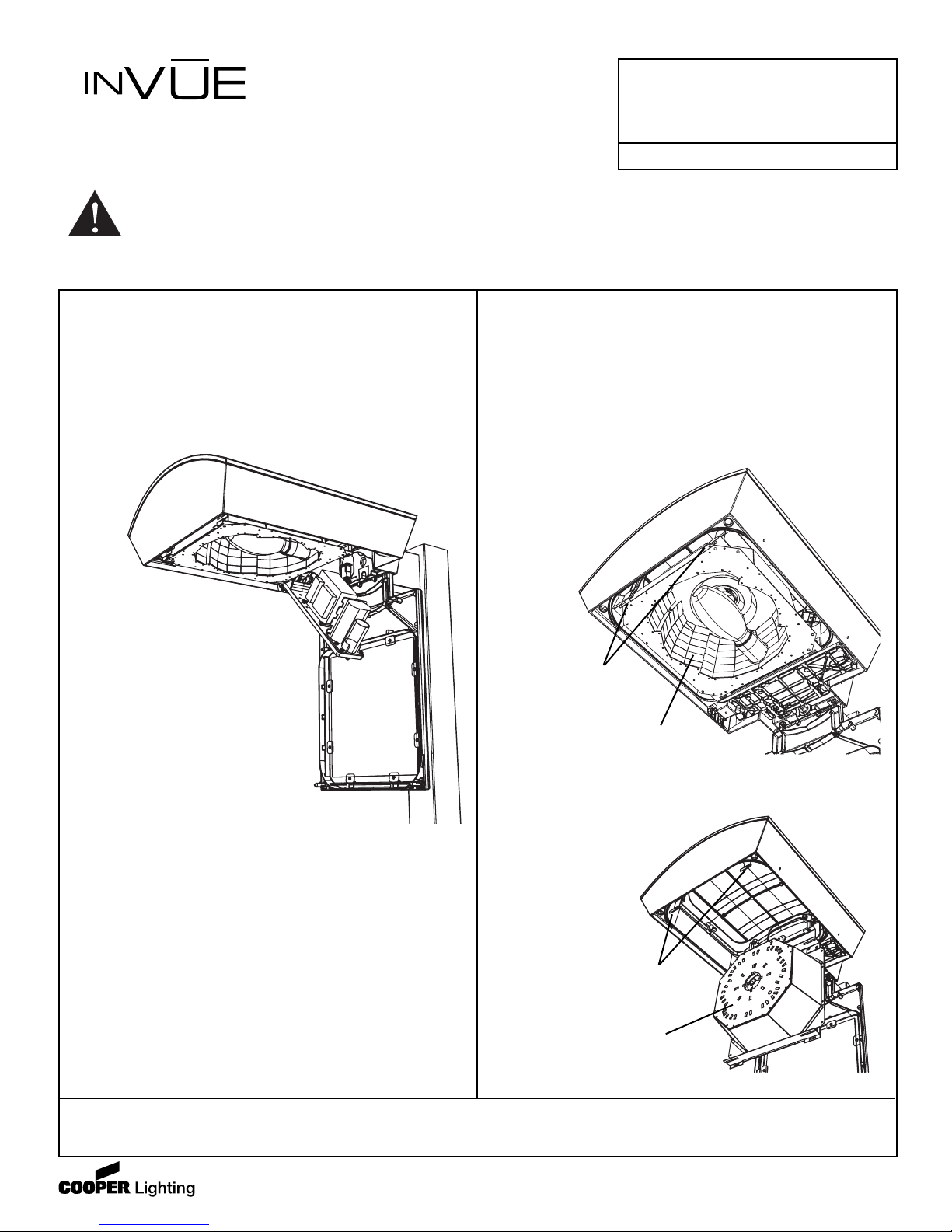

9. To reinstall POWER TRAY, hang POWER TRAY from POWER

TRAY HINGE, swing POWER TRAY up till POWER TRAY

LATCH snaps closed. Reconnect PRIMARY QUICK

DISCONNECT. Install lamp. Reinstall DOOR at 20°-30°angle

to housing, ensuring both hinges are engaged. Close DOOR,

ensuring DOOR LATCHES are completely engaged. (Listen

for both cams to “click”on each latch). (Fig. 9)

NOTE: Prior to installing the lamp, check to make sure lamp is of

proper type and wattage. Observe lamp manufacturer’s

recommendations and restrictions regarding lamp operation.

NOTE: Reflector are marked to insure reflector is installed in

proper orientation regarding “Street Side”. If other orientation

is desired, reflector may be rotated 90°in either direction.

Fig. 11b

REFLECTOR

TABS

REFLECTOR

TABS

REFLECTOR

Fig. 11a

REFLECTOR Rotation/Removal:

10. Open DOOR by depressing LATCH BUTTONS into door.

(Reference Fig. 1)

11. To lower REFLECTOR, press the two REFLECTOR TABS

outward and swing the REFLECTOR down. (Fig. 11a & 11b).

The REFLECTOR may now be lifted off of its hinges for

rotation or removal.

Fig. 9

WARNING: Risk of Personal Injury. Fixture may become damaged and/or unstable if not installed properly.

Tighten all fixture components to their recommended torque values.

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-572 AVU040062

Ascent/Strut Fixtures

Sheet 5 of 5

4/26/04 IMI-572

INSTALLATION INSTRUCTIONS

IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.

WARNING: Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing

or servicing.

NEMA TWIST LOCK PHOTOCONTROL & RECEPTACLE:

The photocontrol receptacle is factory installed and ordered with

the fixture. The photocontrol is ordered separately and must be

field installed. The voltage of the photocontrol must match the

voltage of the fixture.

FUSING:

Single fuse is available for use with 120V, 277V or 347V fixture.

Double fuse is available for use with 208V, 240V or 480V fixtures.

MAINTENANCE:

When maintenance is performed, check torque on all fasteners

and tighten to specified torque if required.

CLEANING:

The reflector and door glass may be cleaned with any suitable,

non-abrasive glass cleaning solution, soap or

detergent and rinsed with clean water. Please remove the

reflector and door from the fixture prior to cleaning.

KEEP THIS DOCUMENT FOR FUTURE REFERENCE

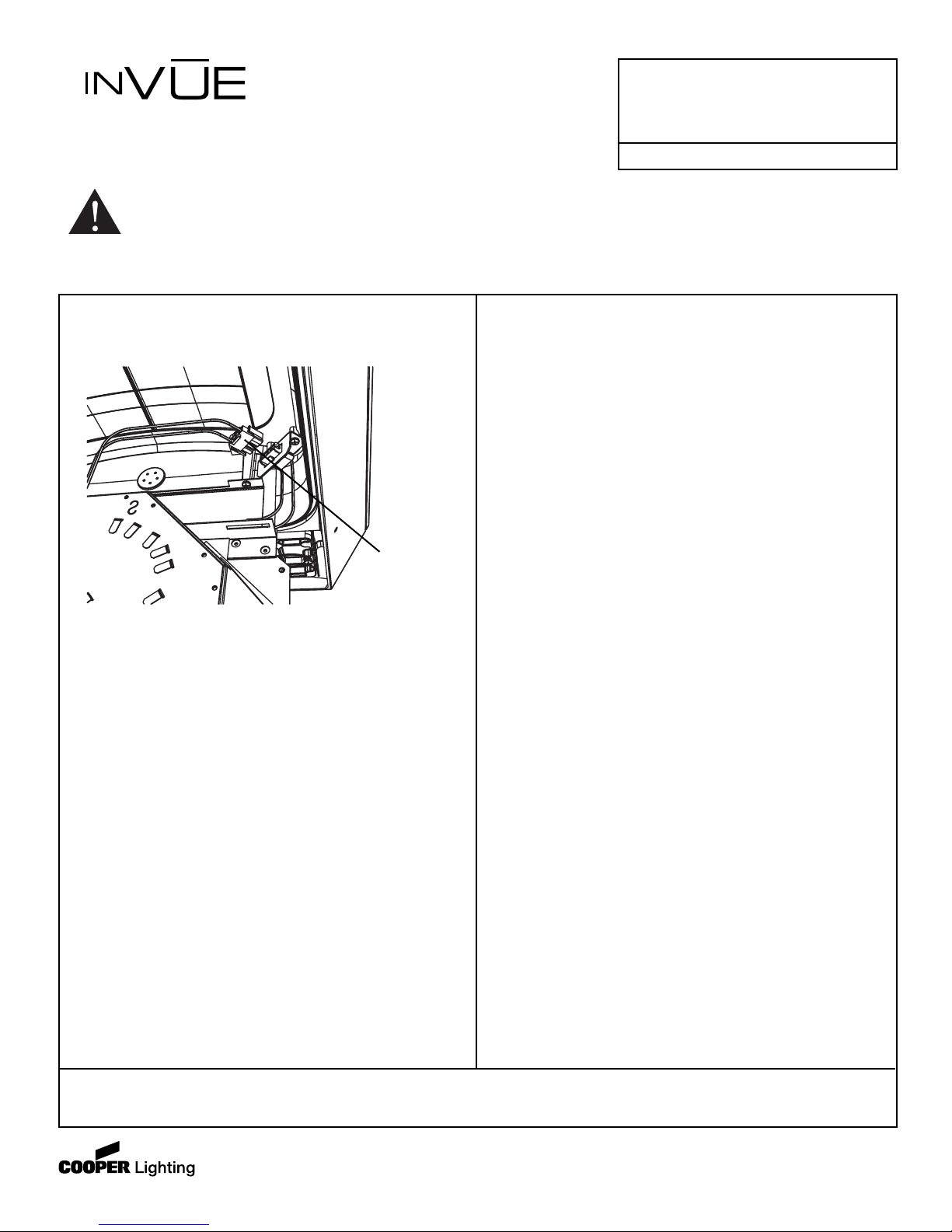

12. To remove the REFLECTOR, disconnect the REFLECTOR

CONNECTOR from the HOUSING. (Fig. 12)

13. To reinstall, reverse steps 12 and 11, listening for audible

clicks as REFLECTOR TABS engage REFLECTOR.

NOTE: This fixture is to be installed as a DOWNLIGHT ONLY.

This fixture is not suitable for UPLIGHT mounting

configurations.

REFLECTOR

CONNECTOR

Fig. 12

WARNING: Risk of Personal Injury. Fixture may become damaged and/or unstable if not installed properly.

Tighten all fixture components to their recommended torque values.
