Connects2 CAM-32 User manual

www.c2vision-eu.com

Image Sensor: 1099 HD CCD

TV Lines: 560

Resolution: 976 x 496

Minimum Illumination: 0.1 Lux

TV System: NTSC

Waterproof Rating: IP68

Viewing Angle: 135 Degrees (Horizontal) 105 Degrees (Vertical)

Electronic Shutter: NTSC 1/60S, PAL 1/50S

Enhanced Performance In Low Light: Yes

Video Output: 1.0V p-p 75ohm

Operating Voltage: 12-24V DC (Negative Ground)

Current Consumption: 138.8 mA @ 13.8V

Operating Temperature: -20 Degrees C to +75 Degrees C

User Manual

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation.

The place of installation must be free of moisture and away from heat sources. Please

ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Technical Support

Connects2 want to provide a fast and suitable resolution should you encounter any

technical issues. With this in mind, when contacting Connects2, try to provide as

much Information as possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

Universal Reverse Camera ideal for

Van/Camper Vans

PRODUCT FEATURES:

DISCLAIMER:

CAM-32

2

Connects2Vision

www.c2vision-eu.com

CONTENTS

• Camera with 30cm connection cable

• Instructions

INSTALLATION

Note: CAM-RCA1 extension cable is required for installation.

1. Connect the Black wire to a suitable ground and the Red wire to a switched

+12V supply.

2. If the camera is to be used in the rear of the vehicle, the Red wire should

be connected to the reversing light circuit or an interface which provides a

reverse signal.

3. Select a suitable location for the camera and ensure that the area is free

from all cables, fuel & oil. Whenever possible, avoid locations that are subject

to road dirt & water spray.

4. Mount the camera to the desired location and connect the CAM-RCA1

extension cable to the 30cm connection cable.

5. Connect the camera to the display screen via the Yellow RCA connector

and ensure that the image is displayed correctly.

6. Adjustment of the camera may be required to ensure that the correct

angle/orientation of the image is achieved.

Subscribe to our YouTube Channel for installation

guides and tips... www.youtube.com/connects2

Other Connects2 Automobile Accessories manuals

Connects2

Connects2 CTUST02 User manual

Connects2

Connects2 CT23AU13/L User manual

Connects2

Connects2 CTKIV02 User manual

Connects2

Connects2 CAM-KIT12 User manual

Connects2

Connects2 Aerpro CAKI01 User manual

Connects2

Connects2 CTSBM011.2 User manual

Connects2

Connects2 CAM-58 User manual

Connects2

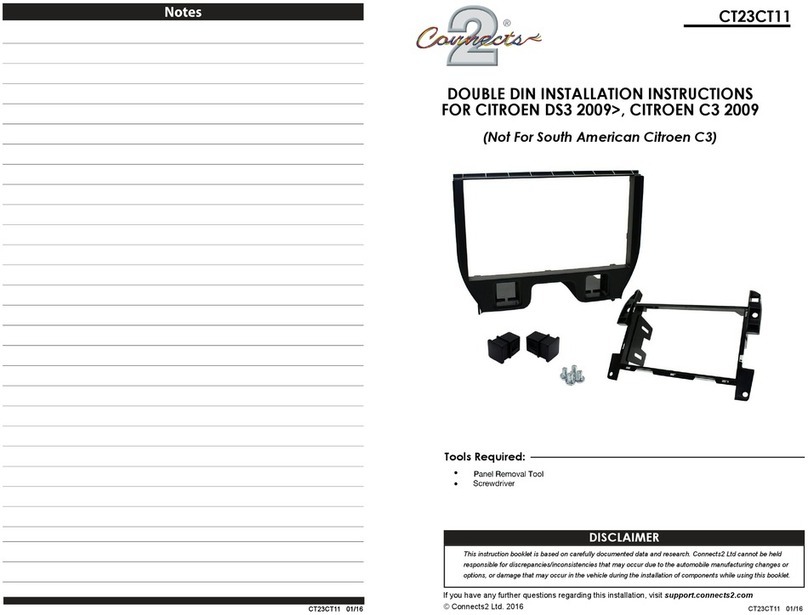

Connects2 CT23CT11 User manual

Connects2

Connects2 CT23TY82 User manual

Connects2

Connects2 Connects2Vision CAM-PO1 User manual

Connects2

Connects2 CAM-35 User manual

Connects2

Connects2 Connects2Vision CAM-AU4 User manual

Connects2

Connects2 CTQIAU03 Operation manual

Connects2

Connects2 CAN-Connect CANHBJP1 User manual

Connects2

Connects2 CT53-PO05 User manual

Connects2

Connects2 CTSJD001.2 User manual

Connects2

Connects2 CTUPO01 User manual

Connects2

Connects2 CT23CA06 User manual

Connects2

Connects2 CAM-RT6 User manual

Connects2

Connects2 CT23DG06 User manual

Connects2

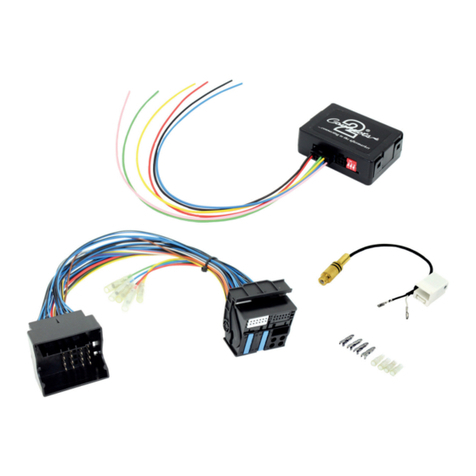

Connects2 CAM-BM1-AD User manual

Connects2

Connects2 Connects2Vision CAM-8 User manual

Connects2

Connects2 Aerpro CAKI01 User manual

Connects2

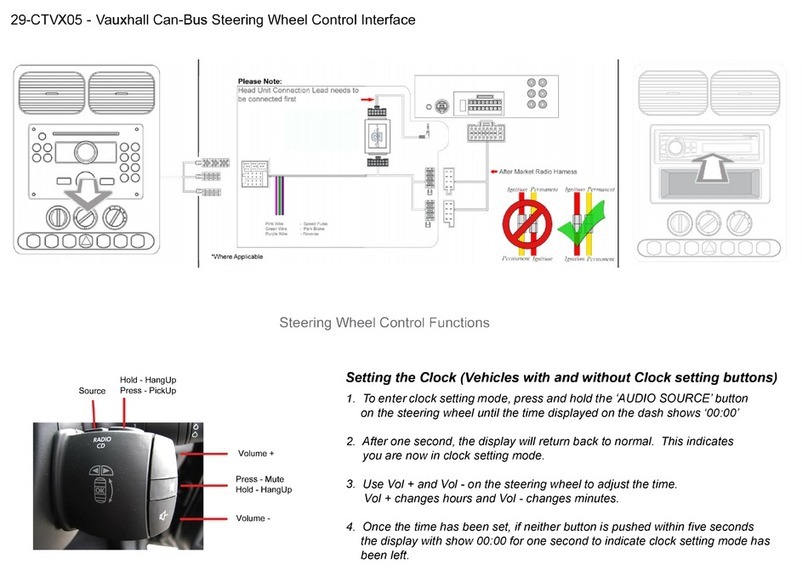

Connects2 29-CTVX05 User manual
