Compaq StorageWorks 3000 - RAID Array Instruction Manual

AA–RAD0D-TE Page 1

Compaq

Compaq Compaq

Compaq Storageworks

StorageworksStorageworks

Storageworks







Release Notes

RAID Array 3000 for Microsoft Windows

January, 2001

This document summarizes features and characteristics of the RAID Array 3000 operating software

Version 1.3 for Windows T and Windows 2000 systems that are not covered elsewhere in the

documentation.

** NOTICE **

Read this entire document before

installing

or upgrading the software.

** NOTICE **

Compaq StorageWorks RAID Array 3000 for Microsoft Windows

Page 2 AA–RAD0D–TE

COMPAQ, the Compaq logo and StorageWorks Registered with the U.S. Patent

and Trademark Office.

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft

Corporation.

All other product names mentioned herein may be trademarks of their respective

companies.

Confidential computer software. Valid license from Compaq required for

possession, use or copying. Consistent with FAR 12.211 and 12.212,

Commercial Computer Software, Computer Software Documentation, and

Technical Data for Commercial Items are licensed to the U.S. Government

under vendor's standard commercial license.

Compaq shall not be liable for technical or editorial errors or omissions

contained herein. The information in this document is subject to change without

notice.

THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS”

WITHOUT WARRANTY OF ANY KIND. THE ENTIRE RISK ARISING

OUT OF THE USE OF THIS INFORMATION REMAINS WITH RECIPIENT.

IN NO EVENT SHALL COMPAQ BE LIABLE FOR ANY DIRECT,

CONSEQUENTIAL, INCIDENTAL, SPECIAL, PUNITIVE OR OTHER

DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION,

DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS

INTERRUPTION OR LOSS OF BUSINESS INFORMATION), EVEN IF

COMPAQ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES AND WHETHER IN AN ACTION OF CONTRACT OR TORT,

INCLUDING NEGLIGENCE.

The limited warranties for Compaq products are exclusively set forth in the

documentation accompanying such products. Nothing herein should be

construed as constituting a further or additional warranty.

Compaq StorageWorks RAID Array 3000 for Microsoft Windows

Release Notes

Part Number AA-RAD0D-TE

Release Notes

AA–RAD0D–TE Page 3

Visit out Web Site for the latest Information

Check our web site for the latest drivers, technical tips and documentation for the RAID

Array 3000. We can be found in the technical area of our web page:

http://www.compaq.com/storage

Supported Operating Systems for the RAID Array 3000

You have purchased support for the Windows NT operating system version 4.0 with

Service pack 6a and Windows 2000 operating system. The supported host adapter is the

SWXA3-BD differential PCI host adapter.

Supported Configurations

Your RAID Array 3000 contains a single dual-ported controller. This allows support for

eight SCSI logical units (LUNs) per port, or a total of 16 LUNs per controller. A second

controller (DS-HSZ22-AA) can be added for redundancy and performance. The

minimum version of controller firmware for both controllers is D11U. The controller

firmware contained on the CD-ROM is D11X (in the \firmware directory) that is part of

this kit. If the controller is running an earlier revision of firmware (D10I, D11O, D11U,

or D11V), you will need to upgrade the firmware prior to making the RAID Array 3000

operational.

You can create a Windows NT boot partition on the RAID Array 3000 storage

subsystem. The Windows NT boot partition can be at most 4 GB in size. Ensure that the

host adapter is configured to default parameters (BIOS enable, wide negotiation, >1 GB

translation).

Compaq StorageWorks RAID Array 3000 for Microsoft Windows

Page 4 AA–RAD0D–TE

Table 1 lists the minimum system requirements need for the RAID Array 3000.

Table 1 Minimum System Requirements

Host Feature Requirements

Platform X-86 P200 System. 64MB RAM, 10 MB Disk Space

Operating System Windows NT 4.0 SP4 ,Windows 2000 for SWCC client; Windows

NT 4.0 SP6a ,Windows 2000 SP1 for SWCC Agent

Controller Compatibility The HSZ22 controller running operating firmware, version D11X.

Adapter Compatibility DG-SWXA3-BD

The StorageWorks Command Console (SWCC) version 2.2 is the only configuration

utility that will work with your RAID Array 3000. Command Console version 2.2

sometimes referred to as Client, runs on Windows NT 4.0 SP4, and Windows 2000.

Required Driver Revisions

HSZDISK

HSZDISK.SYS is a class driver required for all RAID Array 3000 Windows NT

configurations. It is designed to enhance the error recovery features built into your

Compaq RAID system, and to provide more robust operation than the native Windows

NT SCSI disk class driver. HSZDISK.SYS only affects DIGITAL RAID devices. Other

SCSI disk drives in your system continue to be serviced by the native SCSIDISK.SYS

class driver. The drivers included in the CD-ROM labeled Compaq StorageWorks

RA3000 Solution Software version 1.3 for Windows NT. The install process will

automatically determine if you are working in Windows NT 4.0 or Windows 2000.

Release Notes

AA–RAD0D–TE Page 5

SCSI Host Adapter Description

The host adapters qualified for use with your StorageWorks RAID Array 3000 for

Windows NT is the SWXA3-BD Ultra-Wide Differential SCSI Host Adapter. Table 2

lists the specifications of the qualified host adapter.

Table 2 RAID Array 3000 Qualified Adapter

PCI Adapter BIOS Revision Windows NT version 4.0

Driver

SWXA3-BD 2.11 4.0

Windows 2000

Driver

SWXA3-BD 2.11 5.0.2144.1

Order Information

Table 3 lists the order numbers for the RAID Array 3000 upgrade options and

replacement parts.

Table 3 RAID Array 3000 Upgrades and Replacement Parts

Part Number Option Description

DS-HSZ22-AA, AB Second controller option

DS-SWXRA-GD Expansion pedestal option

54-23170-BA SIMM Pack for cache memory

DS-SWXRA-GR Replacement UPS

Supported Devices

Firmware version D11w or higher supports the devices listed in Table 4 at the

indicated hardware and Microcode levels or higher.

Compaq StorageWorks RAID Array 3000 for Microsoft Windows

Page 6 AA–RAD0D–TE

Table 4 Supported Disk Drives

Part Number Description Minimum Firmware Level

DS–RZ1CF–VW

(380691-B21)

4.3GB, 7200RPM disk in 3.5” SBB 0371/N1H1/1614

DS–RZ1DF–VW

(380595-B21)

9.1GB, 7200RPM disk in 3.5” SBB 0371/N1H1/1614

DS–RZ1EF–VW

(380694-B21)

18.2GB, 7200RPM disk in 3.5” SBB 0371/N1H1

DS–RZ1CD–VW 4.3GB, 10000RPM disk in 3.5” SBB 0306

DS–RZ1DD–VW

(380588-B21)

9.1GB, 10000RPM disk in 3.5” SBB 0306/3B07/3B012/BDC4

DS–RZ1ED–VW

(380589-B21)

18.2GB, 10000RPM disk in 3.5” SBB 0306/3B07/B012/BDC4/3B05

DS–RZ1FC–VW

(159138-001)

36.4GB, 10000RPM disk in 3.5” SBB 38FA

DS–RZ1BB–VW

(380695-B21)

2.1 GB, 7200RPM disk in 3.5” SBB LYJ0/0658

DS–RZ1CB–VW 4.3 GB, 7200RPM disk in 3.5” SBB LYJ0/0658

DS–RZ1DB–VW

(380693—B21)

9.1 GB, 7200RPM disk in 3.5” SBB LYJ0/0658

DS–RZ1DA–VW

(147597-001)

9.1GB, 7200RPM disk in 3.5” SBB 3B05/B012

DS–RZ1EA–VW

(147598-001)

18.2GB, 7200RPM disk in 3.5” SBB 3B05

DS–RZ1FB–VW

(147599-001)

36.4GB, 7200RPM disk in 3.5” SBB 3B05

On-line Documentation

Your RAID Array 3000 reference manuals are part of the RAID Array 3000 version 1.3

for Windows NT CD-ROM. They can be viewed and printed using Adobe Acrobat

Reader when installed on an X-86-based Windows platform. A copy of the reader is

included in the CD-ROM for your convenience.

Release Notes

AA–RAD0D–TE Page 7

RAID Array 3000 Operating Constraints

Controller

Always operate Your RAID Array 3000 with the UPS-to-Pedestal Serial Cable

connected.

The UPS serial cable must be connected at all times. This cable is used to communicate a

power failure to the controller. When the controller senses a power failure, it

automatically saves your data to disk. The purpose of the UPS is to keep your system

running until the controller accomplishes its task of saving cache data to disk.

Wait until the Disk Drive Fault Indicator Clears before using the Disk.

Disk drive fault LED clearing takes approximately two minutes. Do not attempt to use a

disk drive until its fault indicator turns off.

Compaq StorageWorks RAID Array 3000 for Microsoft Windows

Page 8 AA–RAD0D–TE

EMU Warning Conditions

Tables 5 and 6 list the warning conditions presented by SWCC environmental properties

page and the RAID Array 3000 controller shelf fault LED, respectively.

Table 5 SWCC/Caution Icon Warning Conditions

Pedestal UPS Temperature Fan Power Supply

Pedestal

SWCC/Caution

Icon

ON ON ON ON

Pedestal

Expansion

SWCC/Caution

Icon

ON ON ON ON

Controller Shelf

SWCC/Caution

Icon

ON ON No Caution Icon ON

Expander Shelf

SWCC/Caution

Icon

N/A No Caution

Icon

ON (Expansion

cabinet is abnormal)

ON (Expansion

cabinet is abnormal)

Release Notes

AA–RAD0D–TE Page 9

Table 6 Fault LED Warning Conditions

Pedestal UPS Temperature Fan Power Supply

Pedestal Fault LED ON ON ON ON

Pedestal Expansion

Fault LED ON ON ON ON

Controller Shelf

Controller Shelf LED ON ON No Fault Indication ON

Expander Shelf

Controller Shelf LED N/A ON No Fault Indication ON

Compaq StorageWorks RAID Array 3000 for Microsoft Windows

Page 10 AA–RAD0D–TE

Changing the RAID Array Configuration

Note

To safe guard critical data backup your system using

normal backup procedures before altering device

partitions. Do not alter partitions that contain

important data.

When making changes to an existing RAID Array configuration, any existing disk

partitions to be changed (or removed) must first be deleted using the Windows NT

Administrator. After they have been deleted, you may use the StorageWorks RAID Array

3000 Storage Subsystem Command Console Client to create new virtual disks. (Refer to

the Command Console User’s Guide and on-line help to make changes).

Other manuals for StorageWorks 3000 - RAID Array

This manual suits for next models

Table of contents

Other Compaq Storage manuals

Compaq

Compaq ML330 - ProLiant - G3 User manual

Compaq

Compaq SW TL881 DLT Mini-Lib/1 User manual

Compaq

Compaq 230050-001 - StorageWorks NAS B3000 Model N900... User manual

Compaq

Compaq 230039-001 - StorageWorks NAS Executor E7000 Model 904... User manual

Compaq

Compaq 230050-001 - StorageWorks NAS B3000 Model N900... User manual

Compaq

Compaq 219700-001 - ProLiant - 1500 User manual

Compaq

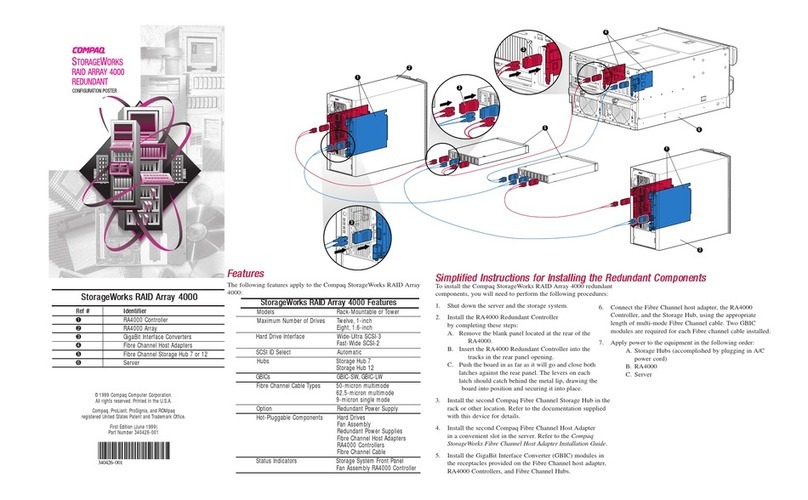

Compaq StorageWorks 4000 - RAID Array Quick guide

Compaq

Compaq MSL5026 User manual

Compaq

Compaq StorageWorks MSL5026DLX User manual

Compaq

Compaq StorageWorks SDLT User manual

Compaq

Compaq StorageWorks ESL9000 Series User manual

Compaq

Compaq Storage Works ESL9198 Series Installation and operation manual

Compaq

Compaq StorageWorks 3000 - RAID Array Instruction Manual

Compaq

Compaq SDLT 110 User instructions

Compaq

Compaq SW TL881 DLT Mini-Lib/1 User manual

Compaq

Compaq StorageWorks 4000 - RAID Array User manual

Compaq

Compaq StorageWorks TM RAID Array 3000 Pedestal Storage... Installation manual

Compaq

Compaq 157767-001 - AIT Drive 50/100 Tape User manual

Compaq

Compaq StorageWorks 4000 - RAID Array Quick reference guide

Compaq

Compaq DLT User manual

Compaq

Compaq SDLT 110 User manual

Compaq

Compaq 230039-001 - StorageWorks NAS Executor E7000 Model 904... Manual

Compaq

Compaq ProLiant User manual

Compaq

Compaq 157770-001 - DAT Drive 20/40 Tape Instruction Manual

Popular Storage manuals by other brands

QNAP

QNAP TS 32PXU Series user guide

LaCie

LaCie RUGGED RAID user manual

Freecom

Freecom CLS DOCK Quick install guide

PNY

PNY Attache P-FD64MBATT3 install guide

HP StorageWorks MSL2024 Getting started

OLT

OLT 6x6 Maximizer Assembly manual

Transcend

Transcend JetFlash 160 Specifications

LaCie

LaCie RUGGED MINI user manual

Thunderbolt

Thunderbolt 600 user manual

Panasonic

Panasonic LB-DH8 series Operator's guide

Intel

Intel RAID High Availability user guide

LaCie

LaCie 12big Thunderbolt 3 Quick install guide

Spectra Logic

Spectra Logic T-Series Spectra T50e quick start guide

Panasonic

Panasonic LKM-F931-1 instruction manual

Tabernus

Tabernus Enterprise Erase E2400 user guide

Rocstor

Rocstor COMMANDER 3F series user manual

HP P9000 user guide

Western Digital

Western Digital Ultrastar Data60 installation guide
