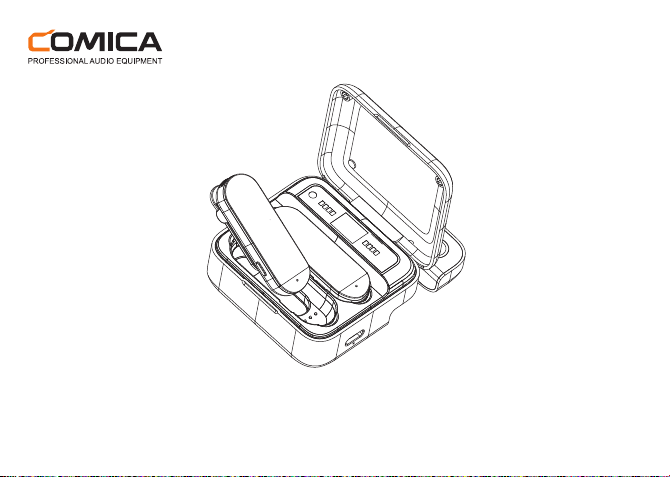

Comica Vimo S-UC User manual

User Manual

2.4G Dual-channel Mini Wireless Microphone

Vimo S-UC

Foreword

Features

Thanks for purchasing Comica 2.4G Dual-channel Mini Wireless Microphone Vimo S-UC.

● Mini and Lightweight, Unique Magnetic Integrated Microphone

● 48kHz/24bit Record, Broadcasting-level Sound Quality

● USB Digital Output, Universal for Computers and Phones

● Stepless Volume Adjustment, One-key Muting and Denoise

● USB-C Charging/Monitoring Port, Support Pass-through Phone Charging

● Support Monitoring with Zero-latency and Mono/Stereo Switch

● Rechargeable Storage Case for Charging, Storing and Power Monitoring

● Duration Up to 15 Hours, Support Using While Charging

● Low Latency < 20ms, Working Range Up to 200m(Open Area)

Notice

Due to 2.4G wireless characteristics, please keep face to face when use it, and don’t turn your back to the

receiver, otherwise it is easy to generate breakpoints, which is a normal phenomenon.

Due to the characteristics of lithium batteries, the transmitter's charging indicator will show an inaccurate

battery level when the charging starts, and the actual power may be lower than the indicated power. If the

transmitter runs out of power, it will take more than two hours to get fully charged.

Please pay attention that it can not realize STEREO function when in single-channel mode.

Please do not expose the product to rain or moisture, and avoid having water or other liquids spilled on it.

Please do not use or store the product near any heat sources such as radiators, stoves, or other

heat-producing appliances.

This product is a high-precision product, please prevent it from dropping or colliding.

Packing List

①Transmitter(TX)

②Receiver(RX)

③Charging Case

④Wind Mu

⑤2 in 1 Charging/Monitoring Adapter Cable

⑥USB C-USB A Charging Cable

⑦User Manual

⑧Warranty Card

UserManual

Versatile 2.4G Wireless Mini USB Microphone

VimoS-UC

①x2 ④x2 ⑤ ⑥ ⑧⑦

② ③

Components and Instruction

①Internal Mic

②Working Status Indicator:

Blink blue slowly when unpaired; Blink rapidly when pairing;

Show blue when paired; Show green when denoise is on; Show red when muting.

③Belt Clip

④Mute/Denoise/Pairing Switch Button:

Short press for muting; Long press for pairing when unpaired; Long press for denoise when paired.

⑤Charging Contacts

Transmitter (TX):

①

②

③

④⑤

①Charging/Monitoring Port

②USB-C Plug

③Transmitter Volume Control Knob:

Adjust the volume of transmitter 1/2 synchronously. Turn counterclockwise to increase the volume,

and turn clockwise to reduce the volume.

④Transmitter 1/2 Pairing Indicator:

Blink blue when unpaired; Show blue when paired.

⑤Mode Indicator:

Show blue when in mono mode; Indicator is o when in stereo mode.

⑥Mono/Stereo Switch Button:

Short press to switch Mono/Stereo mode.

Receiver (RX):

④

③

⑤

②

①

⑥

Charging Case:

①USB-C Port

②Battery Level Indicator Button:

Short press to show the battery level of charging case and transmitters.

③Charging Case Battery Level: 0-100

④Battery Level Indicator of Transmitters:

The left indicators show the battery level of the transmitter placed in the charger well 1;

The right indicators show the battery level of the transmitter placed in the charger well 2.

There are four power indicator lights, one of which represents 25% of the power.

⑤Charger Well 1

⑥Charger Well 2

⑦USB-C Charging Port

⑧Restoration Hole

①②

⑤

⑥

④

③

⑦

⑧

Installation and Usage

Pairing (All have been paired at the factory. If you need to re-pair, please follow the steps below.)

Long press the pairing button on the TX to pair. The indicator lights on the TX and the RX will show blue when

the pairing is successful.

Usage

1. Remove the transmitters and the receiver from the charging case

Remove from the left side
