Comeup CEP-1000-14M User manual

Electric Grooved Winch

Model: CEP

1000

P/N: 275817 380V50Hz

XFeature

Lifting Capacity 1,000 kg, double fall load

Power Source 3 phase 50 Hz 380V

Motor 2 hp x 4 p

Drum Grooved

Wire Rope 8 mm x 34 m

Lifting Height 14 m

Lifting Speed 7.5 m/min, double fall load

Brake Electromagnetic spring-applied failsafe brake

Control Pendant switch CPB-213 w/cord 2.0 mm2

x 5C x 3 m

XRead this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage

XWarning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on single fall rope on the drum.

．The rope winding on the drum shall remain 3 wraps from the drum.

XInformation requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

XMaintenance and Inspection

Classification of checks

Periodical

Daily One

month

Three

month

One

year

Checking Item Checking

Method Checking Reference

◎Marking

Label and the

like Visual Existence of label

◎

Winding-in

direction of

wire rope

Visual ,

measuring

Fleet angle

θ=within 3.0 degree

◎

Installation Loosing and

centre run-out

foundation

Checking of

installing bolts Existence of abnormality

◎Working Manual Reasonable actuation

◎

Condition of

clamping of

wiring

Decomposition

checking

Confirming of accuracy

of fastening condition

◎Wearing of

contact point

Decomposition

checking

To be free from

remarkable wearing and

damage

◎Outer damage

of lead Visual To be free from exposure

of conductive wire

◎◎

Attaching

condition of

earth line

Visual

Existence of

abnormalities of

connecting wires

◎

Control

Switch

Condition of

insulation

Measure with

500v insulation-

Resistance tester

1MΩmin

◎Condition

of insulation

Measure with

resistance tester 1MΩmin

◎

Motor Staining

damage

Decomposition

check

Existence of

abnormalities

◎Braking gap Measuring Within 0.35 mm

◎Wearing of

disc

Decomposition

check

To be free from

remarkable wear and

damage

◎◎

Brake

Performance Visual

Distance to be not more

than 1.5% of rope length

to be wound-in during 1

minute

◎Damage ,

wearing

Decomposition

check

To be free from

remarkable wear and

damage

◎

Gear

Condition of

grease feeding Measuring

Existence of suitability of

amount and deterioration

with grease Mobilux

EP2.Shell Unedo 2 or

Esso Beacon EP2

Parts List

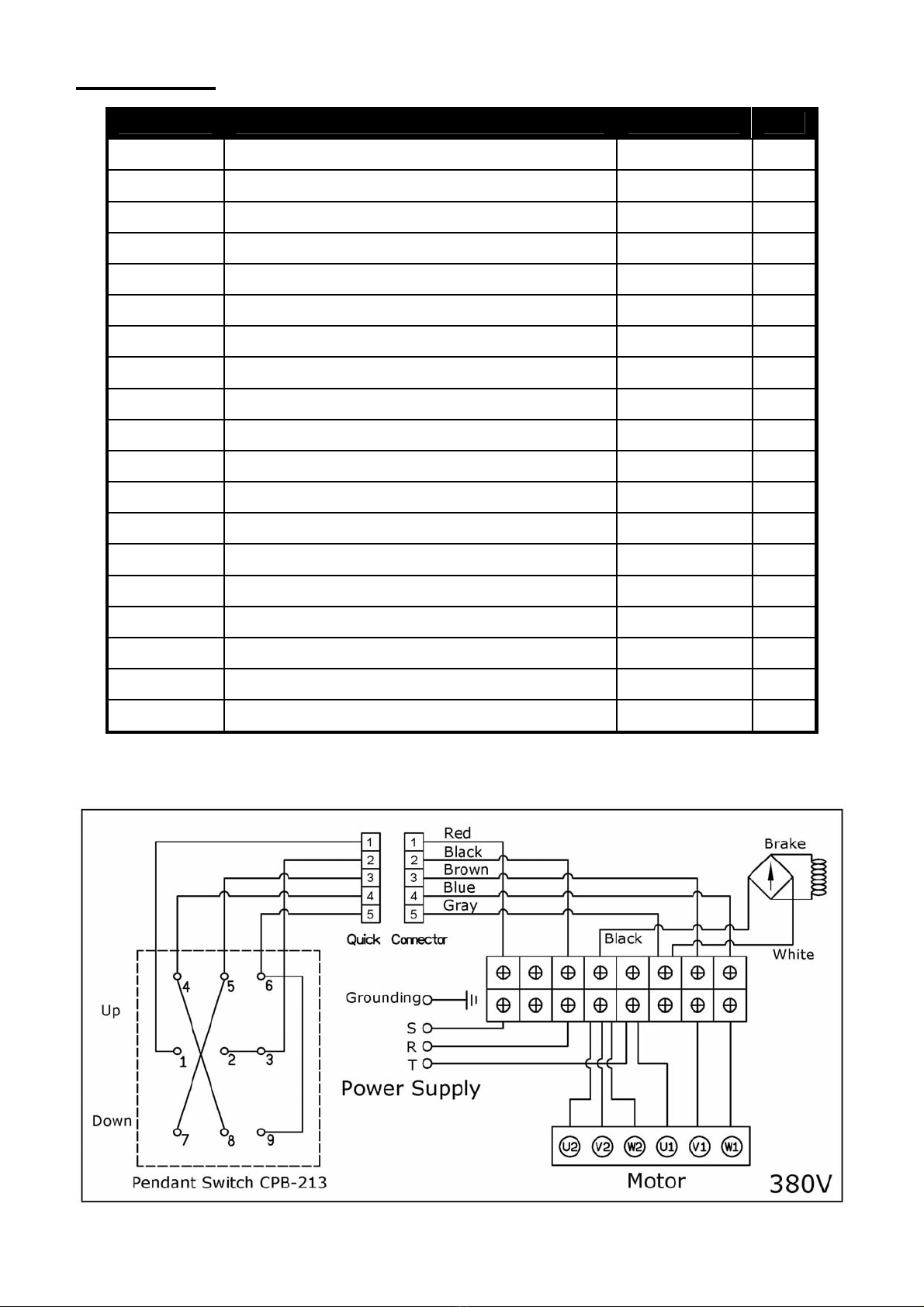

XWiring Diagram

Item No. Description Part No. Qty

1 Induction motor kit 380V 880827 1

2 Control kit 881999 1

2-1 Control box 880957 1

2-2 Remote control, CPB-213 881998 1

3 Motor support rack kit 882002 1

4 Drum kit 882001 1

5 Connect shaft kit 880808 1

6 Gearbox support rack kit 882003 1

7 2nd stage carrier kit 881663 1

8 1st stage carrier kit 881664 1

9 Gear box kit 880814 1

10 1st shaft kit 880815 1

11 Gearbox rear cover kit 880816 1

15 Brake kit DC 200V 882220 1

15-1 Brake disc 882046 1

15-2 Brake coil DC 200V 882221 1

17 Brake cover kit 880822 1

18 Wire rope 882000 2

19 Base plate kit 882004 1

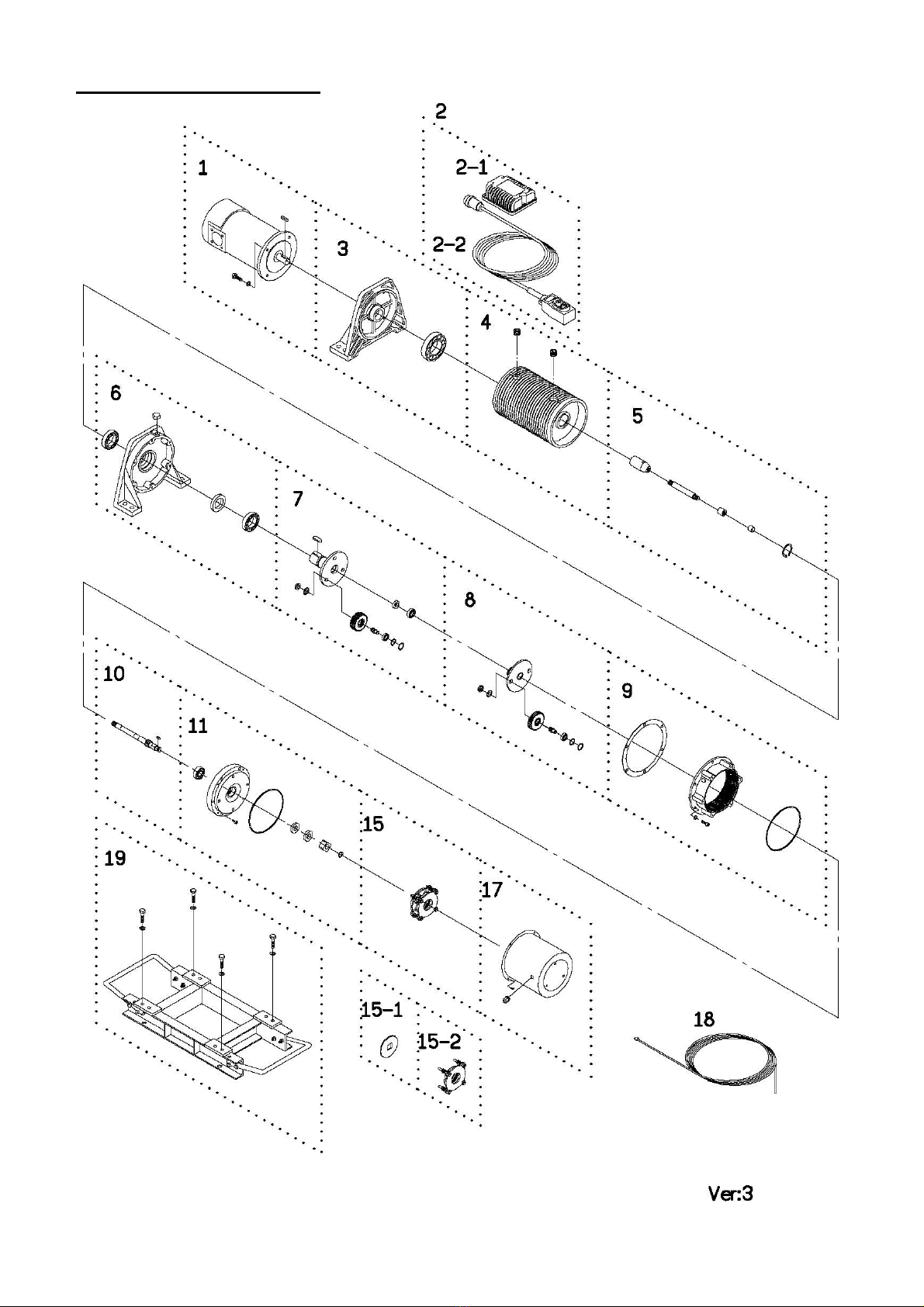

Winch Assembly
