Comelit HFX-9500M User manual

FREE DOWNLOAD

MYCOMELIT, L'APP PER IL PROFESSIONISTA

MYCOMELIT: THE APP FOR PROFESSIONALS

QUICK

REFERENCE

GUIDE

EN FR ES

Single-User Kit HFX-9500M

also available in

French and Spanish

EX-9000H 1209/8EX-B

HFX-9500M Kit

tech sheet

×3 ×3

screws

dry wall

anchors

Nameplate

for 1 user

external unit

×1

YOUR NAME

EX-B - External unit

screwspower supply

×1 ×4

1209/8 - BUS Power supply

EX-9000H - Door entry monitor

Technical manual

screwsmonitor + terminal block

metal frame

support

screwsdry wall

anchors

monitor wall

support

×1 ×1 ×4 ×4

×4

×1

×2

screws

×4

clips for dry

lined walls tech sheet

×2

dry wall

anchors

dry wall

anchors

screws

screws tech sheet

tech sheet

external unit

screwspower supply

door entry

monitor wall

support

metal frame

support

clips for dry

lined walls

monitor + terminal blocks screws

Nameplate

for 1 user

This QRG contains all the basic

informations to install the single-

user kit.

Additional features are available

in the full manual at the web site

pro.comelitgroup.com_HFX-9500M

_ MANUALS

1. Contents of the package

2. Parts identiﬁcation

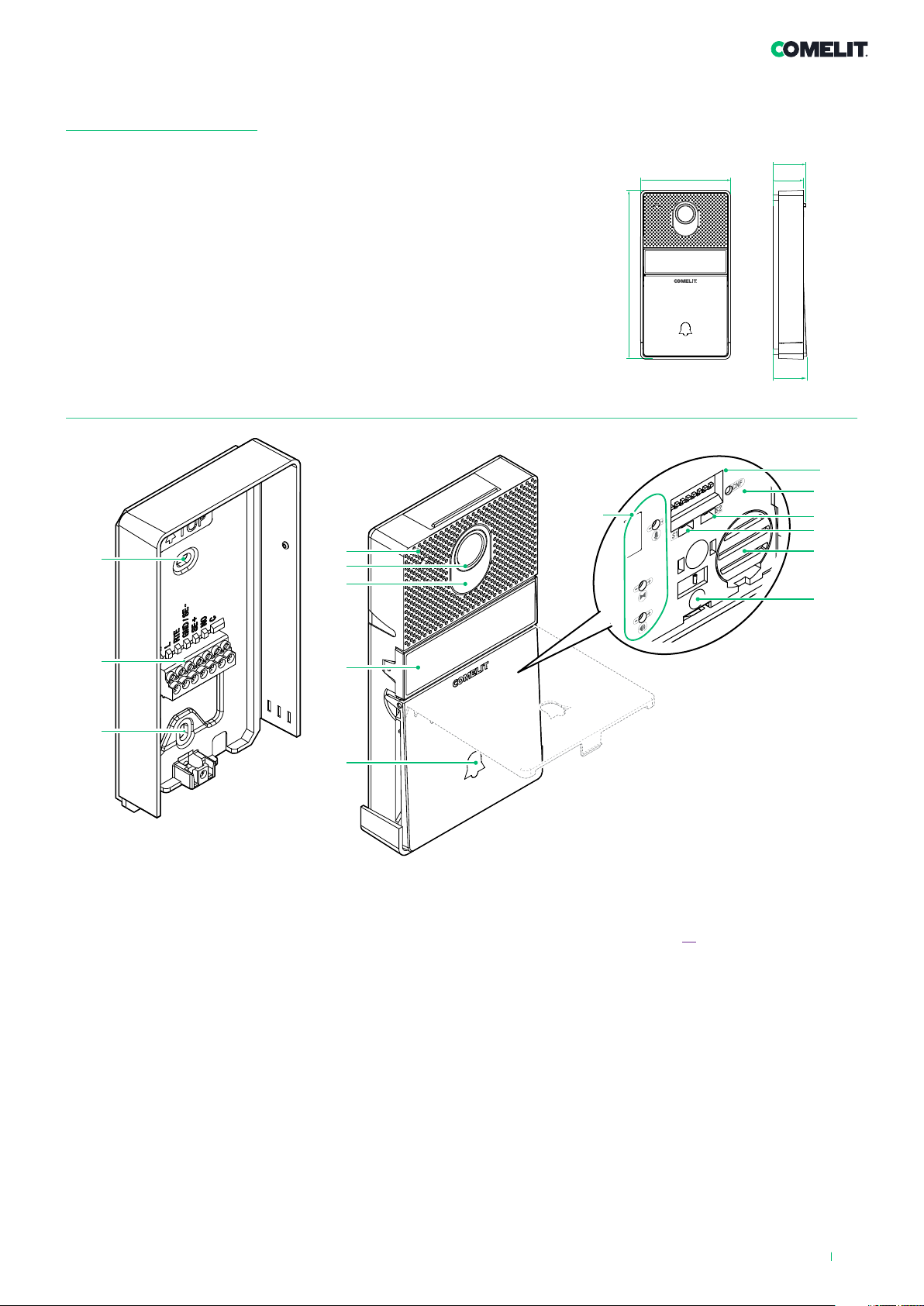

2.1 EX-B EXTERNAL UNIT

3.15 in

5.90 in

1.06

1.14

1.18 in

11.

12.

13.

10.

14.

1. 3.

1. Hole for wall mounting

2. Terminal block

L L bus line connection

RTE programmable RTE (local lock-release input) or

DO input (door open indication)

GND / SE- RTE and door lock input reference negative

SE+ electric door lock connection

NO relay normally open contact

Crelay common contact

3. Microphone

4. Wide-angle colour camera

5. Camera lighting LED

6. Nameplate

7. Call button

8. Adjustment trimmer (See page 16)

9. Addressing and programming DIP-switches

10. CNF Programming confirmation button

11. S2 Special programming selector

12. S1 Button programming selector

13. Loudspeaker

14. Fixing screw

0.98 in

4.88 in

8.77 in

1. 2.

8.7.6.5.4.3.

2.2 EX-9000H DOOR ENTRY MONITOR

1. 7” colour LCD screen

2. Microphone

Audio key / Paging call key

Lock-release key

Keys 1-2-3-4 (programmable)

Self activation key (programmable)

Silent mode (Privacy) key

Audio volume key

Ringtone volume key

Value 'Up/Down' key

Contrast key

Brightness key

3. S1 Micro-switches for user code setting

4. Terminal block for system connection:

LLBus line connection terminals

- + Power supply terminals

IN2 IN1 Input terminals (programmable)

S- S+ Terminals for additional ringtone output

CFP2 CFP1 Outside door call input

5. S2 Micro-switches for programming keys and functions

DIP 1-2-3-4 for key function programming

DIP 5-6 access to programming

DIP 7 unused

DIP 8: leave default setting (OFF)

6. CV6 see the full manual for more information

7. CV1 CV2 unused. Leave default setting (mounted)

8. CV5 Jumper for video closure

Indicator LED description

Audio key LED

steady = audio enabled/hands-free function

continuous flashing = call received

Lock-release LED

1 flash = confirm lock-release

4 flashes = programming successful

10 flashes = programming error

continuous flashing = call received/door open

Silent mode (Privacy) LED / Automatic lock-release

(Doctor mode) LED

4 flashes = device engaged

slow flashing = programming

3 flashes (every 5 s.) = Automatic lock-release enabled

steady = Silent mode enabled

3.5

1. 2.

5.51 in 2.6 in

4.92 in

2.3 1209/8 BUS POWER SUPPLY

1. L1 | L1 door entry monitor connection 1

L2 | L2 door entry monitor connection 2

L3 | L3 door entry monitor connection 3

L4 | L4 door entry monitor connection 4

L5 | L5 door entry monitor connection 5

L6 | L6 door entry monitor connection 6

L7 | L7 door entry monitor connection 7

L8 | L8 door entry monitor connection 8

2. Video closing jumpers

REMOVE WHEN LINE IS USED

3. LP LP external unit connection

4. L N mains power input 110-240 V~

1. 2.

3.55 in

1.42 in 2.28 in

3. System installation

Wire Assignment Wire Assignment Wire Type Amax. Bmax. Cmax.

SINGLE PAIR CABLE CAT5

24AWG

557,74 feet

(170 m)

278,87 feet

(85 m)

278,87 feet

(85 m)

DOUBLE PAIR

CABLE

CAT5

24AWG

656,16 feet

(200 m)

328,08 feet

(100 m)

328,08 feet

(100 m)

MULTI PAIR CABLE

FOLLOW THE COLORS

SHOWN IN THE DIAGRAM!

GREEN

ORANGE

BLU

GREEN / WHITE

ORANGE / WHITE

BLU / WHITE

BROWN / WHITE

BROWN

CAT5

24AWG

1.115,48 feet

(340 m)

557,74 feet

(170 m)

557,74 feet

(170 m)

NON-BRAIDED

CABLE AWG22 787,40 feet

(240 m)

393,70 feet

(120 m)

393,70 feet

(120 m)

NON-BRAIDED

CABLE AWG18 787,40 feet

(240 m)

393,70 feet

(120 m)

393,70 feet

(120 m)

3.1 OPERATING DISTANCES AND SYSTEM LAYOUT

2.4 PARTS IDENTIFICATION FOR EXPANSION

ADDITIONAL INTERNAL UNIT

EX-9000H

The art. EX-9000H is the additional internal unit for Single-User

Kits (see page 4for further information)

ADDITIONAL EXTERNAL UNIT

EX-BSB

1405

EX-B

The art. EX-BSB is the additional external unit for Single-User

Kits and contains the external unit art. EX-B (see page 3for

further information) and the Video door expander art. 1405 (see

point 2.4.1 for further information)

1. LM LM art. 1209/8 connection

2. LS | LS additional external unit connection

LP | LP main external unit connection

2.4.1 Art. 1405 Video door expander

NOTE: This system is capable to expanding up to 4 external units and 8 internal units. For alternative application please consult

our technical support engineer first.

At the first connection on the riser, the internal units automatically acquire theirs sub-addresses.

The LEDs and flash simultaneously for some seconds. After the procedure the LEDs will turn off.

1209/8

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

HFX-9500M

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-B

3.1.2 Maximum Expansion Monitors in Daisy Chain connection

3.1.1 Single-User Kit art. HFX-9500M

1209/8

HFX-9500M

EX-9000H

EX-B

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

Maximum 2 door entry monitors per output

EX-BSB

1405EX-B

The art. EX-BSB is the additional external unit for Single-User Kits and contains the external unit art. EX-B and the Video door

expander art. 1405

1405 1405

1405

1209/8

HFX-9500M

EX-BSB

expansion external unit

EX-BSB

expansion external unit

EX-BSB

expansion external unit

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-9000H

expansion

door entry monitor

EX-B EX-B EX-B EX-B

3.1.3 Full System Expansion Diagram

expansion

door entry monitor

expansion external unit expansion external unit expansion external unit

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

expansion

door entry monitor

Local lock release button

EX-9000H

L L

1 2

1209/8

L1 L1 L2 L2

110-240V

LP LP L3 L3 L4 L4 L5 L5 L6 L6 L7 L7 L8 L8

GND

SE-

EX-B

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

LEAVE DEFAULT SETTINGS

STANDARD INSTALLATION

Basic single-user kit

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

HFX-9500M

REMOVE WHEN LINE IS USED

REMOVE CV5 REMOVE CV5

EX-B

L L

1 2

1209/8

L1 L1 L2 L2

110-240V

LP LP L3 L3 L4 L4 L5 L5 L6 L6 L7 L7 L8 L8

L L

1 2

INS

L L

1 2

L L

1 2

L L

1 2

L L

1 2

INS

L L

1 2

EX-9000H EX-9000H

L L

1 2

S1 A

LEAVE DEFAULT SETTING

1 2 3 4 6 75 8

CV5

Video Closing Jumper

LEAVE DEFAULT SETTINGS LEAVE DEFAULT SETTINGS

LEAVE DEFAULT SETTINGS

Video closing jumper

LEAVE DEFAULT SETTINGS

REMOVE CV5 REMOVE CV5

REMOVE CV5REMOVE CV5

MAXIMUM EXPANSION IN DAISY CHAIN CONNECTION

Expanded single-user kit

REMOVE WHEN LINE IS USED
