Coaster 800307 User manual

COASTERFURNITURE.COM

Fine Furniture for every stage of life

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

PAGE 1 OF 14

REVISION 0 : 11/25/2015

REVISION 1 : 06/13/2019

REVISION 2 : 01/08/2020

800307

BOOKCASE

800307

ITEM:

COASTERFURNITURE.COM

PAGE 2 OF 14

ASSEMBLY INSTRUCTIONS

ASSEMBLY TIME

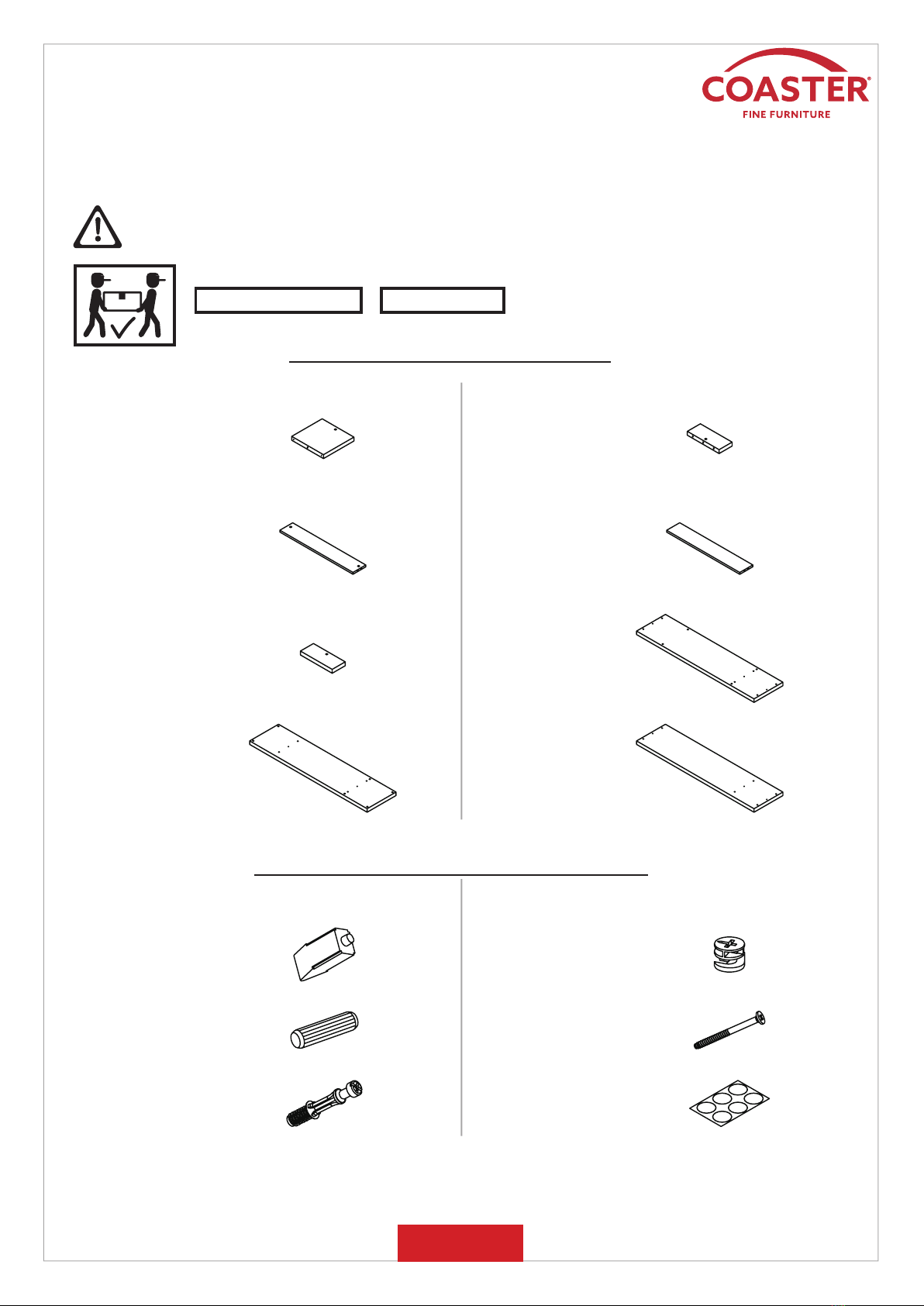

PARTS IDENTIFICATION

60 MINUTES

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

WARNING!

1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately.

2. This product is for home use only and not intended for commercial establishments.

NOTE:

Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.

HARDWARE IDENTIFICATION

NO DESCRIPTION FIGURE Q’TY

1GLUE 40g 1PC

2WOODEN DOWEL

Ø 8x30mm 72PCS

3CAM BOLT

Ø 7x35.5mm 22PCS

NO DESCRIPTION FIGURE Q’TY

4CAM LOCK

Ø 15x12mm 22PCS

5BOLT

Ø 9.5x55mm 36PCS

6STICKER

Ø 20mm 4PCS

ASIDE PANEL 12PCS

BLOWER BACK

PANEL 1PC

CLOWER DIVIDER

PANEL 2PCS

DBOTTOM PANEL 4PCS

EUPPER DIVIDER

PANEL 6PCS

FUPPER BACK

PANEL 3PCS

GCROSS PANEL 3PCS

HTOP PANEL 1PC

800307

ITEM:

PAGE 3 OF 14 COASTERFURNITURE.COM

E x6

F x3

D x4 3

A x12

G x3

3 x22

C x2

2 x72

INCORRECT

CORRECT

STEP 1

Apply glue on all wooden dowels to

ensure integrity of the structure.

800307

ITEM:

PAGE 4 OF 14 COASTERFURNITURE.COM

4 x3

STEP 2

STEP 3

Apply glue on all wooden dowels to

ensure integrity of the structure.

5 x6

800307

ITEM:

PAGE 5 OF 14 COASTERFURNITURE.COM

STEP 4

STEP 5

Apply glue on all wooden dowels to

ensure integrity of the structure.

x 3

4 x2

800307

ITEM:

PAGE 6 OF 14 COASTERFURNITURE.COM

STEP 6

STEP 7

Apply glue on all wooden dowels to

ensure integrity of the structure.

5 x4

4 x2

4 x1

800307

ITEM:

PAGE 7 OF 14 COASTERFURNITURE.COM

STEP 8

STEP 9

Apply glue on all wooden dowels to

ensure integrity of the structure.

5 x6

4 x2

800307

ITEM:

PAGE 8 OF 14 COASTERFURNITURE.COM

STEP 10

STEP 11

Apply glue on all wooden dowels to

ensure integrity of the structure.

5 x4

4 x2

554

4 x1

800307

ITEM:

PAGE 9 OF 14 COASTERFURNITURE.COM

STEP 12

STEP 13

Apply glue on all wooden dowels to

ensure integrity of the structure.

F4 x2

5 x6

800307

ITEM:

PAGE 10 OF 14 COASTERFURNITURE.COM

STEP 14

STEP 15

Apply glue on all wooden dowels to

ensure integrity of the structure.

4 x2

5 x4

4 x1
