CMA Dishmachines UC60E User manual
www.cmadishmachines.com
MODELUC60e
PARTS MANUALRev 1.00A
DISTRIBUTED EXCLUSIVELY BY
CMA DISHMACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841
800-854-6417
FAX 714-895-2141
TABLE OF CONTENTS
MODEL UC60e
1. PARTS MANUAL.......................................................................................... 3
1.1. MECHANICAL DRAWINGS....................................................................................................... 3
1.1.1. General Body Parts ....................................................................................................... 3
1.1.2. Lockup System ............................................................................................................... 4
1.1.3. Command Electronic Control........................................................................................ 5
1.1.4. Electric Control Components ........................................................................................ 6
1.1.5. Solenoid Valve Group.................................................................................................... 7
1.1.6. 3 Ways Connection........................................................................................................ 7
1.1.7. Rinse With Steady Temperature..................................................................................... 8
1.1.8. Booster Pump ................................................................................................................ 9
1.1.9. Rinse Aid Dispenser Group ......................................................................................... 10
1.1.10. Detergent Dispenser Group......................................................................................... 11
1.1.11. Boiler Group................................................................................................................ 12
1.1.12. Wash Pump.................................................................................................................. 13
1.1.13. Drain pump Group ...................................................................................................... 14
1.1.14. Pressure Switch Group................................................................................................ 14
1.1.15. Turret Group................................................................................................................ 15
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
2
Parts Manual
1. Parts Manual
1.1. Mechanical Drawings
1.1.1. General Body Parts
ID P- Code DESCRIPTION ID P- Code DESCRIPTION
4300 560917 Cover 4345 560021 Profile for door O-ring
4305 560938 Back panel 4355 560020 Drain pump Overflow pipe
4310 560900 Body 4360 13021 DEM 40 O-ring (minimum 2 pieces)
4315 15065/A Cable-fastener with screw 4365 11711 M10 zinc plated nut (minimum 20 pcs)
4320 560925 Surface filter 4370 13317 D.40mm unloading pipe (min 2 pcs)
4325 15188 2,7KW - 230V heating element 4375 13323 D.13mm dosing pipe (minimum 2 pcs)
4330 560914 Right side 4380 500606 Right side scrap tray
4335 560915 Left side
4385 80208 D 95x75x3 O-ring
4340 10786 M10x25 040 black foot (minimum 4 pcs) 4390 500601
Right nut
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
3
Parts Manual
1.1.2. Lockup System
ID P- Code DESCRIPTION ID P- Code DESCRIPTION
40900 560963 Door with steel handle 40930 560007 Left lock for door hinge (min 2 pcs)
40905 560920 Lower door 40935 10770 Insulation door micro switch (min 3 pcs)
40910 560955 Neutral Stainless steel handle 40940 560021 Profile for door O-ring
40915 10704 Door microswitch 40945 11220 M4xl4 TCB-CR Inox Screw
40920 570200 Door spring 40950 11226 M4 Inox Plated nut
40925 560006 Right lock for door hinge (min 2 pcs)
40955 560013 Profile for lower-door O-ring
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
4
Parts Manual

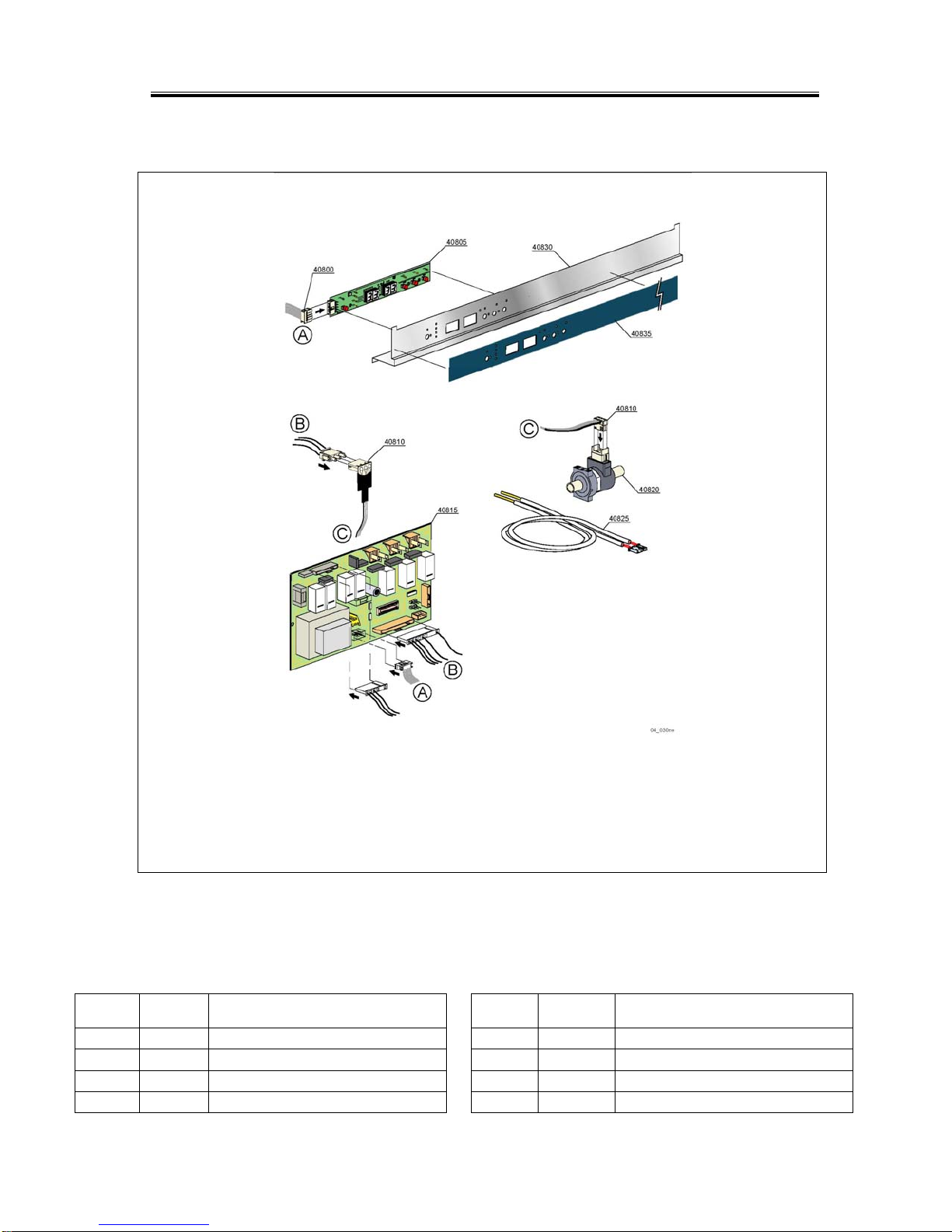

1.1.3. Command Electronic Control
ID P- Code DESCRIPTION ID P- Code DESCRIPTION
40800 50582 Plug L=2300mm 40820 50583 Water flow meter for board
40805 50581 Touch sensitive 40825 50593 Temperature probe set
40810 50584 Water float board 40830 560964 Control Panel
40815 50592 Electronic timer with main board
40835 560986 Silckscreen processed grill
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
5
Parts Manual
1.1.4. Electric Control Components
ID P- Code DESCRIPTION ID P- Code DESCRIPTION
4610 16047 16A tripolar relay - 230Vac 50/60Hz 4635 560921 Electric components panel
4615 500551 6 poles terminal board
4640 2000430 Safety thermostat
4620 10300052 36A/20A contactor 3NA 230Vac 50/60Hz 4655 10706/A 47-27 “EL“Pressure switch
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
6
Parts Manual
1.1.5. Solenoid Valve Group
ID P- Code DESCRIPTION ID P- Code DESCRIPTION
700 10703 Single solenoid valve - 230Vac 730 11807 12/22 clamp (minimum 3 pieces)
720 N.C. Pressure reducing valve
735 13307 3/4 gasket
1.1.6. 3 Ways Connection
ID P- Code DESCRIPTION
30800 540091
012 mm plastic 3 ways connection
30805 11807 12/22 clamp (minimum 3 pieces)
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
7
Parts Manual
1.1.7. Rinse With Steady Temperature
ID P- Code DESCRIPTION ID P- Code DESCRIPTION
41200 15735 Break tank assembly 41280 560062 Boiler
41205 15721 BT middle pipe L=920 41285 150891 6000/6530W 230/240V heating elem.
41210 2907352
PVC WRAS rubber hose 41286 15100/S
Rotating seals
41215 x Pipe coupling
41287 15100/T
OR (O-ring) gasket EPDM
41220 10706/A
47-27 pressure switch 41288 15100/U
Pump rotor
41240 540098
3 ways D25 41289 15100/V
Scroll
41265 10702 5 uF condenser 41290 13015 OR (O-ring) 6225 gasket 160 NBR
41270 10512 220/240V 60 Hz Plus Rinsing pump 41291 12533 Reinforce for pipe in exit ( break rank )
41275 10718 Pump pipe coupling
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
8
Parts Manual
1.1.8. Booster Pump
ID P- Code DESCRIPTION ID P- Code DESCRIPTION
7500 10512 220/240V 60 Hz Plus Rinsing pump 7512 15100/T OR (O-ring) gasket EPDM
7510 10702 5 uF condenser - 450V
7513 15100/U Pump rotor
7511 15100/S Rotating seals 7514 15100/V Scroll
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
9
Parts Manual
1.1.9. Rinse Aid Dispenser Group
ID P- Code DESCRIPTION ID P- Code DESCRIPTION
45155 10705/M
Spring 45200 10705/T
Sphere made of Teflon
45160 10705/N
Disc to membrane 45205 10705/R
Brass pipe fitting
45165 10705/O
Membrane 45210 10705/E
OR-gasket Guide valve
45175 12506 Rubber-holder
0
10mm
45215 12525 Ballast
45180 10705/G
Pipe fitting 45220 15058 Small filter (minimum 3 pieces)
45185 10705/C
OR-gasket
45225 10799/G
GERMAC rinse aid dispenser
45190 10705/D
Silicone valve 45231 540091 012 mm plastic 3 ways connection
45195 10705/C
OR-gasket
45232 11807 Clamp 12-22 (minimum 3 pieces)
MODEL UC60E PARTS MANUAL Rev. 1.00A Page
10
