CMA Dishmachines GL-X User manual

www.cmadishmachines.com

MODEL GL-X

PARTS MANUAL

Rev. 1.04

800-854-6417

FAX 714-895-2141

CMA DISHMACHINES

12700 KNOTT AVENUE

GARDEN GROVE, CALIFORNIA 92841

TABLE OF CONTENTS

MODEL CMA-GL-X

1. PARTS MANUAL ..........................................................................................3

1.1. INITIAL PARTS KIT (P/N 4001.00)................................................................................................... 3

1.2. OPTIONAL SANI ALARM .................................................................................................................. 4

1.3. EXPLODED VIEW DRAWINGS........................................................................................................... 5

1.3.1. Cabinet Assembly ................................................................................................................... 5

1.3.2. GLX Door Assembly............................................................................................................... 6

1.3.3. Spray System Assembly........................................................................................................... 7

1.3.4. S/S Pump Assembly (Effective August 2009).......................................................................... 8

1.3.5. Pump Assembly....................................................................................................................... 9

1.3.6. Plumbing System Assembly (Effective August 2012).............................................................10

1.3.7. Plumbing System Assembly....................................................................................................11

1.3.8. Drain System Assembly..........................................................................................................12

1.3.9. Control Box ...........................................................................................................................13

1.3.10. Power Box .............................................................................................................................14

1.3.11. Peristaltic Pump Assembly ....................................................................................................15

1.3.12. Drain Valve ...........................................................................................................................16

1.3.13. Drain Valve (Effective January 2011)...................................................................................17

1.3.14. GLX Heater Assembly............................................................................................................18

Parts Manual

MODEL GL-X PARTS MANUAL Rev. 1.04Page

1. Parts Manual

1.1. Initial Parts Kit (P/N 4001.00)

P/N DESCRIPTION Qty

00200.10 Pump Assy, 110/220V 60 Hz, Open 1

00206.30 Pump Seal Kit 1

00208.40 Slip Joint Nut Gasket 1

00304.03 Spray Arm B GL-X 1

00308.50 Spray Arm End Plug SS 1

00404.82 Motor Contactor Relay 1

00411.00 Micro Switch 1

00415.00 Peristaltic Pump Assembly, 120V/60Hz 1

00421.40 Fill/Start Rocker Switch 1

00425.51 Chemical Tubing Blue 50 ft.

00425.53 Chemical Tubing Red 50 ft.

00425.54 Chemical Tubing White 50 ft.

00458.00 Squeeze Tube, Black (Detergent) 1

00501.00 Timer Motor, 2-Minute 1

00556.10 Reed Switch, ISI 1

00715.00 1/2 Ball Check Valve 1

02257.00 Squeeze Tube, 8”, Silicone 1

02257.30 Squeeze Tube, 30” 1

03415.00 Chemical Tube Bulkhead 1

03415.60 Chemical Bulkhead (Teflon) Assy 1

03480.00 Drain Rocker Switch 1

03604.30 Dema Valve Repair Kit 3/8",1/2" & 3/4 1

04110.00 SS L1-C/L-1X Drain Screen 1

04113.00 GL-X Drain Valve, 120V 1

04303.00 GL-X Spray Arm Bearing 1

04305.10 Red Silicone Gasket, 1/16 Thick 1

04517.15 Door Stop (Parallel) 1

NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical

parts in the event your machine should require emergency service. All the parts

included in this kit are unique to the GL-X glasswasher.

Parts Manual

MODEL GL-X PARTS MANUAL Rev. 1.04Page

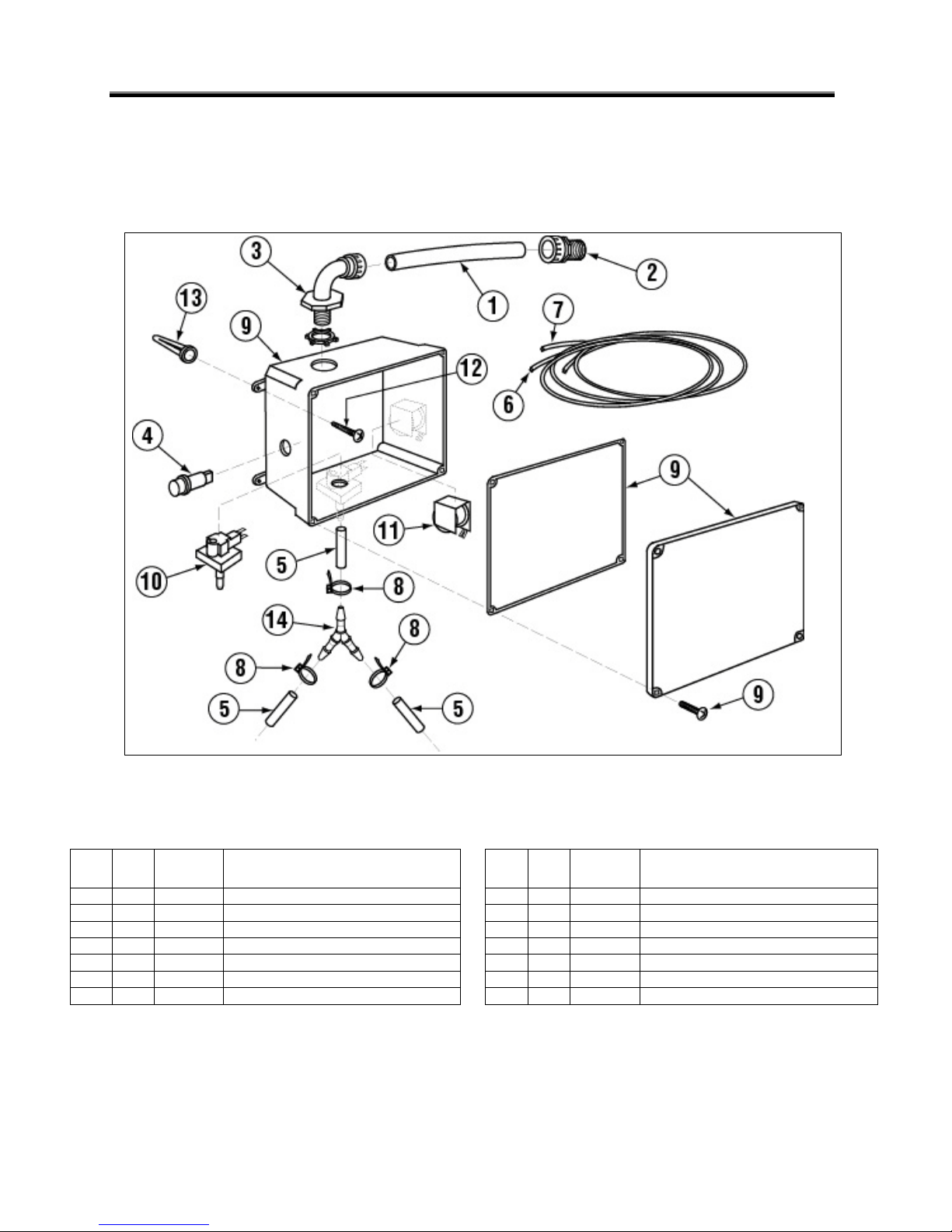

1.2. Optional Sani Alarm

Part Number 12508.00

Exploded View

ITEM

NO. NO.

REQ’D

P/N DESCRIPTION ITEM

NO. NO.

REQ’D

P/N DESCRIPTION

00400.00

Conduit, 3/8” Sealtite

00931.00

Wire Tie, Small

00401.00

S.T. 3/8” Straight Connector

12510.00

Sanitizer Alarm Box Assembly

00402.00

S.T. 90 Degree 3/8” Connector

12511.00

Sanitizer Low Level Vacuum Switch

00406.00

Control Box Light, .5” Diameter, Red

12512.00

Sanitizer Alarm Buzzer, 120 Volts

00435.00

Squeeze Tube, 8”

40126.10

#10 x 3/4" Sheet metal Screw

6 1 00521.00 Wire, 18 Gauge, Orange, 6 ft. 13 4 40127.00 Wall Anchors

00531.00

Wire, 18 Gauge, White, 6 ft.

00426.00

Y Hose Connector, 3/16”

Parts Manual

MODEL GL-X PARTS MANUAL Rev. 1.04Page

1.3. Exploded View Drawings

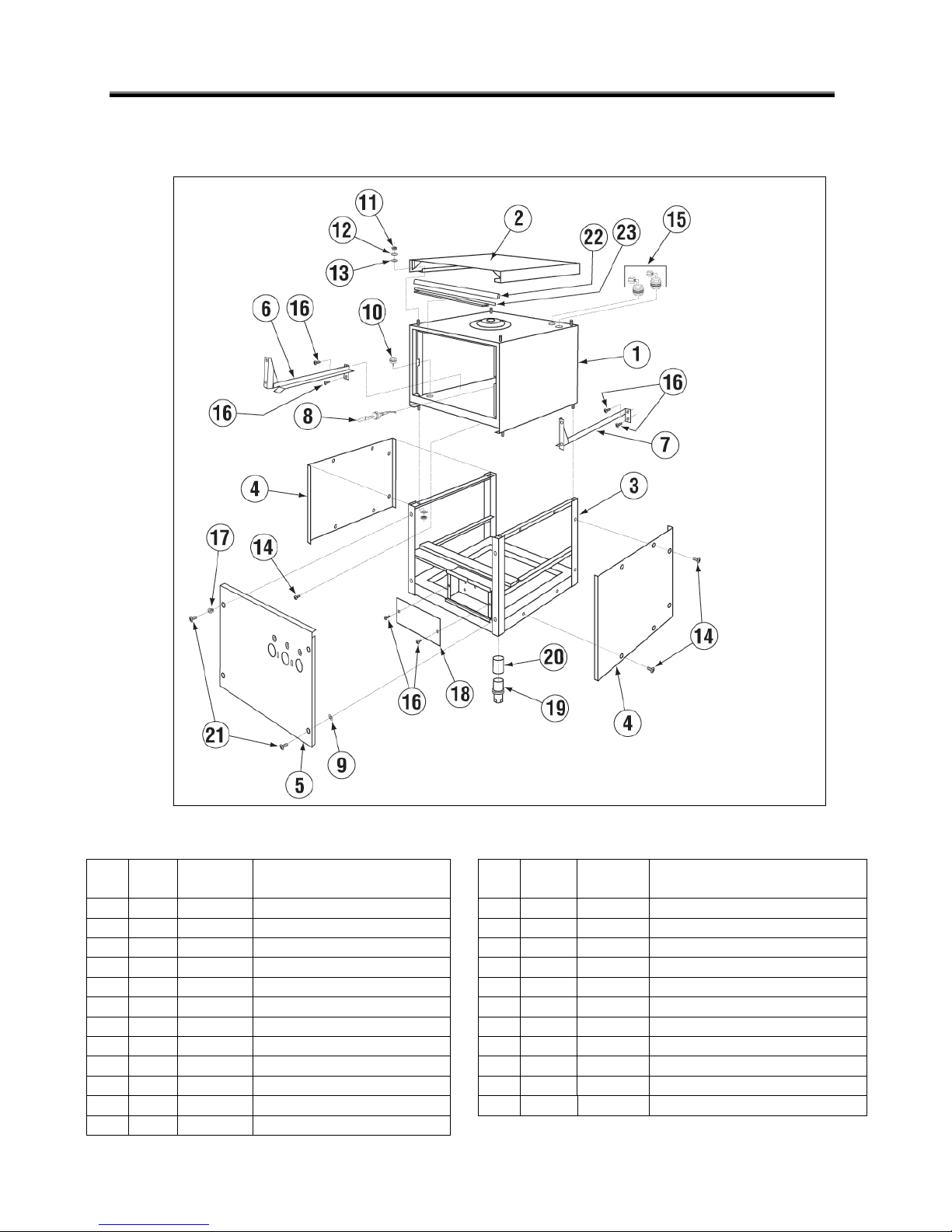

1.3.1. Cabinet Assembly

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 15901.62 GL-X Body 13 1 00924.00 ¼” SS Washer

2 1 14503.50 GL-X EZ Top 14 2 00940.50 10-32 X 3/8” Truss Head Screw

3 1 15902.62 GL-X Stand 15 2 03415.00 Chemical Tube Bulkhead

4 2 15902.84 GL-X Stand Panel 16 16 00941.00 10-32 X 5/8” Panhead Screw

5 1 15915.62 GL-X Peri-Pump Panel 17 12 00439.00 Snap Bushing 500-6

6 1 04912.60 GL-X Tray Track (LH) 18 1 15922.62 GL-X Electrical Cover

7 1 04911.60 GL-X Tray Track (RH) 19 4 01310.00 Bullet Foot

8 1 13463.10 Liquid Level Switch 20 4 01572.64 GL-X Leg

9 2 03816.00 Nylon Retaining Washer 21 4 00941.00 10-32 X 5/8” Panhead Screw

10 1 03415.60 Chem. Tube Bulkhead 22 1 14506.50 Door Gasket

11 12 00912.00 ¼” SS Nut 23 1 14506.45 Gasket Bracket

12 4 00922.00 ¼” Lock Star Washer

Parts Manual

MODEL GL-X PARTS MANUAL Rev. 1.04Page

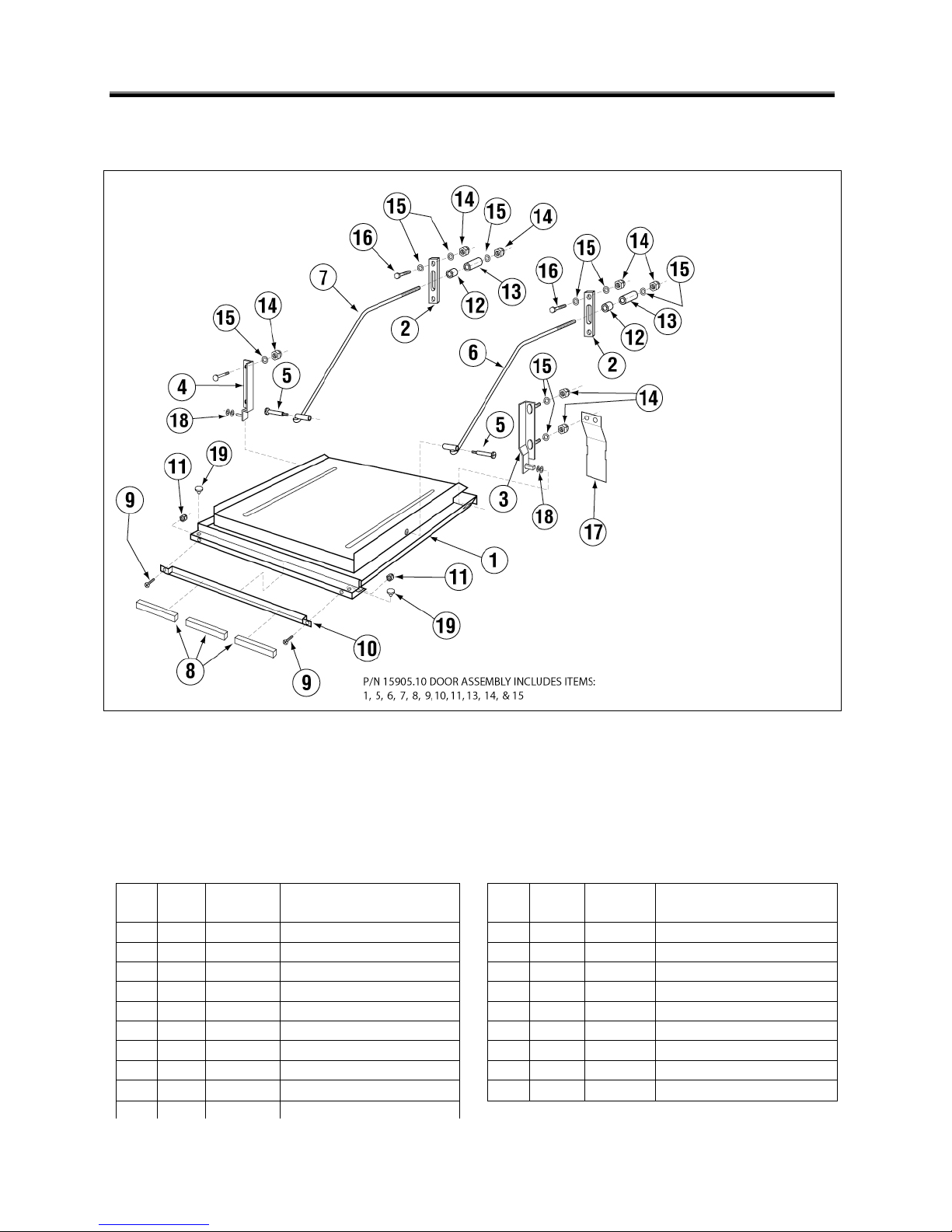

1.3.2. GLX Door Assembly

P/N 15905.10 DOOR ASSEMBLY INCLUDES ITEMS: 1,5,7,9,10,11,13,14 & 15.

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 15906.60 GL-X Door 11 2 00965.00 6-32 Lock Nut

2 2 04517.60 Door Support Rod Block 12 2 00605.20 Door Rod Spacer

3 1 14570.00 Door Hinge 13 2 04517.15 Door Stop (Parallel)

4 1 14570.50 Door Hinge (LH) 14 10 00912.00 1/4"-20 Nylon Lock Nut

5 2 04919.00 Door Rod Screw 15 14 00924.00 1/4" SS Washer

6 1 04918.60 Door Support Rod Right 16 4 00914.10 1/4"-20 x 5/8” Hex Head Bolt

7 1 04919.50 Door Support Rod Left 17 2 14518.00 Splash Guard

8 2 00557.80 Door Magnet 18 4 00924.00 1/4" SS Washer

9 2 00970.60 6 32 x 1/2" Flathead Screw 19 2 00605.00 Door Handle Button

10 1 14558.61 Door Magnet Holder

Parts Manual

MODEL GL-X PARTS MANUAL Rev. 1.04Page

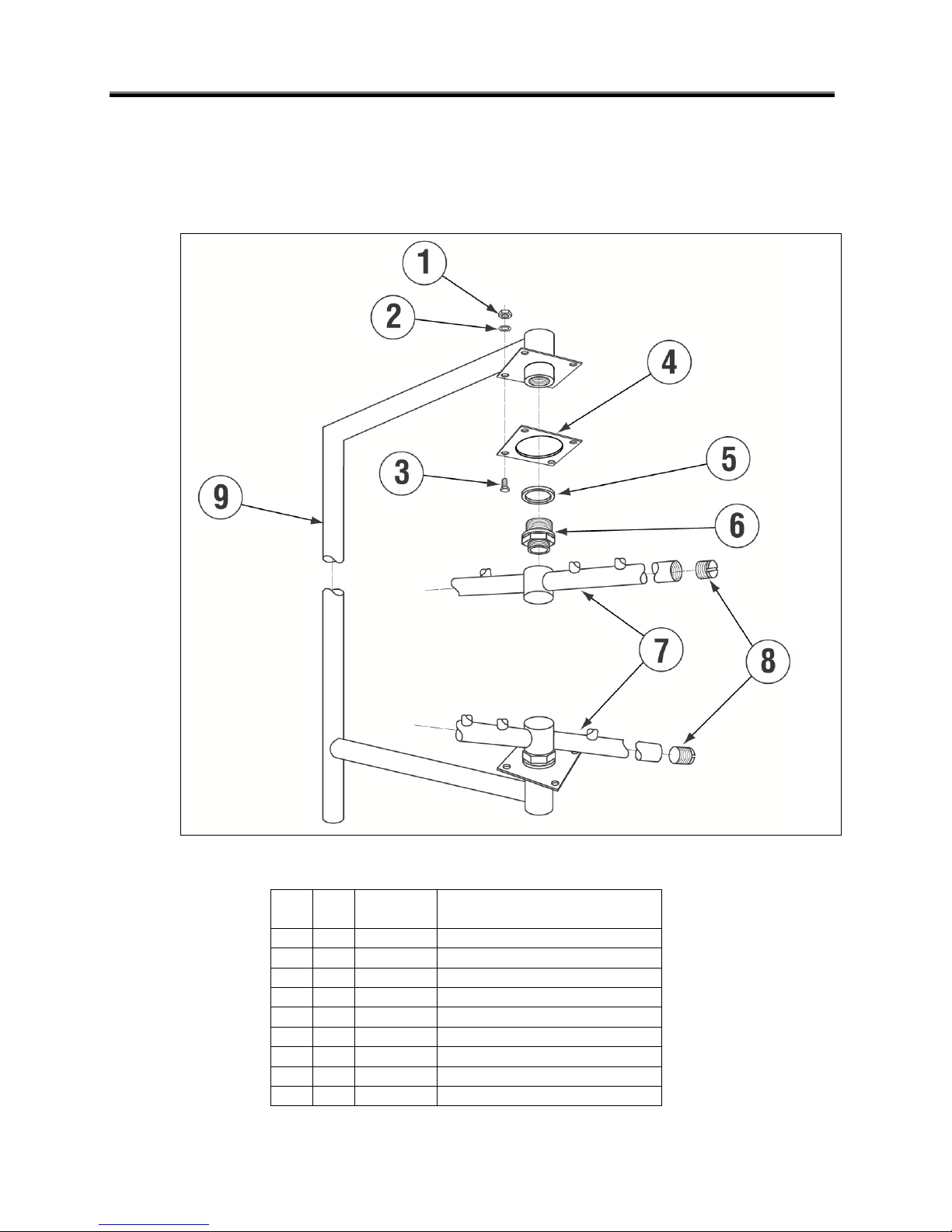

1.3.3. Spray System Assembly

ITEM

NO. NO.

REQ’D

P/N DESCRIPTION

1 8 00912.00 1/4"-20 Nylon Lock Nut

2 16 00924.00 1/4" SS Washer

3 8 00929.00 1/4"-20 x 3/4" Truss Head Bolt

4 2 04306.00 Square Manifold Gasket

5 2 04305.10 Red Silicon Gasket

6 2 04303.00 Spray Arm Bearing

7 2 00304.03 Spray Arm “B” Series

8 4 00308.50 Spray Arm End Plug

9 1 04304.00 GL-X Spray Manifold

Parts Manual

MODEL GL-X PARTS MANUAL Rev.1.04Page 8

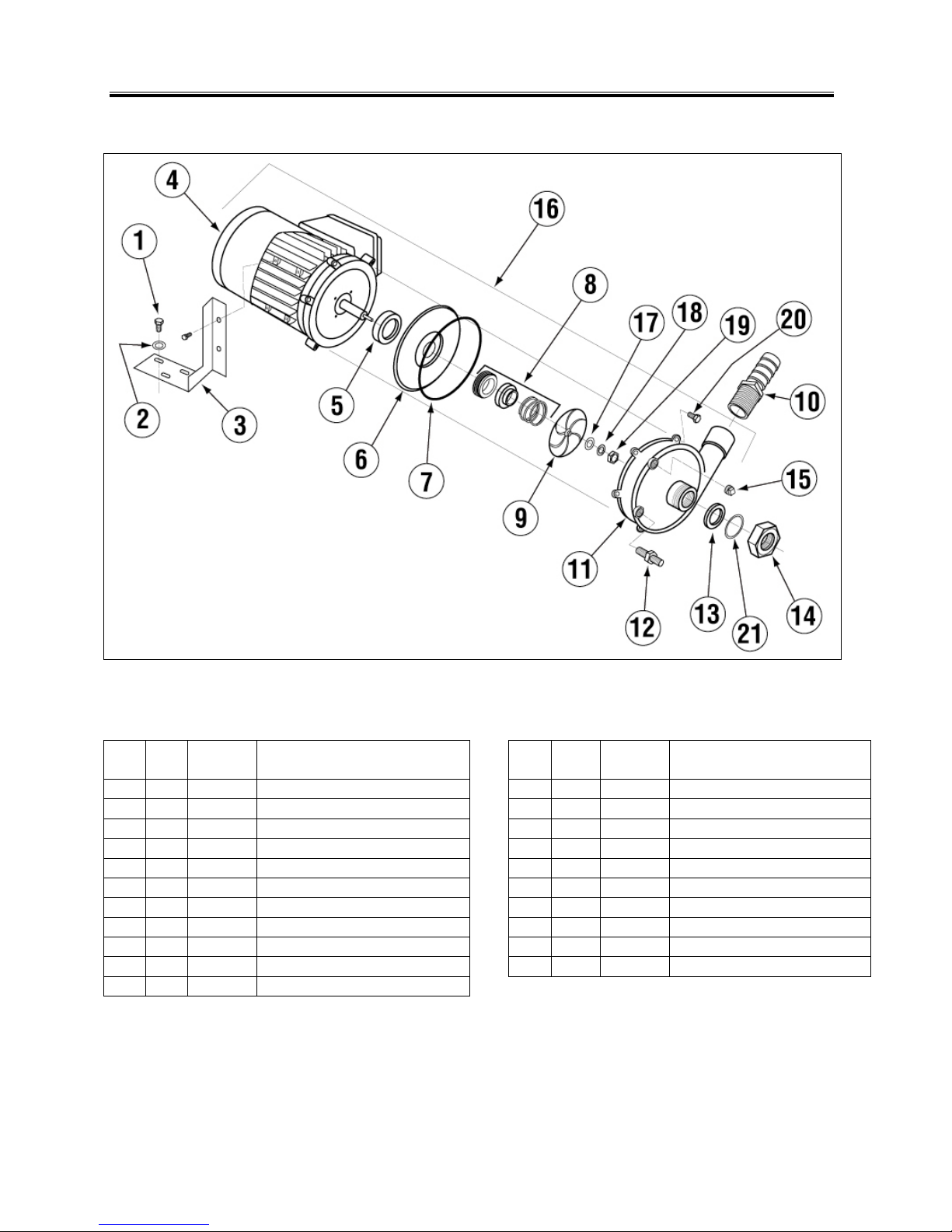

1.3.4. S/S Pump Assembly (Effective August 2009)

Item not shown are the same as #20 in old assembly

ITEM

NO. NO.

REQ’D

P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 3 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 12 1 00214.50 1/2" Comp x 3/8” MIP Adapter

2 3 00926.00 5/16” SS Washer 13 1 00208.40 Slip Joint Nut O Ring Buna

3 1 00200.78 SS Pump Motor Holder "L" 14 1 00207.00 Slip Joint Nut 1 1/2 x 1 1/4

4 1 00201.65 SS Wash Pump Motor 115v 15 1 00238.00 3/8” Male Plug

5 1 00201.96 Slinger Washer Cone Shape 16 1 00200.75 Includes Items 4,5,6,7,8,9,and 11

6 1 03224.60 SS Pump Backplate 17 1 03222.74 Flat Washer 8 mm

7 1 03226.70 Volute O-Ring For SS Pump 18 1 03222.72 Shaft Nut Lock Washer 8mm

8 1 00206.70 SS Pump Seal Kit 19 1 13809.70 SS Pump Seal Shaft Nut 8mm

9 1 03222.60 SS Pump Impeller 20 6 00914.70 Socket Head Screw 10 mm

10 1 50302.10 1" MPT x 1" Barb Brass 21 1 00208.21 Slip Joint Nut Friction Ring

11 1 04206.75 SS Pump Cover

Parts Manual

MODEL GL-X PARTS MANUAL Rev. 1.04Page

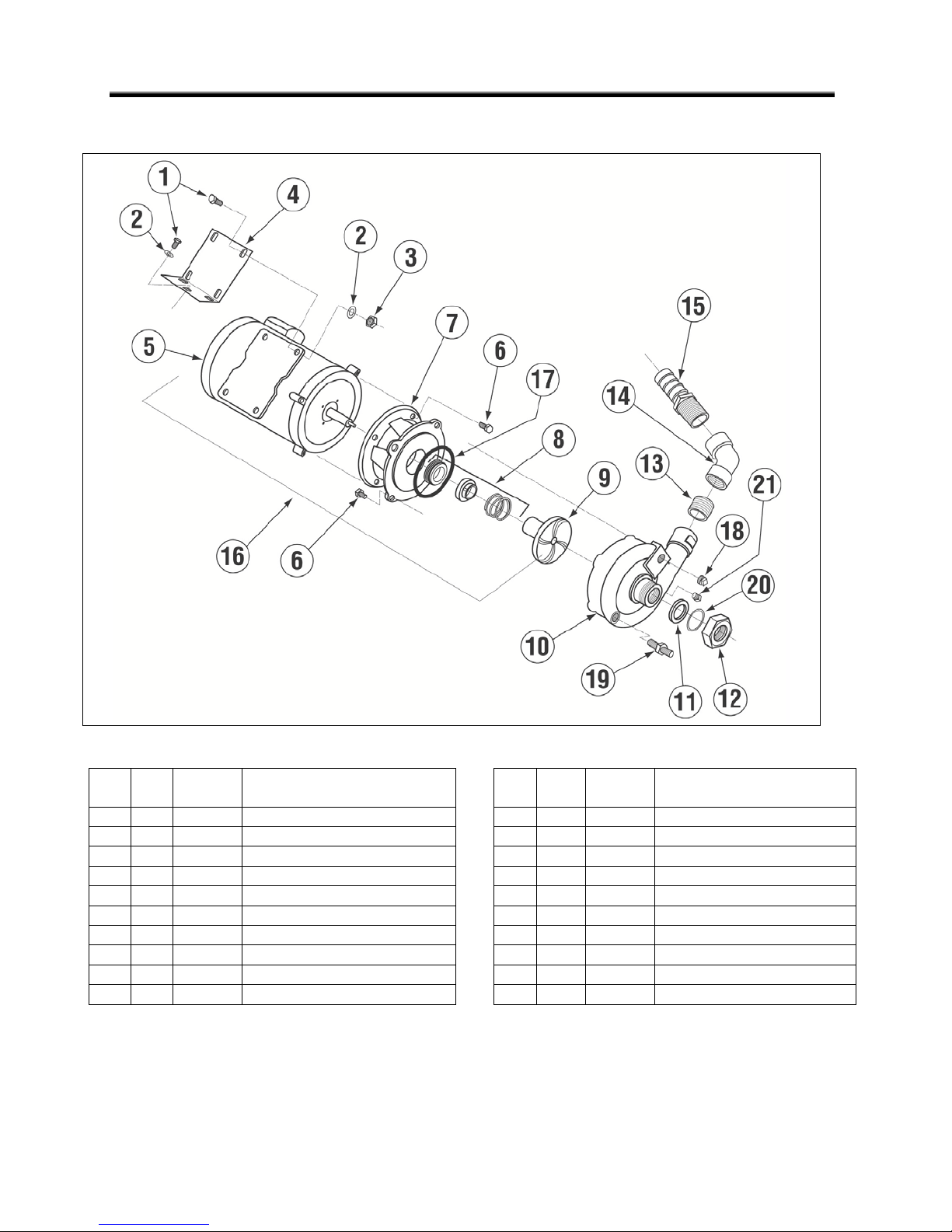

1.3.5. Pump Assembly

ITEM

NO. NO.

REQ’D

P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 7 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 11 1 00208.40 Slip Joint Nut Gasket

2 7 00926.00 5/16” SS Washer 12 1 04204.00 Compression Nut 2.5”

3 4 13805.00 5/16”-18 Nylon Lock Nut 13 1 14004.00 1” close Nipple SS

4 1 04909.00 Motor Mount 14 1 04601.00 45 Degree Elbow FIP x FIP

5 1 00201.00 Pump Motor 1 HP 15 1 50302.06 1” MIP x 1” Barb PVC

6 8 00921.00 3/8”-16 x 3/4" Hex Bolt 16 1 00200.10 Includes Items 5, 7,8, 9 & 17

7 1 03224.00 Pump Base (Mount) 17 1 03226.00 Pump “O” Ring Gasket

8 1 00206.00 Pump Seal Kit 18 1 00238.00 3/8” Male Plug

9 1 03222.05 Impeller (universal) open 19 1 00214.50 1/2" Comp x 3/8” MIP Adapter

10 1 04206.00 Pump cover 20 1 00208.21 Slip Joint Nut Friction Ring

Parts Manual

MODEL GL-X PARTS MANUAL Rev.1.04Page 10

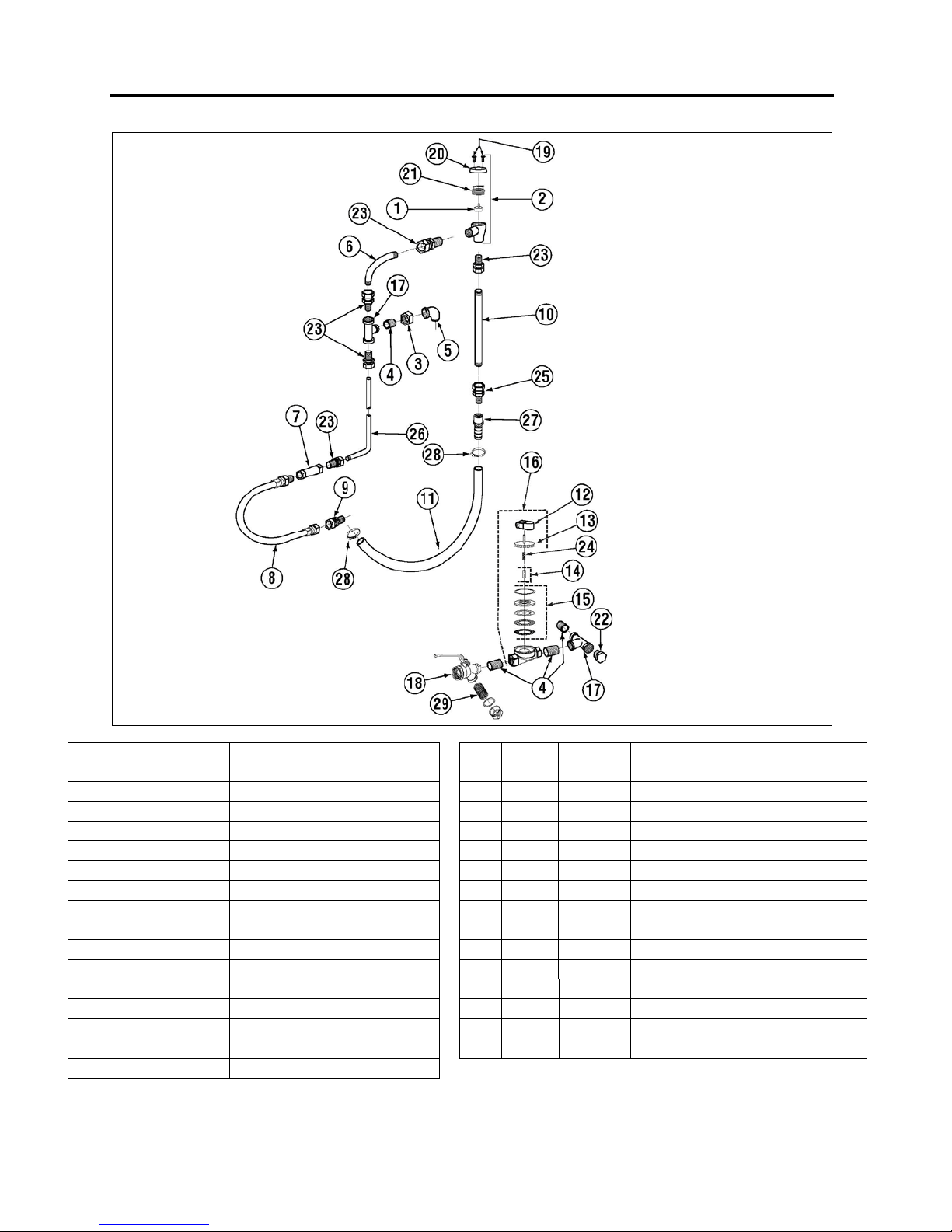

1.3.6. Plumbing System Assembly (Effective August 2012)

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 03623.00 1/2" Vac. Brkr Repair Kit – WATTS 16 1 03603.10 JE ½” Solenoid Valve

2 1 03624.00 1/2" Vacuum Breaker – WATTS 17 2 00743.10 1/2" Tee FxFxF

3 1 00721.00 1/2" Jamb Nut 18 1 41062.00 1/2 Strainer Ball Valve*

4 4 03614.00 1/2" Brass (Close) Nipple 19 2 00421.51 6-32 X ¼” Panhead SS

5 2 00748.50 1/2" Shrub Head 20 1 00739.50 Vacuum Breaker Cap SS

6 1 04605.82 GL-X “U” Tube 21 1 03624.25 Vacuum Breaker Bonnet Brass

7 1 00715.00 Ball Check Valve 22 1 13642.00 ½” Brass Plug

8 1 15401.50 SS Braided Hose 23 6 00760.00 5/8" Comp. X ½”M.I.P. Adapter

9 1 00214.50 1/2" Comp x 3/8” MIP FTG 24 1 00706.10 Solenoid Plunger Spring Only

10 4 04605.84 GL-X Straight Tube 25 1 00761.00 5/8 Comp X 3/4 MIP Adapter

11 1 03108.60 Transfer Hose 1" Reinforced 2 ft 26 1 04606.00 GL-X L tube

12 1 00738.10 JE Solenoid Coil 27 1 50302.20 3/4" F X 1" Barb Plastic Fitting

13 1 03603.20 1/2" Water Solenoid Bonnet 28 2 03101.00 Hose Clamp # 16 1"

14 1 00786.00 JE Solenoid Valve Plunger 29 1 41062.00 ^ 1/2 Ball Valve Strainer Only

15 1 00707.00 JE ½” Solenoid Rep. Kit
